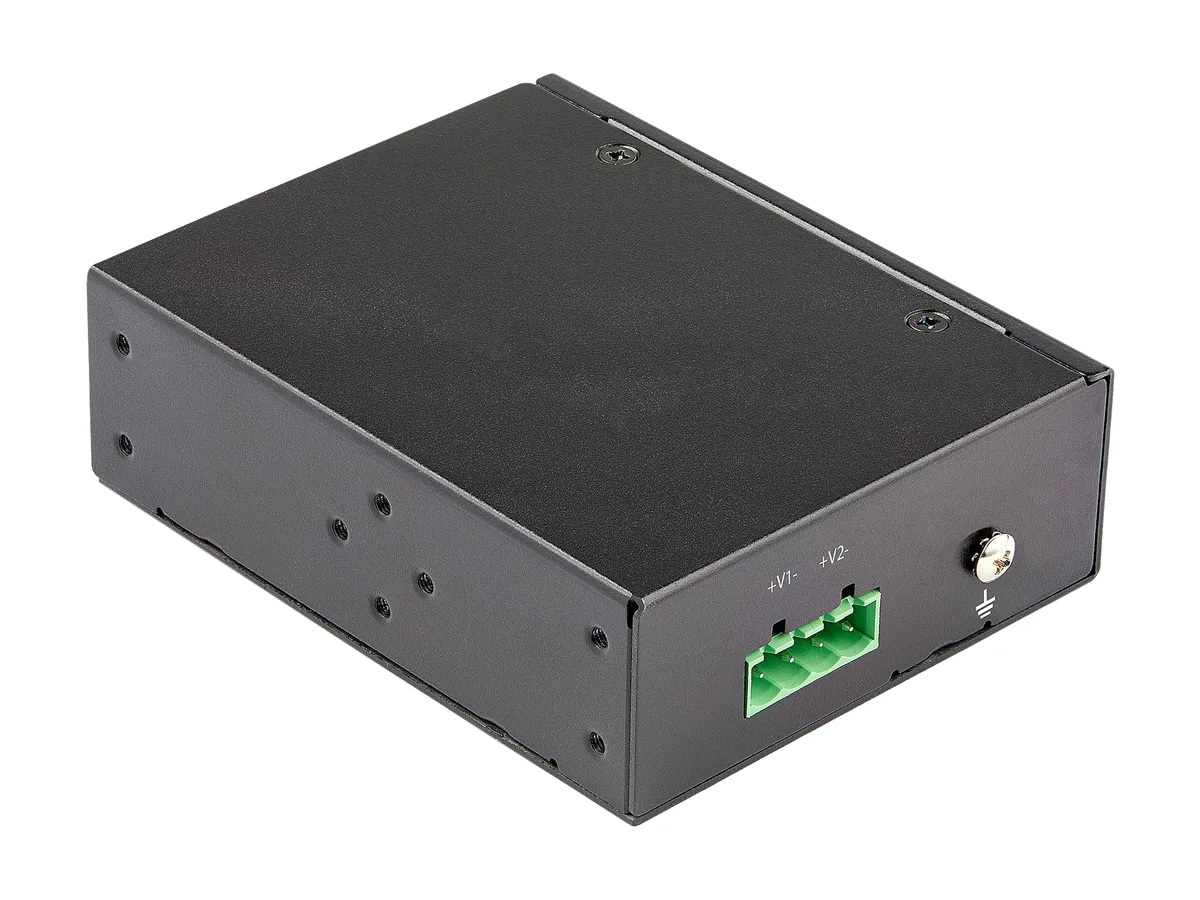

Black rectangular metal PoE injector with Ethernet ports and LED indicators, DIN rail mountable

STARTECH

STARTECH POEINJ30W 30W Gigabit PoE+ Injector -40 to 75C

SKU CH-Z04W-PMNYC MPN POEINJ30W

Industrial Gigabit PoE+ injector delivers up to 30W to cameras, sensors and Wi‑Fi access points over Cat 5e cable, with dual redundant power inputs.

  • TypePoE Injector
  • ColorBlack
  • Specifications1 - Connector A: Ethernet 10/100 RJ-45 (PoE+) 2 - LED Indica
  • Delivers up to 30W PoE+ power for cameras and access points
  • Gigabit Ethernet with 1000 Mbps auto-negotiation and 16K jumbo frames

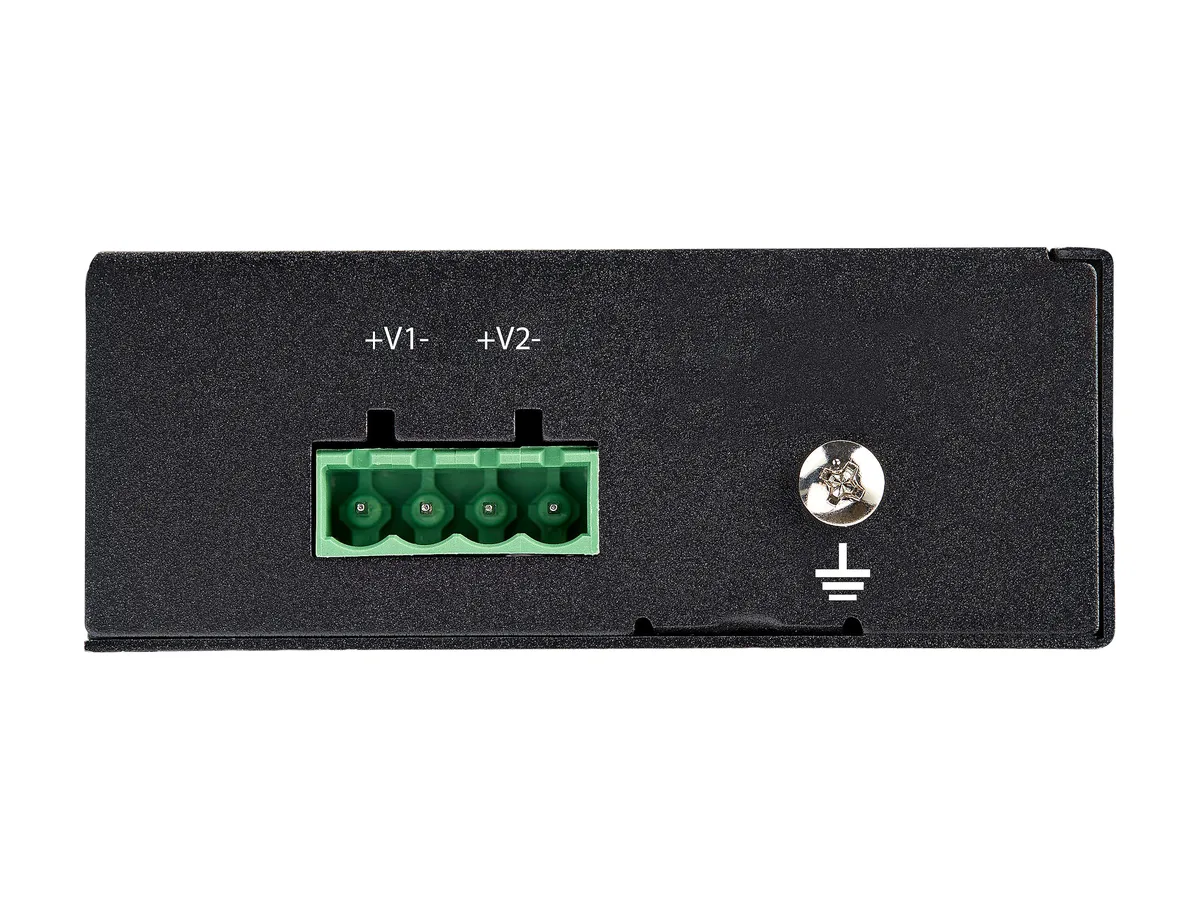

  • Dual redundant power inputs accept terminal block or barrel plug adapter
  • Industrial IP-30 housing rated for -40 to 75C operation
  • 600000+ hour MTBF at 50C with vibration and shock certification

Industrial Gigabit PoE+ injector for harsh

The STARTECH POEINJ30W delivers up to 30 W of midspan power over a single Ethernet cable to IEEE 802.3af and 802.3at devices such as IP cameras, sensors and wireless access points. It operates reliably from -40 C to 75 C inside an IP-30 aluminium housing rated for vibration, shock and free-fall. Dual redundant power inputs accept terminal-block or barrel-plug connections for flexible installation.

Gigabit data with 10/100 PoE negotiation and jumbo

The injector passes 1000 Mbps traffic while the powered port negotiates at 10/100 Mbps, so connected PoE devices are limited to Fast Ethernet speeds. Link Fault Pass-through and 16K jumbo-frame support are included, but total power per port cannot exceed 30 W. Cat 5e or better cabling is required for reliable operation at these rates.

Check temperature range.

Verify that the -40 C to 75 C operating window matches your site conditions and that DIN-rail or wall mounting suits the enclosure. An external 48 V to 56 V DC supply is required and is not included; the unit provides dual inputs for redundancy but cannot operate from a single AC outlet without a separate adapter. Ensure your powered devices conform to 802.3af or 802.3at standards.

Highlights

  • Delivers up to 30W PoE+ power for cameras and access points
  • Gigabit Ethernet with 1000 Mbps auto-negotiation and 16K jumbo frames
  • Dual redundant power inputs accept terminal block or barrel plug adapter
  • Industrial IP-30 housing rated for -40 to 75C operation
  • 600000+ hour MTBF at 50C with vibration and shock certification

Specifications

BrandStarTech.com
ModelPOEINJ30W
TypePoE Injector
ColorBlack

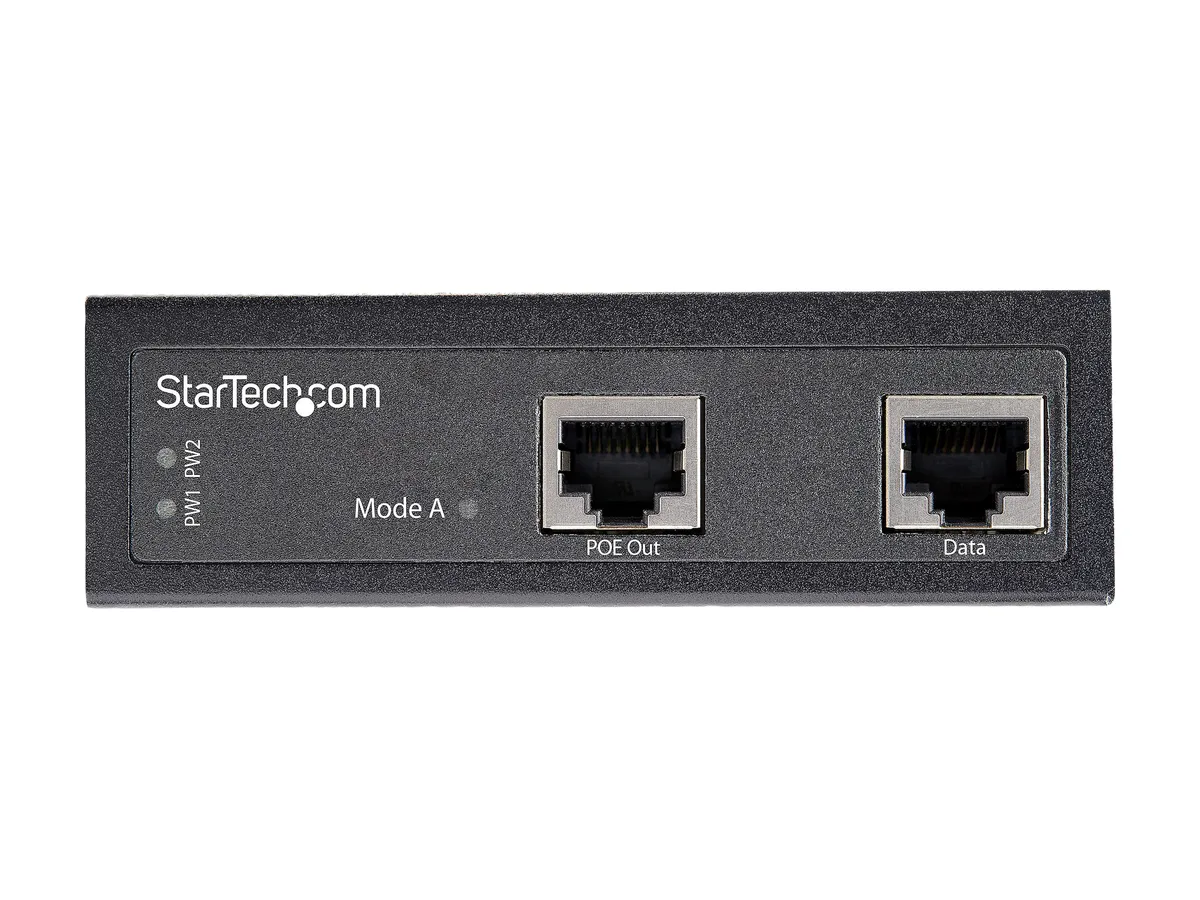

Specifications1 - Connector A: Ethernet 10/100 RJ-45 (PoE+)
2 - LED Indicators: PW1, PW2
1 - LED Indicators: Mode A
Shipping weight0.91 kg
Package size212 × 168 × 68 mm

Questions about this item

Should I choose the 30 W model or a lower-wattage injector for my PoE+ camera?

The POEINJ30W delivers up to 30 W, matching the full IEEE 802.3at PoE+ budget, so it powers any Type 1 or Type 2 device including cameras and Wi-Fi access points.

What does the 30 W figure mean once the injector is installed in a rack?

It means the unit can supply the maximum 30 W to a connected powered device over the Ethernet cable while passing 1 Gbps data, with link-fault passthrough and 16 K jumbo-frame support.

Which Ethernet standard does the RJ-45 port use and what speed does it cap at?

The port follows IEEE 802.3af and 802.3at for power and auto-negotiates 10/100/1000 Mbps, so the practical ceiling is 1 Gbps over Cat 5e or better cabling.
