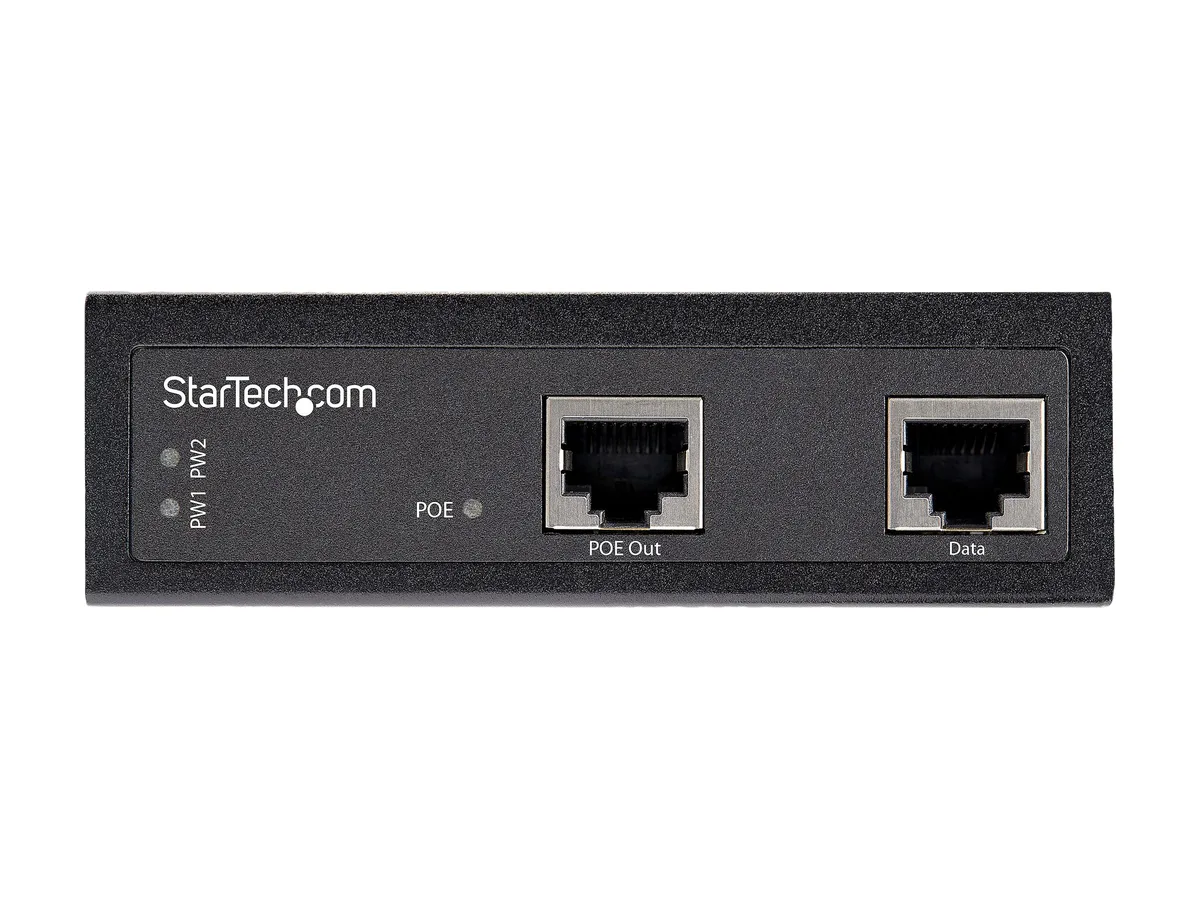

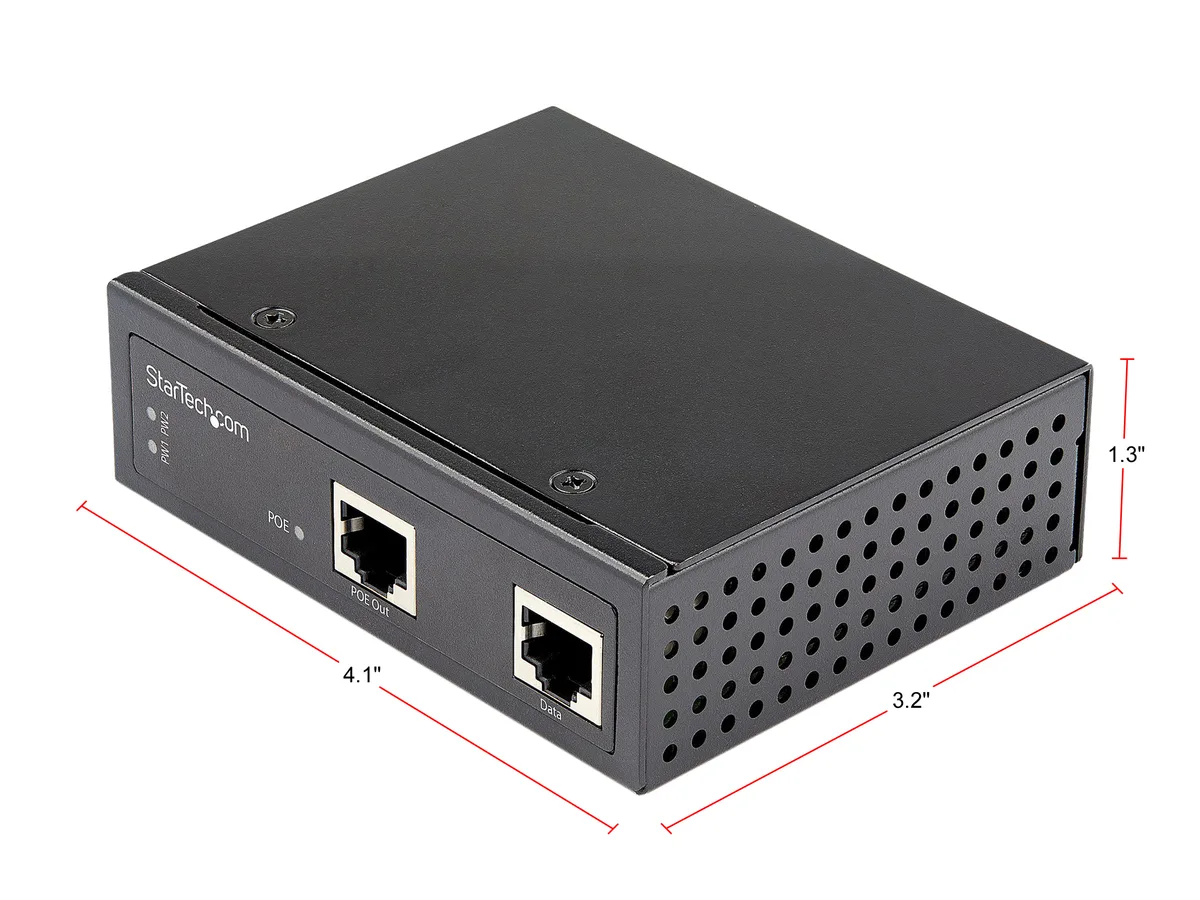

Black metal box with two RJ45 ports and a terminal block

STARTECH

STARTECH POEINJ1G90W 90W PoE++ injector

SKU CH-W3Y9-3BR48 MPN POEINJ1G90W

Industrial Gigabit PoE++ injector delivers up to 90W auto-negotiated power for Type 3 and Type 4 devices with redundant 48V-56VDC input and -40°C to 75°C operation

  • TypePoE+ Injector
  • ColorBlack
  • Specifications1 - Connector Type(s): Ethernet Gigabit RJ-45 (PoE+) Termina
  • FeaturesWIDE STANDARD COMPATIBILITY: High speed Industrial Gigabit P
  • Delivers up to 90W for high-power PoE++ devices
  • Supports IEEE 802.3bt and legacy 90W proprietary standards
  • Operates reliably from -40°C to 75°C in harsh environments
  • Rugged IP30 aluminum housing rated for vibration and shock
  • 1 Gbps Gigabit throughput with redundant 48V-56VDC power input

Industrial Gigabit PoE++ Injector

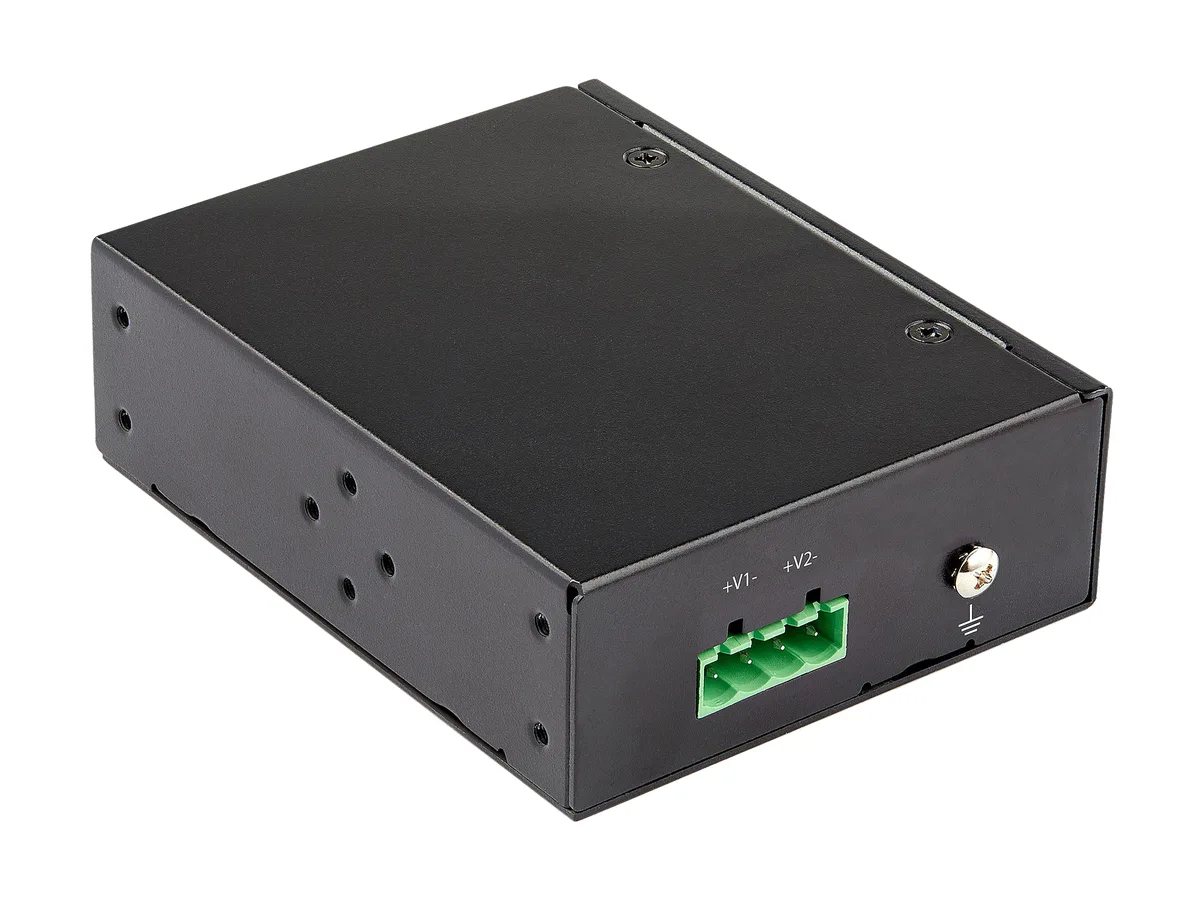

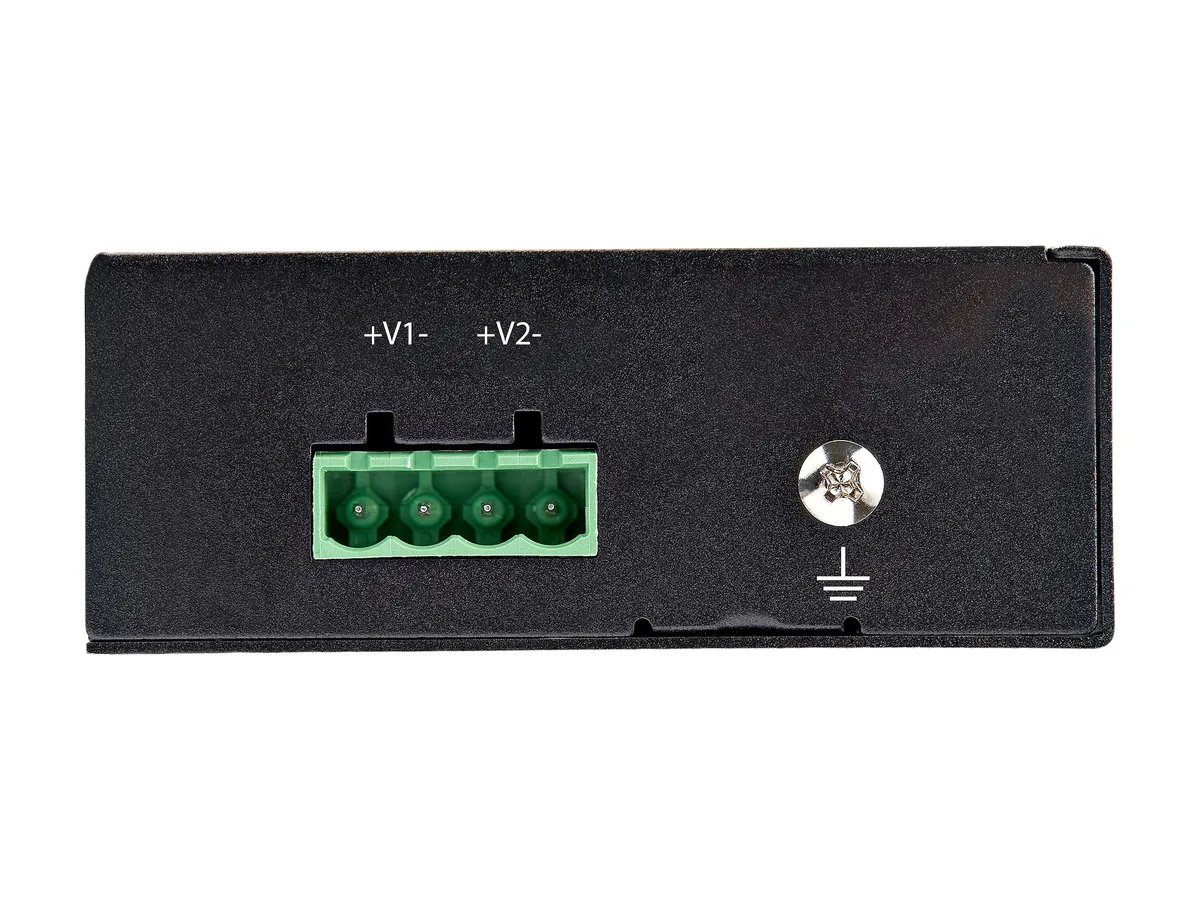

The StarTech POEINJ1G90W is a hardened Gigabit Power over Ethernet injector that delivers up to 90 W of auto-negotiated power over a single RJ-45 port. It accepts 52 V to 56 V DC through a four-wire terminal block and mounts on DIN rail or wall brackets. The aluminium IP30 housing is rated for vibration, shock and free-fall, with an operating range of -40 °C to 75 °C and an MTBF exceeding 500,000 hours at 50 °C.

Installers needing one high-power PoE link

Network technicians deploying IEEE 802.3bt Type 3 or Type 4 devices such as pan-tilt-zoom cameras or high-power wireless access points will find the 90-watt budget and wide standard compatibility fit the requirement. The unit also supports legacy 90 W proprietary modes including Cisco uPoE, Bosch, AXIS and HDBase-T PoH. Sites that require AC mains input, multi-port injection or fiber uplinks should look at alternative equipment.

90 W PoE++ power budget

The single specification that decides suitability is the 90 W maximum output compliant with IEEE 802.3bt. If the powered device demands more than 90 W, or requires a different voltage range than the 48 V to 56 V DC input, this injector will not meet the need.

Highlights

  • Delivers up to 90W for high-power PoE++ devices
  • Supports IEEE 802.3bt and legacy 90W proprietary standards
  • Operates reliably from -40°C to 75°C in harsh environments
  • Rugged IP30 aluminum housing rated for vibration and shock
  • 1 Gbps Gigabit throughput with redundant 48V-56VDC power input

Specifications

BrandStarTech.com
ModelPOEINJ1G90W
TypePoE+ Injector
ColorBlack
Specifications1 - Connector Type(s):
Ethernet Gigabit
RJ-45 (PoE+)
Terminal Block (4 Wire)
Operating Temperature: -40°C to 75°C
Storage Temperature: -40°C to 85°C
Humidity: 5 to 95% (non-condensing)
Industry Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3at PoE Plus
- IEEE 802.3af Power over Ethernet
- IEEE 802.3bt
FeaturesWIDE STANDARD COMPATIBILITY: High speed Industrial Gigabit PoE Injector compatible w/ IEEE 802.3bt (PoE++) & previous 90W proprietary POE standards including PoH (HDBase-T), Cisco uPoE, Bosch & AXIS
90W POWER BUDGET: Provides up to 90W of auto-negotiated power output for Type 3 and Type 4 PoE/Ultra/UPoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points
TECH SPECS: 1 Gbps | 48V-56VDC Power Input | IEEE 802.3af | IEEE 802.3at | IEEE 802.3bt 90W max | PoH (HDBase-T) | uPoE | 10/100/1000 Mbps Auto Negotiation | DIN/Wall Mountable | Redundant Power
Shipping weight0.42 kg
Package size211 × 162 × 64 mm

Questions about this item

Will this injector power my older IEEE 802.3af and 802.3at cameras while running on the same Gigabit link?

Yes, it supports IEEE 802.3af, 802.3at and 802.3bt up to 90 W, so legacy 10/100/1000 Mbps devices negotiate their class automatically.

How can I verify the injector is delivering power after I connect a PoE++ access point?

The port negotiates 802.3bt Type 3 or 4 and supplies up to 90 W; check the AP's management interface for confirmed PoE class and power draw.

What cables and power source do I need to buy separately for a DIN-rail installation?

The unit has one RJ-45 data port, one RJ-45 PoE++ port and a 4-wire terminal block for 48 V–56 V DC input; supply a DC source and Ethernet patch cords yourself.
