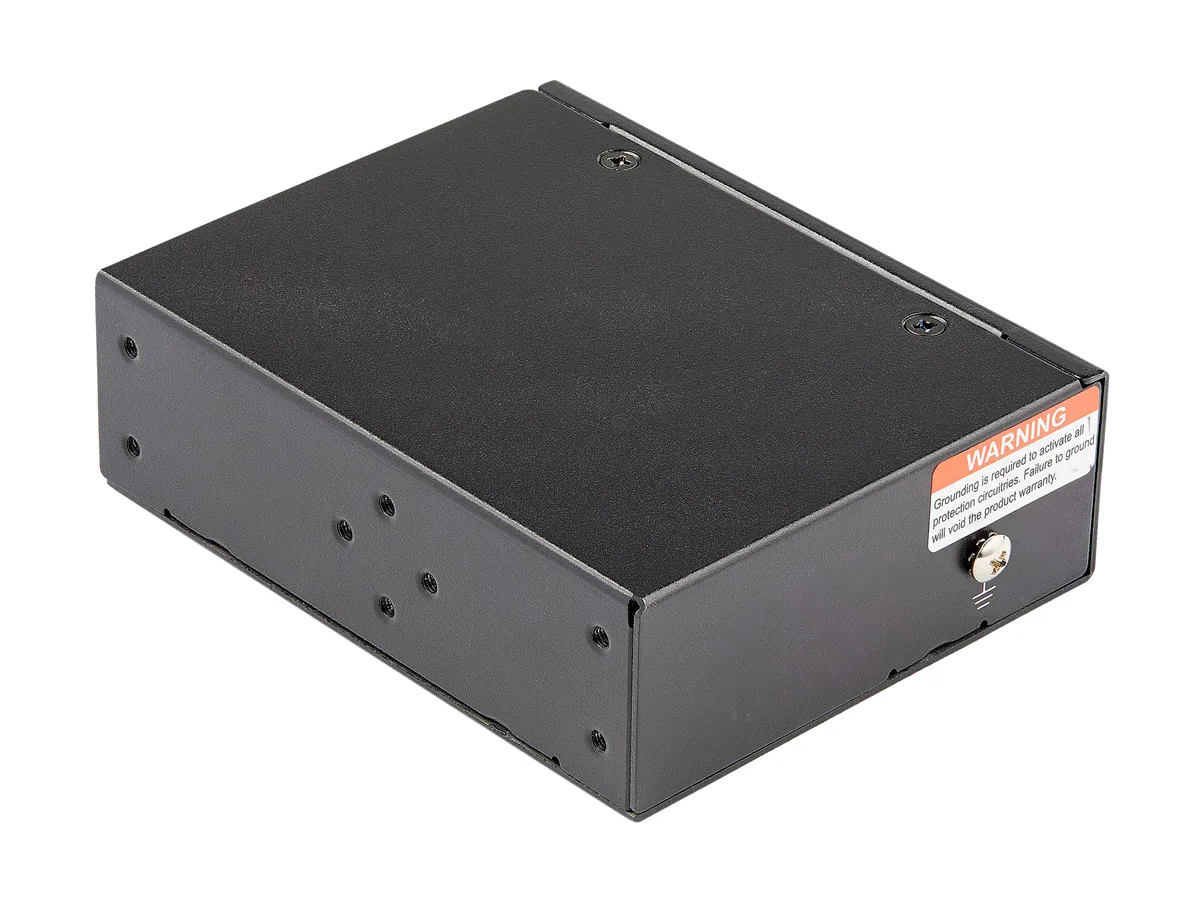

Black rectangular PoE extender with two RJ45 ports

STARTECH

STARTECH POEEXT1G60W PoE Extender 60W 100m

SKU CH-219C-YKJFM MPN POEEXT1G60W

Gigabit PoE extender delivers up to 60W to cameras or access points over 100m and cascades to 400m

  • TypePoE Extender
  • ColorBlack
  • Specifications2 - Connector Type(s): RJ-45 (PoE+) Operating Temperature: -
  • Features100M EXTENSION: Extend a PSE source (up to 95W) by 100m usin

Option 60W, PoE

  • Extend PoE connections by 100m using a single Gigabit extender
  • Cascade up to four units for 400m reach over CAT 5e/6 cable
  • Deliver up to 60W auto-negotiated power to cameras or access points via IEEE 802.3bt
  • Operate reliably from -40°C to 75°C in industrial environments
  • Consume only 2.7W while passing 1 Gbps data through two RJ-45 ports

Industrial Gigabit PoE Extender

This StarTech.com POEEXT1G60W extends a power sourcing equipment signal up to 100 metres over Cat 5e or Cat 6 cabling. It delivers auto-negotiated 15, 30 or 60 watt output to cameras, access points and other powered devices. Up to four units can be cascaded for a 400 metre total reach. The rugged black enclosure suits industrial and commercial deployments.

Thermals noise and power

The extender draws only 2.7 watts for its own operation while passing up to 95 watts from the PSE source. It operates silently with no moving parts across a temperature range of minus 40 to 75 degrees Celsius. Humidity tolerance spans 5 to 95 percent non-condensing for harsh environments. No external power supply is required because the unit is powered entirely through the incoming PoE link.

Build integration

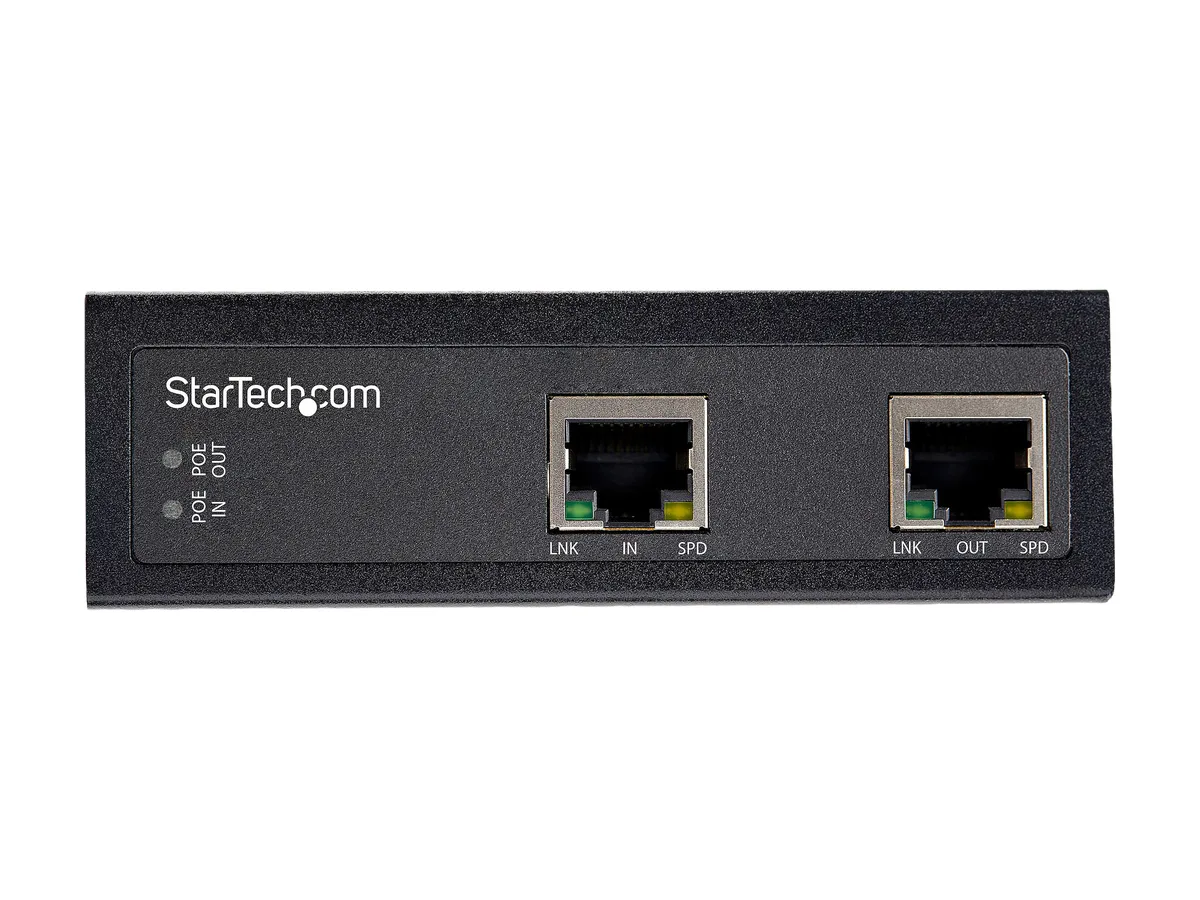

Connect the RJ45 PD In port to the upstream PSE and the RJ45 PSE Out port to the target device for immediate gigabit data and power extension. The compact 1.30 by 3.20 by 4.10 inch form factor fits tight enclosures and weighs 0.20 lb. It supports IEEE 802.3af, 802.3at and 802.3bt standards plus 9K jumbo frames. Not suited for installations needing fibre uplink or wireless backhaul.

Highlights

  • Extend PoE connections by 100m using a single Gigabit extender
  • Cascade up to four units for 400m reach over CAT 5e/6 cable
  • Deliver up to 60W auto-negotiated power to cameras or access points via IEEE 802.3bt
  • Operate reliably from -40°C to 75°C in industrial environments
  • Consume only 2.7W while passing 1 Gbps data through two RJ-45 ports

Specifications

BrandStarTech.com
ModelPOEEXT1G60W
TypePoE Extender
ColorBlack
Specifications2 - Connector Type(s): RJ-45 (PoE+)
Operating Temperature: -40°C to 75°C
Storage Temperature: -40°C to 85°C
Humidity: 5 to 95% (non-condensing)
Industry Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3x
- IEEE 802.3z 1000BASE-TX
- IEEE 802.3af Power over Ethernet
- IEEE 802.3at PoE Plus
- IEEE 802.3bt

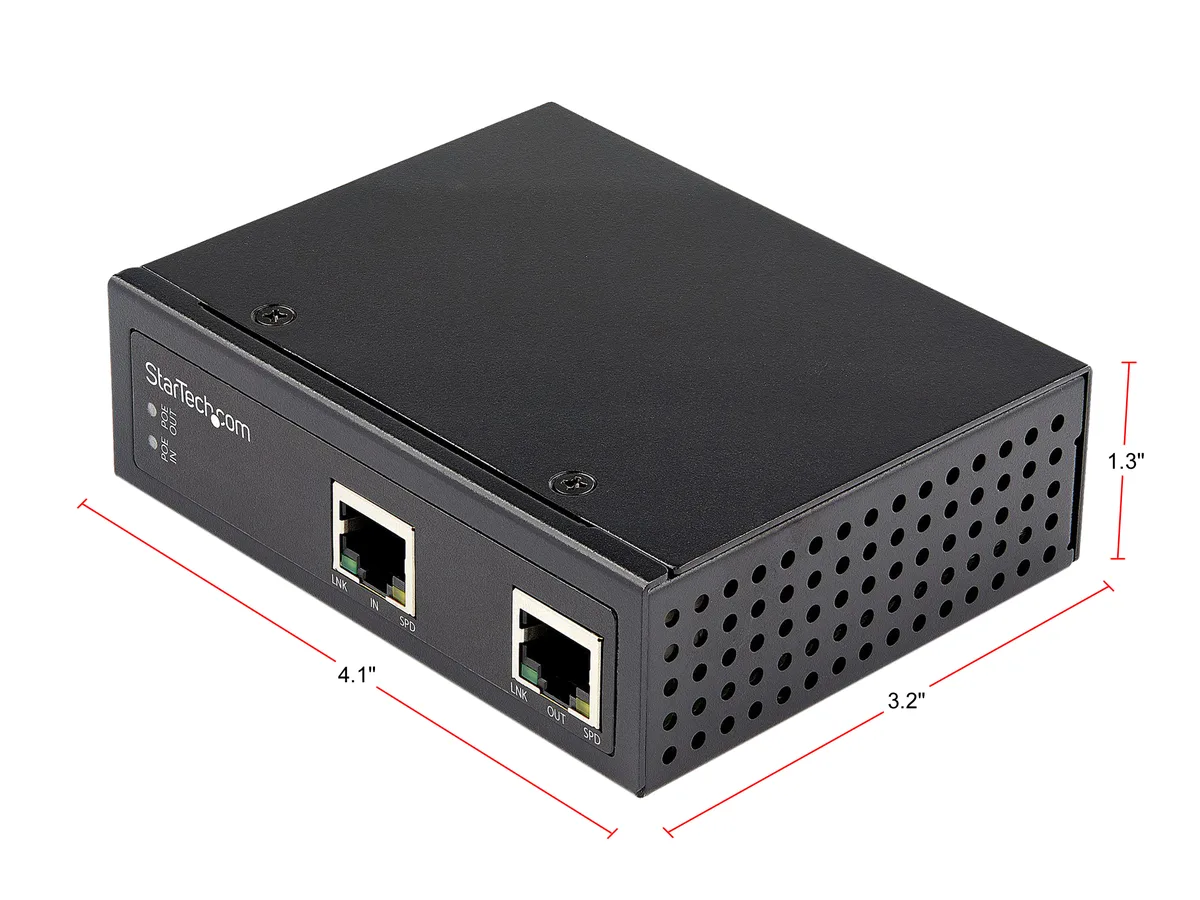

Dimension: 1.30" x 3.20" x 4.10"
Weight: 0.20 lb.
Features100M EXTENSION: Extend a PSE source (up to 95W) by 100m using this Gigabit PoE Extender; power PoE devices like cameras & access points; 4 extenders can be cascaded to extend up to 400m using CAT 5e/6
60W PoE IEEE 802.3bt: Powered by the PSE source, this Power over Ethernet range extender provides up to 15W/30W/60W of auto-negotiated power output to target PD device | Low 2.7W power consumption
TECH SPECS: 1 Gbps | 1 x RJ45 PD In | 1 x RJ45 PSE Out | IEEE 802.3af / IEEE 802.3at / IEEE 802.3bt (60W) | 10/100/1000 Mbps | 9K Jumbo Frames | DIN or Wall Mount
ROBUST DESIGN: Industrial Pow
Shipping weight0.39 kg
Package size211 × 64 × 64 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I connect the POEEXT1G60W to extend a 95W PSE source by 100m using CAT 5e/6 cable?

Plug the PSE source into the RJ45 PD In port and the powered device into the RJ45 PSE Out port; the extender draws 2.7W and passes up to 60W auto-negotiated power over 100m at 1 Gbps.

What maintenance will the extender need after years in a -40°C to 75°C industrial environment?

No scheduled maintenance is required; the sealed unit has no moving parts, but inspect RJ45 contacts and cable jackets periodically for corrosion or physical damage.

What is the first limit reached when cascading four extenders to reach 400m with a 60W camera load?

The 60W output ceiling is reached first; each extender consumes 2.7W, so total path loss must stay within the PSE 95W budget and the 60W per-port maximum.
