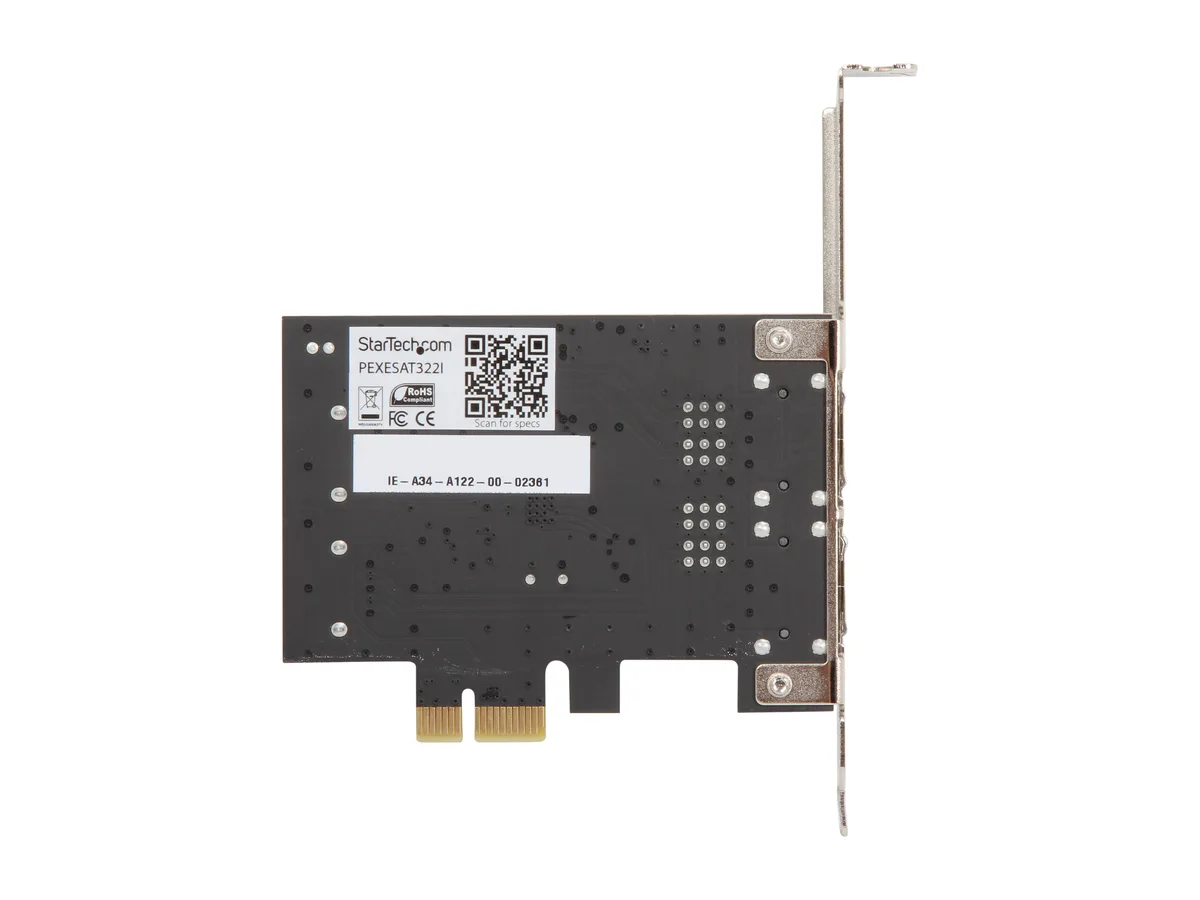

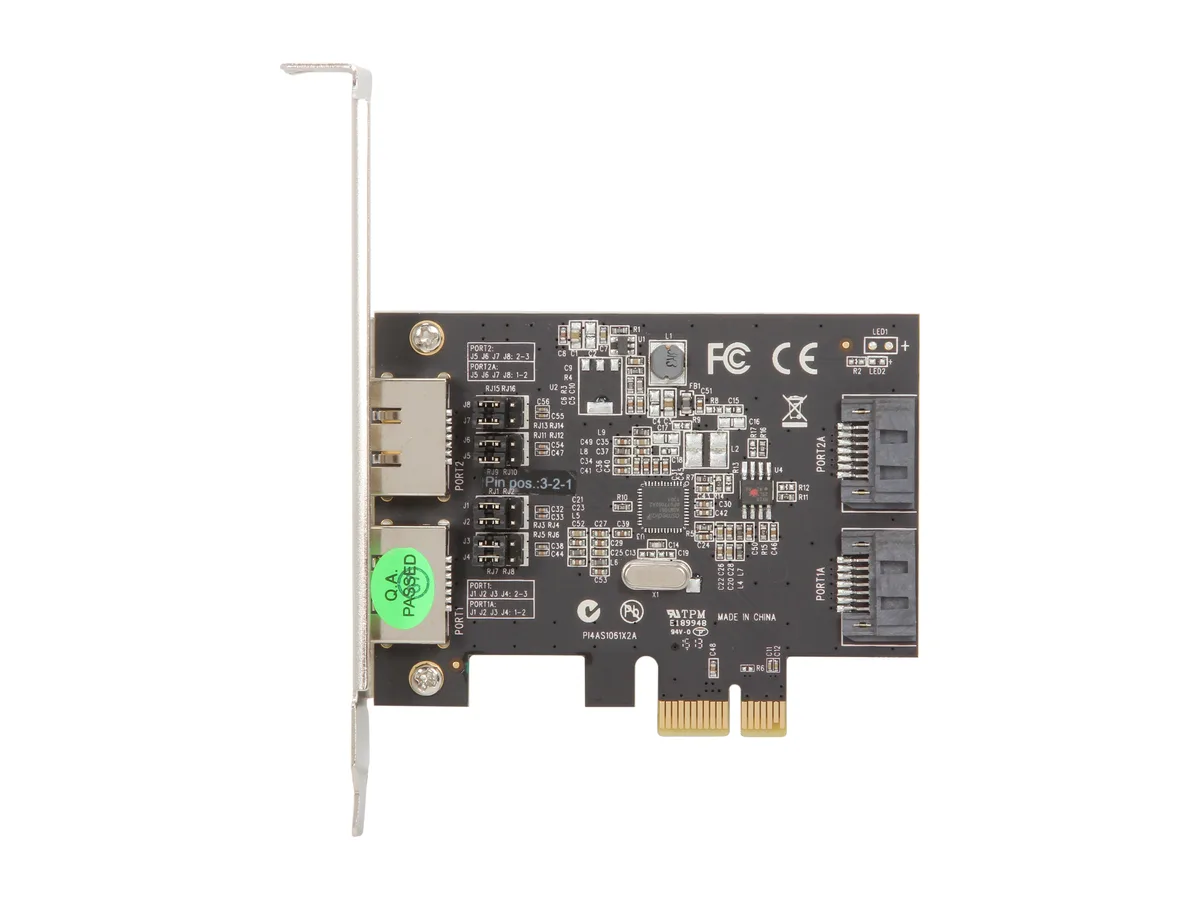

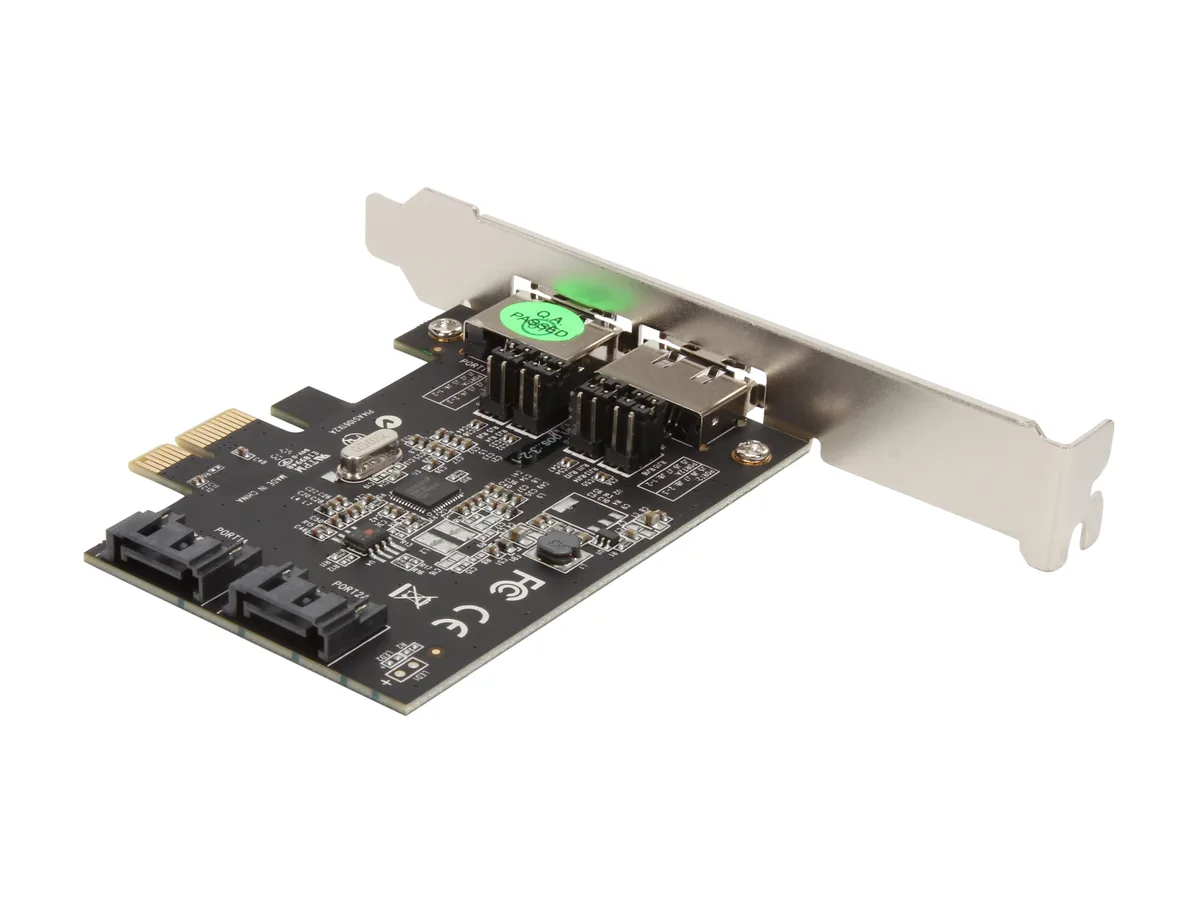

Green circuit board with two internal SATA ports and two eSATA ports, low-profile bracket included

STARTECH

STARTECH PEXESAT322I PCIe x1 SATA III 6.0Gb/s 2 Int/2 Ext RAID controller

SKU CH-CKVN-ZVV3T MPN PEXESAT322I

Adds two internal and two external SATA 6.0Gb/s ports via a PCI Express x1 slot with ASMEDIA ASM1061 chipset

  • PartPEXESAT322I
  • Form FactorLow Profile Ready
  • TypeSATA III (6.0Gb/s)
  • External Connectors2 x eSATA
  • Internal Connectors2 x SATA 6.0Gb/s
  • InterfacePCI-Express x1
  • Add 2 external or internal SATA 6 Gbps ports through a PCI Express x1 slot
  • Low-profile ready design fits compact chassis with included bracket
  • ASMedia ASM1061 chipset delivers 48-bit LBA support and port multiplier capability
  • Compliant with SATA revision 3.0 for up to 6.0 Gbps transfer rates
  • Supports Windows XP, Vista, 7, 8 and Server 2003, 2008 R2 in 32-bit and 64-bit

Add SATA III ports via PCIe x1

The StarTech PEXESAT322I adds two internal and two external SATA 6.0 Gb/s ports through a single PCI Express x1 slot. It uses the ASMedia ASM1061 chipset with 48-bit LBA support and port multiplier capability. A low-profile bracket and SATA cable are included for compact builds. Drivers cover Windows XP through Windows 8 on 32-bit and 64-bit editions.

Practical limits of the PCIe x1 interface

The x1 lane caps total throughput well below the combined 6 Gb/s per port, so four drives cannot run at full speed simultaneously. SATA revision 3.0 compliance ensures backward compatibility with SATA I and II devices. Optical drives are supported alongside hard disks and SSDs. The card fits low-profile chassis without extra clearance.

Replaces add-in cards limited to SATA II

Upgrading from a 3 Gb/s controller or a single external port restores 6 Gb/s internal and external connectivity in one slot. The jump is worth it when a system lacks native SATA III ports or needs eSATA for external arrays without occupying additional expansion slots. Legacy operating systems down to Windows XP remain supported.

Highlights

  • Add 2 external or internal SATA 6 Gbps ports through a PCI Express x1 slot
  • Low-profile ready design fits compact chassis with included bracket
  • ASMedia ASM1061 chipset delivers 48-bit LBA support and port multiplier capability
  • Compliant with SATA revision 3.0 for up to 6.0 Gbps transfer rates
  • Supports Windows XP, Vista, 7, 8 and Server 2003, 2008 R2 in 32-bit and 64-bit

Specifications

BrandStarTech.com
ModelPEXESAT322I
PartPEXESAT322I
Form FactorLow Profile Ready
TypeSATA III (6.0Gb/s)

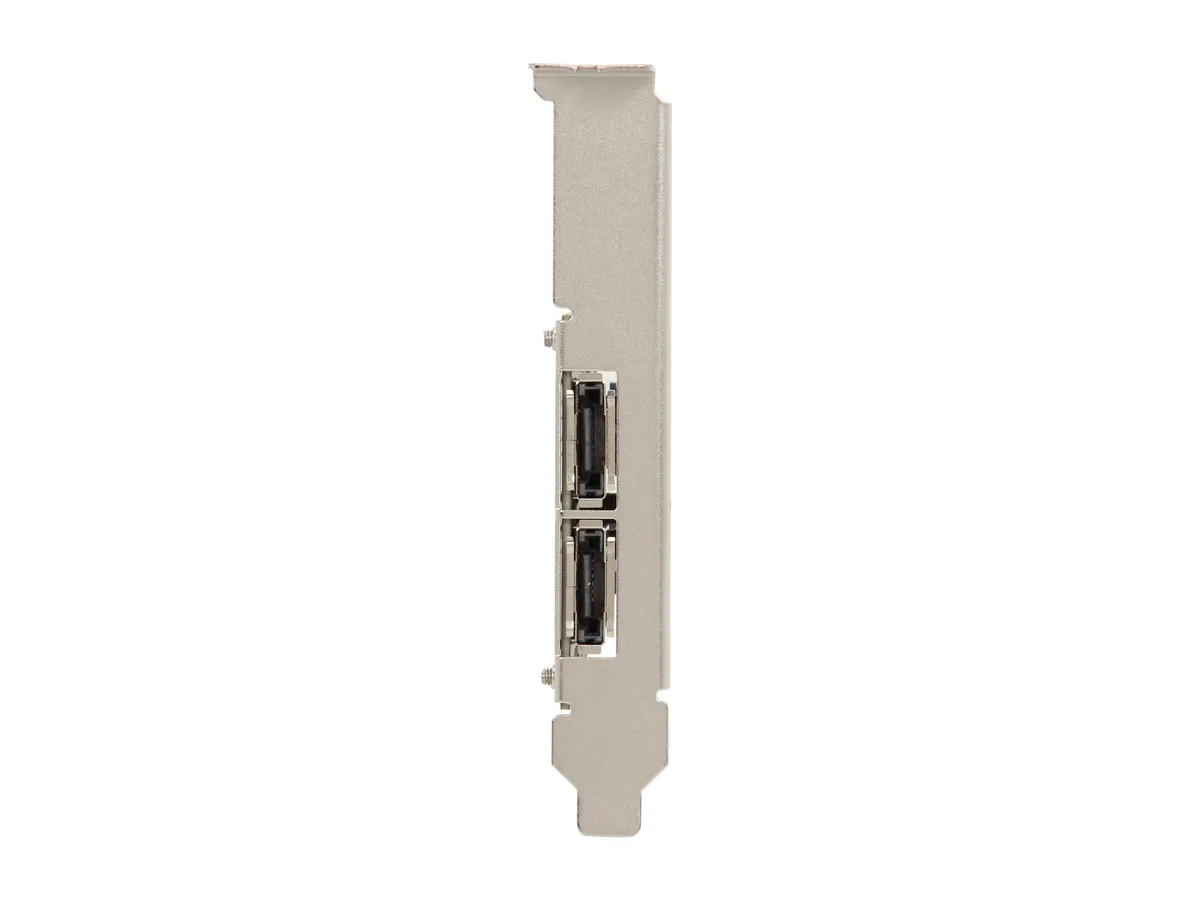

External Connectors2 x eSATA
Internal Connectors2 x SATA 6.0Gb/s
InterfacePCI-Express x1
Transfer RateUp to 6Gb/s
Operating Systems SupportedWindows XP(32/64-bit)/ Server 2003(32/64-bit)/ Server 2008 R2/ Vista(32/64-bit)/ 7(32/64-bit)/ 8 (32/64-bit)
Dimensions0.8" x 4.8" x 3.6"
FeaturesChipset ID: ASMEDIA ASM1061
LBA support: 48-bit
Port Multiplier: Yes
Compliant with SATA revision 3.0, which can support up to 6Gbps of bandwidth
Support for SATA-based optical drives (CD/DVD/BD)
Uses existing SATA I/II cabling
Supports Native Command Queuing (NCQ) and ATA/ ATAPI commands
Port Multiplier FIS-based and Command-based switching supported.

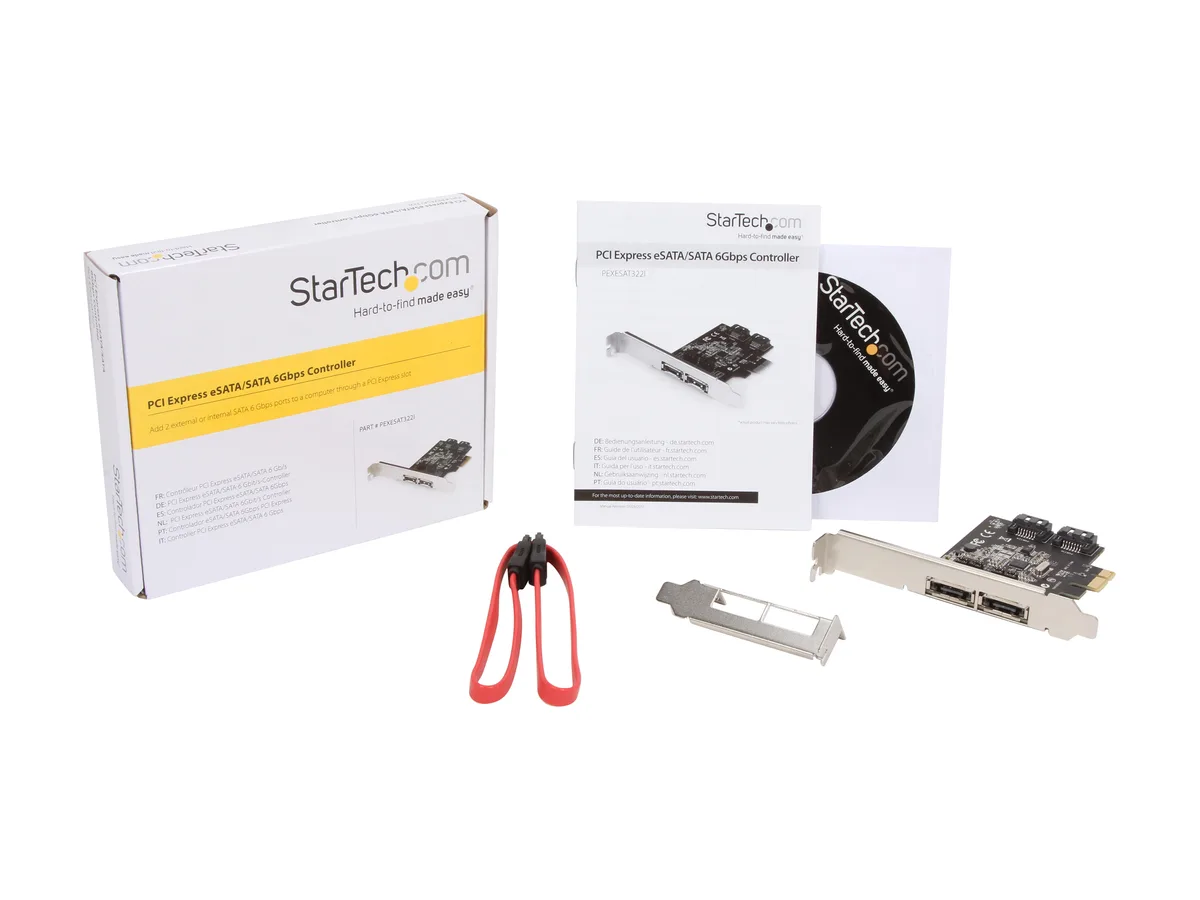

Package ContentsPCIe SATA Controller
SATA Cable
Low Profile Bracket
Driver CD
Instruction Manual
Shipping weight0.06 kg
Package size168 × 140 × 25 mm

Questions about this item

Should I use the two internal SATA ports or the two external eSATA ports on the PEXESAT322I?

The card provides two internal SATA 6.0Gb/s connectors and two external eSATA connectors; choose internal ports for drives inside the chassis and eSATA ports for external enclosures.

What does the 6.0Gb/s transfer rate mean for my drives?

The controller complies with SATA revision 3.0 at up to 6Gb/s, so each connected drive can operate at the full SATA III link speed supported by the drive itself.

Will the PCIe x1 interface limit the 6Gb/s SATA ports?

The card uses a PCI Express x1 slot and the ASMEDIA ASM1061 chipset; the single-lane PCIe link sets the aggregate bandwidth ceiling for all four ports combined.
