Green circuit board with silver SFF-8643 connector and metal bracket

STARTECH

STARTECH PEX4SFF8643 x4 PCIe 3.0 to SFF-8643 expansion card

SKU CH-0MC4-F2GFY MPN PEX4SFF8643

Adds a 2.5" U.2 NVMe SSD via a PCIe 3.0 x4 lane host adapter compatible with PCIe 2.0 motherboards

  • Typex4 PCI Express to SFF-8643
  • SpecificationsAdd high-performance enterprise-class storage to your PC or
  • FeaturesAdd an enterprise-class PCIe NVMe 2.5 in. U.2 SSD capability
  • Dimensions0.90" x 3.10" x 3.70"
  • Weight1.00 oz.
  • Package Contents1 x x4 PCI Express to SFF-8643 adapter 1 x low-profile brack
  • Add enterprise-class U.2 NVMe storage to a PC or server
  • Connect a 2.5" U.2 NVMe SSD via a 4-lane PCIe 3.0 slot
  • Works with PCIe 3.0 and 2.0 motherboards for broad compatibility
  • Includes full-profile and low-profile brackets for flexible installation
  • Compact .90" x 3.10" x 3.70" card fits tight spaces

Add U.2 NVMe storage to desktop or server

This x4 PCI Express adapter adds a SFF-8643 port so a 2.5" U.2 NVMe SSD such as the Intel SSD 750 series can be installed in a standard expansion slot. It targets IT professionals and system integrators who want enterprise-class storage without replacing the motherboard or chassis.

Requires a PCIe 3.0 or 2.0 slot with four lanes

The card operates as a PCI Express 3.0 x4 host adapter and is backward compatible with PCIe 2.0 motherboards. If the platform cannot supply a four-lane slot the drive will not reach its rated throughput, so verify the slot configuration before purchase.

Passive design draws minimal power

With no active cooling the adapter runs silently and adds negligible load to the system power budget. The low-profile bracket is included for compact builds, while the pre-installed full-profile bracket fits standard height cases.

Highlights

  • Add enterprise-class U.2 NVMe storage to a PC or server
  • Connect a 2.5" U.2 NVMe SSD via a 4-lane PCIe 3.0 slot
  • Works with PCIe 3.0 and 2.0 motherboards for broad compatibility
  • Includes full-profile and low-profile brackets for flexible installation
  • Compact .90" x 3.10" x 3.70" card fits tight spaces

Specifications

BrandStarTech.com
ModelPEX4SFF8643
Typex4 PCI Express to SFF-8643
SpecificationsAdd high-performance enterprise-class storage to your PC or server
Upgrade your system by providing compatibility for U.2 NVMe SSDs like the Intel SSD 750 series through a 4-lane PCI Express expansion card
x4 PCIe to SFF-8643 adapter for PCIe NVMe U.2 SSD
PCI Express 2.5in. NVM Express SSD adapter
PCI Express 3.0x4 lane host adapter
Compatible with PCIe 3.0 and PCIe 2.0 motherboards
Provides faster read/write speeds and enhanced producvity for data-heavy workloads
FeaturesAdd an enterprise-class PCIe NVMe 2.5 in. U.2 SSD capability to your PC or server
PCI Express 3.0x4 lane host adapter
Compatible with PCIe 3.0 and PCIe 2.0 motherboards
Comes with full-profile bracket (installed) and low-profile bracket

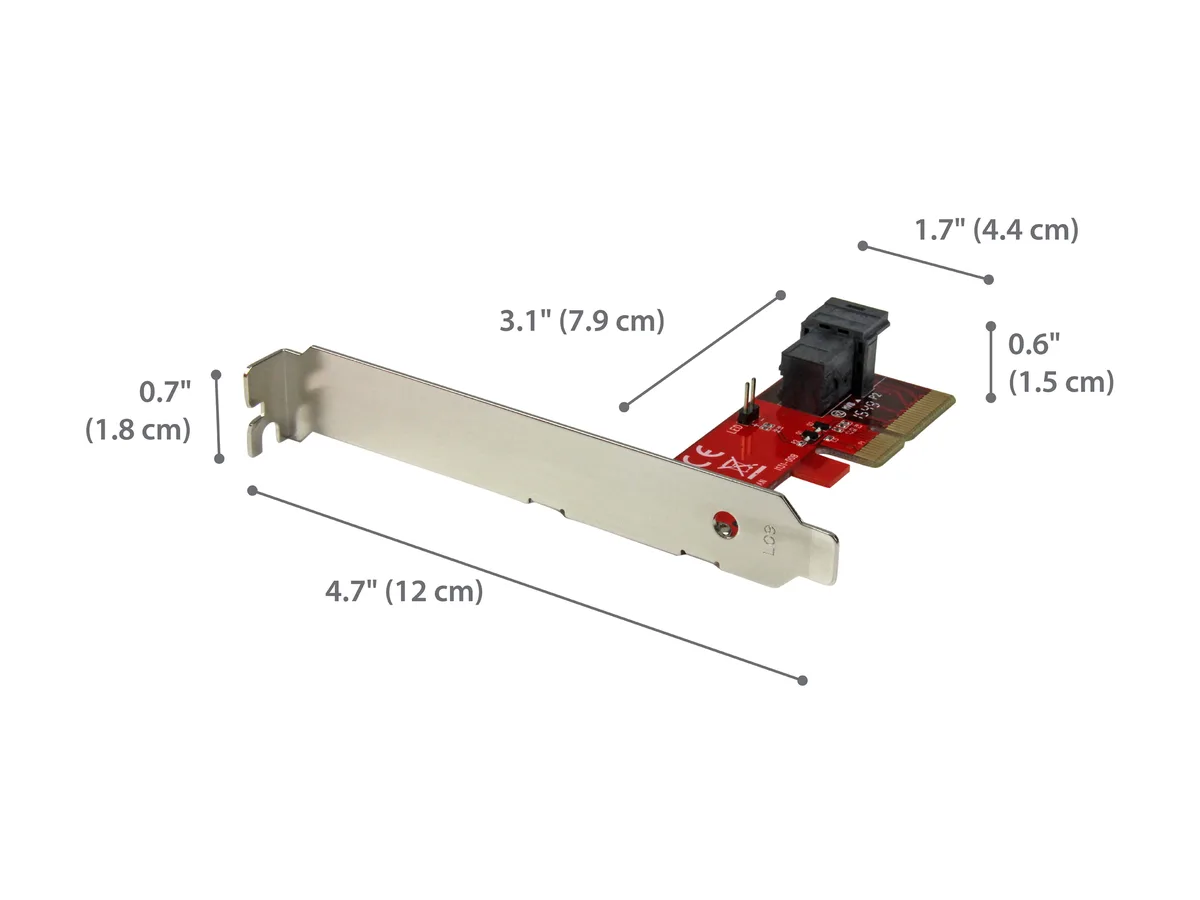

Dimensions0.90" x 3.10" x 3.70"
Weight1.00 oz.

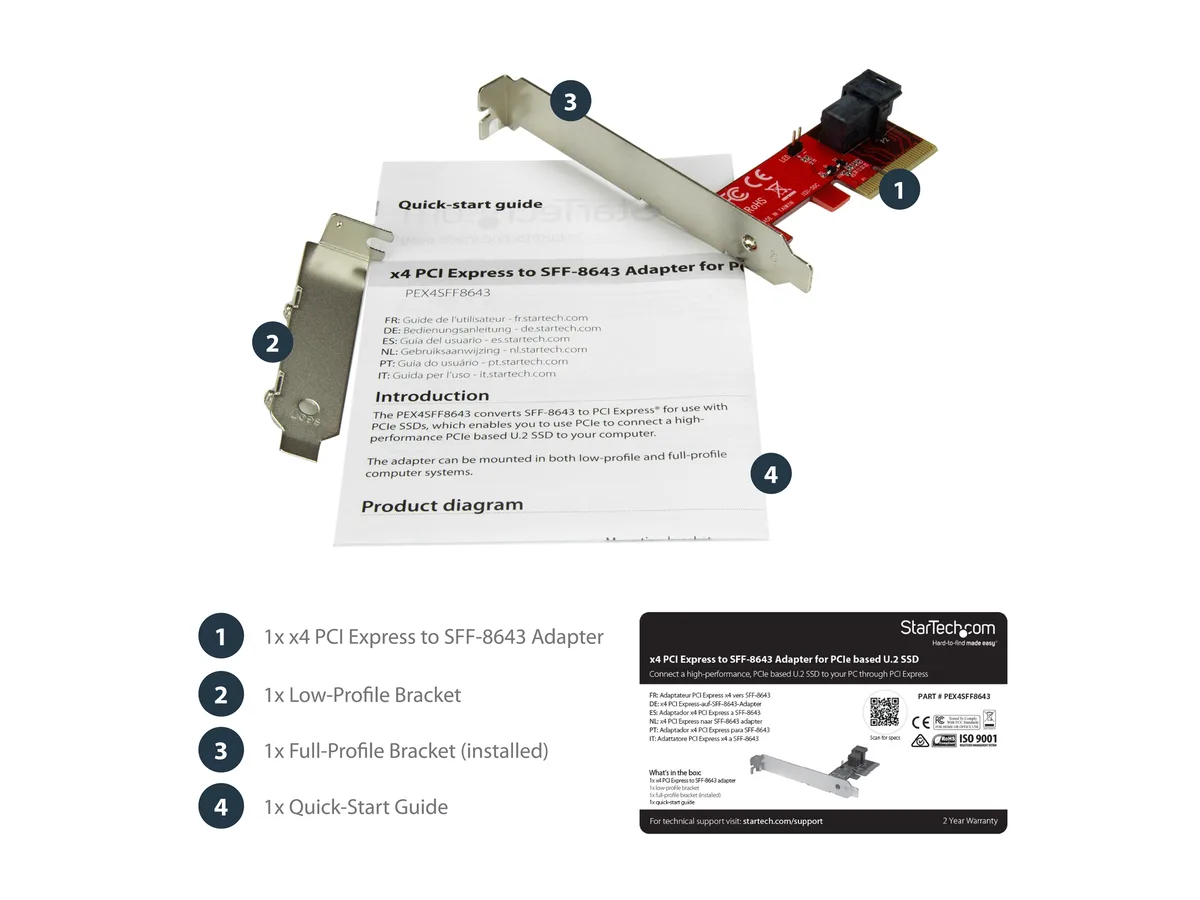

Package Contents1 x x4 PCI Express to SFF-8643 adapter
1 x low-profile bracket
1 x full-profile bracket (installed)
1 x quick-start guide
Shipping weight0.10 kg
Package size170 × 142 × 30 mm

Questions about this item

How does the x4 PCIe 3.0 link affect real-world throughput for a U.2 NVMe SSD?

The card runs at PCIe 3.0 x4, so a U.2 NVMe SSD can use up to four lanes of third-generation bandwidth; actual speed depends on the drive and the host slot.

Does the SFF-8643 connector limit the SSD to a specific PCIe generation?

The SFF-8643 port carries four PCIe lanes and is electrically compatible with both PCIe 3.0 and 2.0 motherboards, so the generation is set by the slot, not the connector.

What clearance is needed to install the card in a standard chassis?

The board measures .90 by 3.10 by 3.70 inches and ships with both a full-profile bracket installed and a low-profile bracket for slim cases.
