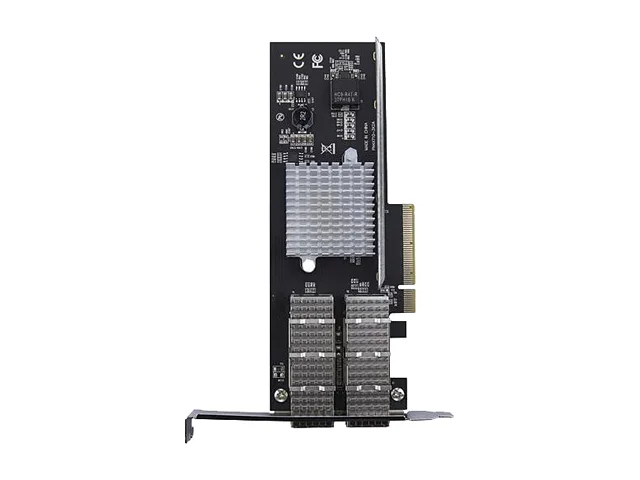

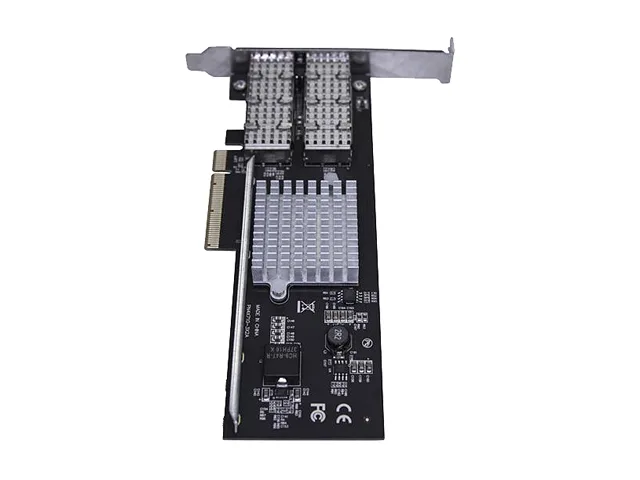

Green circuit board with silver metal bracket and two open QSFP+ ports

STARTECH

STARTECH PEX40GQSFDPI dual port 40G QSFP+ network card

SKU CH-CCA0-78225 MPN PEX40GQSFDPI

Dual-port 40GbE QSFP+ adapter with Intel XL710 chipset, PCIe 3.0 x8 host interface, and open slots for multimode or single-mode fiber modules

  • FeaturesTechnical Information Chipset Manufacturer: Intel Chipset Mo
  • DimensionsHeight: 0.8" Width: 4.8" Depth: 7.1"
  • WeightWeight (Approximate): 4.50 oz
  • Dual 40Gbps ports deliver high-bandwidth connectivity for demanding servers
  • Intel XL710 controller provides reliable convergent network features
  • Two open QSFP+ slots support multimode and single-mode fiber for scalable links
  • PCIe 3.0 x8 host interface enables fast data transfers up to 40Gbps
  • Broad OS support includes Windows Server 2019 and VMware ESXi 5.1+

Dual-port 40G QSFP+ server NIC

The StarTech PEX40GQSFDPI is a dual-port 40G QSFP+ network interface card built on the Intel XL710-BM2 controller. It installs in a PCI Express 3.0 x8 slot and presents two open QSFP+ cages that accept MSA-compliant transceivers or direct-attach cables. The adapter is designed for servers and workstations that need 40GbE connectivity for storage, virtualisation or high-throughput workloads.

Suited for redundancy and aggregation

This card suits administrators who need two 40G links for link redundancy or port aggregation in a single x8 slot. It supports multimode and single-mode fibre, PXE boot, 9K jumbo frames and VLAN tagging across Windows, Windows Server, Linux and VMware ESXi 5.0/5.1+. Environments that require more than two 40G ports, or that lack a PCIe 3.0 x8 slot, should consider a different adapter.

PCIe 3.0 x8 host interface requirement

The single specification that decides fit is the PCI Express 3.0 x8 host interface; the system must provide an x8 electrical connection (x8 or x16 physical) for the card to operate at its rated 40Gbps per port.

Highlights

  • Dual 40Gbps ports deliver high-bandwidth connectivity for demanding servers
  • Intel XL710 controller provides reliable convergent network features
  • Two open QSFP+ slots support multimode and single-mode fiber for scalable links
  • PCIe 3.0 x8 host interface enables fast data transfers up to 40Gbps
  • Broad OS support includes Windows Server 2019 and VMware ESXi 5.1+

Specifications

BrandStarTech.com
Model40Gigabit Ethernet Card
Part NumberPEX40GQSFDPI
FeaturesTechnical Information
Chipset Manufacturer:
Intel
Chipset Model:
XL710-BM2
Interfaces/Ports
Host Interface:
PCI Express x8
Total Number of Ports:
2
I/O Expansions
Expansion Slot Type:
QSFP+
Media & Performance
Media Type Supported:
Optical Fiber
Network & Communication
Network Technology:
40GBase-SR4
40GBAse-LR4
Physical Characteristics
Color Family:
Black
Product Color:
Black
Form Factor:
Plug-in Card
Height:
0.8"
Width:
4.8"
Depth:
7.1"
Weight (Approximate):
4.50 oz
Miscellaneous
Package Contents:
Dual-Port QSFP+ Server NIC Card - PCI Express - Intel Chip
1 x Low-profile Bracket
1
DimensionsHeight:
0.8"
Width:
4.8"
Depth:
7.1"
WeightWeight (Approximate):
4.50 oz
Shipping weight0.26 kg
Package size181 × 121 × 21 mm

Questions about this item

What size PCIe slot and bracket clearance does the PEX40GQSFDPI require?

The card uses a PCI Express 3.0 x8 interface and measures 4.8 inches wide by 7.1 inches deep; full-height and low-profile brackets are included.

Which step is often missed when installing the Intel XL710 adapter in a server?

After seating the card in the x8 slot, you must attach the QSFP+ transceivers or direct-attach cables before the link will come up.

When will the QSFP+ modules or cables need replacement on this 40GbE NIC?

Replace transceivers or DACs when link errors increase or after a fiber break; the Intel XL710 controller itself has no user-serviceable parts.
