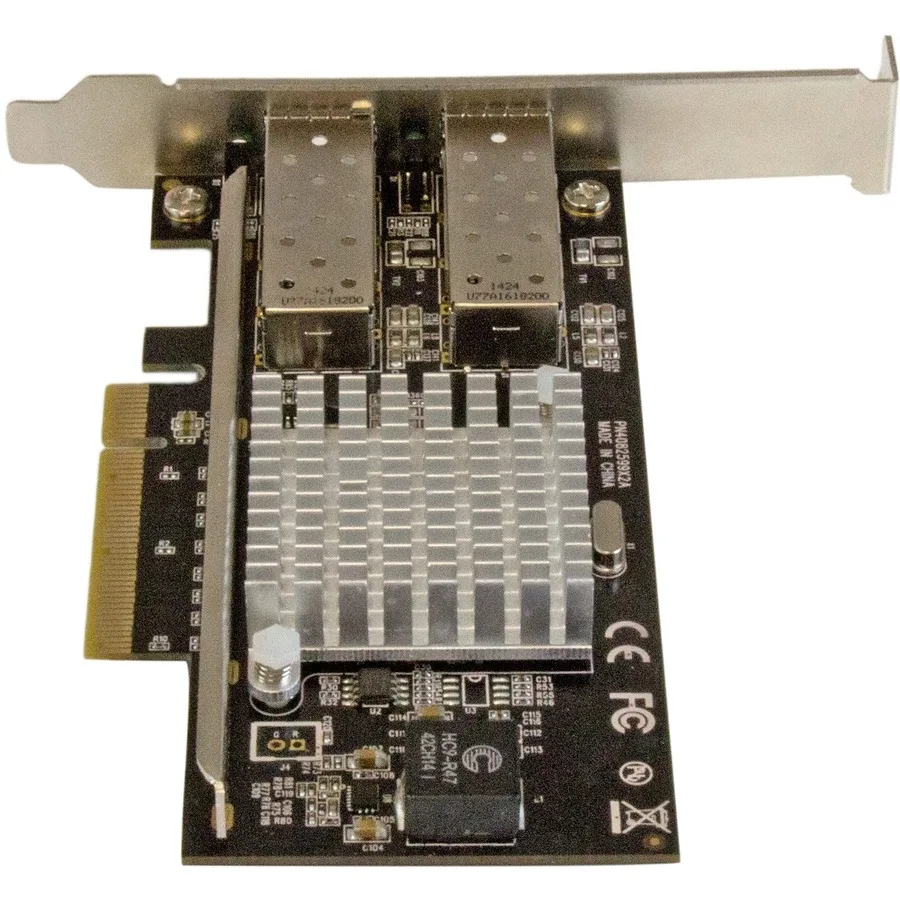

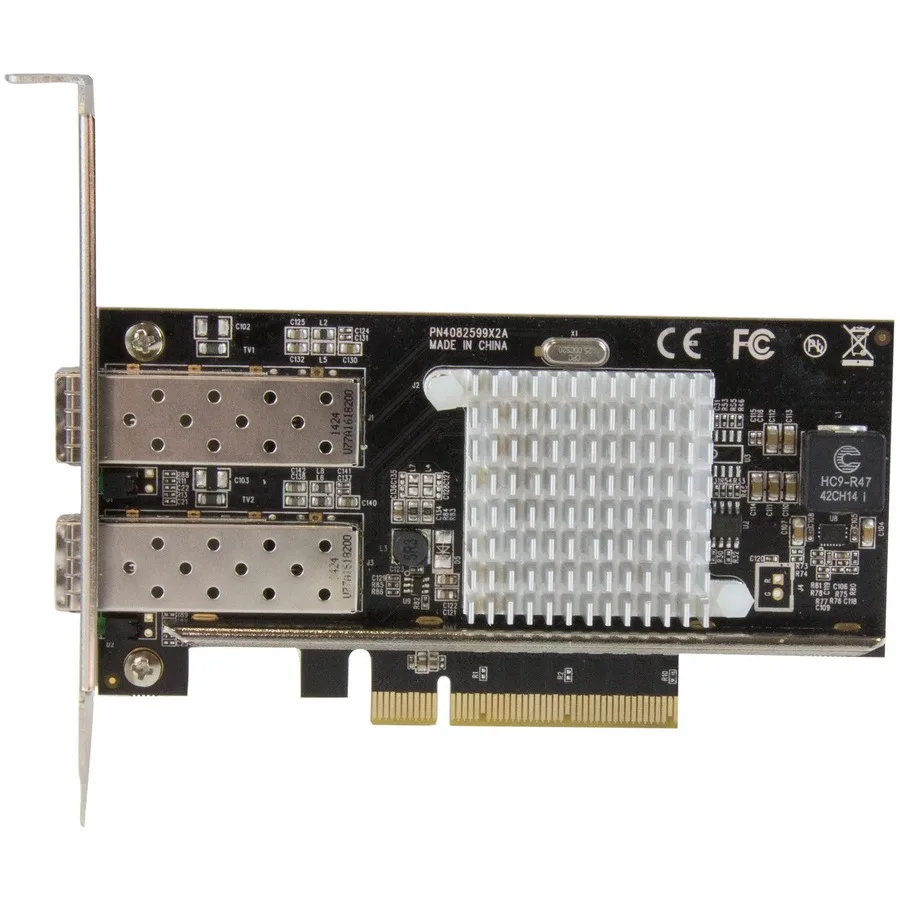

Green circuit board with two open SFP+ cages, full-height metal bracket and a low-profile bracket included

STARTECH

STARTECH PEX20000SFPI 2-port 10G SFP+ network card

SKU CH-CG2E-8B3AA MPN PEX20000SFPI

Adds two 10GbE SFP+ ports via PCIe x8 using Intel 82599 chipset for 20Gbps full-duplex bandwidth

  • Speed10Gbps
  • InterfacePCI-Express
  • FeaturesAdd two 10GbE SPF+ slots to server or workstation for fast h
  • Weight0.39
  • Package Contents2-Port 10G Fiber Network Card with Open SFP+ - PCIe, Intel C
  • Add two 10GbE SFP+ slots for high-bandwidth server connectivity using Intel 82599 chipset
  • Intel Virtualization Technology support improves VM network performance on the 82599 controller
  • Up to 20Gbps full-duplex bandwidth per port enables fast fiber data transfer
  • PCI Express 2.0 x8 interface provides compatible server or workstation expansion
  • IEEE 802.1Q VLAN tagging and 802.3ad Link Aggregation support for advanced network management

Two-port 10G SFP+ adapter

This network card adds two 10GbE SFP+ slots to a server or workstation through a PCI Express slot. It uses the Intel 82599 chipset and provides up to 20Gbps full-duplex bandwidth per port for high-bandwidth connectivity.

Installation notes

The card fits a PCIe x8 or higher slot compliant with the PCI Express 2.0 specification. A low-profile bracket is included for compact chassis. Common issues include using SFP+ modules that do not match the supported 10GBASE-LR, 10GBASE-SR or 10GBASE-LRM standards.

IEEE 802.3ae and 802.3aq compliance

This adapter is compliant with IEEE 802.3ae for 10GBASE-LR and 10GBASE-SR, and with IEEE 802.3aq for 10GBASE-LRM. Verify that your fibre modules and cabling meet these exact standards before purchase.

Highlights

  • Add two 10GbE SFP+ slots for high-bandwidth server connectivity using Intel 82599 chipset
  • Intel Virtualization Technology support improves VM network performance on the 82599 controller
  • Up to 20Gbps full-duplex bandwidth per port enables fast fiber data transfer
  • PCI Express 2.0 x8 interface provides compatible server or workstation expansion
  • IEEE 802.1Q VLAN tagging and 802.3ad Link Aggregation support for advanced network management

Specifications

BrandStarTech.com
ModelPEX20000SFPI
Speed10Gbps
InterfacePCI-Express
FeaturesAdd two 10GbE SPF+ slots to server or workstation for fast high-bandwidth connectivity
2-port 10G fiber network card with open SFP+
PCIe x2 10G NIC with Intel 82599 chipset
10Gb fiber Ethernet adapter with Intel Virtualization Technology for connectivity
Cost-effective fiber network card supports data transfers at up to 10Gbps per port (up to 20Gbps per port in full-duplex mode)
PXE network boot support
Weight0.39
Package Contents2-Port 10G Fiber Network Card with Open SFP+ - PCIe, Intel Chip
1 x Low-profile bracket
1 x Quick install guide
Shipping weight0.18 kg
Package size178 × 152 × 25 mm

Questions about this item

How do I verify the card is operating at 10Gbps per port after installation?

Check the link speed in your OS network settings or switch management console; each SFP+ port should report a 10Gbps connection when a compatible transceiver and cable are seated.

What comes in the box and what must I purchase separately?

The package includes the dual-port PCIe card, a low-profile bracket and a quick-install guide; SFP+ transceivers and fibre patch cables are not included and must be bought separately.

Which version should I choose for a PCIe 2.0 x8 slot?

This model is compliant with PCI Express 2.0 and requires an x8 or larger slot, so it is the correct version for that interface.
