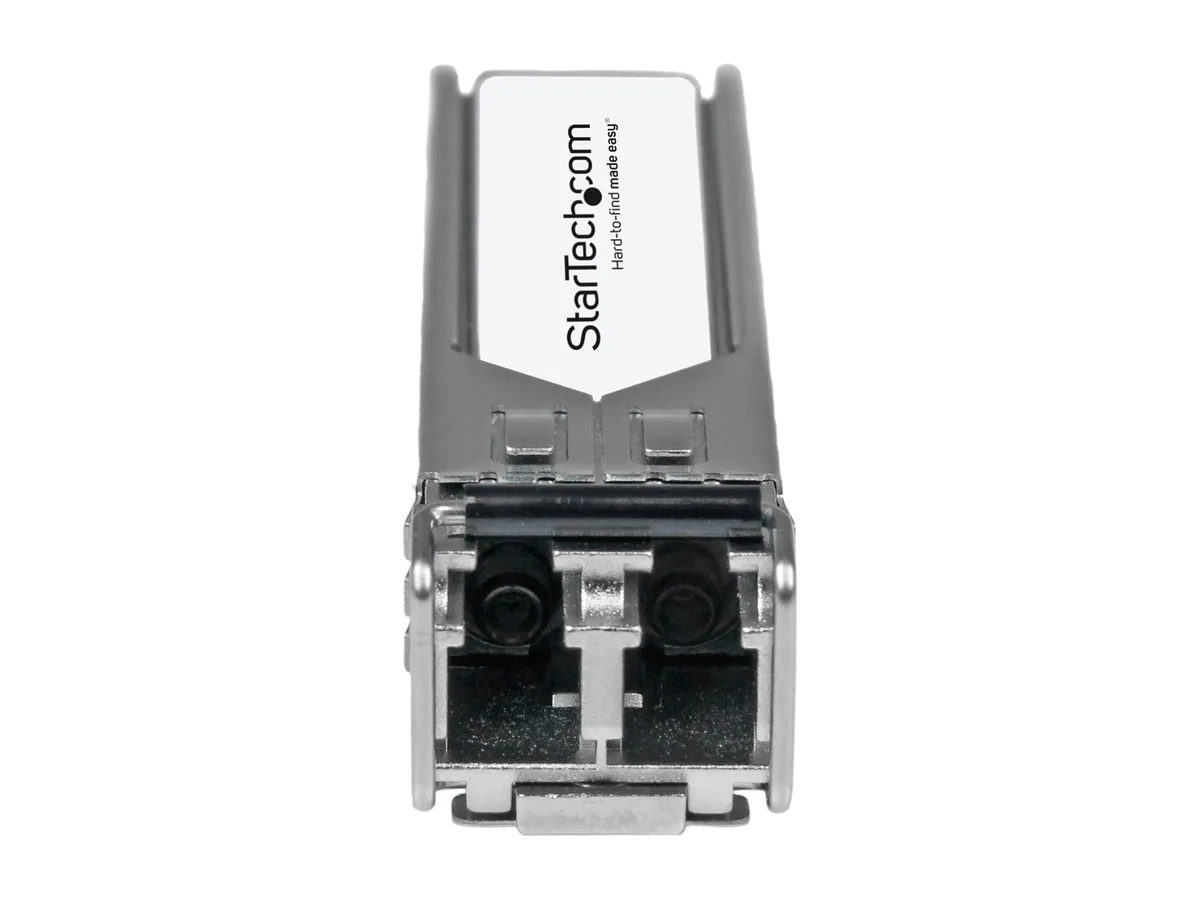

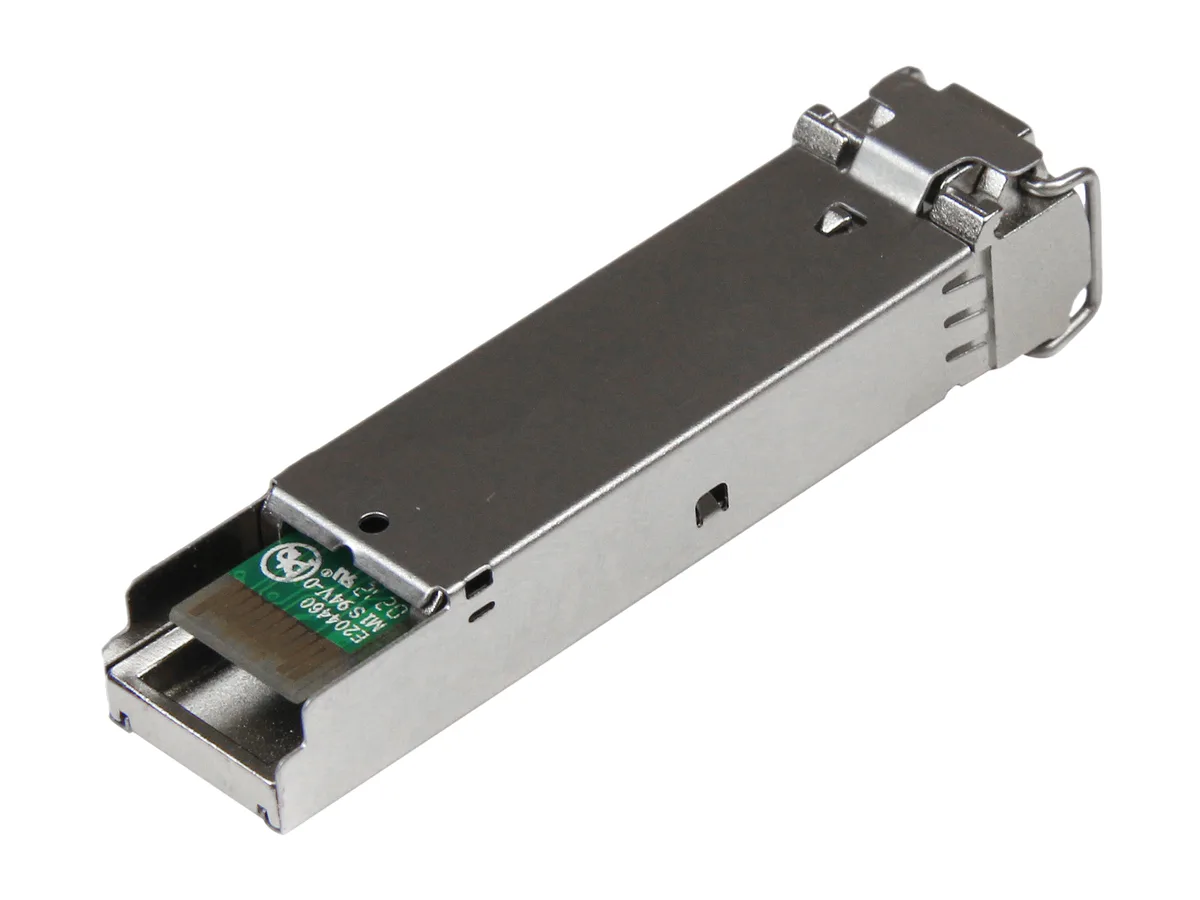

Small rectangular SFP transceiver module with LC connector, matte metal finish, compact form factor

STARTECH

STARTECH LX-ST SFP transceiver 1000Base-LX 10 km 1310nm

SKU CH-S1BZ-FEN1S

A Palo Alto Networks compatible SFP module delivering 1 Gbps over single-mode fiber at 1310 nm up to 10 km with LC connector, hot-swappable and under 1.3 W

  • Device TypeSFP Transceiver Module
  • Wavelength1310nm
  • Fiber CableSingle-mode Optical Fiber
  • Ports1000Base-LX
  • Max Distance10 km (6.2 mi)
  • Transfer Rate1 Gbps
  • Dependable 1 GbE connectivity over single-mode fiber up to 10 km
  • 1310 nm wavelength supports 1000Base-LX networks at 1 Gbps
  • Hot-swappable SFP module enables upgrades without network disruption
  • Low power draw under 1.3 W reduces operating cost
  • LC duplex connector fits standard single-mode patch cables

StarTech LX-ST SFP for Palo Alto Networks

The StarTech LX-ST is a 1000Base-LX SFP transceiver built for Palo Alto Networks switches and routers. It provides 1 Gbps connectivity over single-mode fiber with an LC connector. Network engineers upgrading or expanding existing PAN-SFP-LX deployments use this module to add 10 km links. Buyers needing multi-mode fiber or 10 GbE speeds should select a different module.

Low power draw under 1.3W with hot-swap support

Typical power consumption stays below 1.3 watts during normal operation. The hot-swappable design allows insertion or removal without powering down the host device, so routine maintenance does not interrupt traffic. An MTBF of 634210013 hours indicates long-term reliability in continuous service. No active cooling is required for the module itself.

MSA compliant build with LC duplex interface

The transceiver meets Multi-Source Agreement standards for mechanical and electrical compatibility. Its compact form factor measures .49 by .54 by 2.23 inches and weighs .04 lbs. The LC duplex connector accepts standard single-mode patch cables for 1310nm wavelength links. Digital Diagnostics Monitoring is supported for real-time link health visibility. The package includes one SFP transceiver.

Highlights

  • Dependable 1 GbE connectivity over single-mode fiber up to 10 km
  • 1310 nm wavelength supports 1000Base-LX networks at 1 Gbps
  • Hot-swappable SFP module enables upgrades without network disruption
  • Low power draw under 1.3 W reduces operating cost
  • LC duplex connector fits standard single-mode patch cables

Specifications

BrandStarTech.com
ModelLX-ST
Device TypeSFP Transceiver Module
Wavelength1310nm
Fiber CableSingle-mode Optical Fiber
Ports1000Base-LX
Max Distance10 km (6.2 mi)
Transfer Rate1 Gbps
FeatureCompatible Brand: Palo Alto Networks
Wavelength: 1310nm
Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 634,210,013 hours
Power Consumption: < 1.3W
Digital Diagnostics Monitoring (DDM): Yes
The LX-ST is a Palo Alto Networks PAN-SFP-LX compatible fiber transceiver module that has been designed, programmed and tested to work with Palo Alto Networks brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000Base-LX compliant networks, with a maximum d
Dimensions0.49" x 0.54" x 2.23"
Weight0.04 lbs.
Package Contents1 x SFP Transceiver
Shipping weight0.05 kg
Package size115 × 90 × 31 mm

Questions about this item

How do I install the LX-ST SFP module and what step is commonly missed?

Insert the module into an SFP port until it clicks, then remove the dust caps and connect single-mode LC fiber; the step often missed is cleaning both connector end-faces before mating them.

What maintenance or replacement will the LX-ST need over time?

The module itself has no user-serviceable parts and a rated MTBF of 634210013 hours; plan only periodic inspection and cleaning of the LC connectors and patch cords.

What limit appears first on the LX-ST during sustained 1 Gbps traffic over 10 km?

The optical link budget for 1310 nm single-mode fiber at 10 km is the first constraint; power consumption stays below 1.3 W and the LC interface remains within MSA thermal limits.
