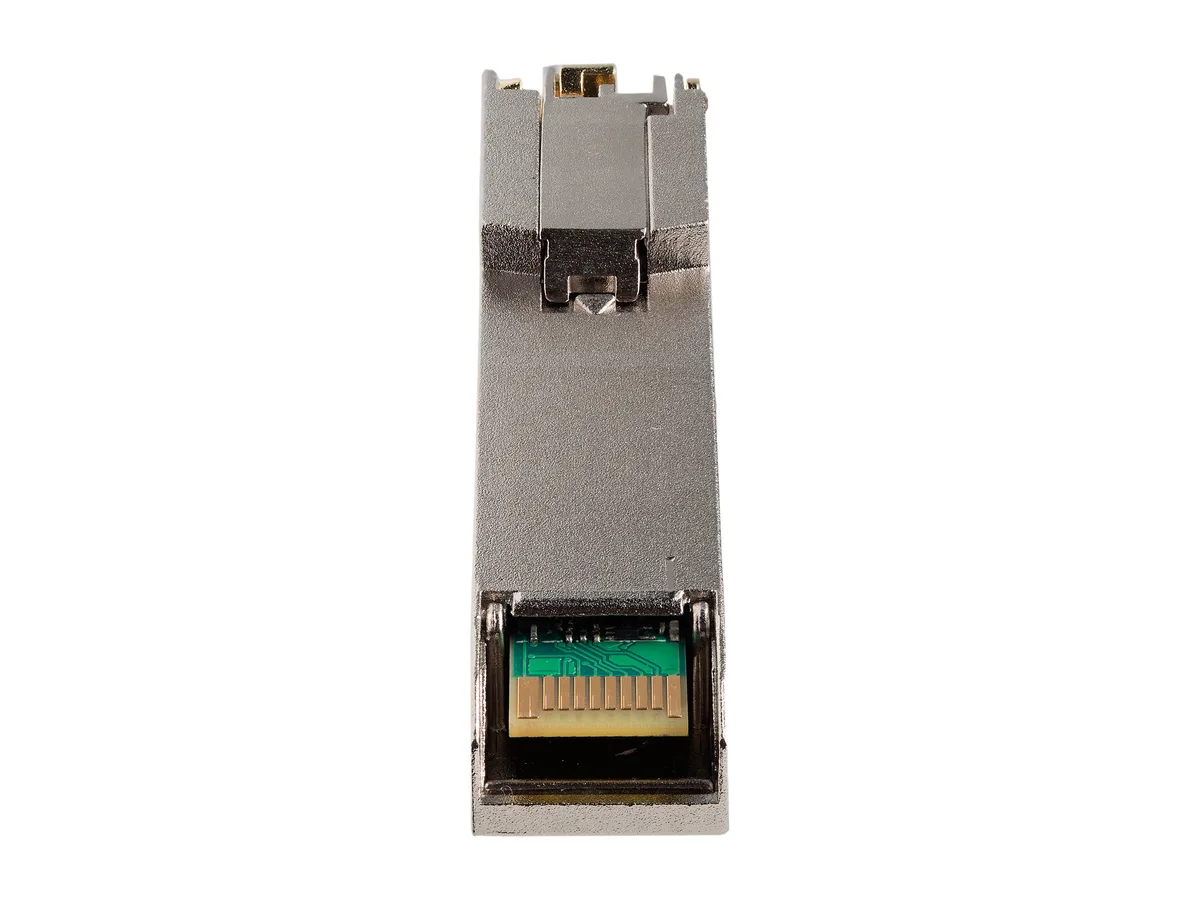

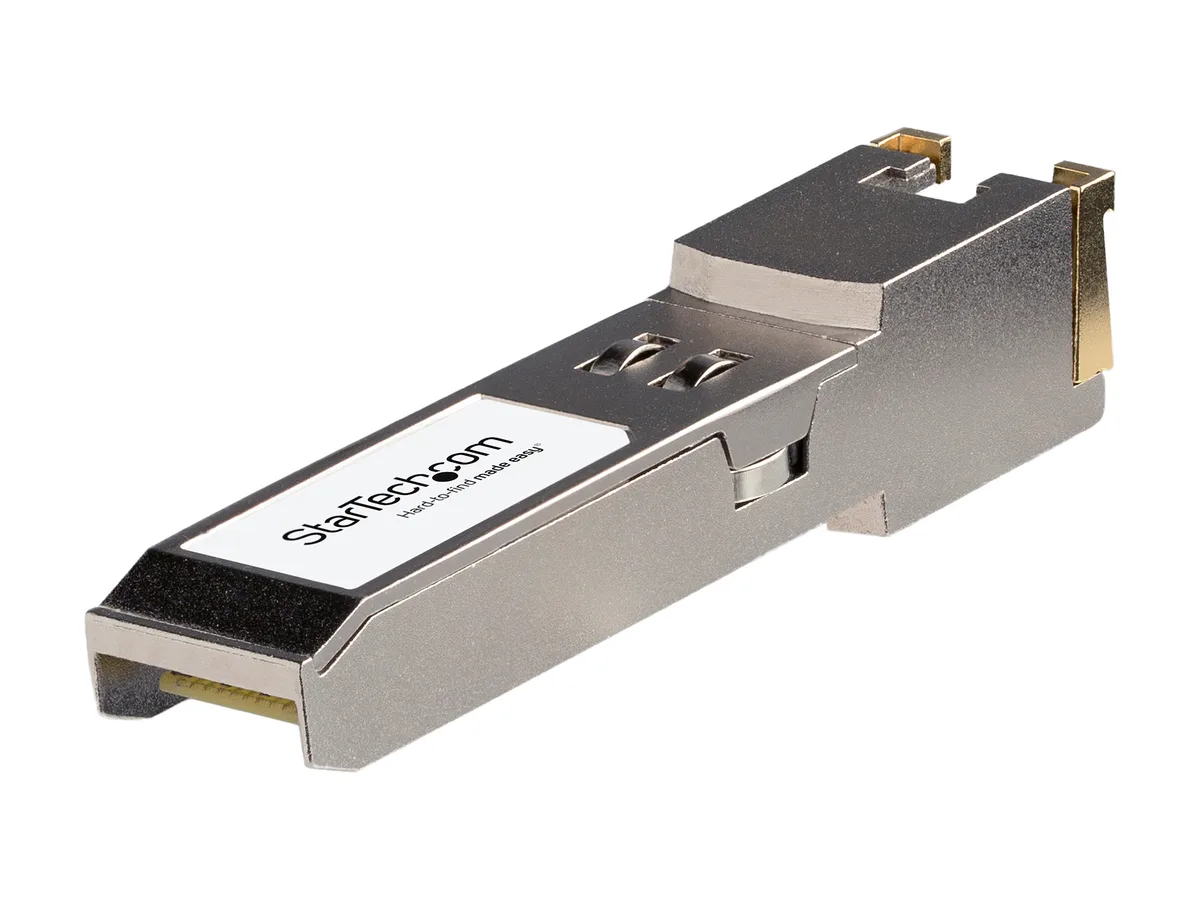

Small rectangular SFP+ transceiver with silver metal housing and RJ45 port

STARTECH

STARTECH JL563A-ST SFP+ transceiver 10GBASE-T 30m

SKU CH-PMPQ-JE7AY MPN JL563A-ST

A hot-swappable SFP+ copper transceiver delivering 10 Gbps over RJ-45 up to 30 m

  • Device TypeSFP+ Transceiver Module
  • StandardsIEEE 802.3ae 10GBASE-T
  • Ports10GBase-T
  • Max Distance30 m (98.4 ft)
  • Transfer Rate10 Gbps
  • FeatureCompatible Brand: HP Maximum Data Transfer Rate: 10 Gbps Typ
  • 10 Gbps throughput over copper cabling with IEEE 802.3ae 10GBASE-T standard
  • 30 m reach on Cat6 or Cat5e twisted pair for flexible deployment
  • Hot-swappable SFP+ form factor enables module changes without network downtime
  • HP JL563A compatible design tested for reliable operation in HP switches and routers
  • 510,469,759 hours MTBF rating indicates long-term reliability for continuous operation

HP-compatible SFP+ copper module

The StarTech.com JL563A-ST is a hot-swappable SFP+ transceiver built to the IEEE 802.3ae 10GBASE-T standard. It delivers 10 Gbps over RJ-45 copper cabling up to 30 m and is programmed for HP switches and routers.

Suited for 10G copper uplinks in HP gear

This module fits network teams extending 10 Gigabit Ethernet over existing Cat6 or Cat5e runs within the 30 m reach. It is not for links beyond that distance, nor for equipment requiring fibre-optic SFP+ modules or higher line rates.

30 m maximum reach over copper

The single specification that decides fit is the 30 m (98.4 ft) maximum transfer distance at 10 Gbps. If the link exceeds this length, a different transceiver type is required.

Highlights

  • 10 Gbps throughput over copper cabling with IEEE 802.3ae 10GBASE-T standard
  • 30 m reach on Cat6 or Cat5e twisted pair for flexible deployment
  • Hot-swappable SFP+ form factor enables module changes without network downtime
  • HP JL563A compatible design tested for reliable operation in HP switches and routers
  • 510,469,759 hours MTBF rating indicates long-term reliability for continuous operation

Specifications

BrandStarTech.com
ModelJL563A-ST
Device TypeSFP+ Transceiver Module
StandardsIEEE 802.3ae 10GBASE-T
Ports10GBase-T
Max Distance30 m (98.4 ft)
Transfer Rate10 Gbps
FeatureCompatible Brand: HP
Maximum Data Transfer Rate: 10 Gbps
Type: Copper
Connection Type: RJ-45
Maximum Transfer Distance: 30 m (98.4 ft)
MTBF: 510,469,759 hours
The JL563A-ST is a HP JL563A compatible copper transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 10 GbE connectivity over copper cable, for 10/100/1000/10000 compliant networks, with a maximum distance of up to 30 m (98.4 ft).
This copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Dimensions0.54" x 0.55" x 2.68"
Weight0.03 lbs.
Package Contents1 x SFP+ Transceiver
Shipping weight0.05 kg
Package size115 × 90 × 35 mm

Questions about this item

How much heat or noise does the JL563A-ST generate when running continuously at 10 Gbps?

The copper SFP+ module has no moving parts and draws power only from the host SFP+ port, so it adds negligible heat and produces no audible noise during all-day operation.

What switch or router must I already own for this SFP+ transceiver to work?

You need an HP switch or router with an SFP+ cage that accepts 10GBASE-T copper modules; the JL563A-ST is programmed for HP JL563A compatibility.

Will the JL563A-ST link at 10 Gbps with older Cat5e patch cables I already have installed?

The module supports 10/100/1000/10000 Mbps auto-negotiation, but 10 Gbps over copper requires Cat6 or better; Cat5e will negotiate down to 1 Gbps.
