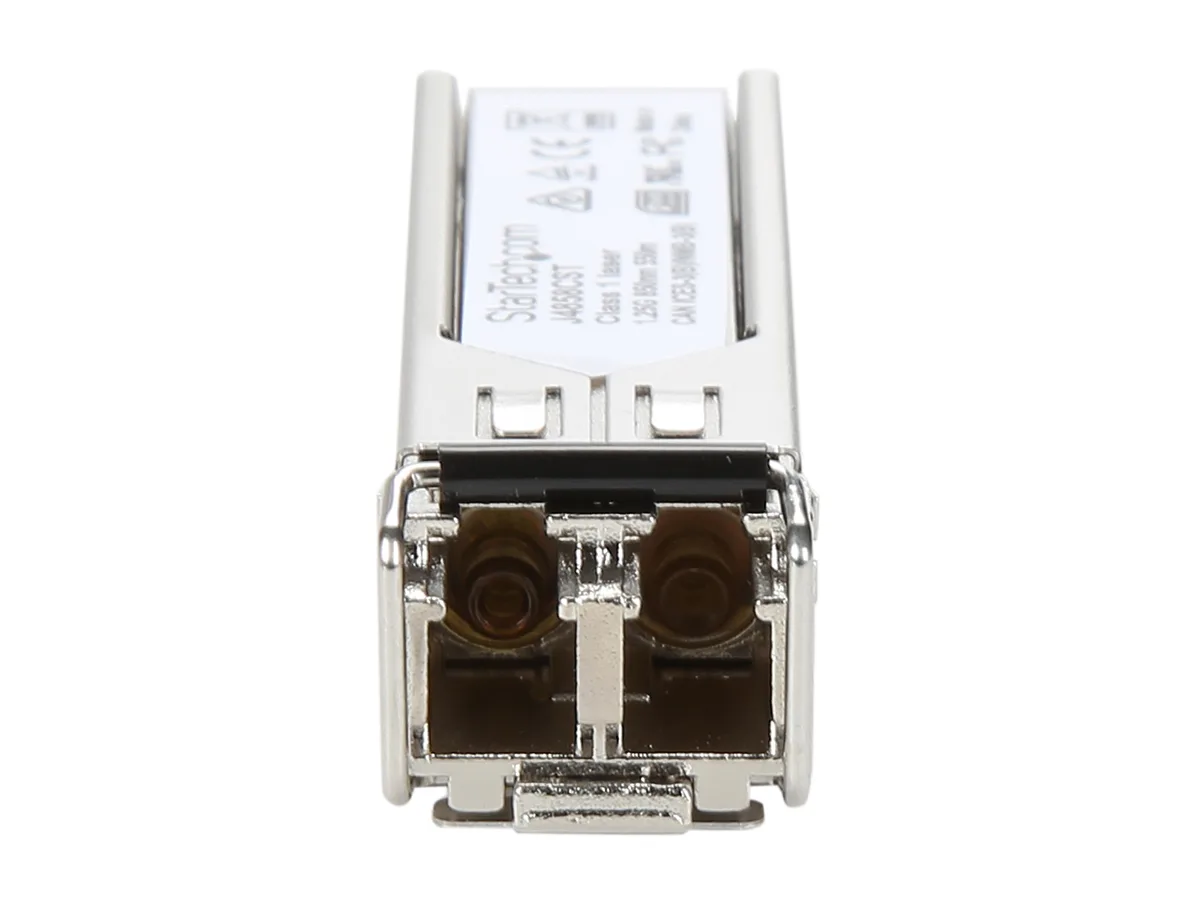

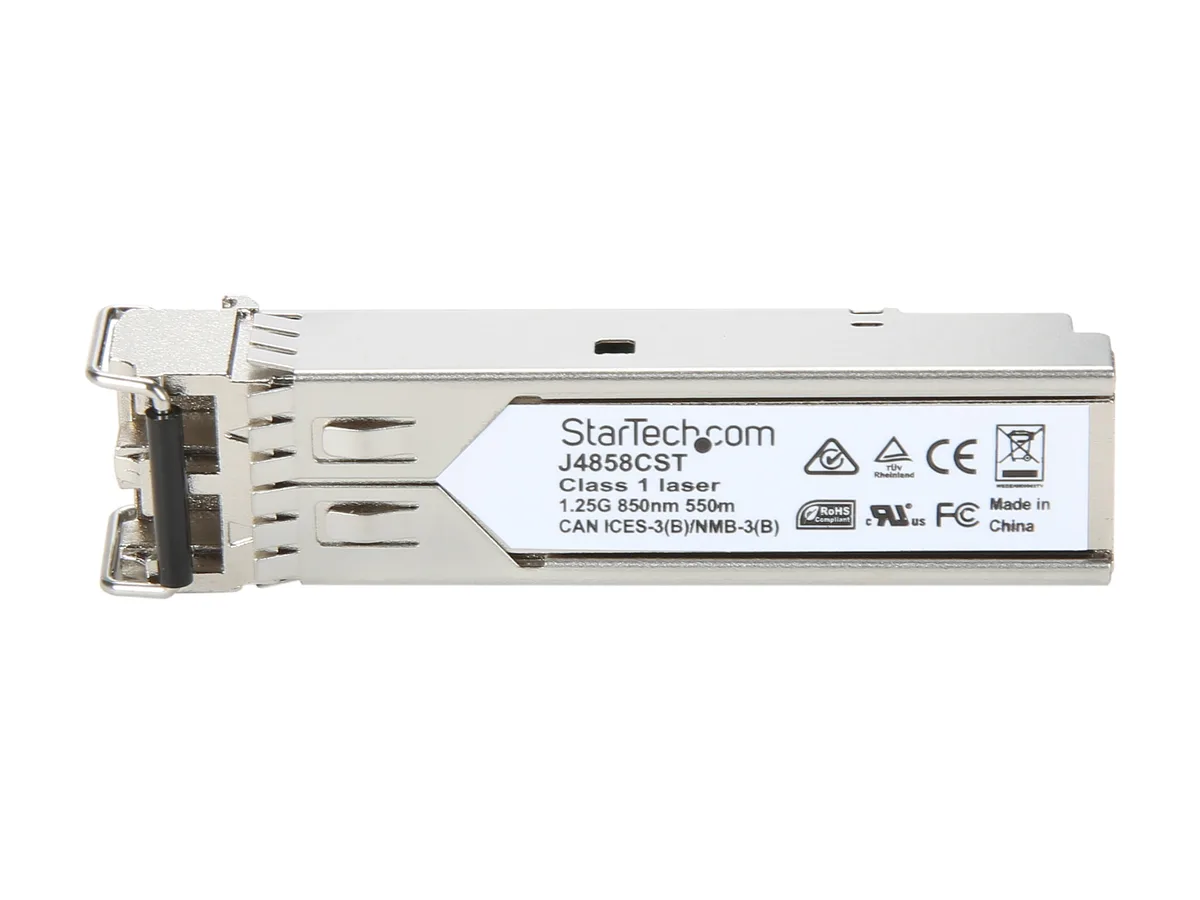

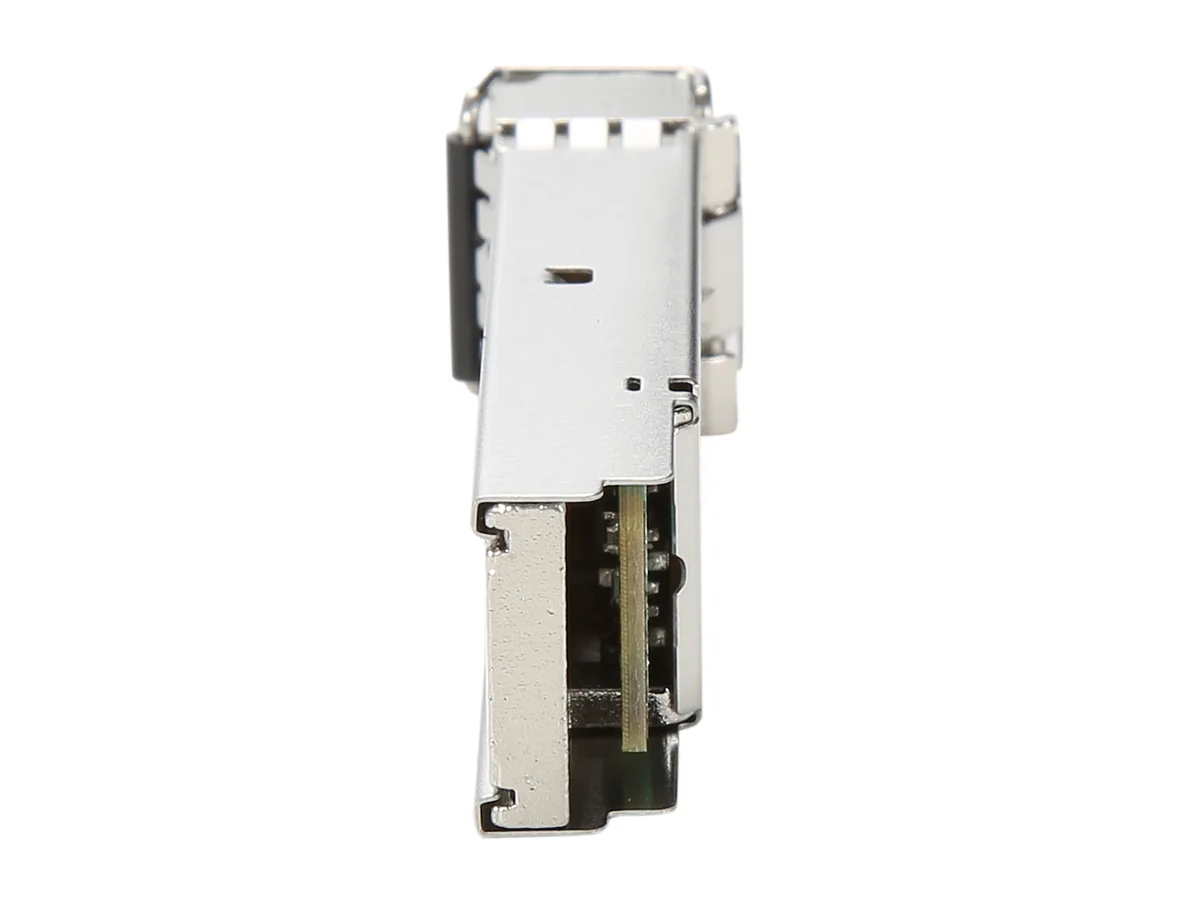

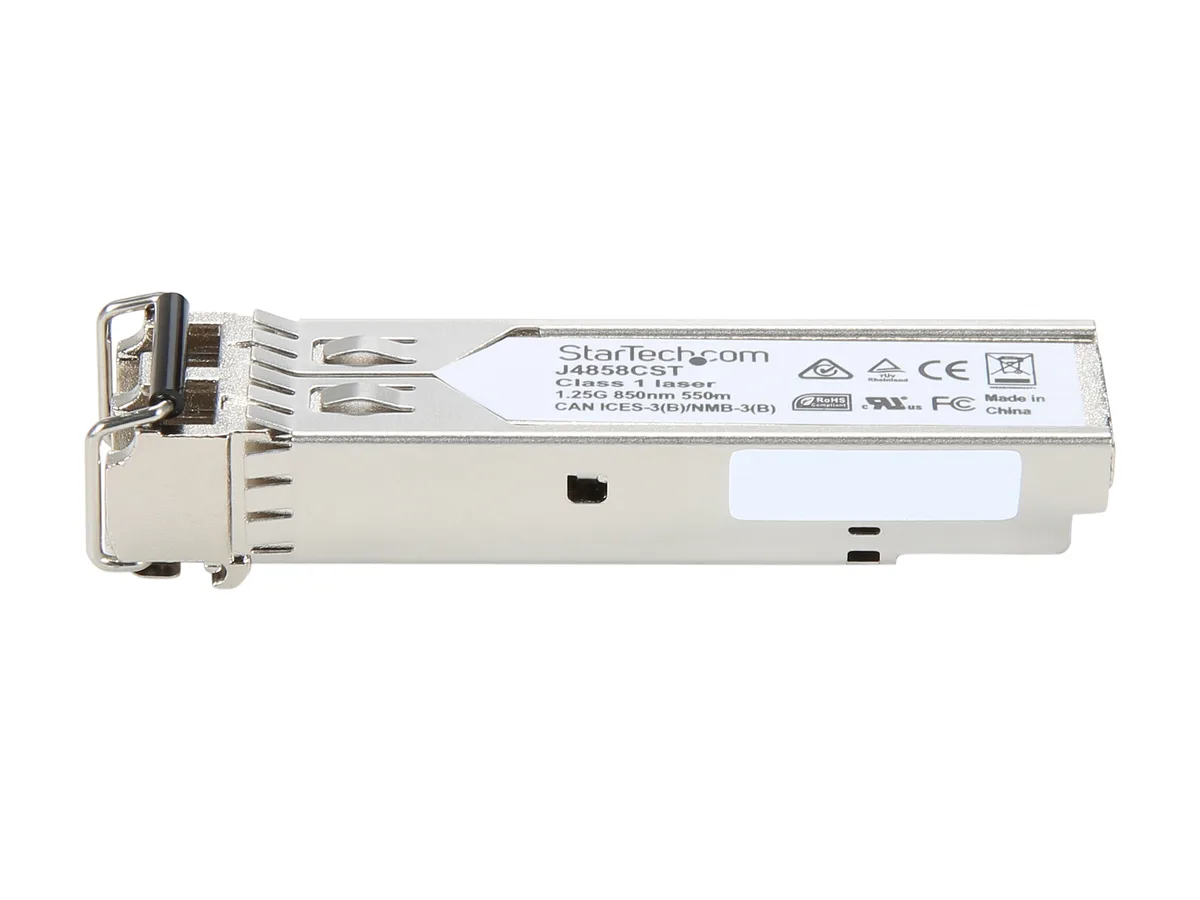

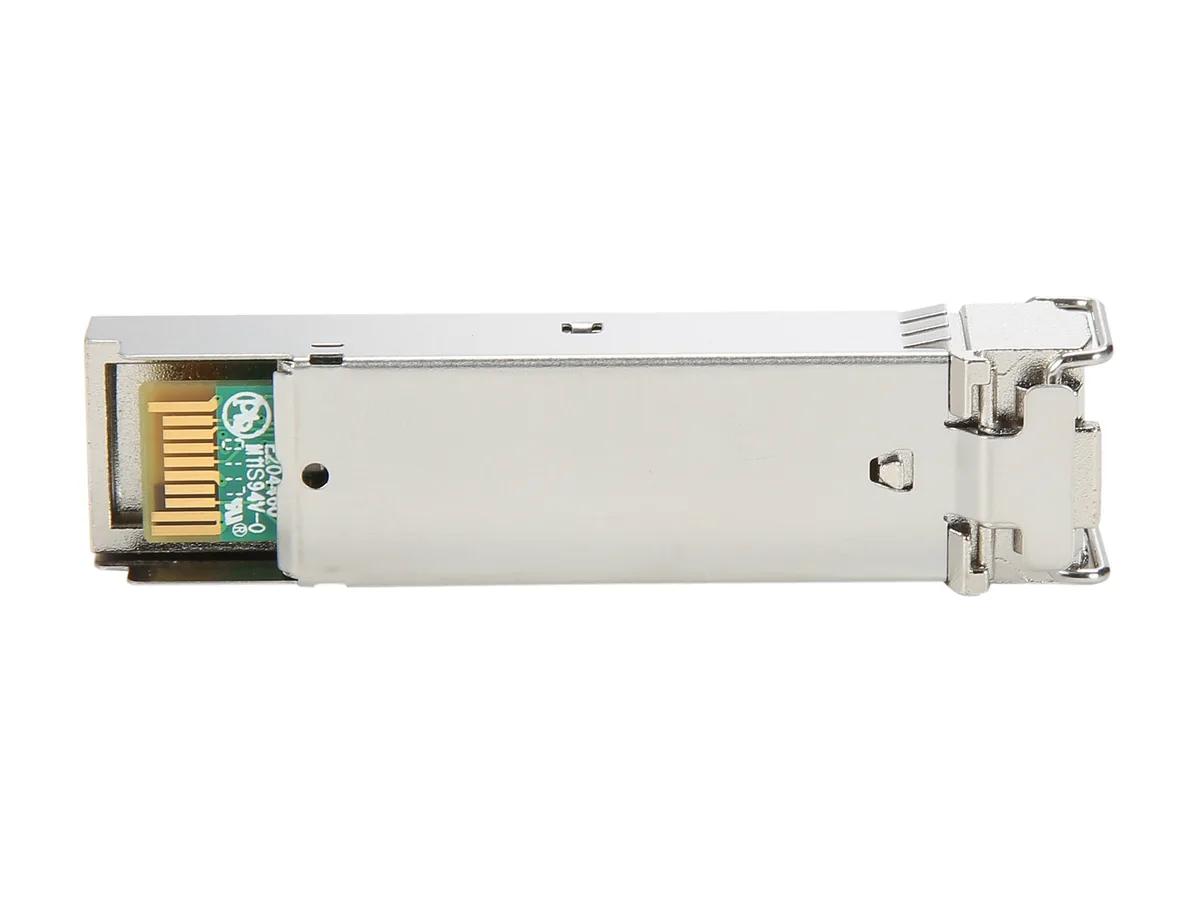

Small rectangular SFP transceiver with black LC duplex port and gold edge connector

STARTECH

STARTECH J4858CST 1000BASE-SX SFP transceiver 850nm 550m

SKU CH-1BGS-9HE73 MPN J4858CST

Gigabit Ethernet SFP transceiver delivers 1 Gbps over multi-mode fiber up to 550 m at 850 nm with LC duplex connector and Digital Diagnostics Monitoring

  • Device TypeTransceiver
  • StandardsIEEE 802.3z 1000BASE-SX
  • Wavelength850nm
  • ProtocolsTCP/IP
  • Ports1 - Fiber Optic LC Duplex Female
  • Max Distance550m (1804 ft)

Type 1000Base-SX

  • 1 Gbps Gigabit Ethernet over multi-mode fiber up to 550 m
  • 850 nm wavelength LC duplex connector compliant with IEEE 802.3z standard
  • Hot-swappable SFP module with Digital Diagnostics Monitoring for SNMP management
  • 100 % compatible with HPE J4858C switches including 1400 1700 1820 2520 2530
  • Works with MSA-compliant switches from Ubiquiti D-Link Netgear Supermicro TP-Link

1000BASE-SX SFP transceiver for HPE switches

This StarTech.com J4858CST module delivers a 1 Gbps Gigabit Ethernet link over multi-mode fiber at 850 nm. It fits HPE switches such as the 1400, 1700, 1820, 2520 and 2530 series and is also accepted by MSA-compliant hardware from brands including Ubiquiti, D-Link and Netgear. Digital Diagnostics Monitoring reports transceiver status to SNMP management tools.

Replaces a missing or failed HPE J4858C module

The transceiver upgrades any compatible switch port to a 550 m multi-mode fiber uplink without replacing the switch itself. The jump is worth it when you need to extend a Gigabit connection beyond copper limits or when an existing SFP slot is vacant and a fiber run is already in place. Hot-swap support means the change can be made without downtime.

Check for an LC duplex port and multi-mode fiber

Verify that the target switch has an open SFP cage accepting uncoded modules and that your cabling is LC duplex multi-mode rated for 850 nm. Confirm the link distance does not exceed 550 m (1804 ft) and that the switch firmware supports Digital Diagnostics Monitoring if you plan to use SNMP alerts. The package contains only the transceiver.

Highlights

  • 1 Gbps Gigabit Ethernet over multi-mode fiber up to 550 m
  • 850 nm wavelength LC duplex connector compliant with IEEE 802.3z standard
  • Hot-swappable SFP module with Digital Diagnostics Monitoring for SNMP management
  • 100 % compatible with HPE J4858C switches including 1400 1700 1820 2520 2530
  • Works with MSA-compliant switches from Ubiquiti D-Link Netgear Supermicro TP-Link

Specifications

BrandStarTech.com
ModelJ4858CST
Device TypeTransceiver
StandardsIEEE 802.3z 1000BASE-SX
Wavelength850nm
ProtocolsTCP/IP
Ports1 - Fiber Optic LC Duplex Female
Max Distance550m (1804 ft)
Transfer Rate1 Gbps
FeatureGet reliable and cost-efficient Gigabit Ethernet connections over multi-mode fiber with this Mini-GBIC module
Gigabit Fiber SFP transceiver module
HP J4858C compatible
MM LC with Digital Diagnostics Monitoring (DDM)
HP compatible SFP
1000Base-SX
Maximum data rates up to 1.25 Gbps
Meets or exceeds OEM specifications and MSA industry standards
Lifetime warranty
Maximum distance 550m (1804 ft.)
100% HP compatible, equivalent to J4858C
850 nm optical wavelength
Hot pluggable
Package Contents1 - SFP transceiver
Shipping weight0.05 kg
Package size119 × 94 × 38 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What type of fiber connector does the J4858CST module use?

The module uses an LC duplex female connector for multi-mode fiber patch cables.

How is the transceiver installed in an HPE switch?

Insert the hot-swappable module into an open SFP slot until it clicks; the common mistake is not pushing firmly enough to latch it.

What ongoing monitoring does the module support?

Digital Diagnostics Monitoring reports temperature, voltage and optical power to SNMP management tools for proactive health checks.
