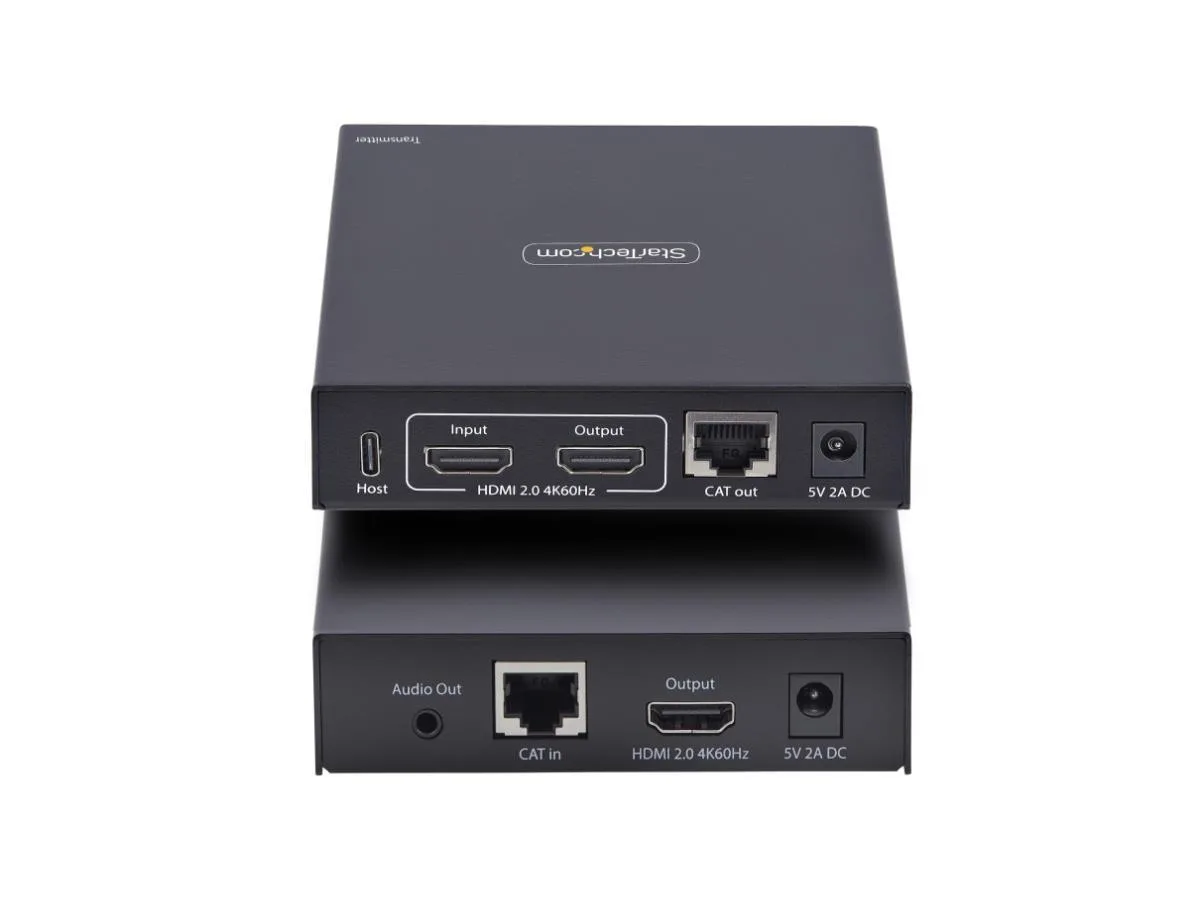

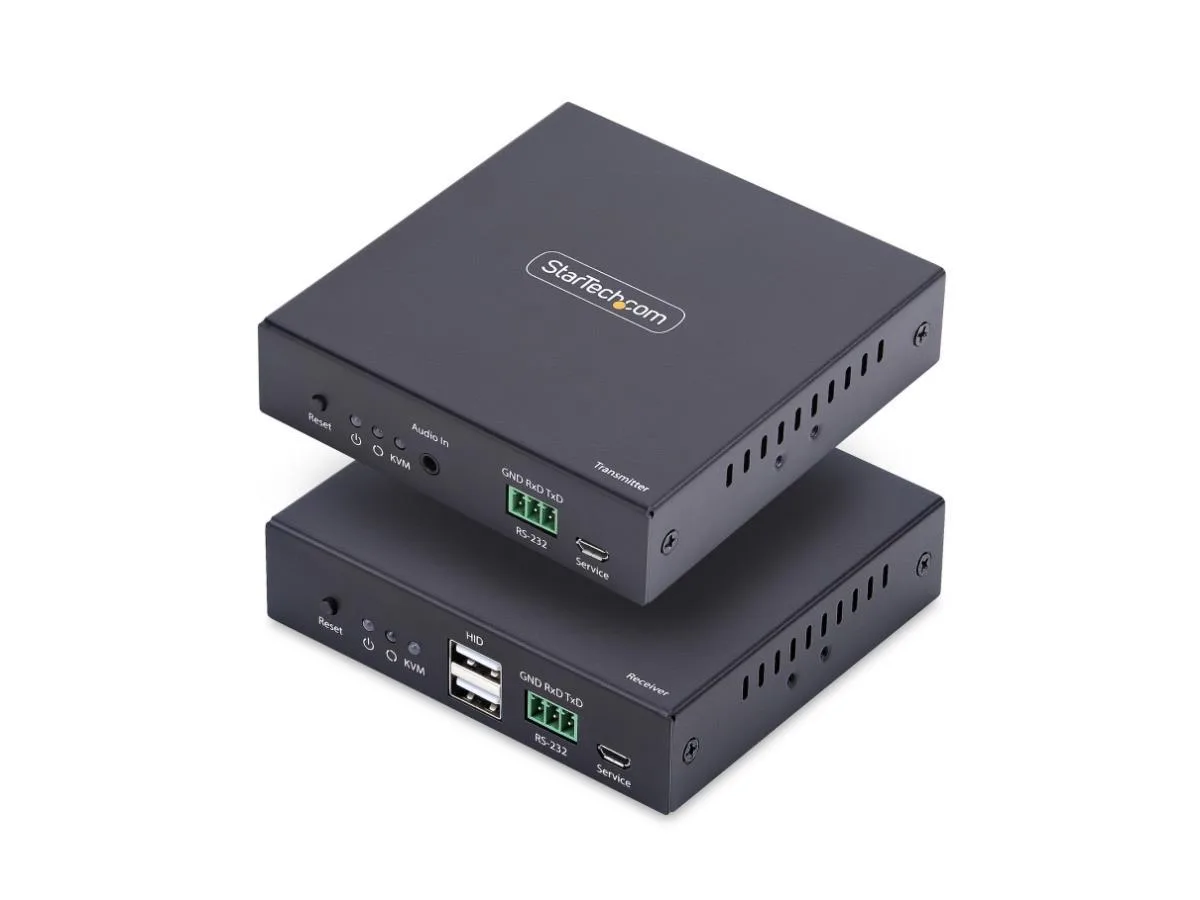

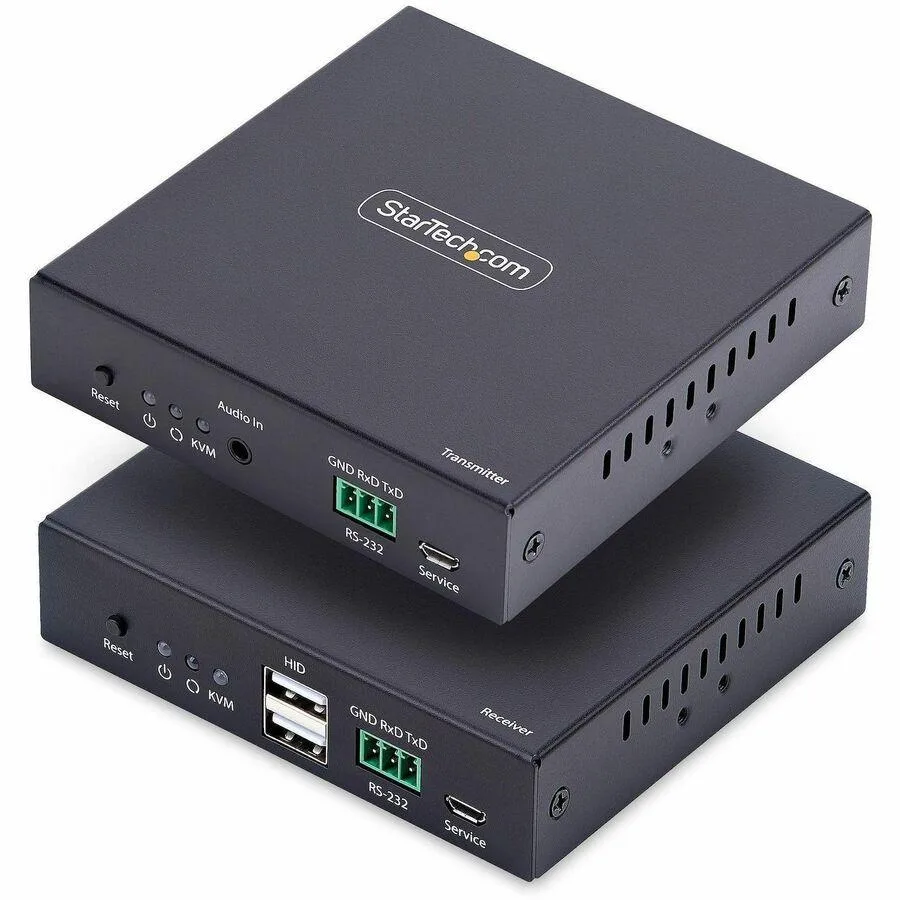

Two black metal boxes transmitter and receiver with HDMI USB RJ45 ports and mounting brackets

STARTECH

STARTECH IH2006-KVM-EXTENDER 4K 60Hz HDMI KVM extender over IP

SKU CH-8ZXG-EJ3CC MPN IH2006-KVM-EXTENDER

Extends 4K 60 Hz HDMI video and USB 2.0 control over an IP network with a driverless transmitter and receiver kit

  • Extender & Repeater TypeNon Wall Plate Extender
  • Sports Team2 Packs
  • Resolution Support4K
  • ColorBlack
  • HDMI2 Input/1 Output
  • USB Port2 - USB 2.0 Type-A
  • Control a remote PC at 4K 60Hz over a standard TCP/IP network
  • Works instantly with no drivers on Windows, macOS, Linux or ARM platforms

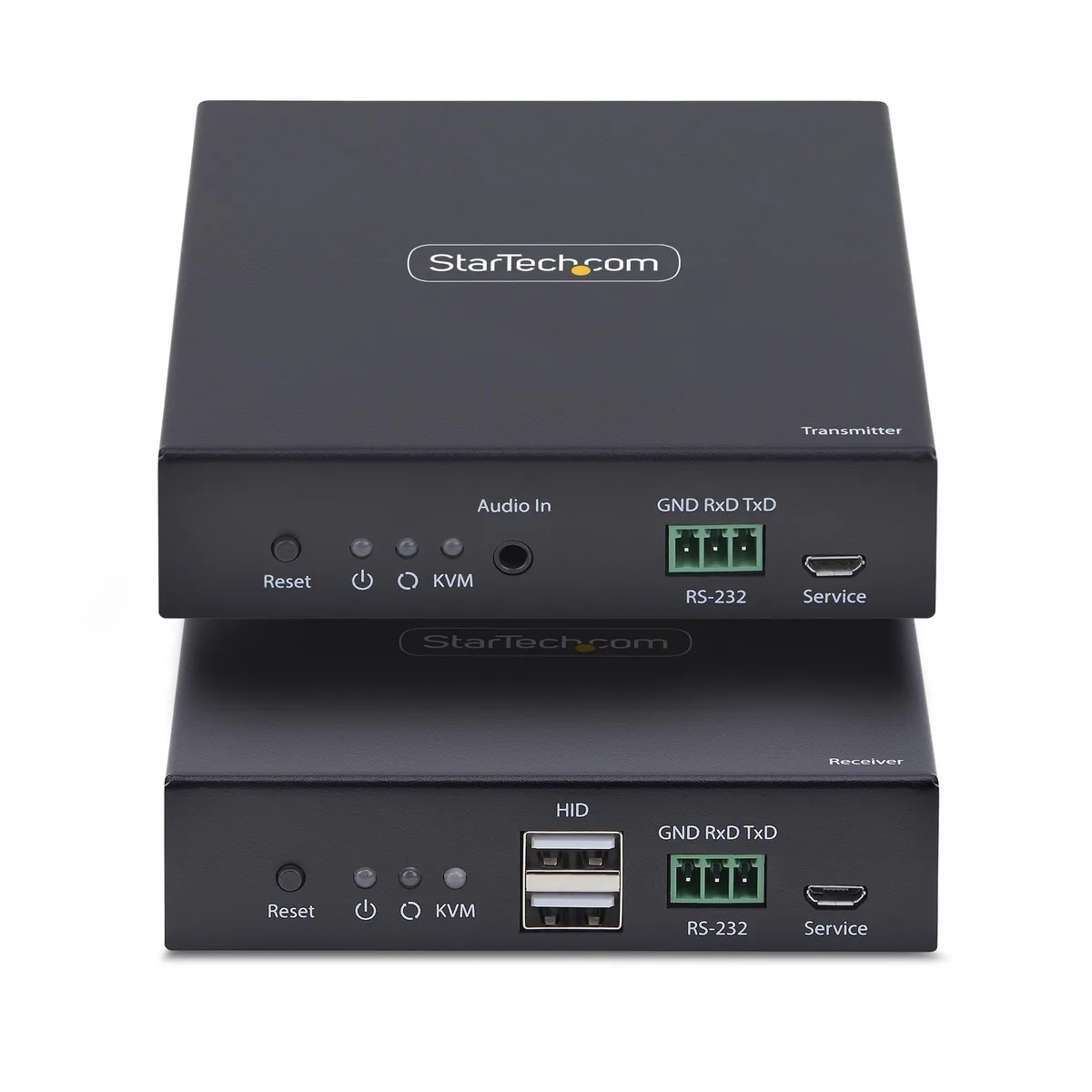

  • Transmitter includes a local HDMI output plus RS232 and 3.5mm audio passthrough
  • Grow from point-to-point to one-to-many by adding extra IP KVM receivers

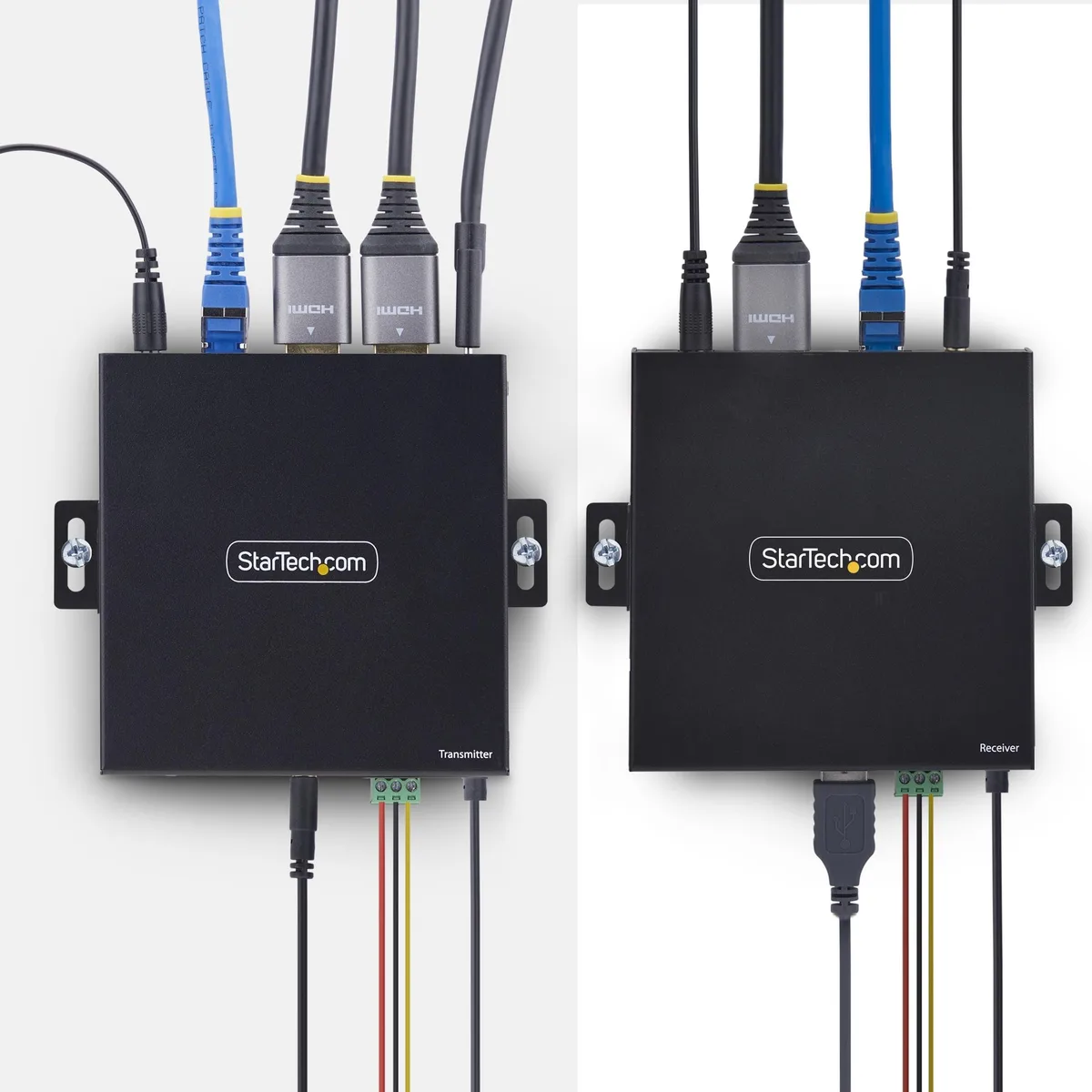

  • Rugged metal enclosure with mounting kits for wall, desk or under-desk installation

IP-based KVM extender for remote access

The STARTECH IH2006-KVM-EXTENDER lets operators control a host computer from a distant workstation over a standard TCP/IP network. A transmitter and receiver pair extend HDMI video, USB keyboard and mouse, RS-232 serial and analogue audio up to 4K 60Hz without installing drivers or management software. The kit suits IT administrators, industrial operators and broadcast teams who need secure, OS-agnostic remote access to a single system.

Network bandwidth and latency set practical limits

Extending 4K 60Hz over IP consumes significant network capacity and introduces latency that varies with switch quality, congestion and hop count. The receiver requires a wired Ethernet link; wireless or heavily shared segments will degrade frame delivery. Buyers who need uncompressed, sub-frame latency or must traverse congested Wi-Fi links should consider direct-attach extenders instead.

HDMI 2.0 input caps maximum resolution and refresh

The transmitter accepts a single HDMI 2.0 source, limiting the extended signal to 4K at 60 Hz with 4:4:4 colour sampling. Higher refresh rates, 5K timings or HDR metadata beyond the HDMI 2.0 specification cannot be transported. Verify the host GPU outputs HDMI 2.0 before purchasing.

Highlights

  • Control a remote PC at 4K 60Hz over a standard TCP/IP network
  • Works instantly with no drivers on Windows, macOS, Linux or ARM platforms
  • Transmitter includes a local HDMI output plus RS232 and 3.5mm audio passthrough
  • Grow from point-to-point to one-to-many by adding extra IP KVM receivers
  • Rugged metal enclosure with mounting kits for wall, desk or under-desk installation

Specifications

BrandSTARTECH
SeriesHDMI KVM Extender
ModelIH2006-KVM-EXTENDER
Part NumberIH2006-KVM-EXTENDER
Extender & Repeater TypeNon Wall Plate Extender
Sports Team2 Packs
Resolution Support4K
ColorBlack
HDMI2 Input/1 Output
USB Port2 - USB 2.0 Type-A
Component2 Input/2 Output
Other ConnectorConnector(s)
Console Interface(s)
2 - USB 2.0 Type-A
1 - Terminal Block (3 Wire)
1 - 3.5mm Stereo Female 3 pos
2 - RJ-45
2 - HDMI
Host Connectors
1 - Terminal Block (3 Wire)
1 - USB 2.0 Type-C
1 - HDMI
1 - 3.5mm Stereo Female 3 pos
Other Interface(s)
2 - USB Micro-B (5 pin)
SoftwareNo Drivers or Software Required
Power Consumption10W
Power SupplyPower Source
2 AC Adapters Included
Input Voltage
100 - 240 AC
Input Current
0.3A
Output Voltage
5 DC
Output Current
2A
Center Tip Polarity
Positive
Plug Type
M
SpecificationEnvironmental:
Operating Temperature
-20°C to 60°C (-4°F to 140°F)
Storage Temperature
-30°C to 70°C (-22°F to 158°F)
Humidity
0% ~ 90% RH (non-condensing)
Performance:
On-Screen Display
No
Video Revision
HDMI 2.0
IP Control
Yes
Hot-Key Selection
No
Maximum Digital Resolutions
3840 x 2160 @ 60Hz
Audio Specifications
HDMI - 2 Channel Audio
Port Selection Support
Not Applicable
MTBF
10,000 Hours
DimensionsPhysical Characteristics:
Product Height
1,0 in [25,1 mm]
Product Length
4,2 in [106 mm]
Product Width
4,1 in [103 mm]
Packaging Information:
Package Height
3,1 in [8,0 cm]
Package Length
6,9 in [17,6 cm]
Package Width
9,4 in [24,0 cm]
WeightWeight of Product
11,0 oz [312 g]
Shipping (Package) Weight
2,4 lb [1,1 kg]
Package Content1 - KVM Extender Transmitter
1 - KVM Extender Receiver
2 - RS-232 Terminal Headers
2 - Mounting Kit
2 - Set of Rubber Feet
2 - Universal Power Adapter (NA/EU/UK/ANZ)
1 - Quick-Start Guide
Shipping weight1.36 kg
Package size102 × 102 × 25 mm

Questions about this item

Should I choose a point-to-point or one-to-many setup for the IH2006-KVM-EXTENDER?

Start with point-to-point using the included transmitter and receiver; add extra receivers later to expand to one-to-many without replacing the kit.

What does 4K 60Hz mean when the extender is connected over my network?

The HDMI 2.0 link delivers 4K resolution at 60 Hz to the remote monitor with USB keyboard and mouse control, driverless on Windows, macOS or Linux.

How far can the HDMI and USB signals travel over the RJ-45 ports on this extender?

The transmitter and receiver connect via standard Ethernet cabling; the 10 W units support TCP/IP routing so distance follows your network infrastructure.
