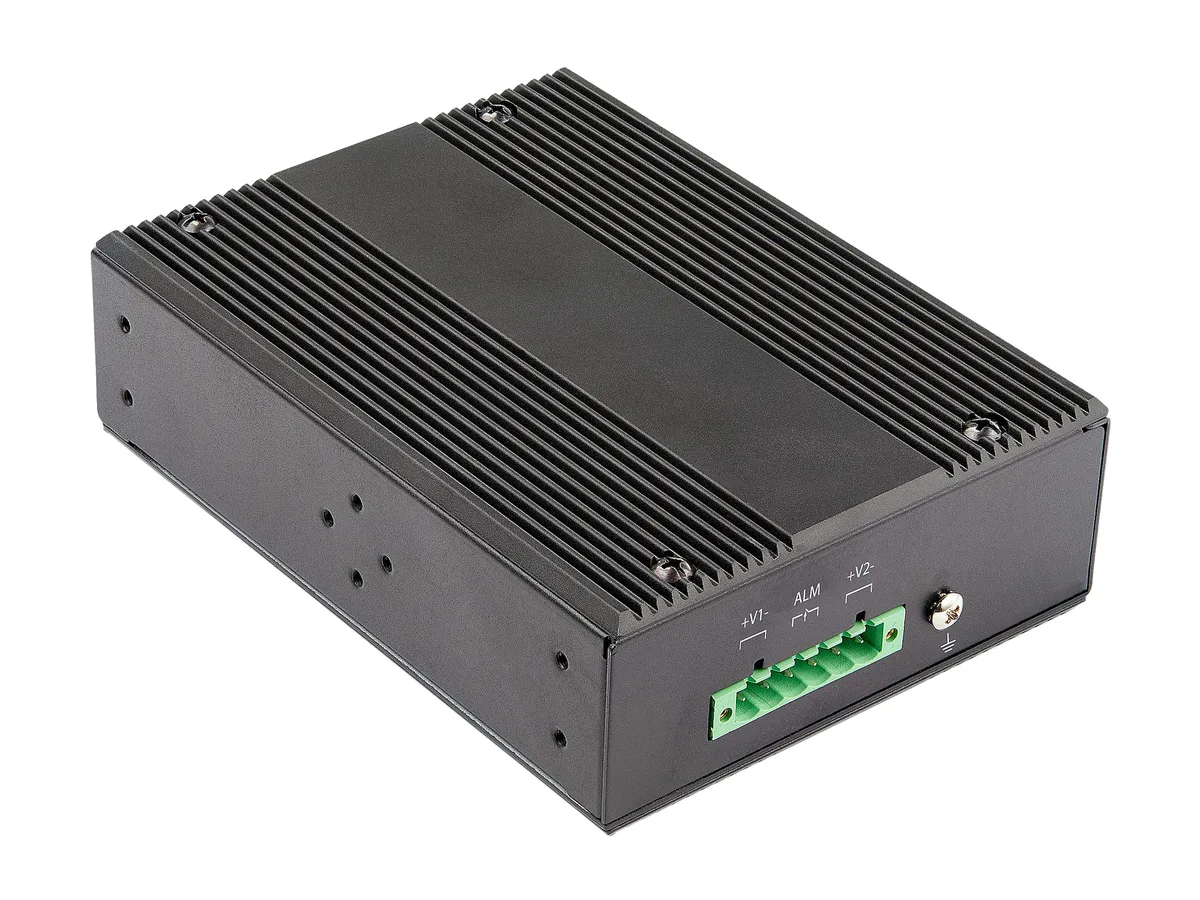

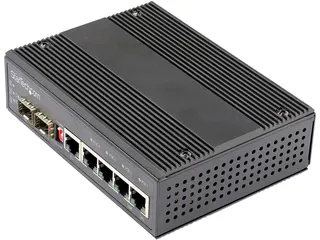

Compact metal desktop switch, four RJ45 ports, two SFP slots, LED indicators, terminal block power

STARTECH

STARTECH IES1G52UP12V 6-port network switch 4 PoE RJ45 2 SFP

SKU CH-HSGY-XE62V MPN IES1G52UP12V

Industrial Layer 2 Gigabit switch with four PoE RJ45 ports and two SFP slots for fiber uplinks

  • Switch Typeethernet
  • FormatDesktop
  • Primary Ports4 x RJ45 + 2 x SFP
  • Primary Port Speed10/100/1000Mbps
  • Buffer Memory128KB
  • LEDs2 - LED Indicators: PW1, PW2 1 - LED Indicators: Relay 2 - L
  • Powers four devices through PoE RJ45 ports
  • Operates reliably from -40°C to 75°C
  • Extends network reach with two SFP fiber slots
  • Fits tight spaces with compact 1.70" x 4.10" x 5.60" design
  • Manages traffic using Layer 2 features including IGMP snooping

Industrial 6-port Gigabit switch

The STARTECH IES1G52UP12V is a desktop Layer 2 switch with four PoE RJ45 ports and two SFP slots. It operates from -40°C to 75°C and mounts on a wall for industrial or outdoor deployments.

Upgrade from unmanaged 10/100 switches

Replaces basic Fast Ethernet hubs that lack PoE, fiber uplinks or IGMP snooping. The jump is worth it when cameras or access points need power and gigabit backhaul without separate injectors.

128 KB buffer and 1 Gbps port ceiling

The 128 KB buffer limits burst absorption on sustained full-duplex traffic. Copper ports cap at 1 Gbps, so 10 Gbps uplinks or multi-gig endpoints require a different switch.

Highlights

  • Powers four devices through PoE RJ45 ports
  • Operates reliably from -40°C to 75°C
  • Extends network reach with two SFP fiber slots
  • Fits tight spaces with compact 1.70" x 4.10" x 5.60" design
  • Manages traffic using Layer 2 features including IGMP snooping

Specifications

BrandStarTech.com
ModelIES1G52UP12V
Switch Typeethernet
FormatDesktop
Primary Ports4 x RJ45 + 2 x SFP
Primary Port Speed10/100/1000Mbps
Buffer Memory128KB

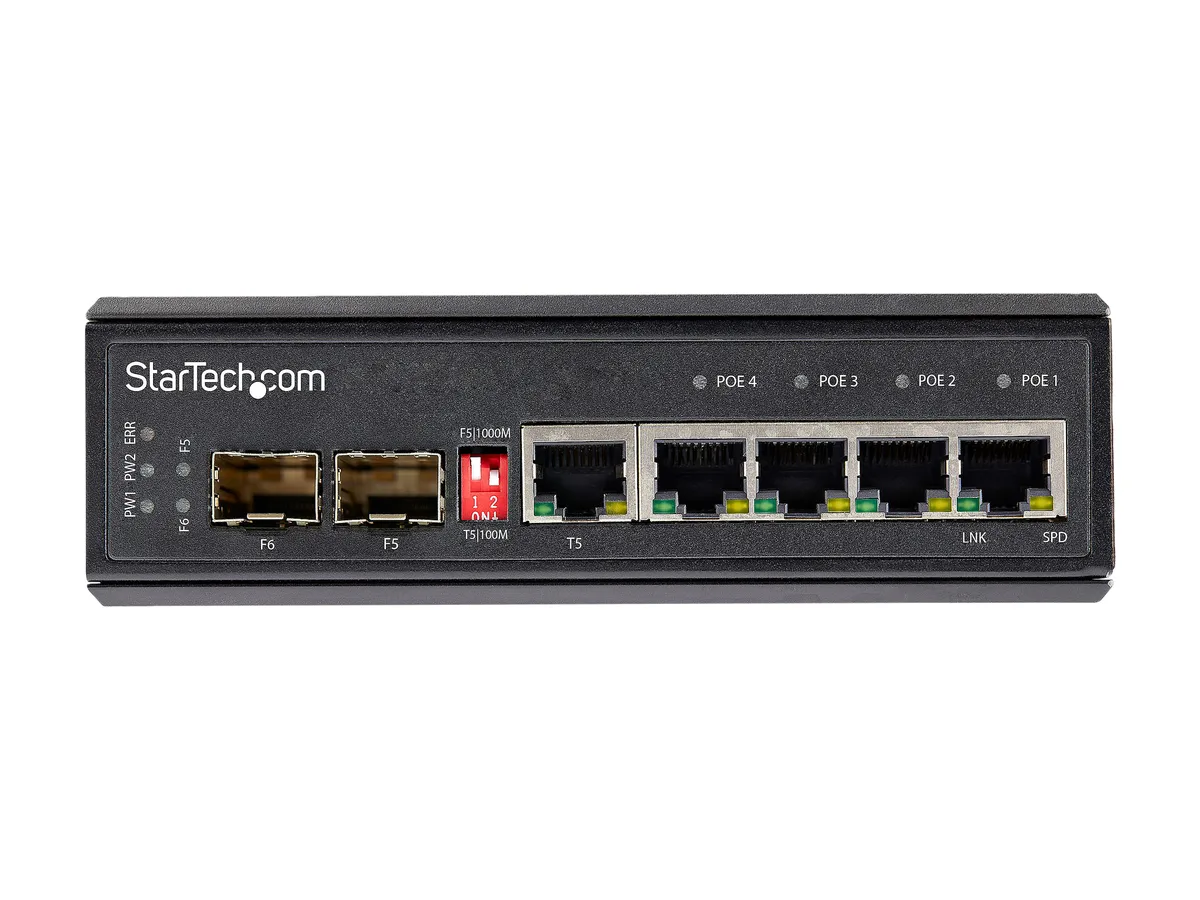

LEDs2 - LED Indicators: PW1, PW2
1 - LED Indicators: Relay
2 - LED Indicators: SFP F5, F6
4 - LED Indicators: PoE P1, P2, P3, P4
5 - LED Indicators: Link/Active, Speed 1000/100M

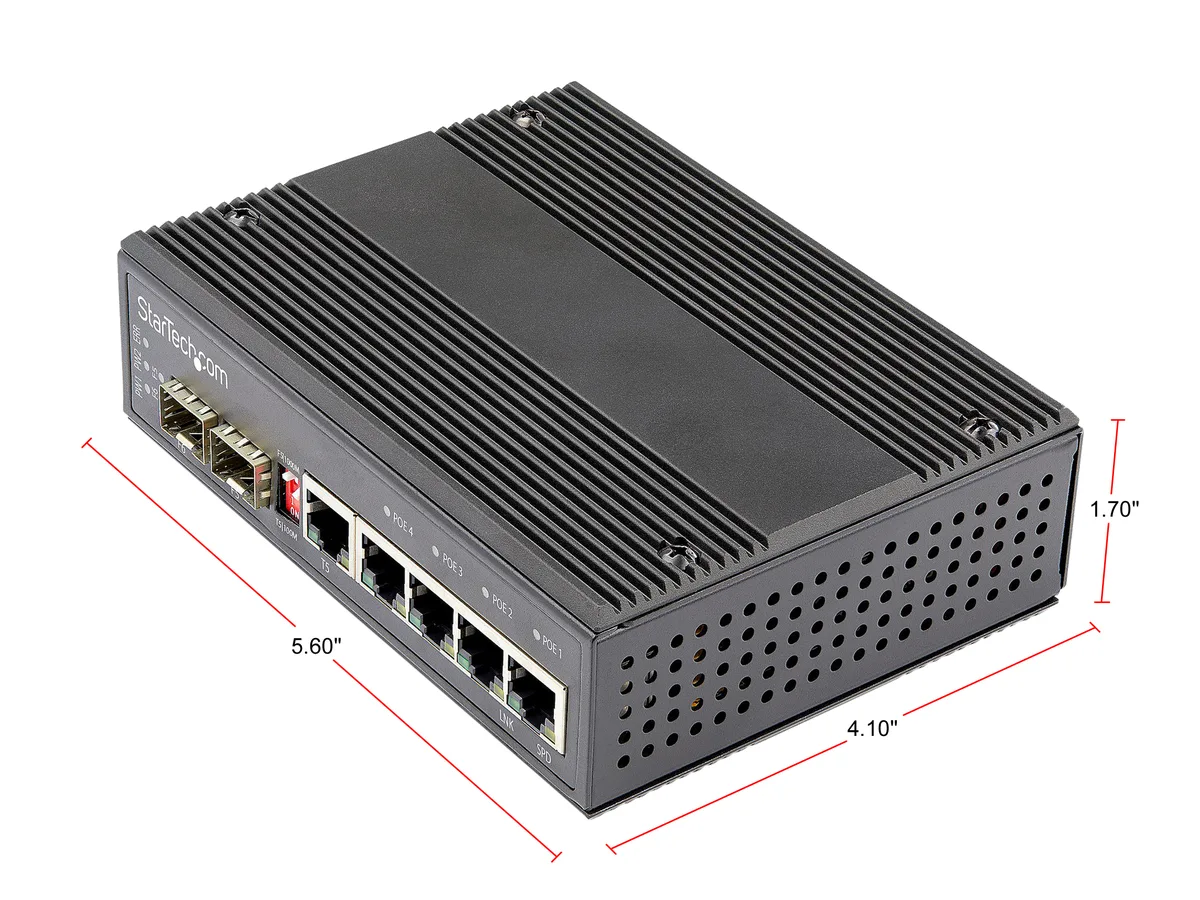

Dimensions1.70" x 4.10" x 5.60"
Weight1.55 lbs.
TemperatureOperating Temperature: -40°C~75°C
Storage Temperature: -40°C~85°C
Humidity5 to 95% (non-condensing)
Shipping weight1.36 kg
Package size211 × 162 × 64 mm

Questions about this item

What mounting options does the 1.70" x 4.10" x 5.60" desktop switch provide?

The unit is wall mountable and also sits on a desktop; its compact footprint measures 1.70 inches high, 4.10 inches wide and 5.60 inches deep.

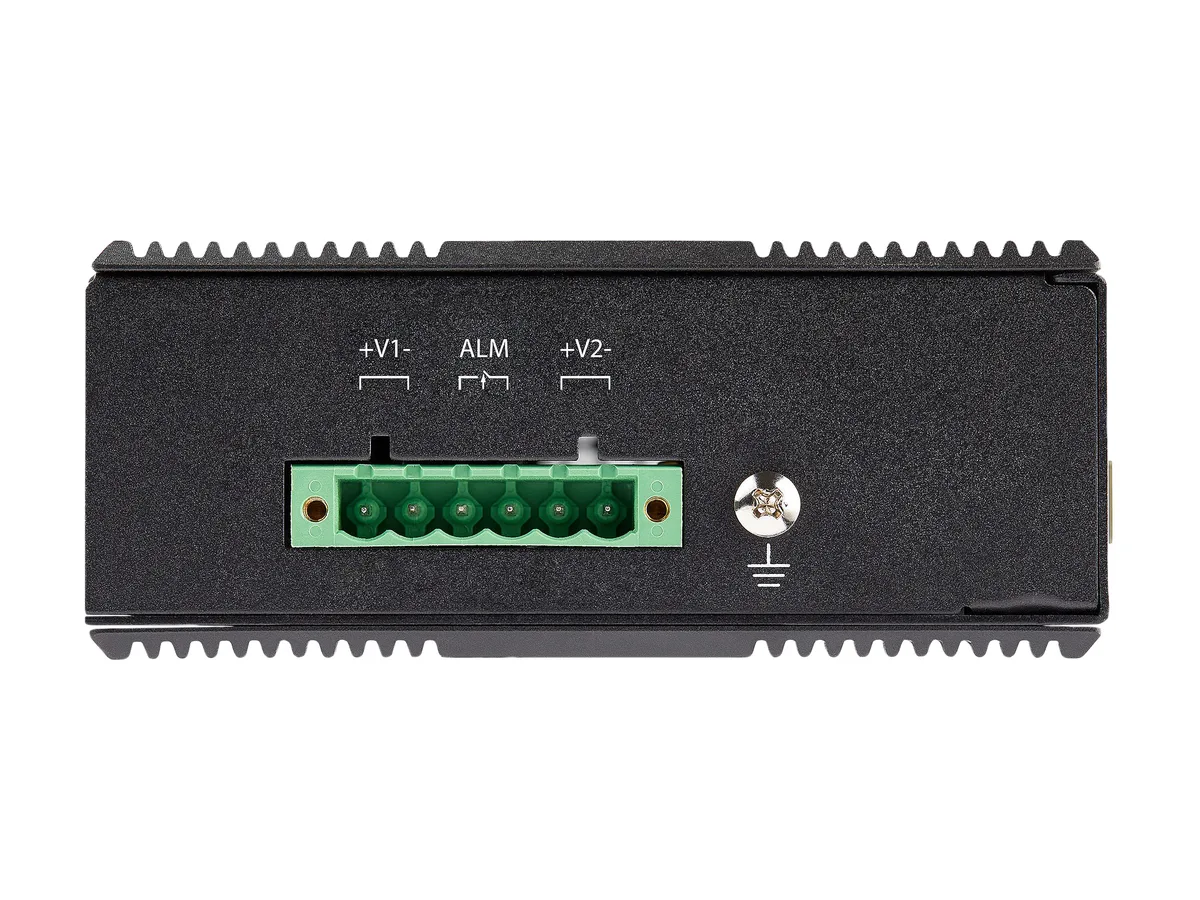

How do I connect the dual power inputs on the terminal block and what mistake should I avoid?

Wire both PW1 and PW2 to the terminal block for redundancy; the common error is powering only one input, which removes the backup supply.

When should I replace the SFP transceivers used in the two SFP slots?

Replace a transceiver if its corresponding SFP F5 or F6 LED stays off or shows errors, or if link errors appear on the connected fiber run.
