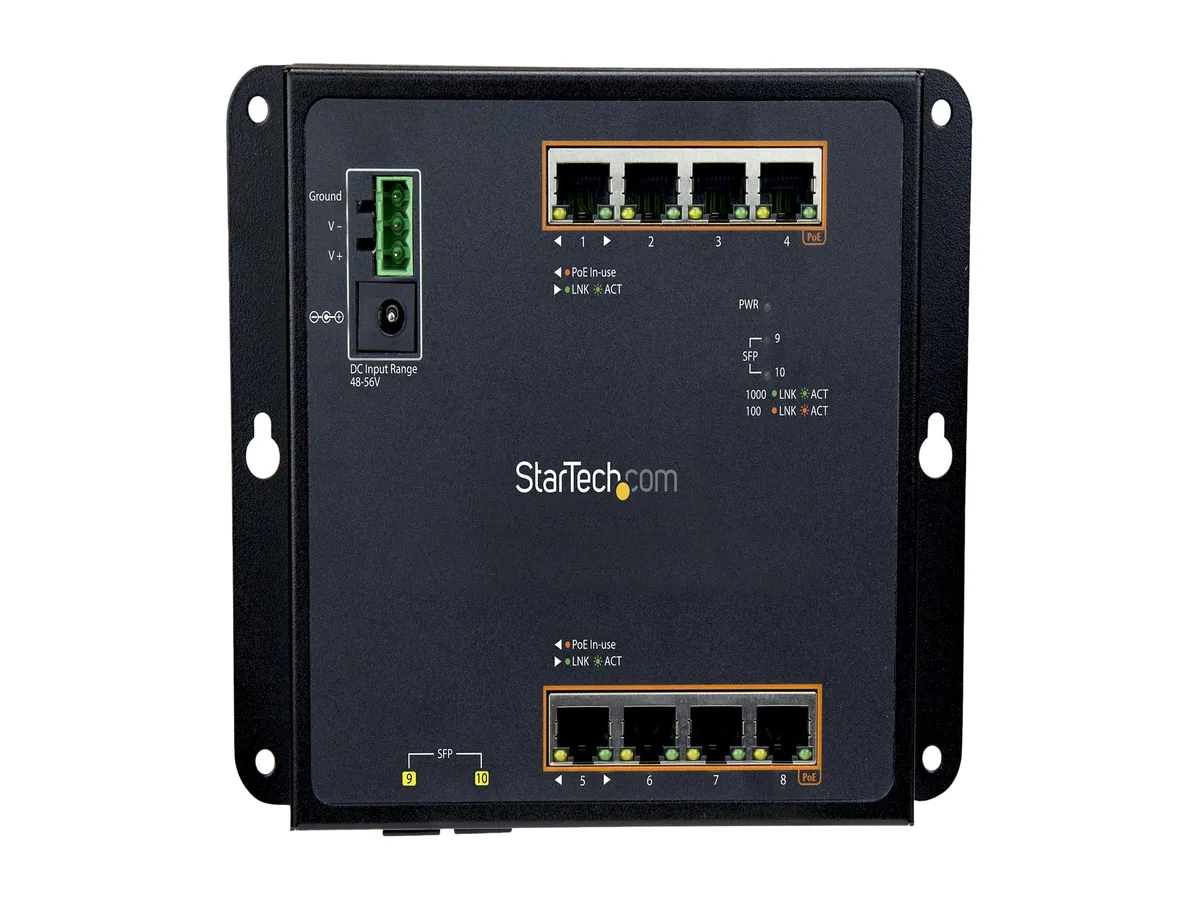

Compact metal industrial switch with eight PoE ports and two SFP slots

STARTECH

STARTECH IES101GP2SFW 8-port PoE+ 2 SFP managed industrial network switch

SKU CH-ZRKH-QAW9F MPN IES101GP2SFW

Managed industrial Gigabit switch with 8 PoE+ ports delivering up to 30W each, 2 SFP slots, IP30 metal housing and -40 to 75°C operation

  • FormatWall Mountable
  • StandardsIEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 10
  • Network Management TypeManaged
  • Primary Ports8 x RJ45 + 2 x SFP
  • Primary Port Speed10/100/1000Mbps
  • Switching MethodStore and Forward
  • Powers up to 30W per PoE+ port with a 200W total budget
  • Operates reliably from -40 °C to 75 °C in an IP30 metal housing
  • Managed Layer 2 switching with VLAN, QoS and 9000-byte jumbo frame support
  • Dual SFP slots add fiber uplinks to eight Gigabit RJ45 ports
  • Wall-mount or DIN-rail installation with front-access design for tight spaces

Industrial 10-port managed switch

The StarTech IES101GP2SFW is an eight-port Gigabit PoE+ switch with two SFP uplinks for fiber links. It targets installers who need powered cameras, access points or IoT sensors in harsh environments. Layer 2 management adds VLAN, QoS and port security for segmented networks. The rugged IP30 metal chassis operates from -40 to 75 °C without fans.

Wall or DIN-rail mount with front access

The IP30-rated metal housing resists dust and vibration while the front-facing ports keep cables reachable after installation. A terminal-block DC input accepts 12–48 V so the unit can share existing control-panel power. Each RJ45 port delivers up to 30 W with a 200 W total PoE budget for multiple high-draw devices. SFP slots accept standard fiber transceivers for long-distance links.

Verify DC voltage and PoE budget before ordering

Confirm your power supply provides 12–48 V DC with at least 1 A on the terminal-block connector. Ensure the 200 W PoE budget covers the combined draw of every powered device you plan to connect. Check that SFP transceivers match your fiber type and distance requirements. The switch requires a managed-network skill set for VLAN and QoS configuration.

Highlights

  • Powers up to 30W per PoE+ port with a 200W total budget
  • Operates reliably from -40 °C to 75 °C in an IP30 metal housing
  • Managed Layer 2 switching with VLAN, QoS and 9000-byte jumbo frame support
  • Dual SFP slots add fiber uplinks to eight Gigabit RJ45 ports
  • Wall-mount or DIN-rail installation with front-access design for tight spaces

Specifications

BrandStarTech.com
ModelIES101GP2SFW
FormatWall Mountable
StandardsIEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000Base-SX/LX
IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, IEEE 802.1q VLAN Tagging, IEEE 802.1p QoS, IEEE 802.1x Port-Based Network Access Control, IEEE802.3ad Link Aggregation, IEEE 802.1d Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol
Network Management TypeManaged
Primary Ports8 x RJ45 + 2 x SFP
Primary Port Speed10/100/1000Mbps
Switching MethodStore and Forward
Jumbo Frames9000 bytes
Buffer Memory512KB
ProtocolsTCP/IP
PoEYes
Layer2
LEDs1-Power
8-PoE Active (yellow)
Link / Activity (green)
2-100 Mbps Link / Activity (yellow)
1000 Mbps Link / Activity (green)
PowerInput Current: 1A minimum
Input Voltage: 12~48 DC
Plug Type: M
Power Source: Terminal Block
FeaturesExpand your network with 8 x RJ45 (PoE+) ports + 2 x fiber SFP slots in one Gigabit network switch
PoE power up to 30W per PoE port (200W budget)
Rugged IP30 industrial design with metal housing and extended temperature range (-40 degree to +75 degree C)
Front access provides easy access to ports and indicators
Compact wall-mount or DIN-rail mount design (with magnetic mounts)
Layer 2 management for improved network control, efficiency, and stability
Compatible with 10/100/1000 Mbps networks
Dual power input (terminal block / DC plug)
IPv4 and IPv6 dual stack management
IGMP and MLD
Dimensions0.98" x 5.83" x 5.28"
Weight1.09 lbs.
TemperatureOperating Temperature: -40 ~ 75 degree Celsius (-40 ~ 167 degree Fahrenheit)
Storage Temperature: -40 ~ 90 degree Celsius (-40 ~ 194 degree Fahrenheit)
Humidity5~95% RH (Non-Condensing)
Package Contents1 x network switch
1 x terminal block connector
4 x screw anchors
4 x screws
4 x attaching pins
4 x locking pins
4 x washers
4 x magnets
1 x DIN rail
3 x DINxrail screws
8 x RJ45 dust caps
2 x SFP dust caps
1 x quick-start guide
Shipping weight0.93 kg
Package size300 × 170 × 90 mm

Questions about this item

What Gigabit Ethernet standards do the RJ45 and SFP ports on the IES101GP2SFW support?

The eight RJ45 ports follow IEEE 802.3ab for 10/100/1000 Mbps copper, while the two SFP slots accept IEEE 802.3z 1000Base-SX/LX fibre modules for gigabit uplinks.

How much clearance is needed to wall-mount or DIN-rail mount this IP30 metal switch?

The unit measures 0.98" deep, 5.83" wide and 5.28" high, so allow at least that footprint plus cable bend radius; it includes brackets for wall mounting with front access or DIN-rail mounting with magnetic mounts.

What is the correct way to wire the terminal-block power input on the IES101GP2SFW?

Connect a 12–48 V DC source capable of at least 1 A to the M-type terminal block, observing polarity; the switch has no internal AC supply, so reversing the wires will prevent power-up.
