Compact black box with HDMI ports optical and RCA audio outputs

STARTECH

STARTECH HD202A 4K 60Hz HDMI Audio Extractor tv tuner

SKU CH-J57S-M8ZHD MPN HD202A

Extracts audio from 4K 60Hz HDMI signals to optical or dual RCA outputs while passing HDR video up to 4096 x 2160 at 18Gbps

  • TypeSignal Extractor
  • SpecificationsHDMI:Yes Maximum Resolution:4096 x 2160
  • FeaturesFunctions:Audio De-embedding Audio Extraction
  • Package Contents4K HDMI Audio Extractor with 4K 60Hz Support 1 x Universal P
  • Extracts audio from HDMI to optical or RCA outputs
  • Passes 4K 60Hz video with HDR at 18Gbps bandwidth
  • Supports 2-channel and 5.1-channel audio via EDID management
  • Includes universal power adapter and mounting brackets
  • HDCP compliant for protected content playback

Purpose and Audience

The StarTech HD202A extracts audio from an HDMI 2.0 stream so it can be sent to a separate sound system. It supports 4K 60Hz video pass-through at resolutions up to 4096 x 2160 and 18 Gbps bandwidth. The unit is aimed at installers who need to keep an existing amplifier or soundbar while upgrading to a 4K source such as a Blu-ray player or media streamer.

Setup Checks

Verify that your source device outputs HDMI 2.0 and that your display accepts the same 4K 60Hz signal with HDR pass-through. Confirm you have an available Toslink optical input or dual RCA analogue inputs on the audio equipment you plan to connect. The extractor requires the included universal power adapter, so ensure a mains socket is reachable at the install location.

Build and Daily Use

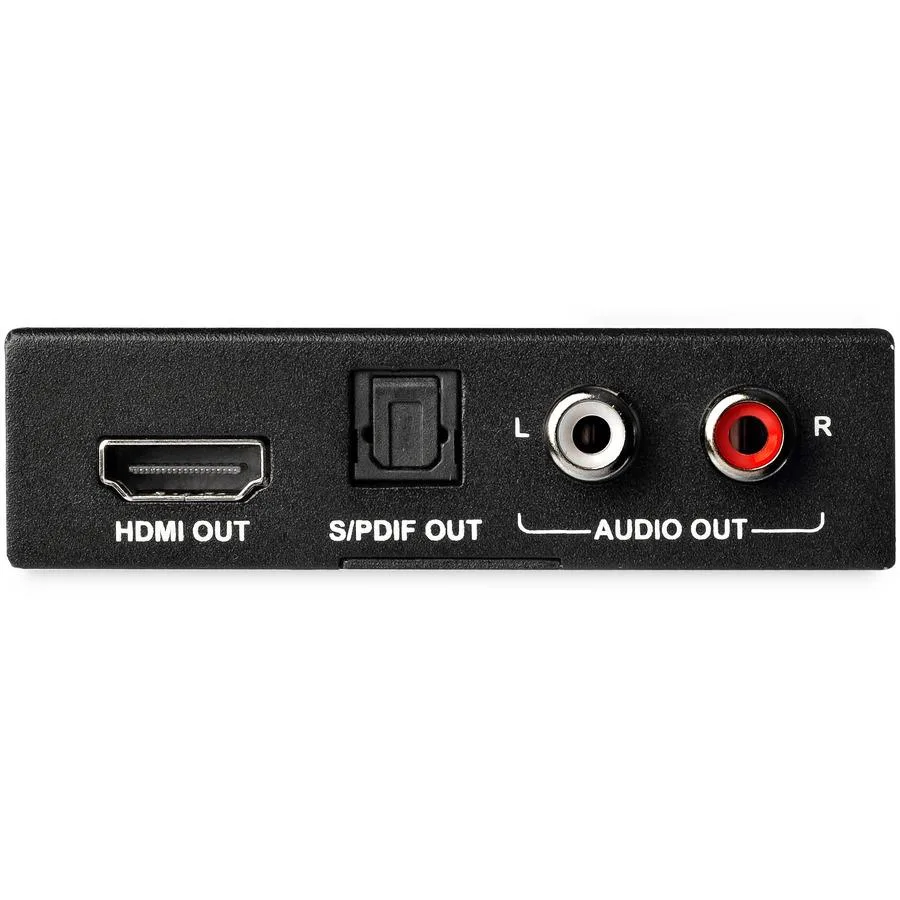

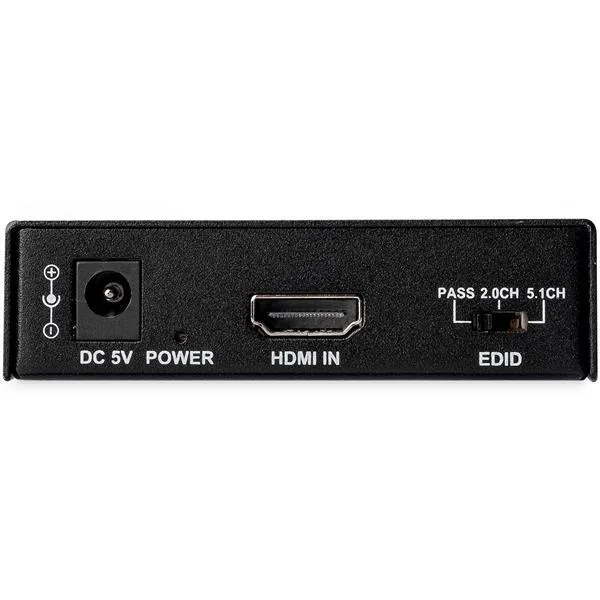

A compact metal enclosure ships with two mounting brackets and screws for surface or rack attachment. Front-panel connectors provide one HDMI input, one HDMI output, one Toslink optical port and dual RCA jacks for simultaneous digital and analogue audio extraction. EDID management handles 2-channel, 5.1-channel and pass-through modes without software configuration.

Highlights

  • Extracts audio from HDMI to optical or RCA outputs
  • Passes 4K 60Hz video with HDR at 18Gbps bandwidth
  • Supports 2-channel and 5.1-channel audio via EDID management
  • Includes universal power adapter and mounting brackets
  • HDCP compliant for protected content playback

Specifications

BrandStarTech.com
TypeSignal Extractor
SpecificationsHDMI:Yes
Maximum Resolution:4096 x 2160
FeaturesFunctions:Audio De-embedding
Audio Extraction
Package Contents4K HDMI Audio Extractor with 4K 60Hz Support
1 x Universal Power Adapter (NA, EU, UK, ANZ)
2 x Mounting Brackets
2 x Mounting Screws
Shipping weight0.91 kg
Package size254 × 203 × 152 mm

Questions about this item

What comes in the box with the STARTECH HD202A and do I need to buy cables separately?

The package includes the 4K HDMI audio extractor, a universal power adapter with NA, EU, UK and ANZ plugs, two mounting brackets and two mounting screws. HDMI, optical or RCA cables are not included.

Which audio output should I choose between the optical and dual RCA ports on the HD202A?

Use the Toslink optical port for digital surround up to 5.1‑channel or pass‑through modes. Use the dual RCA ports for two‑channel analog connection to legacy amplifiers or powered speakers.

Will the HD202A pass 4K 60Hz HDR video to my display while extracting audio?

Yes. The extractor supports HDMI 2.0 with 18Gbps bandwidth, passing video up to 4096 x 2160 at 60Hz with HDR while simultaneously de‑embedding audio to optical or RCA outputs.
