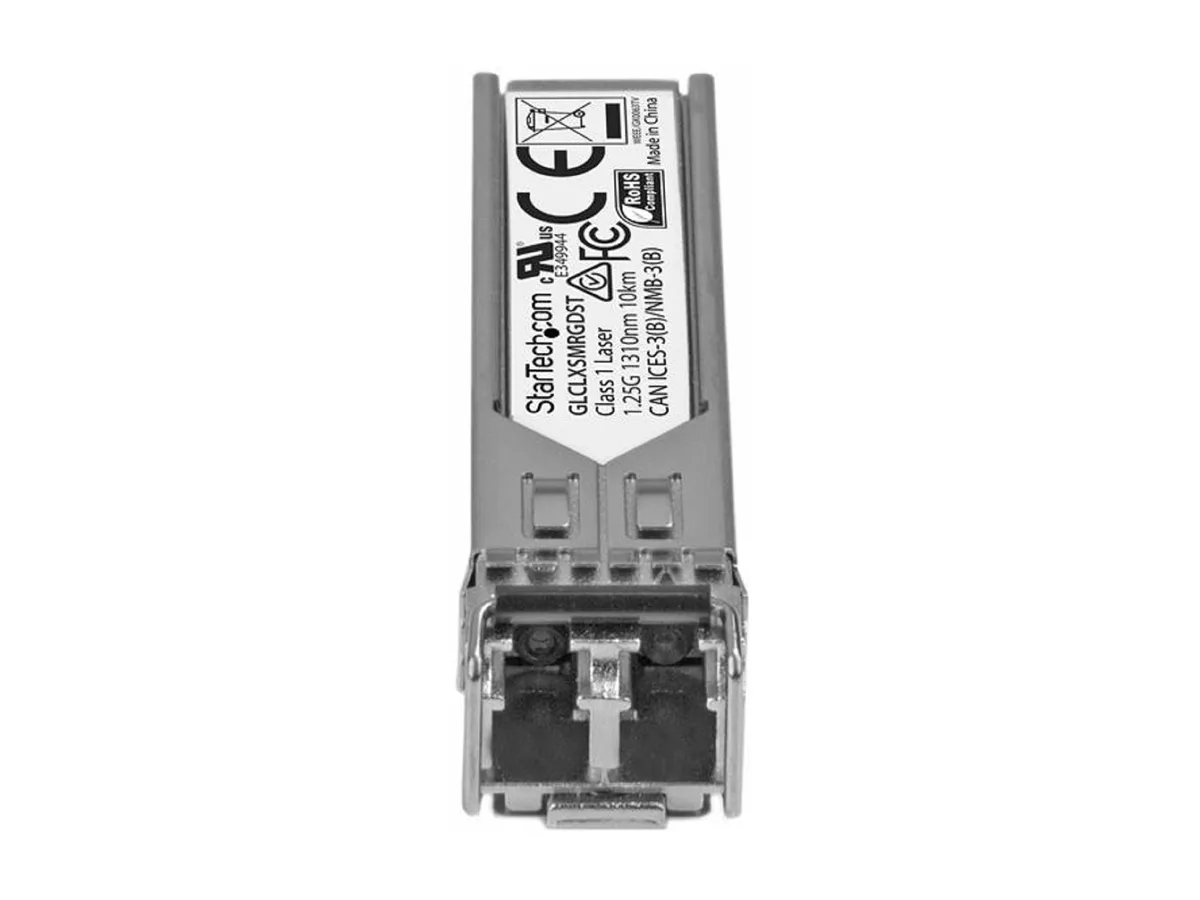

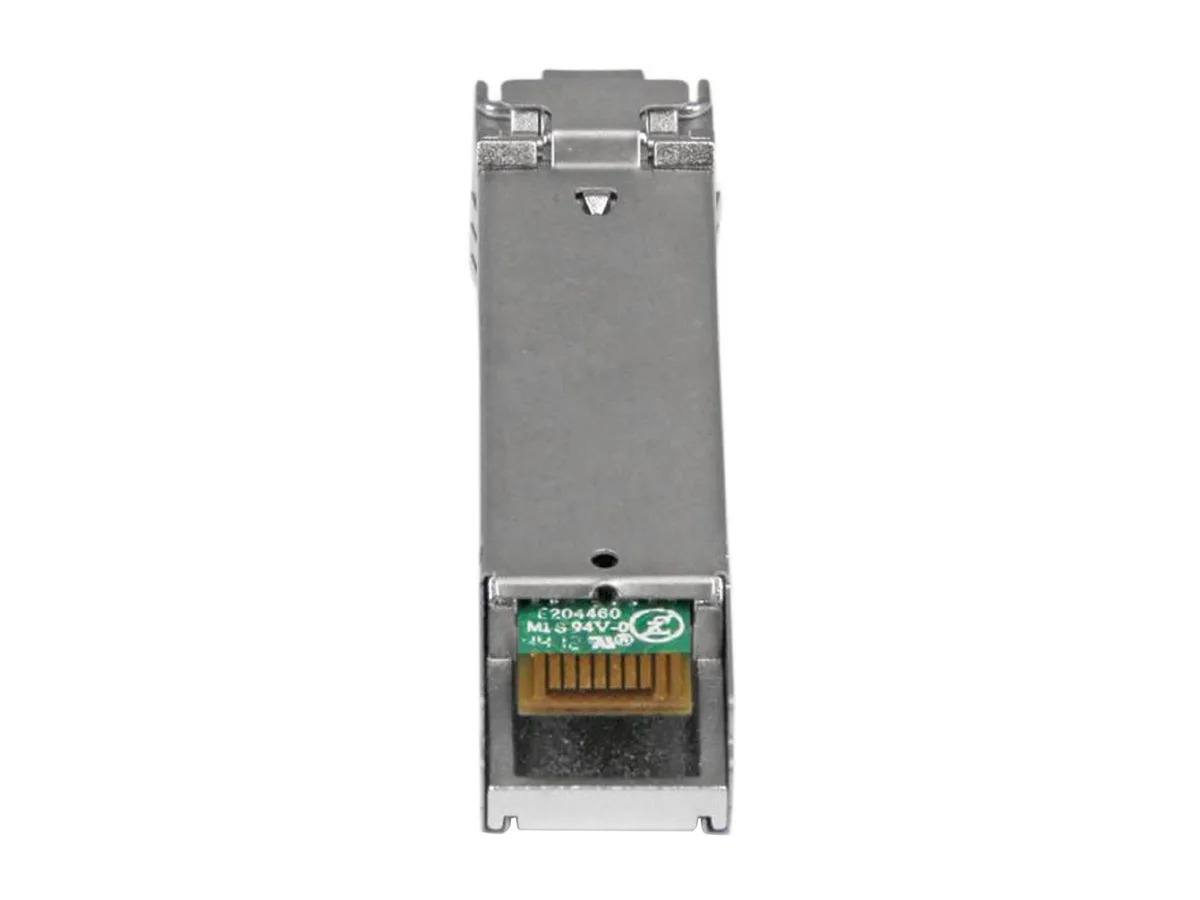

Small rectangular SFP transceiver with metal housing and LC duplex port

STARTECH

STARTECH GLCLXSMRGDST SFP transceiver 1000BASE-LX 1310nm 10km

SKU CH-7FPZ-Y6AWB

Delivers reliable Gigabit Ethernet over single-mode fiber up to 10 km with Cisco GLC-LX-SM-RGD compatibility and digital diagnostic monitoring

  • Device TypeTransceiver
  • StandardsIEEE 802.3z 1000BASE-LX
  • Wavelength1310nm
  • Fiber CableSingle Mode
  • ProtocolsTCP/IP
  • Ports1 - Fiber Optic LC Duplex Female

Type 1000Base-LX

  • 100% Cisco GLC-LX-SM-RGD compatible for drop-in deployment
  • 25 Gbps transfer rate over 10 km single-mode fiber
  • 1310 nm wavelength meets IEEE 802.3z 1000BASE-LX standard
  • Digital diagnostic monitoring reports status to SNMP tools
  • Operates from 0 °C to 70 °C with 5–95 % humidity tolerance

Cisco GLC-LX-SM-RGD Compatible SFP

This transceiver provides a 1000BASE-LX Gigabit Ethernet link over single-mode fibre for network administrators and integrators deploying Cisco Firepower, ASR or Industrial Ethernet switches. It operates at 1310nm with an LC duplex connector and is hot-swappable in supported Cisco routers and switches. Digital Diagnostic Monitoring reports status to SNMP management tools.

10 km single-mode reach and 1.25 Gbps rate

The module delivers reliable connections up to 10 km (6.2 mi) on standard single-mode fibre at a 1.25 Gbps transfer rate compliant with IEEE 802.3z. It is not suited for multi-mode fibre runs or distances beyond the rated 10 km. Buyers needing longer reach or higher bandwidth such as 10 Gbps must select a different transceiver class.

0 °C to 70 °C operating range with passive cooling

The transceiver runs within an operating temperature range of 0 °C to 70 °C (32 °F to 158 °F) and tolerates storage from -40 °C to 85 °C (-40 °F to 185 °F) at 5 to 95 % relative humidity. It uses passive cooling with no moving parts, so it adds no audible noise to the rack. Power draw is typical for SFP 1 GbE optics and is supplied by the host switch port.

Highlights

  • 100% Cisco GLC-LX-SM-RGD compatible for drop-in deployment
  • 25 Gbps transfer rate over 10 km single-mode fiber
  • 1310 nm wavelength meets IEEE 802.3z 1000BASE-LX standard
  • Digital diagnostic monitoring reports status to SNMP tools
  • Operates from 0 °C to 70 °C with 5–95 % humidity tolerance

Specifications

BrandStarTech.com
ModelGLCLXSMRGDST
Device TypeTransceiver
StandardsIEEE 802.3z 1000BASE-LX
Wavelength1310nm
Fiber CableSingle Mode
ProtocolsTCP/IP
Ports1 - Fiber Optic LC Duplex Female
Max Distance10 km (6.2 mi)
Transfer Rate1.25 Gbps
TemperatureOperating Temperature: 0 degree C to 70 degree C (32 degree F to 158 degree F)
Storage Temperature: -40 degree C to 85 degree C (-40 degree F to 185 degree F)
Humidity5~95% RH
FeatureDelivers reliable Gigabit Ethernet connections for 1000Base-LX compliant networks
100% Cisco compatible SFP, equivalent to Cisco GLC-LX-SM-RGD
Backed by lifetime warranty and free lifetime technical support
Meets or exceeds OEM specifications and MSA (Multi-Source Agreement) industry standards
Supports Digital Diagnostics Monitoring (DDM / DOM)
1310 nm optical wavelength
Supports single-mode fiber (maximum distance 10 km / 6.2 mi.)
LC fiber connector
Maximum data rates up to 1.25Gbps
Hot-pluggable
Package Contents1 - SFP transceiver
Shipping weight0.05 kg
Package size120 × 90 × 30 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the GLCLXSMRGDST work in my older Cisco switch that only supports standard 1000BASE-LX optics?

Yes, it follows the IEEE 802.3z 1000BASE-LX standard so any switch with a compliant SFP port will accept it.

How can I verify the GLCLXSMRGDST is operating correctly once installed?

The module supports Digital Diagnostic Monitoring which reports temperature, voltage and optical power to your SNMP management tool.

Does the GLCLXSMRGDST package include the LC duplex patch cable needed for the 10 km link?

Only the SFP transceiver is supplied; a single-mode LC duplex fibre cable must be purchased separately.
