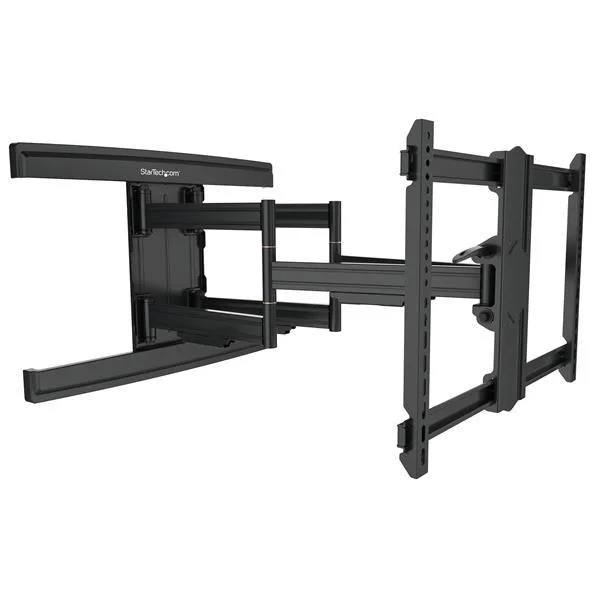

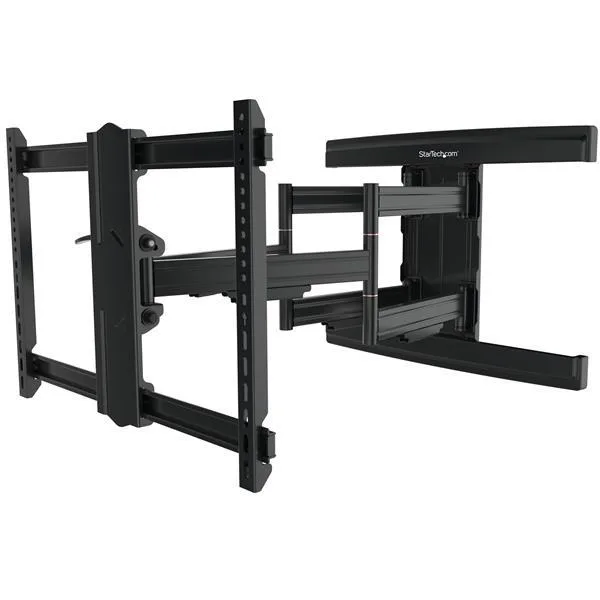

Black steel full-motion TV wall mount with articulating arm and decorative covers

STARTECH

STARTECH FPWARTS2 tv mount full motion 100in 165lb VESA 600x400

SKU CH-K60V-B8DDZ MPN FPWARTS2

Full-motion steel wall mount holds displays up to 100 inches and 165 lb, extends 31.7 inches, retracts to 2.9 inches, and swivels ±90° with tilt from -15° to +2° for flexible viewing in meeting

  • Mount StyleWall Mount
  • MaterialSteel
  • ColorBlack
  • TV Size CapacityFor up to 100" Displays
  • TV Weight Capacity165 lb. (75 kg).
  • VESA Compatible200x100 mm 200x200 mm 300x200 mm 300x300 mm 400x200 mm 400x3
  • Supports displays up to 100 inches with 165 lb capacity
  • Articulates out to 31.7 inches and retracts to 2.9 inches
  • Swivels ±90° and tilts +2° / -15° for glare reduction
  • Fits VESA patterns from 200x100 mm through 600x400 mm
  • Heavy-gauge steel frame with powder-coated finish ensures rigidity

Full-Motion TV Wall Mount for Large Displays

This articulating steel arm supports flat-panel and curved televisions up to 100 inches and 165 lb. It is built for meeting rooms, lobbies, boardrooms and classrooms where a secure, space-saving installation is required.

VESA Pattern and Extension Limits

The bracket fits VESA hole patterns from 200x100 mm through 600x400 mm. The arm extends up to 31.7 in (805 mm) from the wall and retracts to 2.9 in (75 mm), with a fixed minimum distance of 2.8 in (70 mm).

Swivel and Tilt Range for Positioning

You can swivel the screen +90° / -90° and tilt it +2° / -15°. A post-install level adjustment of up to 3° clockwise or counter-clockwise lets you fine-tune the viewing angle without remounting.

Highlights

  • Supports displays up to 100 inches with 165 lb capacity
  • Articulates out to 31.7 inches and retracts to 2.9 inches
  • Swivels ±90° and tilts +2° / -15° for glare reduction
  • Fits VESA patterns from 200x100 mm through 600x400 mm
  • Heavy-gauge steel frame with powder-coated finish ensures rigidity

Specifications

BrandStarTech.com
ModelFPWARTS2
Mount StyleWall Mount
MaterialSteel
ColorBlack
TV Size CapacityFor up to 100" Displays
TV Weight Capacity165 lb. (75 kg).
VESA Compatible200x100 mm
200x200 mm
300x200 mm
300x300 mm
400x200 mm
400x300 mm
400x400 mm
600x400 mm
Distance from Wall2.8 in [70 mm]
Swivel Range+90° / -90°
Tilt Range+2° / -15°
FeatureLARGE 100" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays incl. curved TVs up to 100 inch (165 lb/75 kg) w/ a durable full-motion steel frame and a powder-coated finish
WIDE RANGE OF MOTION: Articulating TV wall mount offers +/-90° swivel, +2/-15° tilt & +/-3° LCD screen level adjustment & arms allow low-profile at 2.9" (75 mm) from wall or extend to 31.7" (805 mm)
LATERAL FLEXIBILITY: Full motion TV wall mount w/ post-install lateral shift lets you center the display on a wall or in a corner, w/ 16"/24" off-centered studs w/ range of 47"/1.2m from lef
Package Content1 - TV Wall Mount Assembly
1 - Wall Mounting Bracket
2 - TV Mounting Brackets
2 - Decorative Covers
2 - Mounting Plates
7 - M6 x 15 screws
7 - Round Washers, Small
1 - Wrench
1 - Hex Key
4 - M5 x 14 Screws
4 - M6 x 14 Screws
4 - M6 x 30 Screws
4 - M8 x 30 Screws
4 - M8 x 50 Screws
4 - Rectangular Washers
8 - Small Spacers
8 - Large Spacers
6 - Mounting Screws
6 - Wall Anchors
6 - Round Washers, Large
1 - User Manual
Shipping weight20.41 kg
Package size940 × 533 × 127 mm

Questions about this item

Should I choose this mount for a 100 inch TV or a smaller screen?

The mount supports displays up to 100 inches and 165 lb, so it handles both large and smaller VESA compatible TVs.

How far does the arm extend from the wall in a real installation?

The articulating arm extends up to 31.7 inches (805 mm) and retracts to 2.9 inches (75 mm) from the wall.

Which VESA patterns does this mount accept and what does that limit?

It fits VESA patterns from 200x100 mm up to 600x400 mm, limiting compatibility to displays within those hole spacings.
