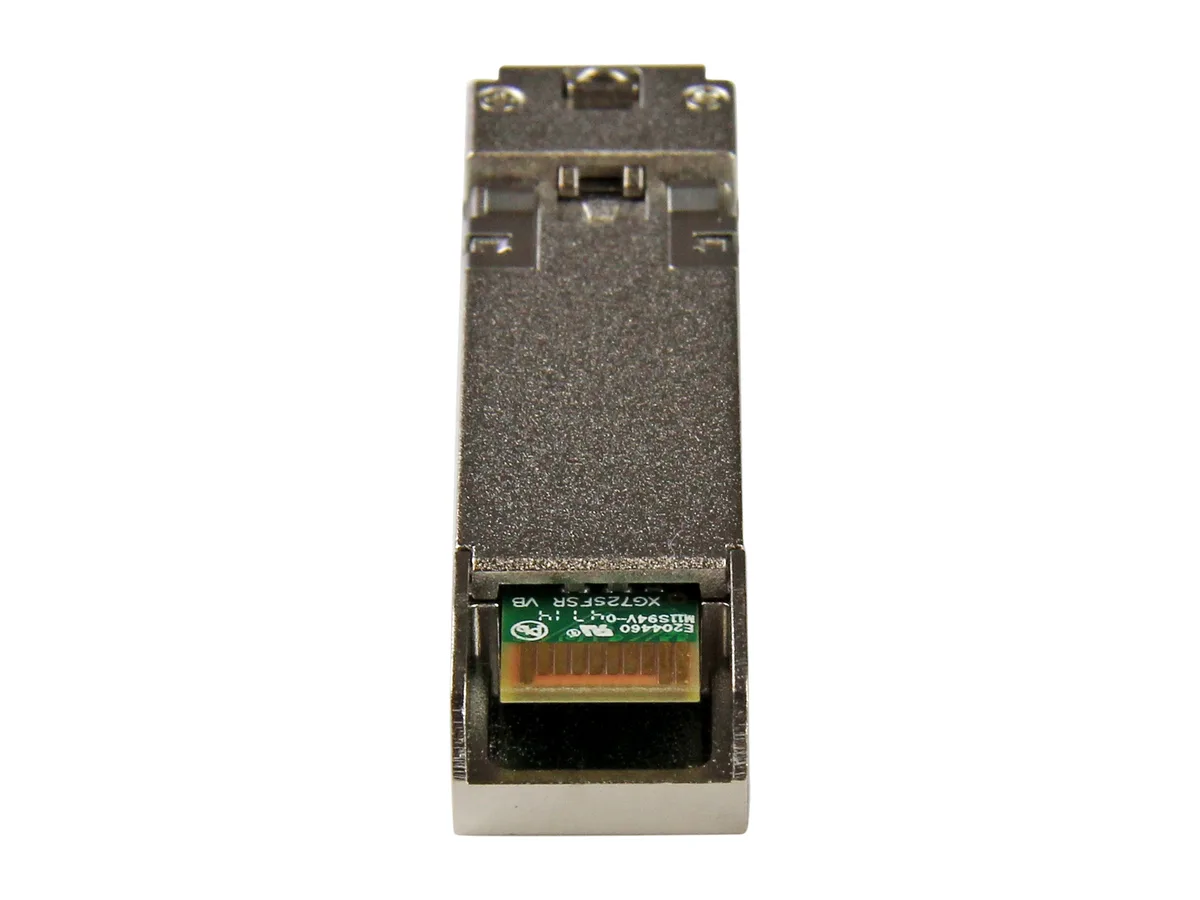

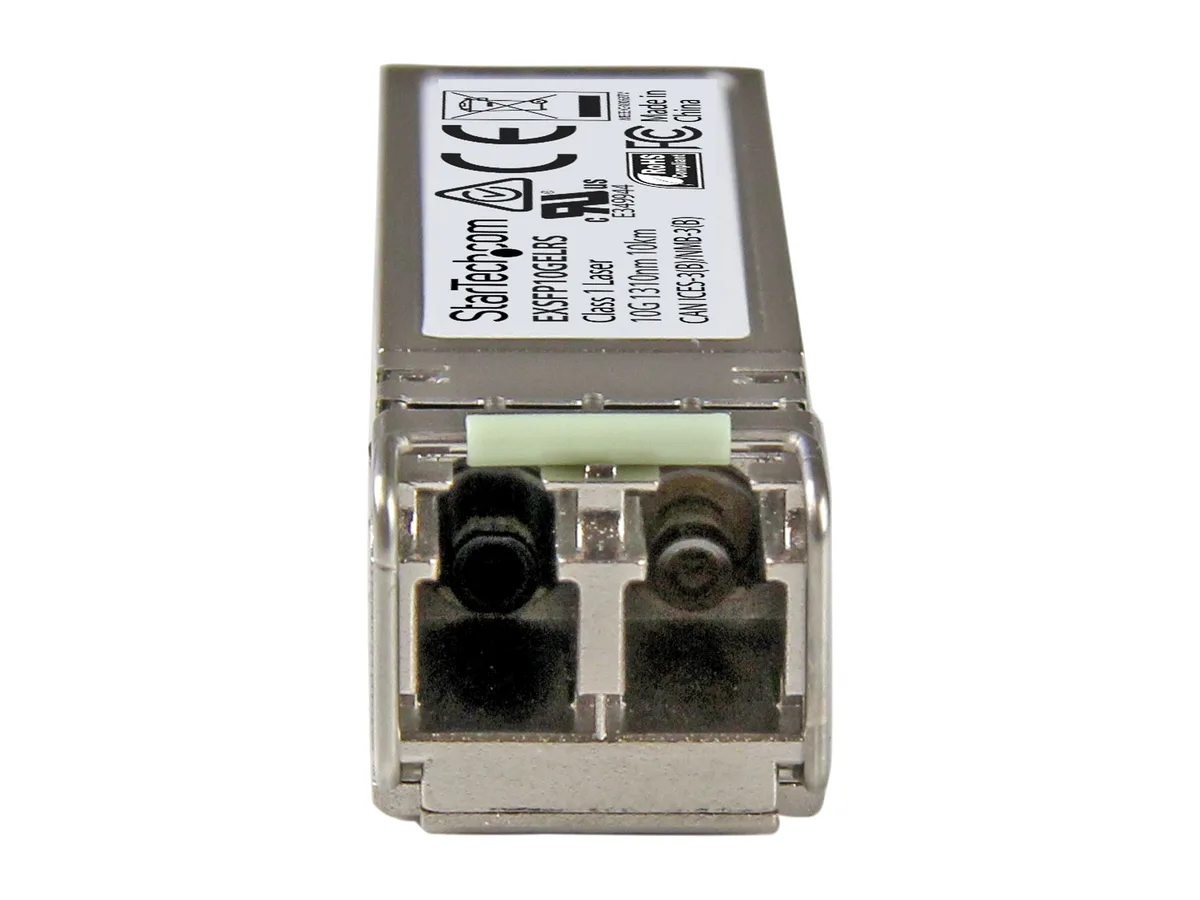

Small silver SFP+ transceiver module with LC duplex port and side label

STARTECH

STARTECH EXSFP10GELRS SFP transceiver 10GBASE-LR 1310nm 10km

SKU CH-DGVC-RGXVT MPN EXSFP10GELRS

Single-mode SFP+ transceiver delivers 10 Gbps over 10 km at 1310 nm wavelength with LC duplex connector

  • Device TypeTransceiver
  • StandardsIEEE 802.3ae 10 Gbit/s
  • Wavelength1310nm
  • Fiber CableSingle Mode
  • ProtocolsTCP/IP
  • Ports1 - Fiber Optic LC Duplex Female

Type 10GBase-LR

  • 10 Gbps throughput over single-mode fibre up to 10 km
  • Hot-pluggable SFP+ design enables tool-free installation
  • Operates reliably from 0 °C to 70 °C
  • 100 % Juniper EX-SFP-10GE-LR compatible for guaranteed interoperability
  • LC duplex connector ensures low-loss 1310 nm signal transmission

10 km single-mode SFP+ module

This StarTech.com SFP+ transceiver delivers 10 Gbps over single-mode fibre up to 10 km. It complies with IEEE 802.3ae and operates at a 1310 nm wavelength. The module is fully compatible with Juniper EX-SFP-10GE-LR equipment and uses a standard LC duplex connector.

LC duplex port and 10 Gbps line rate

Verify that your switch or router accepts SFP+ modules and has an available LC duplex port. The link requires single-mode fibre patch cables rated for 1310 nm operation. Confirm the host device supports 10 Gbps line rate and IEEE 802.3ae 10GBASE-LR signalling before installation.

0 °C to 70 °C operating range

The transceiver operates from 0 °C to 70 °C and withstands storage temperatures from -40 °C to 85 °C. Humidity tolerance spans 5 % to 95 % relative humidity. As a passive hot-pluggable optic, it draws minimal power and produces no audible noise during normal use.

Highlights

  • 10 Gbps throughput over single-mode fibre up to 10 km
  • Hot-pluggable SFP+ design enables tool-free installation
  • Operates reliably from 0 °C to 70 °C
  • 100 % Juniper EX-SFP-10GE-LR compatible for guaranteed interoperability
  • LC duplex connector ensures low-loss 1310 nm signal transmission

Specifications

BrandStarTech.com
ModelEXSFP10GELRS
Device TypeTransceiver
StandardsIEEE 802.3ae 10 Gbit/s
Wavelength1310nm
Fiber CableSingle Mode
ProtocolsTCP/IP
Ports1 - Fiber Optic LC Duplex Female
Max Distance10 km (6.2 mi)
Transfer Rate10 Gbps
TemperatureOperating Temperature: 0 degree C to 70 degree C (32 degree F to 158 degree F)
Storage Temperature: -40 degree C to 85 degree C (-40 degree F to 185 degree F)
Humidity5~95% RH
FeatureDelivers reliable 10 Gigabit Ethernet connections for 10GBase-LR compliant networks
100% Juniper Networks compatible, equivalent to the Juniper EX-SFP-10GE-LR SFP+
Backed by lifetime warranty and free lifetime technical support
Meets or exceeds OEM specifications and MSA (Multi-Source Agreement) industry standards
Supports Digital Diagnostics Monitoring (DDM)
1310 nm optical wavelength
Single-mode with maximum distance of up to 10 km (6.2 mi.) and LC fiber connector
Maximum data rates up to 10Gbps
Hot-pluggable
Package Contents1 - SFP+ transceiver
Shipping weight0.05 kg
Package size120 × 90 × 30 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the box and do I need to buy cables separately?

The package includes one SFP+ transceiver. You must purchase single-mode LC duplex fiber patch cables separately to complete the link.

How do I choose between the listed versions or capacities?

This module is a single 10 Gbps 1310 nm variant rated for 10 km on single-mode fiber. There are no other capacity or reach options for this part number.

What does the 10 km range mean once the module is installed in a switch?

It guarantees a 10 Gbps 10GBASE-LR link up to 10 km (6.2 mi) over single-mode fiber when the link budget and patch cables meet the IEEE 802.3ae standard.
