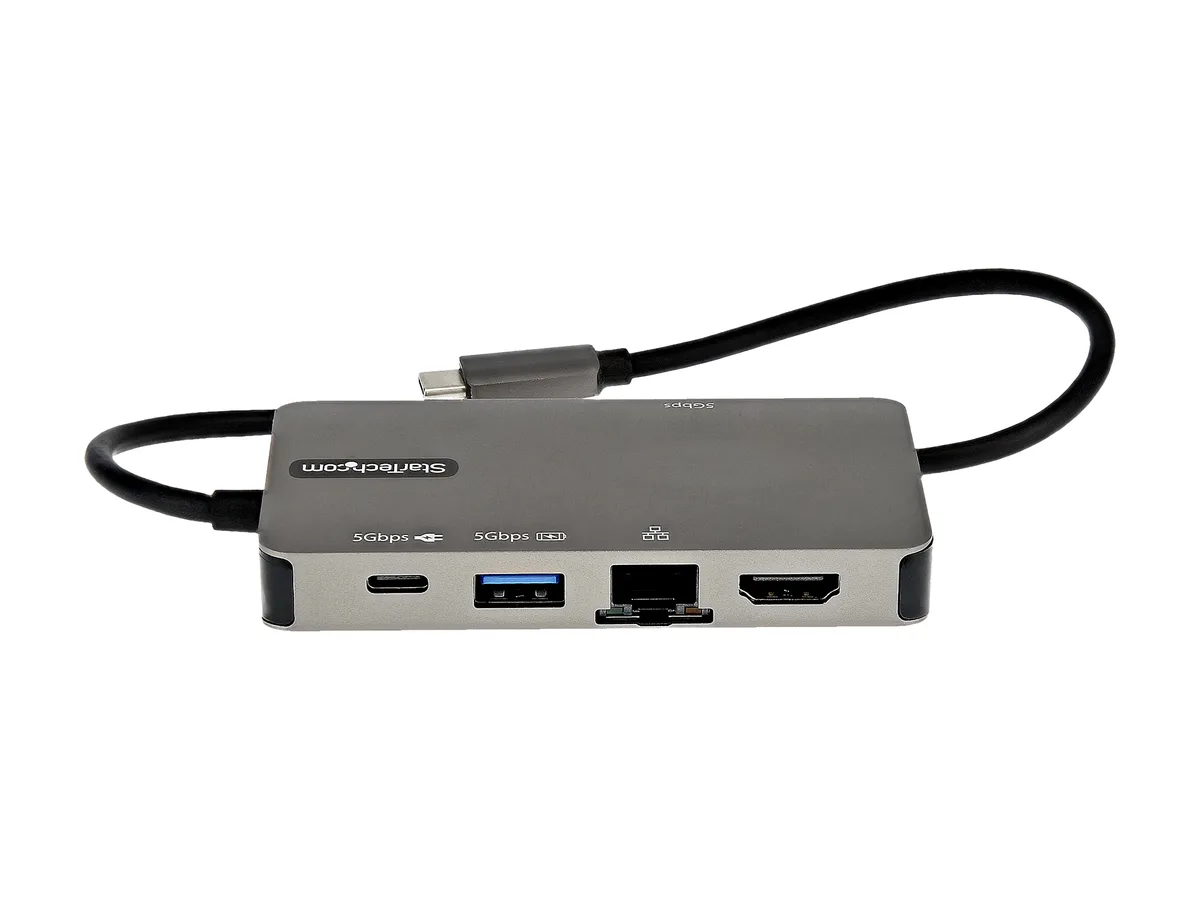

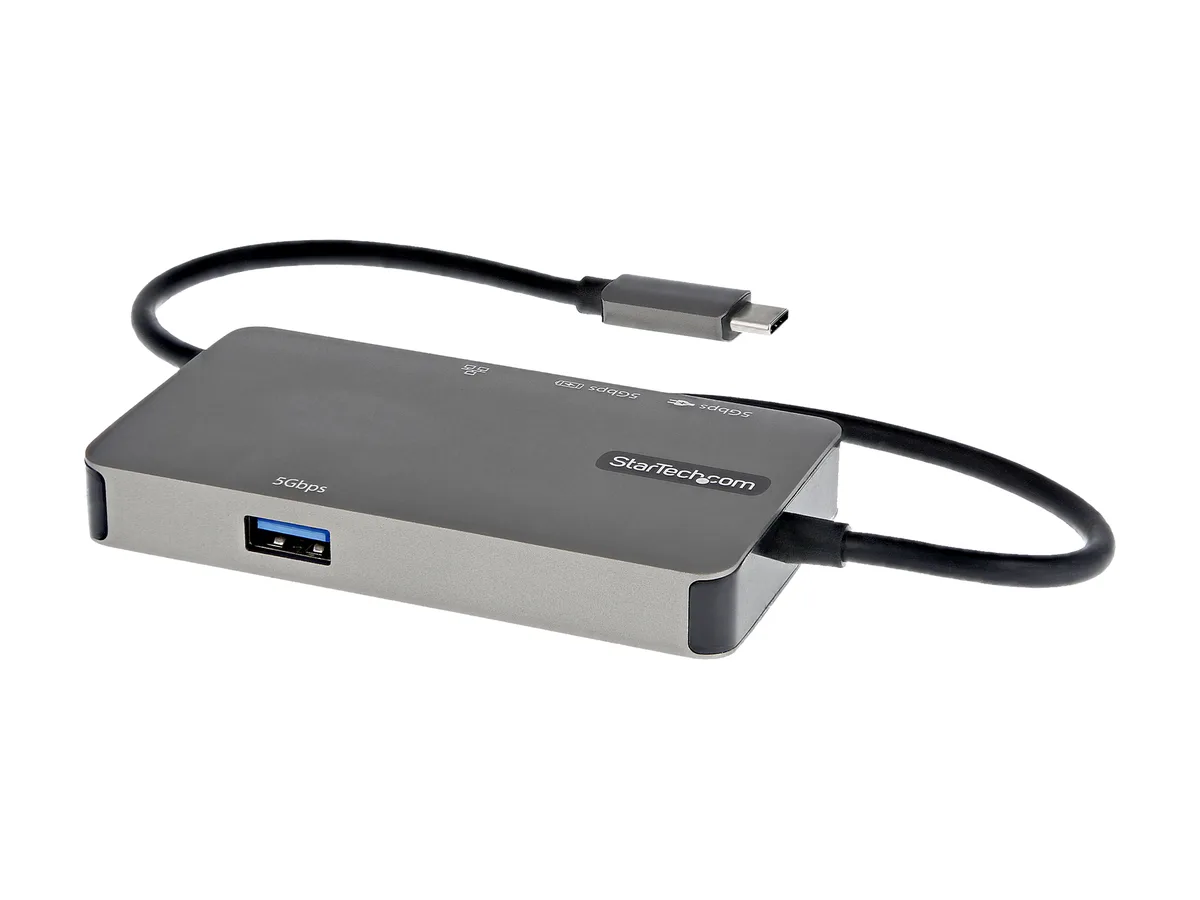

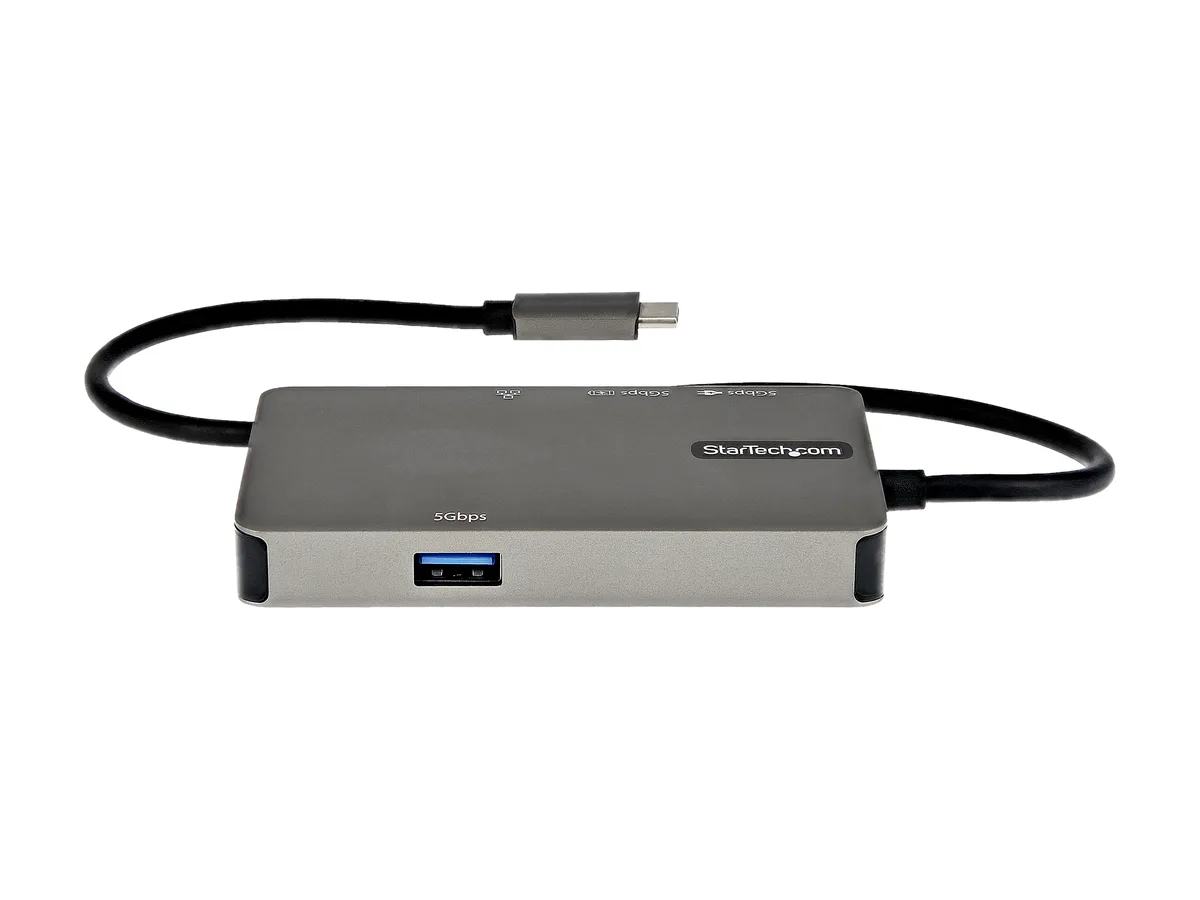

Compact black and grey USB-C docking station with short attached cable

STARTECH

STARTECH DKT30CHVPD2 docking station 4K 30Hz HDMI VGA 100W PD 3-port USB 3.0 GbE 12" cable

SKU CH-K6C6-57SRD MPN DKT30CHVPD2

USB-C mini dock adds 4K 30Hz HDMI or 1080p VGA, three 5 Gbps USB ports, Gigabit Ethernet and 100 W power passthrough with a 12" attached cable

  • ColorBlack/Gray
  • CompatibilityWindows 8.1, 10 MacOS 10.10 to 10.15, 11 Ubuntu 18.04, 20.04
  • Ports Spec1 - Internal Ports: USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps
  • Dimension0.60" x 2.00" x 12.20"
  • Weight0.24 lb.
  • Connect an external display at 4K 30Hz via HDMI or 1080p via VGA
  • Add three USB 3.1 Gen 1 ports at 5Gbps including one fast-charge USB-A and one USB-C
  • Deliver up to 85W charging to the host laptop through 100W PD 3.0 pass-through
  • Wired Gigabit Ethernet gives a stable network link without relying on Wi-Fi
  • Compact 12.20" x 2.00" x 0.60" design with 12" attached cable suits travel setups

Compact USB-C multiport adapter

The StarTech DKT30CHVPD2 adds HDMI 4K 30Hz or VGA 1080p video, three USB 3.1 Gen 1 ports at 5 Gbps, and Gigabit Ethernet through a single USB-C connection. It supports Power Delivery 3.0 pass-through up to 100 W, reserving 15 W for the dock and delivering up to 85 W to the host. The 12 inch attached cable gives extra reach for tight workspaces.

Compatibility checklist

Your host must provide a USB-C port with DisplayPort Alt Mode for video and Power Delivery for charging pass-through. Supported operating systems include Windows 8.1 and 10, macOS 10.10 through 11, Ubuntu 18.04 and 20.04, Chrome OS, Android 9.0, and iPadOS. Thunderbolt 3 ports are also compatible. Verify that your USB-C charger can supply the wattage your laptop requires.

Build integration

The adapter draws up to 15 W for its own operation, so the connected power supply must cover that plus the host's charging need. Two USB-A ports handle peripherals, one supporting BC 1.2 fast charging, while the USB-C downstream port accepts data devices or additional PD input. Gigabit Ethernet provides a wired network link without using a separate dongle. The slim 0.60 by 2.00 by 12.20 inch form factor fits in a laptop bag. Users needing more than one external display or additional legacy ports should consider a larger dock.

Highlights

  • Connect an external display at 4K 30Hz via HDMI or 1080p via VGA
  • Add three USB 3.1 Gen 1 ports at 5Gbps including one fast-charge USB-A and one USB-C
  • Deliver up to 85W charging to the host laptop through 100W PD 3.0 pass-through
  • Wired Gigabit Ethernet gives a stable network link without relying on Wi-Fi
  • Compact 12.20" x 2.00" x 0.60" design with 12" attached cable suits travel setups

Specifications

BrandStarTech.com
ModelDKT30CHVPD2
ColorBlack/Gray
CompatibilityWindows 8.1, 10
MacOS 10.10 to 10.15, 11
Ubuntu 18.04, 20.04
Chrome OS
Android 9.0
IPadOS
Ports Spec1 - Internal Ports:
USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps)
USB 3.0 A (Fast-Charge, 9 pin)
USB Type-C (24 pin) USB 3.0 (5Gbps)
Ethernet Gigabit
HDMI

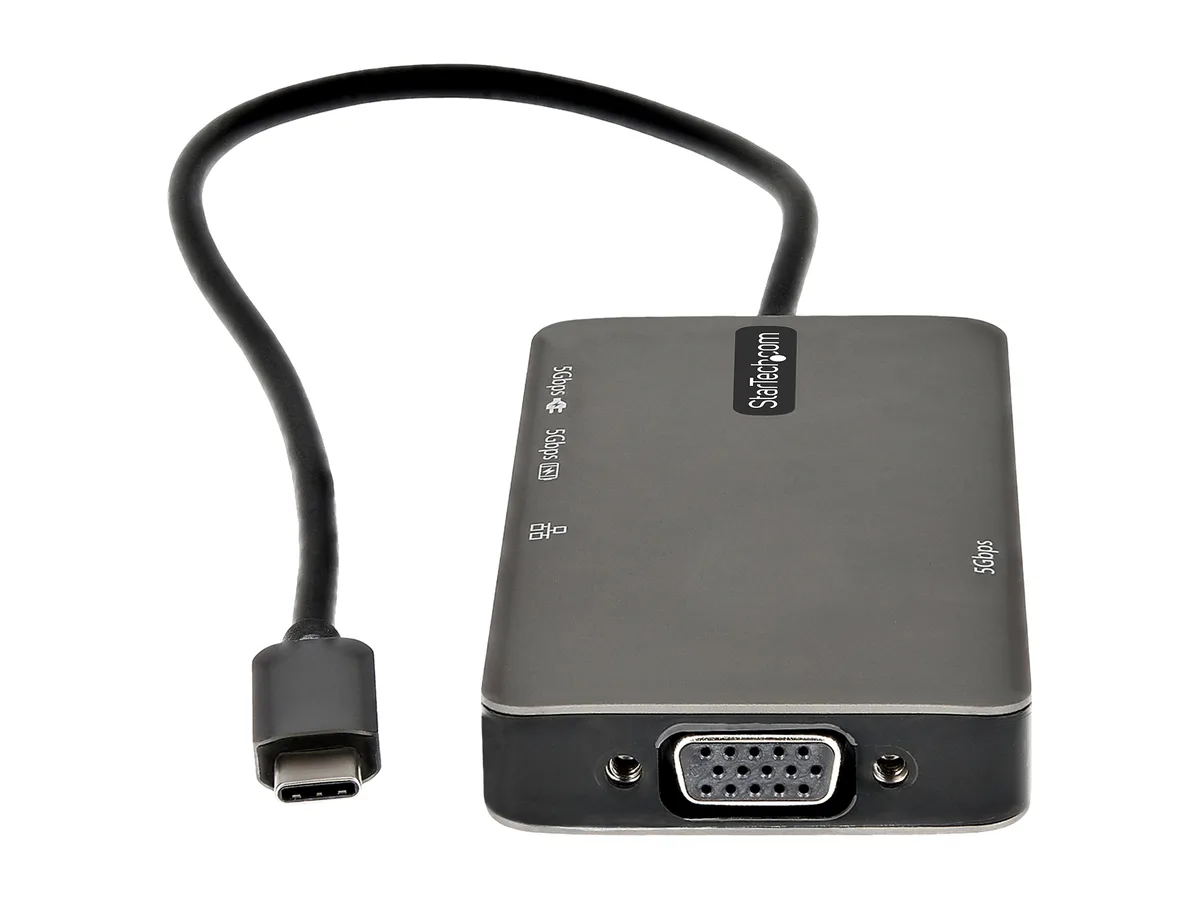

VGA (14 pin, High Density D-Sub)
1 - Host Connectors:
USB Type-C (24 pin) USB 3.0 (5Gbps)
Dimension0.60" x 2.00" x 12.20"
Weight0.24 lb.
Shipping weight0.14 kg
Package size170 × 142 × 30 mm

Questions about this item

Does the DKT30CHVPD2 include a power adapter or must I supply my own USB-C charger?

The dock draws up to 15 W for itself and passes up to 85 W to the host, so you need to connect your own USB-C laptop power adapter for charging; no power brick is bundled.

Should I use the HDMI or the VGA port to get 4K 30 Hz video from this dock?

Use the HDMI port; it supports 4K at 30 Hz, while the VGA port is limited to 1080p.

What does the 100 W Power Delivery rating mean for my laptop's actual charge speed?

The dock reserves 15 W for its own operation and delivers up to 85 W to the connected laptop when a suitable USB-C power adapter is attached.
