STARTECH
STARTECH CK4-HP202C Secure KVM Switch 2 Port 4K 60Hz
Secure two-port KVM switches dual 4K 60 Hz displays with push-button selection, NIAP 4.0 certification, intrusion detection and seven USB 2.0 ports
- TypeSecure KVM Switch
- PC ConnectorsHDMI, DisplayPort
- Console ConnectorsHDMI, DisplayPort, USB
- Computer Connections2
- Monitor Connections2
- Video Resolution3840 x 2160 (4K 60Hz)
- Controls two computers with one dual-monitor 4K 60 Hz setup
- NIAP 4.0 certification plus tamper detection protects classified workflows
- Seven USB 2.0 ports and CAC reader keep peripherals and smart cards connected
- Push-button switching and LED status lights simplify secure desk operation
- Operates reliably from 0 °C to 40 °C on 12 V DC power
Secure dual-head KVM for classified work

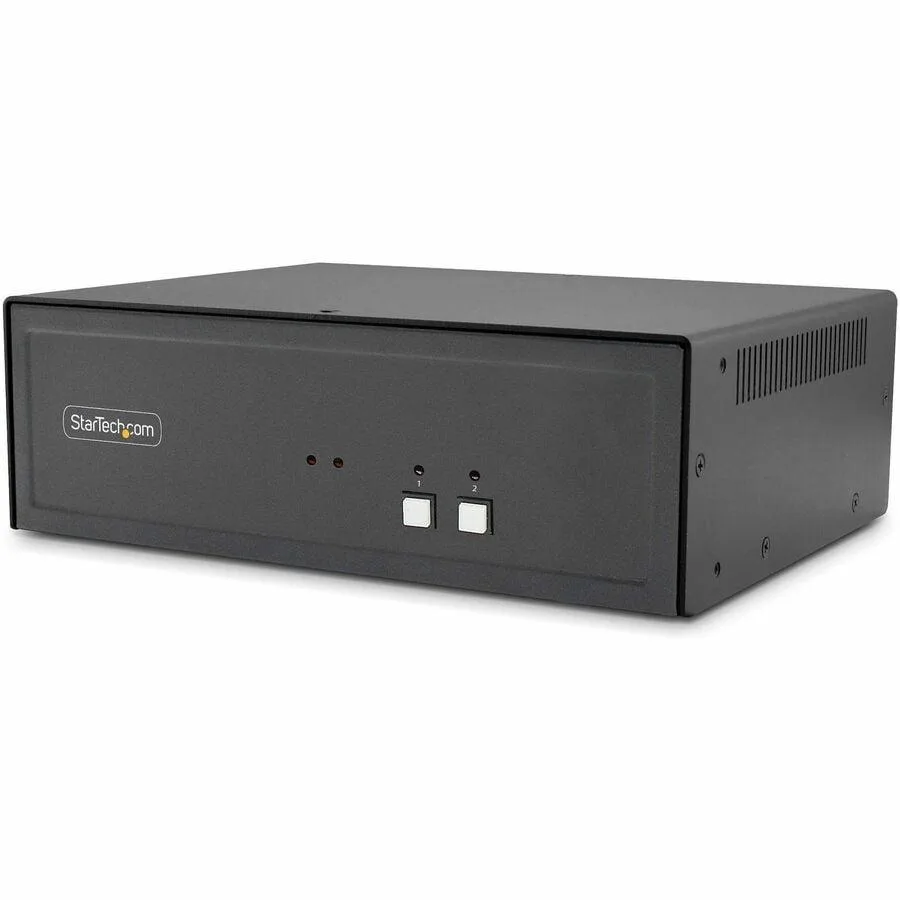

The CK4-HP202C is a NIAP 4.0 certified secure KVM switch built for operators who must isolate two computers at the same security level. It supports dual-monitor 4K 60 Hz output over HDMI or DisplayPort while maintaining hardware-enforced separation between connected systems.
CAC port and tamper evidence change daily routine
A front-panel CAC reader port lets smart-card authentication stay at the console instead of moving between machines. Intrusion detection, an anti-tamper switch and tamper-resistant chassis seal the enclosure, so any physical attack triggers an immediate alert and disables the switch.
NIAP 4.0 certification decides suitability
This validation confirms the device meets the current Protection Profile for Peripheral Sharing Switches, meaning it is approved for environments where data separation is mandatory. Without this certification the switch cannot be deployed in those networks.
Highlights
- Controls two computers with one dual-monitor 4K 60 Hz setup
- NIAP 4.0 certification plus tamper detection protects classified workflows
- Seven USB 2.0 ports and CAC reader keep peripherals and smart cards connected
- Push-button switching and LED status lights simplify secure desk operation
- Operates reliably from 0 °C to 40 °C on 12 V DC power
Specifications
| Brand | StarTech.com |
|---|---|
| Series | Secure KVM |
| Model | CK4-HP202C |
| Part Number | CK4-HP202C |
| Type | Secure KVM Switch |
| PC Connectors | HDMI, DisplayPort |
| Console Connectors | HDMI, DisplayPort, USB |
| Computer Connections | 2 |
| Monitor Connections | 2 |
| Video Resolution | 3840 x 2160 (4K 60Hz) |
| PC Selection | Push Button |
| Monitors Supported | 2 |
| LED Indicators | Yes |
| Temperature | 32F (0C) to 104F (40C) |
| Audio Features | Analog Audio Output |
| Power Features | 12VDC |
| USB Features | 7 USB 2.0 Ports |
| Application | Secure Multi-System Control |
| Features | LED Indicator, Intrusion Detection, Anti-tamper Switch, Tamper Resistant, NIAP 4.0 Certified, CAC Port |
Questions about this item
Does the anti-tamper switch or intrusion detection need any periodic reset or replacement?
The anti-tamper switch and intrusion detection are built-in hardware features with no user-serviceable parts or scheduled maintenance intervals.
What thermal limit stops sustained 4K 60Hz operation first?
The operating temperature ceiling is 40C, so adequate airflow must keep the chassis below that point during continuous use.
How much heat and noise does the 12VDC supply produce when the switch runs all day with two 4K displays?
The unit has no internal fan, so it runs silently; heat output is limited to the 12VDC adapter and normal component warmth within the 0C to 40C range.
