STARTECH
STARTECH BNDTB210GSFP Thunderbolt 3 PCIe enclosure with 2 SFP+ and DisplayPort
Thunderbolt 3 PCIe enclosure with dual SFP+ ports and DisplayPort for 10 Gbps fiber networking
- ColorBlack
- TypeEnclosure
- AC AdapterYes
- MaterialAluminum / Steel
- Thunderbolt 3Yes
- Internal Interface1 x PCI Express x16 Female
- Connect to 10 Gbps fiber networks via Thunderbolt 3
- Removable PCIe card lets you upgrade or replace the network adapter
- 40 Gbps Thunderbolt 3 bandwidth with x4 PCIe 3.0 lane speed
- Built-in DisplayPort output adds a monitor connection
- 92 mm fan keeps the enclosure cool under load
Thunderbolt 3 PCIe enclosure with dual SFP+

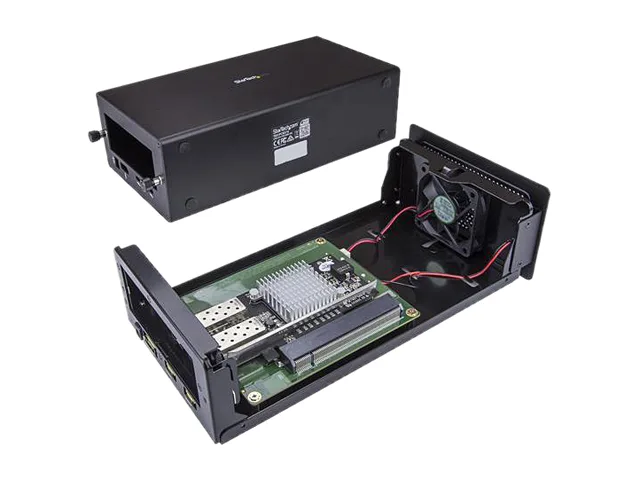

This enclosure adds a removable PCIe x16 card to a Thunderbolt 3 host, providing two open SFP+ ports for 10 Gbps fiber networking. A DisplayPort output and a 92 mm cooling fan are integrated into the aluminium and steel chassis. The bundle includes a 65 W universal AC adapter, a Thunderbolt 3 cable, a low-profile bracket and rubber feet.
Verify host port and operating system support
The unit requires a Thunderbolt 3 USB-C port capable of 40 Gbps signalling and x4 PCIe 3.0 bandwidth. Supported systems are Windows 7, 8, 8.1 and 10 plus Windows Server 2008 R2, 2012, 2012 R2 and 2016; Linux kernels 2.6.24 through 4.11.x LTS only. Confirm that your SFP+ transceivers match the 10 Gbps full-duplex specification and that jumbo frames up to 15K are acceptable for your network.
Suits users adding 10 GbE fiber via Thunderbolt 3
Ideal for workstations or laptops that need a 10 Gbps fiber link and have a spare Thunderbolt 3 port. Not suited for builds lacking Thunderbolt 3, for installations requiring PCIe cards larger than a single slot, or for environments running unsupported operating systems or newer Linux kernels beyond 4.11.x LTS.
Highlights
- Connect to 10 Gbps fiber networks via Thunderbolt 3
- Removable PCIe card lets you upgrade or replace the network adapter
- 40 Gbps Thunderbolt 3 bandwidth with x4 PCIe 3.0 lane speed
- Built-in DisplayPort output adds a monitor connection
- 92 mm fan keeps the enclosure cool under load
Specifications
| Brand | StarTech.com |
|---|---|
| Model | BNDTB210GSFP |
| Color | Black |
| Type | Enclosure |
| AC Adapter | Yes |
| Material | Aluminum / Steel |
| Thunderbolt 3 | Yes |
| Internal Interface | 1 x PCI Express x16 Female |

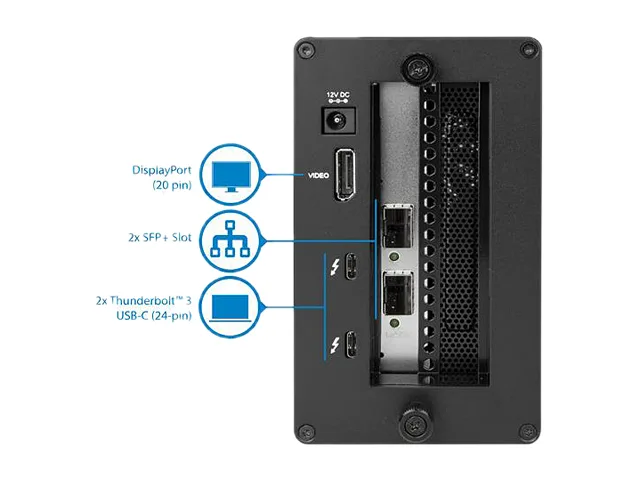

| External Interface | 2 x SFP+ Slot Female 2 x Thunderbolt 3 USB-C Female 1 x DisplayPort Female |
| Fan | 1 x 92mm Sleeve Bearing Fan |
| Power | Center Tip Polarity: Positive Input Current : 2A Input Voltage : 100 ~ 240 AC Output Current: 5.417A Output Voltage: 12 DC Plug Type: N Power Consumption (In Watts): 65W Power Source: AC Adapter Included |
| Specifications | Bandwidth: 3.94 GB/s (x4 PCIe 3.0 ) Compatible Networks: 10 Gbps Full Duplex Support: Yes Jumbo Frame Support: 15K max. Maximum Data Transfer Rate Chassis: 40 Gbps (Thunderbolt 3) / PCIe Card: 20 Gbps - Full-Duplex Promiscuous Mode: Yes Supported Protocols: IEEE 802.3ad (Link Aggregation), IEEE 802.3x (2005 Flow Control Support), IEEE 802.1Q (VLAN tagging) Type and Rate: Thunderbolt 3 - 40 Gbit/s This Thunderbolt 3 to fiber network adapter connects your Thunderbolt 3 enabled device to a 10GbE network. The adapter combines the Thunderbolt 3 technology of TB31PCIEX16 with the 10GbE dua |
| Operating Systems Supported | Windows 7, 8, 8.1, 10 Windows Server 2008 R2, 2012, 2012 R2, 2016 Linux 2.6.24 to 4.11.x LTS Versions only |
| Features | This Thunderbolt 3 network adapter connects your Thunderbolt 3 enabled device to a 10GbE fiber network via a PCIe expansion chassis Get the increased bandwidth, speed, reliability and security of a 10 GbE NIC, using your computer’s Thunderbolt 3 port Upgrade your peripherals without having to upgrade your chassis, by just switching out your PCIe card Assemble easily, with just a screwdriver Note: The expansion chassis does not support video cards. This expansion chassis does not provide full power delivery but will provide 15W of power, resulting in a slow charge to some laptops, suc |
| Dimensions | 11.00" x 5.60" x 3.20" |
| Weight | 3.60 lbs. |
| Package Contents | 1 x Thunderbolt 3 PCIe expansion box 1 x Thunderbolt 3 cable 4 x rubber feet 1 x PCIe 10GBase Fiber Card 1 x universal power adapter (NA/JP, UK, EU, ANZ) 1 x low-profile bracket 2 x quick-start guides |
| Shipping weight | 4.08 kg |
| Package size | 360 × 290 × 145 mm |
Questions about this item
What comes in the box and what do I need to add for a working 10 Gbps fiber link?
The box includes the Thunderbolt 3 enclosure, a 40 Gbps Thunderbolt 3 cable, a pre-installed PCIe 10GBase fiber card with two SFP+ slots, a 65 W universal power adapter, rubber feet, a low-profile bracket and two quick-start guides. You must supply SFP+ transceivers and fiber patch cables to complete the 10 Gbps network connection.
The card has two SFP+ ports — should I populate one or both?
Each SFP+ slot accepts a 10 Gbps transceiver, so you can run a single 10 Gbps link or use both ports for link aggregation or separate networks. The chassis delivers up to 20 Gbps full-duplex to the card, so two 10 Gbps connections can operate simultaneously without bottleneck.
The specs list 40 Gbps for the chassis and 20 Gbps for the card — what throughput will I actually see on the wire?
The Thunderbolt 3 link to the host runs at 40 Gbps, but the included PCIe card is limited to 20 Gbps full-duplex (x4 PCIe 3.0, 3.94 GB/s). Each SFP+ port is rated for 10 Gbps, so the maximum real-world network throughput per port is 10 Gbps.
