STARTECH
STARTECH BNDTB1394B3 Thunderbolt 3 PCIe enclosure with FireWire 400 800 and DisplayPort
A Thunderbolt 3 enclosure adding FireWire 400, dual FireWire 800 and DisplayPort via a full-length PCIe x16 slot with a 92 mm fan and 65 W power supply
- ColorBlack
- TypeEnclosure
- AC AdapterYes
- MaterialAluminum / Steel
- Thunderbolt 3Yes
- Internal Interface1 x LP4 (4 pin, Molex Large Drive Power) Male 1 x PCI Expres
- Connect FireWire 400 and 800 devices to Thunderbolt 3
- Add a full-length PCIe x16 card inside the enclosure
- Drive an external monitor through the DisplayPort output
- Built-in 92 mm fan keeps the card cool
- 65 W power supply included for reliable operation
Thunderbolt 3 PCIe enclosure

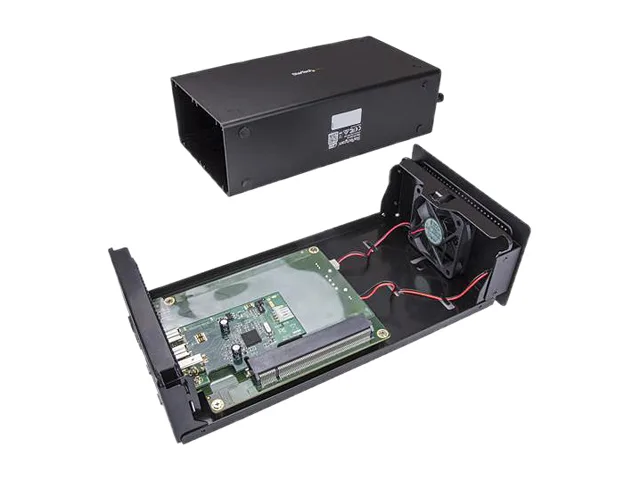

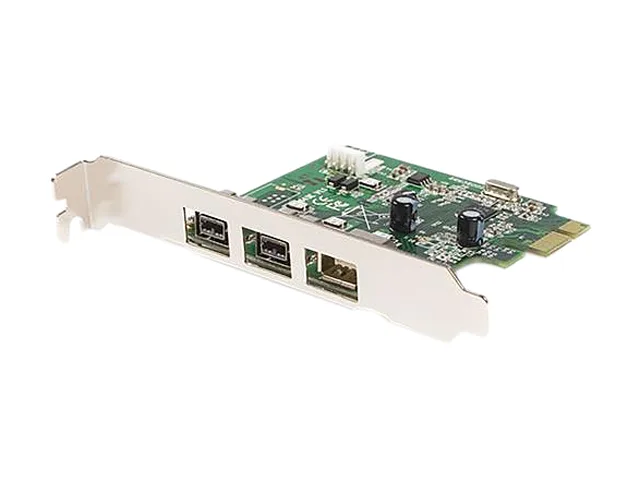

The StarTech BNDTB1394B3 is a Thunderbolt 3 external chassis that adds a full-length PCI Express x16 slot to a compatible computer. It ships with a FireWire adapter card pre-installed, providing one FireWire 400 port and two FireWire 800 ports for legacy peripherals. A DisplayPort output is also included for video pass-through. The unit is built from aluminum and steel and includes a 92 mm sleeve-bearing fan for active cooling.
Build integration: power, slots and video
The enclosure requires its included 65 W AC adapter, which accepts 100 to 240 V AC input and delivers 12 V DC at 5.417 A to the internal LP4 power connector. Two Thunderbolt 3 USB-C ports allow daisy-chaining additional Thunderbolt devices or connecting a DisplayPort monitor. A single full-height, full-length PCIe x16 card can be installed and swapped using only a screwdriver, freeing the host system from internal slot constraints.
Suits FireWire users; not for internal-only builds
This chassis suits professionals who must keep FireWire audio interfaces, cameras or storage devices working on modern Thunderbolt 3 computers without replacing them. It also serves anyone needing an external PCIe slot for specialised expansion cards. Builders who only need internal expansion, or who lack a Thunderbolt 3 port on their host, should look at other solutions.
Highlights
- Connect FireWire 400 and 800 devices to Thunderbolt 3
- Add a full-length PCIe x16 card inside the enclosure
- Drive an external monitor through the DisplayPort output
- Built-in 92 mm fan keeps the card cool
- 65 W power supply included for reliable operation
Specifications
| Brand | StarTech.com |
|---|---|
| Model | BNDTB1394B3 |
| Color | Black |
| Type | Enclosure |
| AC Adapter | Yes |
| Material | Aluminum / Steel |
| Thunderbolt 3 | Yes |
| Internal Interface | 1 x LP4 (4 pin, Molex Large Drive Power) Male 1 x PCI Express x16 Female |
| External Interface | 1 x FireWire 400 (6 pin, IEEE 1394a) Female 2 x FireWire 800 (9 pin, IEEE 1394b) Female 2 x Thunderbolt 3 USB-C (24-pin) Female 1 x DisplayPort (20 pin) Female |
| Fan | 1 x 92mm Sleeve Bearing fan |
| Power | Center Tip Polarity: Positive Input Current : 2A Input Voltage : 100 ~ 240 AC Output Current: 5.417A Output Voltage: 12 DC Plug Type: N Power Consumption (In Watts): 65W Power Source: AC Adapter Included |
| Specifications | The Thunderbolt 3 to 1394 FireWire adapter connects your FireWire peripherals to your Thunderbolt 3 computer. This adapter combines StarTech.com’s Thunderbolt 3 PCIe Expansion Chassis (TB31PCIEX16) and 1394 FireWire adapter card (PEX1394B3). The chassis uses Thunderbolt 3 technology, the fastest connection available, supporting your FireWire devices, plus one DisplayPort output and one additional Thunderbolt 3 port. Save on upgrade costs Use your legacy FireWire devices with your next-generation Thunderbolt 3 computer, without having to pay for upgraded peripherals. Increase producti |
| Operating Systems Supported | Thunderbolt 3 equipped computer with a Thunderbolt 3 port. |
| Features | The Thunderbolt 3 to 1394 FireWire adapter brings your high-powered FireWire peripheral devices to life through your Thunderbolt 3 computer Save on peripheral upgrade costs by adapting legacy FireWire peripherals to Thunderbolt 3 devices Create an efficient workstation with extra displays, using the DisplayPort output and additional Thunderbolt 3 port Upgrade your peripheral connections without having to upgrade your chassis by just switching out your PCIe card Install the PCIe card easily with just a screwdriver and automatic driver installation Note: The expansion chassis does not |
| Dimensions | 11.00" x 5.60" x 3.20" |
| Weight | 3.70 lbs. |
| Shipping weight | 3.35 kg |
| Package size | 360 × 290 × 145 mm |
Questions about this item
What is the sustained power limit of the included 65W AC adapter when the enclosure runs all day?
The external AC adapter delivers 12 V at 5.417 A for a continuous 65 W budget that powers the PCIe card, the 92 mm sleeve-bearing fan and the FireWire ports.
How loud and how hot does the 92 mm sleeve-bearing fan get during continuous operation?
The single 92 mm sleeve-bearing fan draws cooling air through the aluminium-and-steel chassis; under full load the 65 W supply and the installed card determine the thermal output and acoustic level.
Which Thunderbolt 3 host and cable must I already own for this enclosure to function?
A Thunderbolt 3 equipped computer with a Thunderbolt 3 port and a compatible Thunderbolt 3 USB-C cable are required to activate the two downstream Thunderbolt 3 ports, the DisplayPort output and the FireWire 400 and 800 connectors.
