Rectangular metal box with four Ethernet ports and power input, matte finish

STARTECH

STARTECH AS445C-POE-INJECTOR 4-Port Multi-Gigabit PoE++ Injector 160W

SKU CH-FCC9-0D5KP MPN AS445C-POE-INJECTOR

Powers four remote devices over Ethernet with selectable PoE++ output up to 95 W per port and a 160 W total budget

  • TypePoE++ Injector
  • SpecificationsTechnical Information Protection Type: ESD Protection Power
  • Power four devices from one unit with 160W total budget
  • Deliver data and power up to 328ft over Cat 5e/6/6a cabling
  • Select auto 90W, 95W PoH+ or forced 60W per port via DIP switch
  • Multi-gigabit 5/2.5/1Gbps speeds with NBASE-T auto-negotiation on all ports
  • Rugged metal housing with wall or DIN-rail bracket and Level-4 ESD protection

4-Port Multi-Gigabit PoE++ Injector

This injector delivers power and data to four remote devices over Ethernet cable. It operates as Power Sourcing Equipment compatible with IEEE 802.3af, 802.3at and 802.3bt standards. Multi-gigabit speeds of 5, 2.5 and 1 Gbps are supported alongside 100 and 10 Mbps links. A 160 W total power budget is distributed across all four ports.

Suits installers needing up to four powered ports

This unit fits deployments where four PoE devices require mid-span power injection. Buyers needing more than four powered ports should look elsewhere. Installations requiring per-port power above 95 W are not supported. The 160 W total budget limits simultaneous high-power loads across all ports.

160 W total power budget

The injector provides a maximum combined output of 160 Watts across its four ports. Each port can deliver up to 95 W using PoE++ or forced 60 W legacy modes. A DIP switch selects auto-negotiation up to 90 W, 95 W PoH+ or forced 60 W operation. This budget determines how many high-power devices can run simultaneously.

Highlights

  • Power four devices from one unit with 160W total budget
  • Deliver data and power up to 328ft over Cat 5e/6/6a cabling
  • Select auto 90W, 95W PoH+ or forced 60W per port via DIP switch
  • Multi-gigabit 5/2.5/1Gbps speeds with NBASE-T auto-negotiation on all ports
  • Rugged metal housing with wall or DIN-rail bracket and Level-4 ESD protection

Specifications

BrandStarTech.com
Part NumberAS445C-POE-INJECTOR
TypePoE++ Injector
SpecificationsTechnical Information
Protection Type:
ESD Protection
Power Description
Input Voltage:
120 V AC
230 V AC
Maximum Output Voltage:
54 V DC
Maximum Input Current:
2.50 A
Maximum Output Current:
3.30 A
Maximum Output Power:
160 W
Interfaces/Ports
Output Ports:
4 x Multi-Gigabit PoE++
Physical Characteristics
Product Color:
Black
Form Factor:
DIN Rail/Wall Mountable
Height:
1.5"
Width:
2.8"
Length:
3.7"
Weight (Approximate):
9.80 oz
Miscellaneous
Package Contents:
PoE++ Injector
1 x Universal Power Adapter
1 x DIN Rail Mounting Kit
1 x Quick-Start Guide
Compatibility:
IP cameras
access co
Shipping weight1.81 kg
Package size307 × 175 × 91 mm

Questions about this item

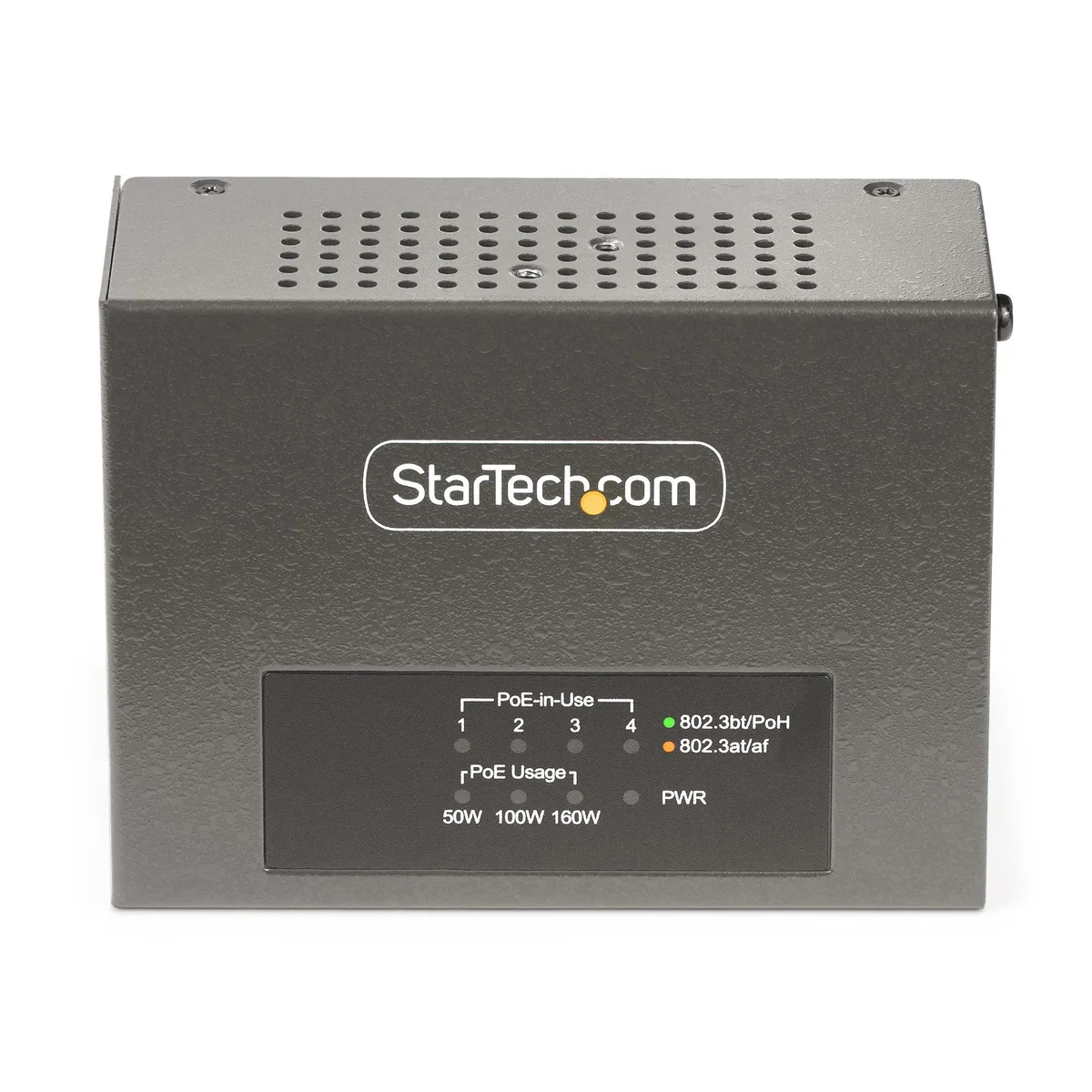

How do I confirm the injector is delivering power to all four ports after installation?

Check the per-port LED indicators; each lit LED shows the port has successfully negotiated PoE, PoE+ or PoE++ and is supplying up to 95W to the connected device.

What comes in the box and what must I source separately?

The package includes the 4-port injector, a universal power adapter with NA/JP, EU, UK and ANZ plug heads, and a wall/DIN-rail mounting bracket; you supply the Cat 5e/6/6a Ethernet cables for each powered device.

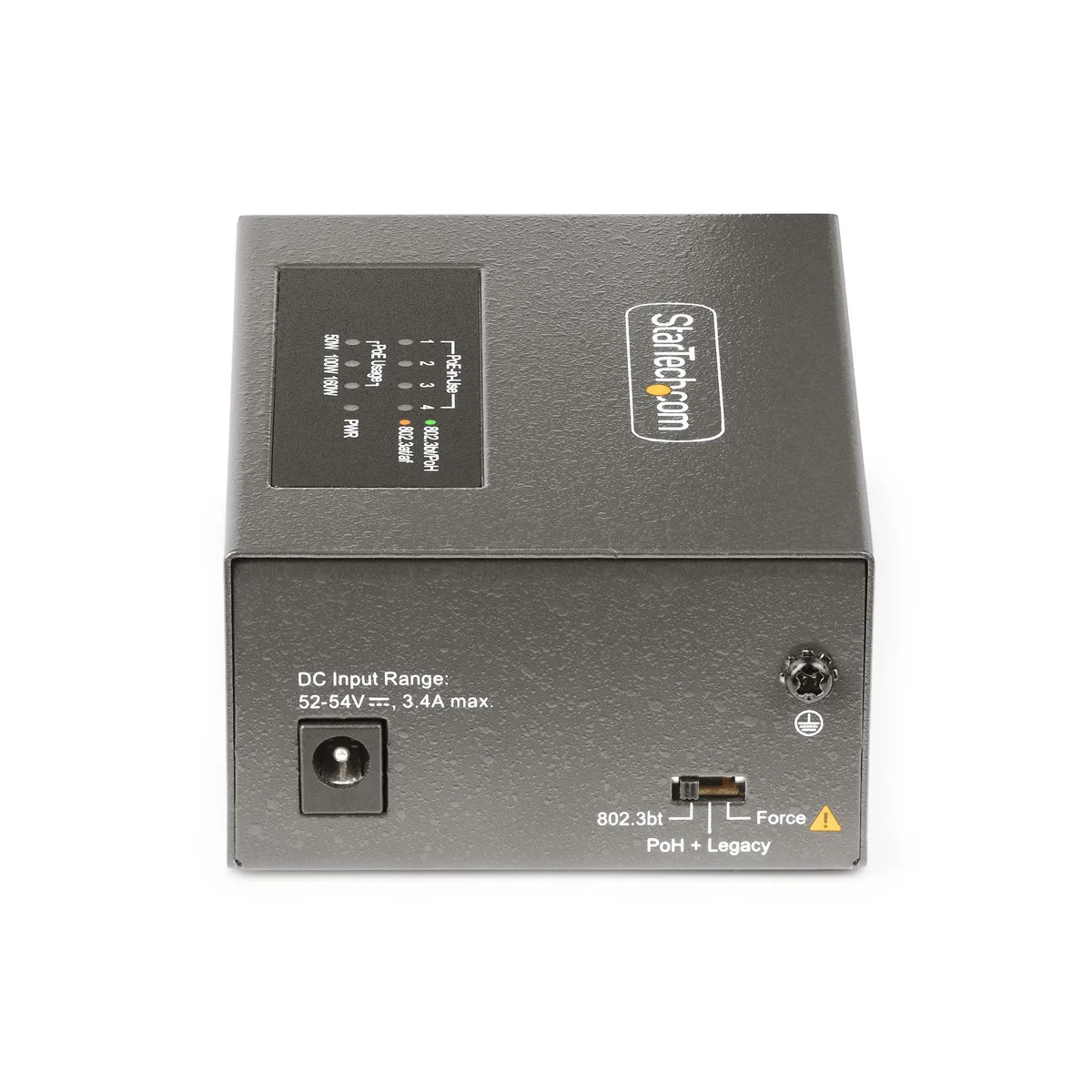

When should I use the DIP switch to force 60W instead of leaving it on auto-negotiation up to 90W?

Select forced legacy 60W (UPoE) mode only for older powered devices that do not support IEEE 802.3bt negotiation; otherwise leave the switch on auto for up to 90W or 95W PoH+ operation.
