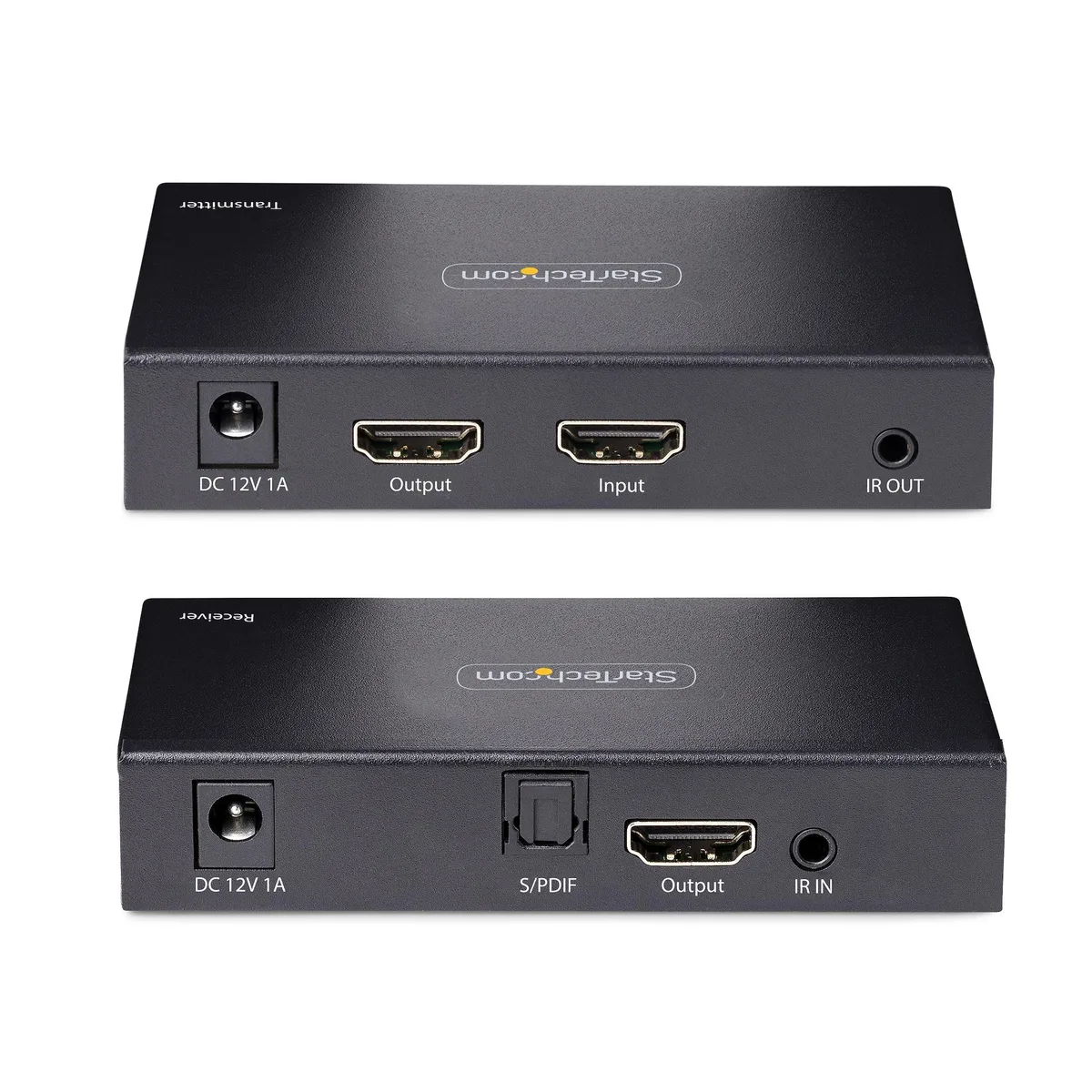

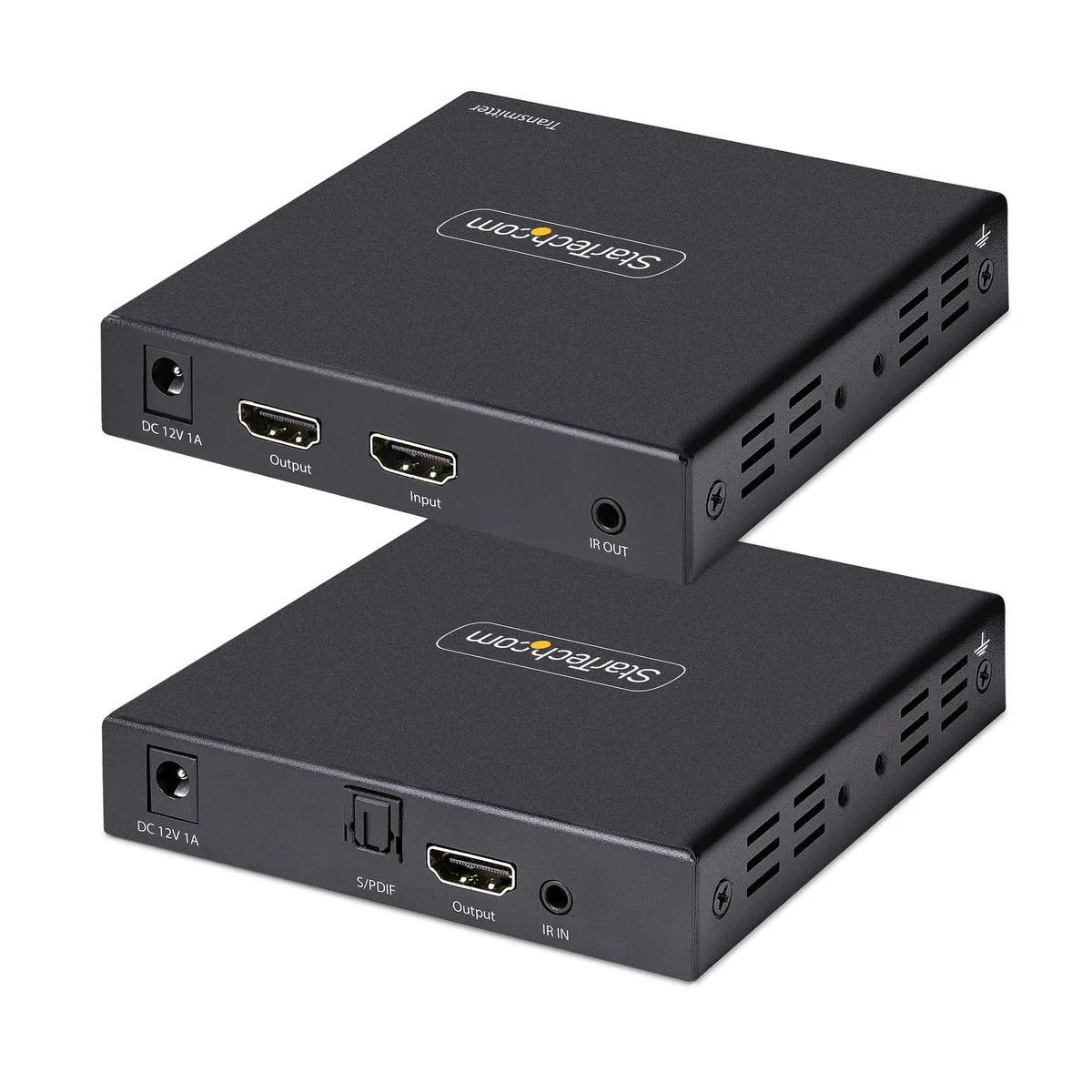

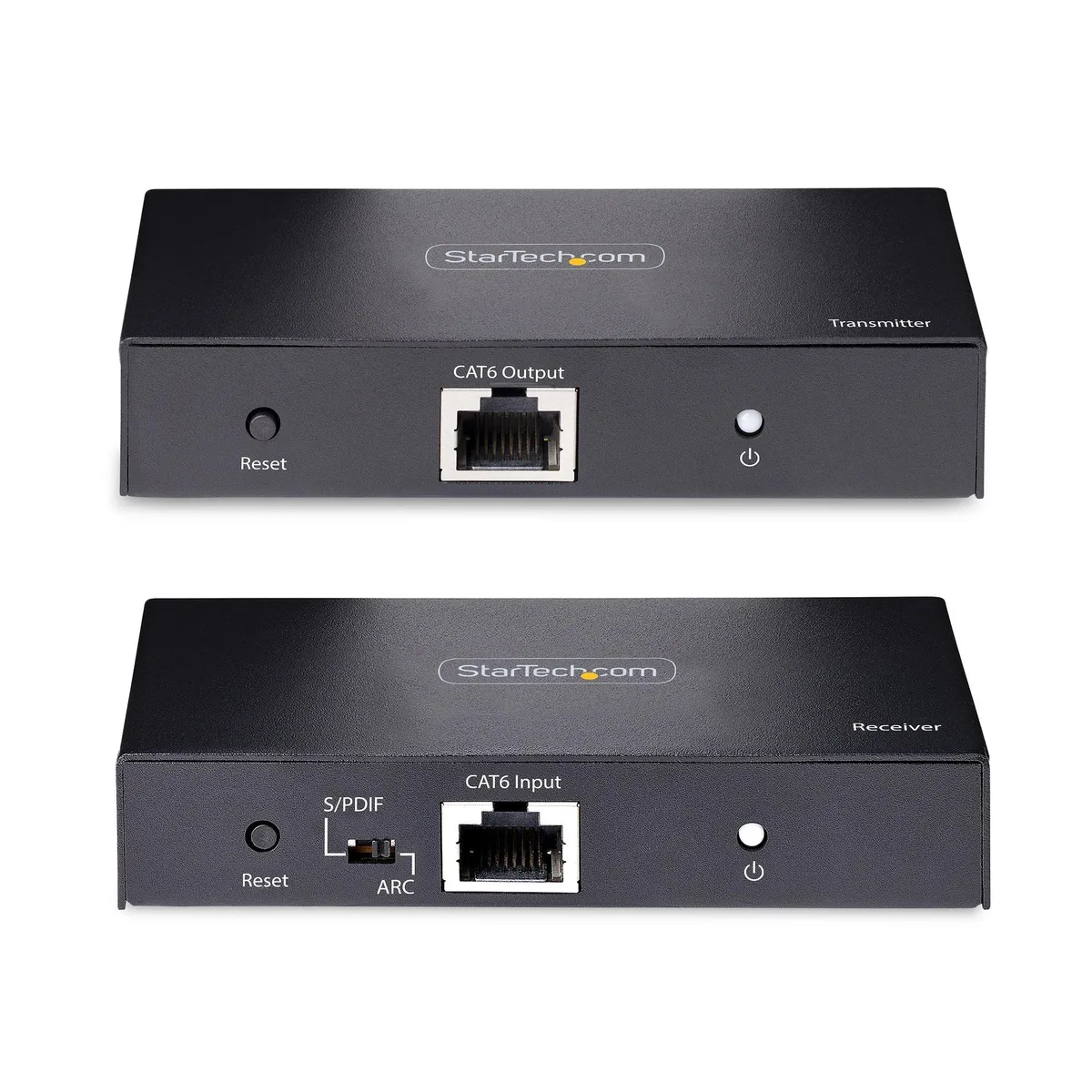

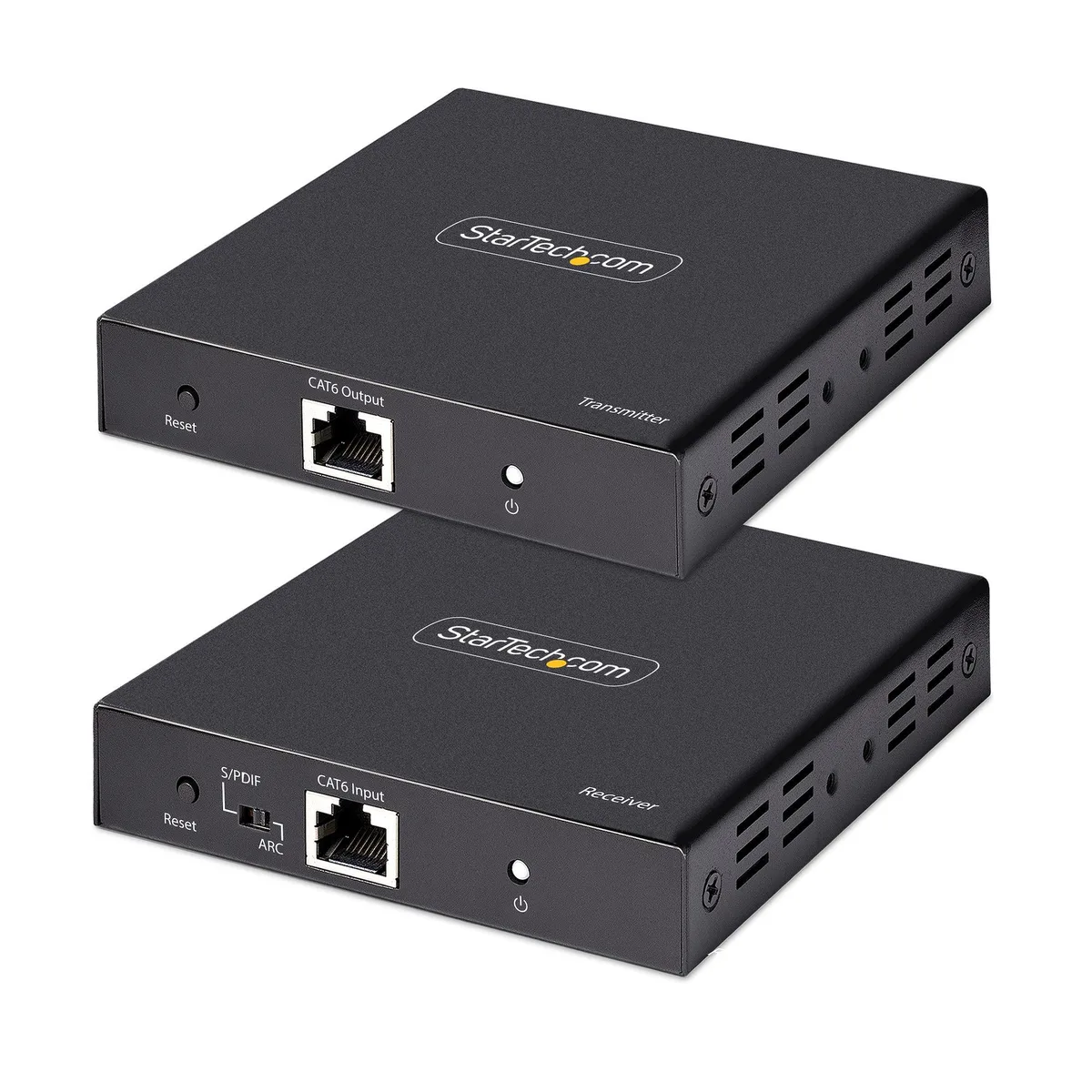

Black metal transmitter and receiver units with HDMI, RJ45, 3.5mm and Toslink ports, plus power adapter and IR accessories

STARTECH

STARTECH 4K70IC-EXTEND-HDMI 4K 60Hz HDMI Extender 70m v extender

SKU CH-W025-FABNX MPN 4K70IC-EXTEND-HDMI

Extends 4K 60Hz HDMI up to 70 m over a single CAT5e/6 cable with PoC power and IR control

  • Extender & Repeater TypeNon Wall Plate Extender
  • ColorBlack
  • Other ConnectorLocal Unit Connectors 1 - HDMI 1 - HDMI 1 - RJ-45 1 - Barrel
  • Software ApplicationSoftware: OS Compatibility No Drivers or Software Required
  • LED Indicator1 - Flashing Blue: Power connected, but no HDMI input signal
  • Power Consumption0.1W
  • 4K 60Hz HDR video reaches 70m over one CAT5e/6 cable
  • Zero-latency 4:4:4 chroma keeps colour accuracy intact at distance
  • Power-over-Cable runs both units from a single 12V adapter
  • IR blaster and receiver let you control the source from the display end
  • Transmitter HDMI loop-out adds a local screen or chains another extender

4K 60Hz HDMI Extender over CAT5e/6

This StarTech.com 4K70IC-EXTEND-HDMI kit transmits 4K 60Hz video and 7.1-channel audio up to 70 metres over a single Category 5e or 6 cable. The transmitter and receiver units form a complete point-to-point link with zero latency and HDCP 2.2 compliance. Power-over-Cable supplies the remote unit from the local power adapter, removing the need for a second outlet. Installation is driver-free and includes IR extension for remote source control.

Integrators needing long 4K runs without fibre

The extender suits digital-signage deployments in malls, stadiums or hospitals where a 230-foot CAT5e/6 run replaces costly HDMI cable. It also fits home-theatre installs that must bridge rooms without an equipment rack nearby. Users who require distances beyond 70 metres, fibre-based transmission, or HDMI 2.1 features such as 4K 120Hz should evaluate alternative technologies.

Handles 4K 60Hz 4:4:4 and common lower resolutions

Supported modes include 3840×2160 at 60 Hz, 2560×1600 at 60 Hz, 1920×1200 at 60 Hz, 1080p and 720p. The local HDMI loop-through allows a second display or cascaded extenders for longer chains. Bandwidth tops out at the HDMI 2.0 limit, so 4K 120 Hz, 8K or variable-refresh-rate signals will not pass.

Highlights

  • 4K 60Hz HDR video reaches 70m over one CAT5e/6 cable
  • Zero-latency 4:4:4 chroma keeps colour accuracy intact at distance
  • Power-over-Cable runs both units from a single 12V adapter
  • IR blaster and receiver let you control the source from the display end
  • Transmitter HDMI loop-out adds a local screen or chains another extender

Specifications

BrandStarTech.com
Model4K70IC-EXTEND-HDMI
Part Number4K70IC-EXTEND-HDMI
Extender & Repeater TypeNon Wall Plate Extender
ColorBlack
Other ConnectorLocal Unit Connectors
1 - HDMI
1 - HDMI
1 - RJ-45
1 - Barrel Power Connector (Size M, OD:5.50, ID: 2.10)
1 - 3.5mm Stereo Female 3 pos
Remote Unit Connectors
1 - HDMI
1 - 3.5mm Stereo Female 3 pos
1 - Toslink (SPDIF, Optical)
1 - Barrel Power Connector (Size M, OD:5.50, ID: 2.10)
1 - RJ-45
Software ApplicationSoftware:
OS Compatibility
No Drivers or Software Required
LED Indicator1 - Flashing Blue: Power connected, but no HDMI input signal is detected
Solid Blue: Power connected, and a HDMI input signal is detected
Power Consumption0.1W
Power SupplyPower Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
0.3A
Output Voltage
12V DC
Output Current
1A
Center Tip Polarity
Positive
Plug Type
M
SpecificationMax Distance
70m [230ft]
Maximum Digital Resolutions
3840x2160 @ 60Hz
Supported Resolutions
3840x2160 (4K) @ 60Hz
2560x1600 @ 60Hz
1920x1200 @ 60Hz
1920x1080 (1080p)
1280x720 (720p)
*Other resolutions and refresh rates may be available
Wide Screen Supported
Yes
Audio Specifications
HDMI - 7.1 Channel Audio
Hardware:
Cabling
Cat 5e UTP or better
Audio
Yes
Rack-Mountable
No
Daisy-Chain
Yes
Environmental:
Operating Temperature
-20°C to 60°C (-4°F to 140°F)
Storage Temperature
-30°C to 70°C (-22°F to 158°F)
Humidity
0% - 90% RH (non-condensing)
Warranty: 2 Years
DimensionsProduct Length
4.2 in [10.6 cm]
Product Width
3.9 in [9.9 cm]
Product Height
1.0 in [2.6 cm]
Package Length
7.2 in [18.2 cm]
Package Width
9.4 in [24.0 cm]
Package Height
3.3 in [8.3 cm]
WeightWeight of Product
7.4 oz [210.0 g]
Shipping (Package) Weight
2.0 lb [0.9 kg]
Package Content1 - Local HDMI Transmitter Unit
1 - Remote HDMI Receiver Unit
1 - IR Blaster
1 - IR Receiver
8 - Rubber Feet
1 - Mounting Kit
1 - Power Adapter
1 - Quick-Start Guide
Shipping weight0.91 kg
Package size239 × 180 × 81 mm

Questions about this item

What type of Ethernet cable is required to reach the 70m distance?

A single Category 5e or Category 6 cable carries the 4K 60Hz signal up to 70m between the transmitter and receiver units.

Can I connect a local display to the transmitter while extending to the remote receiver?

Yes, the transmitter includes an HDMI output for a local display or for cascading additional extenders alongside the remote connection.

How do the LED indicators confirm the link is active after setup?

A solid blue LED on the unit shows power is connected and an HDMI input signal is detected, confirming the link is working.
