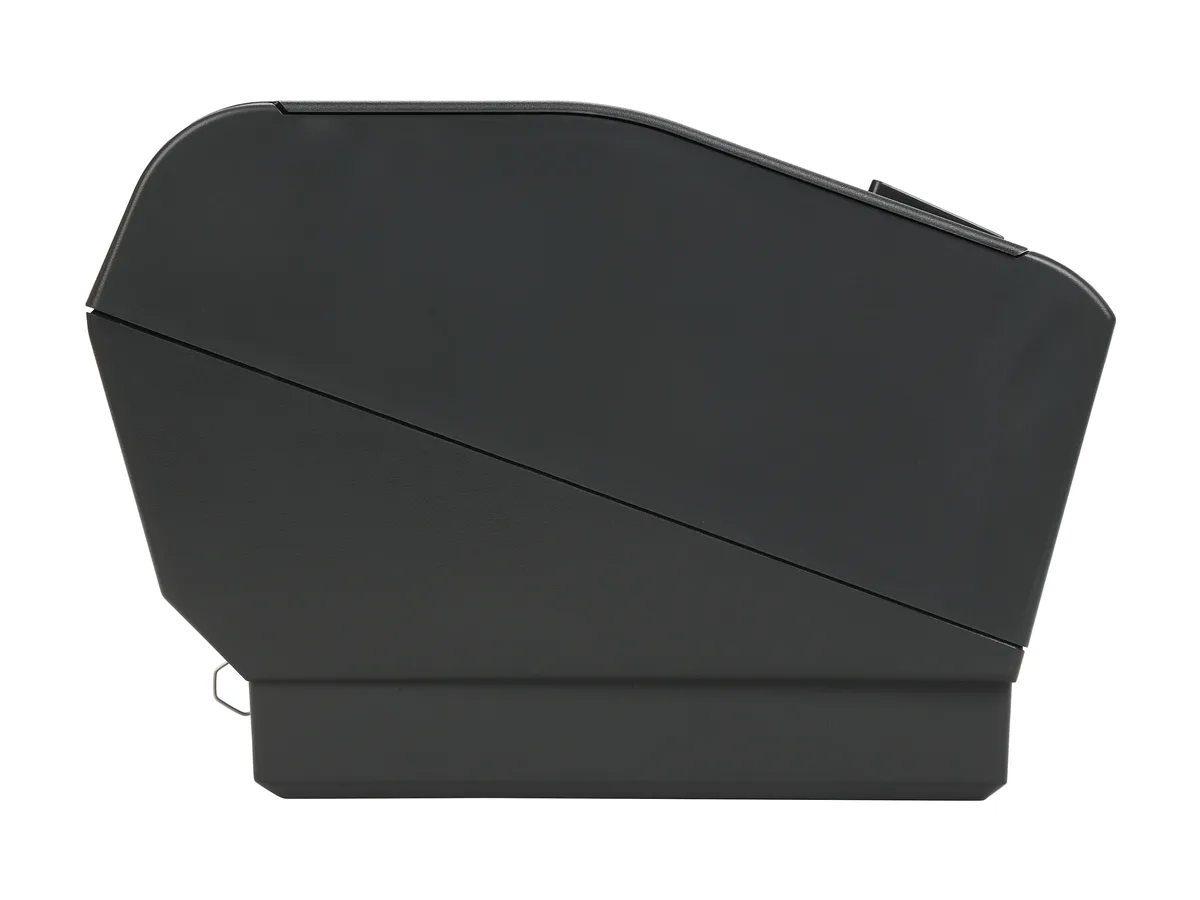

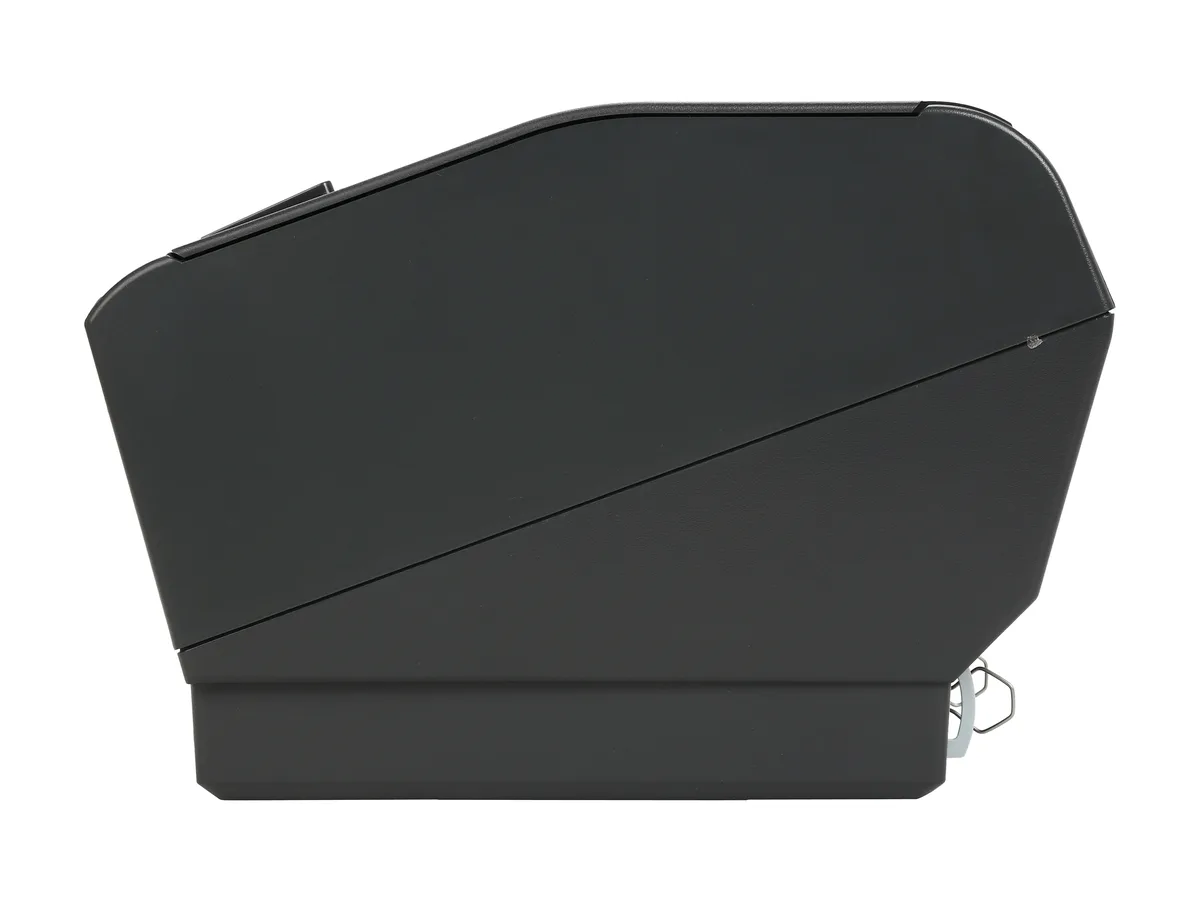

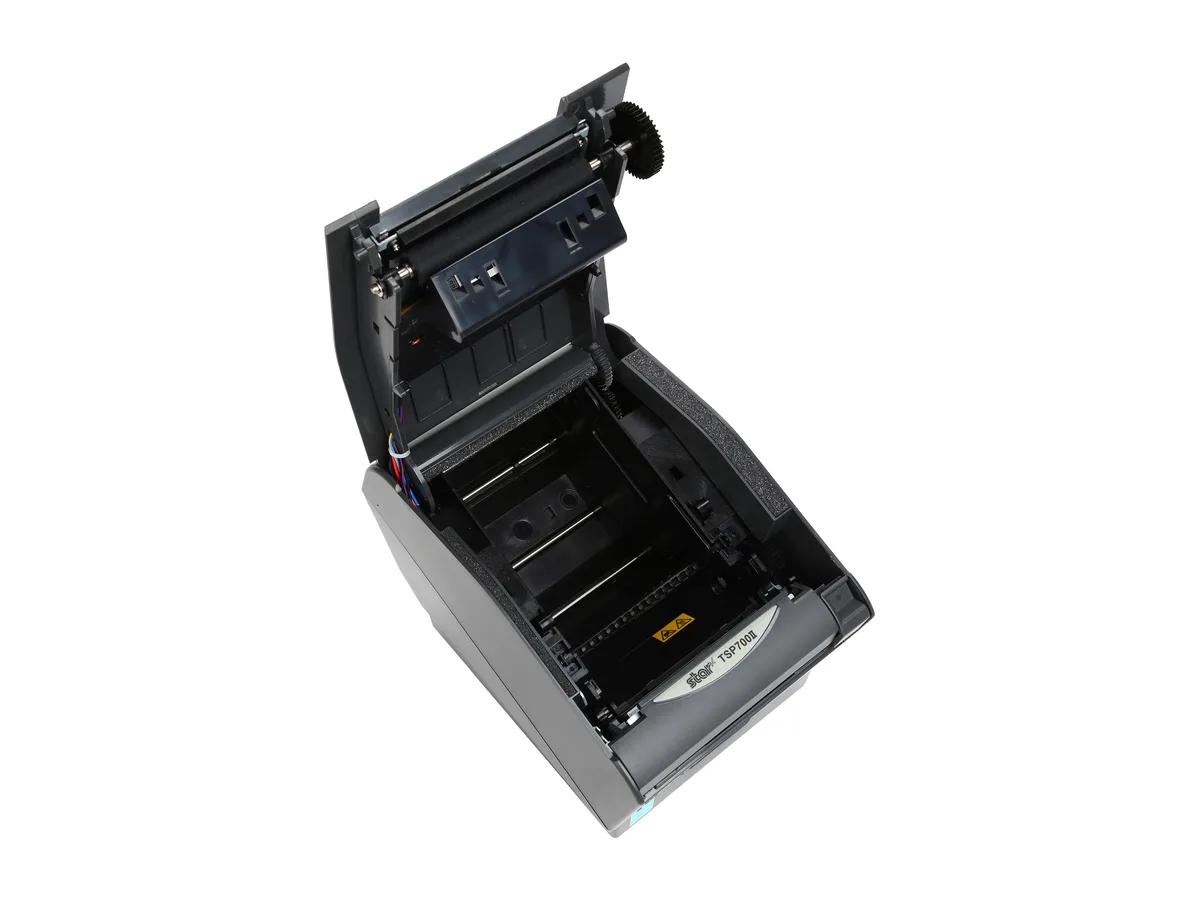

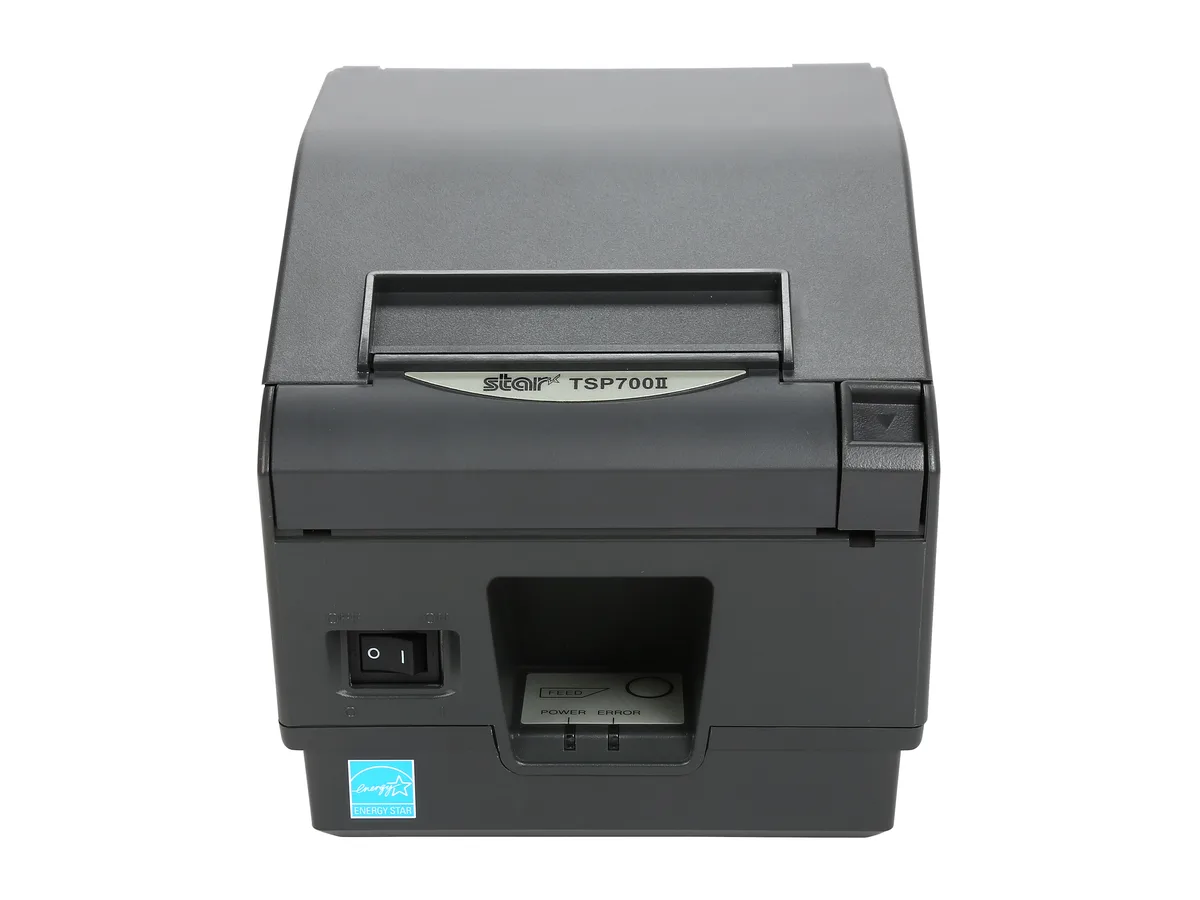

Gray rectangular direct thermal receipt printer with auto-cutter and parallel interface

Star Micronics

Star Micronics 39442210 TSP700II Direct Thermal Receipt Printer Parallel Gray

SKU CH-GCXH-8WNPP MPN 39442210

Prints 45 receipts per minute at 250 mm/sec with 406 x 203 dpi resolution and an auto-cutter for high-volume retail and hospitality use

  • ColorGray
  • Print TechnologyDirect Thermal
  • Print Speed250 mm / sec
  • Max Resolution(B&W)406 x 203 dpi
  • MemoryFlash: 16MB
  • Fonts IncludedESC/POS
  • Prints 45 receipts per minute at 250 mm/sec for fast checkout queues
  • Double-resolution mode reaches 406 x 203 dpi for sharp logos and coupons
  • Auto-cutter trims each receipt cleanly without manual tearing
  • Extended top cover blocks dust and liquids from entering the mechanism

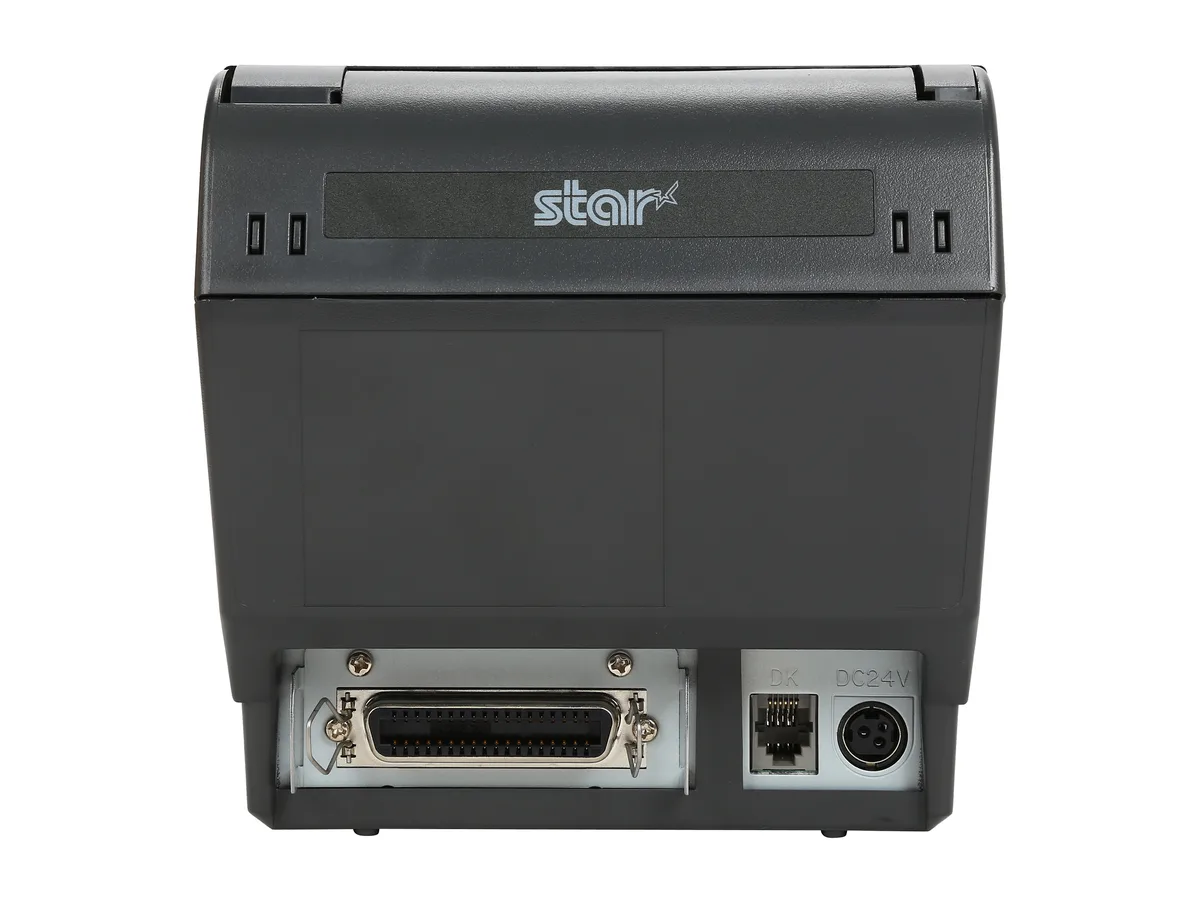

  • Parallel interface connects directly to legacy POS systems

Star TSP700II Direct Thermal Printer

The Star Micronics TSP700II is a direct thermal receipt printer designed for high-volume point-of-sale environments. It prints at 250 mm per second with a maximum resolution of 406 by 203 dpi. A parallel interface connects the unit to legacy POS systems. The gray chassis includes an auto-cutter and supports roll diameters up to 3.94 inches.

Suited for retailers needing fast receipt output

This printer suits retailers, restaurants and healthcare sites that require rapid, reliable receipt printing on 80 mm media. It is not for buyers who need wireless or Ethernet connectivity because the supplied interface is parallel only. It is not for operations that require colour printing or label widths beyond 3.15 inches.

Bundled accessories and utilities

The package includes a wall-mount bracket, a 58 mm paper guide, an interface cover and a power-switch cover. An installation CD supplies drivers, a configuration utility and a value-add utility modeled on futurePRNT software. A separate PS60A-24B 24 V power supply is required for operation.

Highlights

  • Prints 45 receipts per minute at 250 mm/sec for fast checkout queues
  • Double-resolution mode reaches 406 x 203 dpi for sharp logos and coupons
  • Auto-cutter trims each receipt cleanly without manual tearing
  • Extended top cover blocks dust and liquids from entering the mechanism
  • Parallel interface connects directly to legacy POS systems

Specifications

BrandStar Micronics
SeriesTSP700II
ModelTSP743IIC GRY
ColorGray
Print TechnologyDirect Thermal
Print Speed250 mm / sec
Max Resolution(B&W)406 x 203 dpi
MemoryFlash: 16MB
Fonts IncludedESC/POS
Barcode Type9 versions / PDF417, QR, Maxicode Options
CutterAuto-Cutter
Media TypeTRF-80 (87993460)
Media sizes supportedMedia Thickness: 5.91 mil
Maximum Roll Diameter: 3.94"
Label Width: 3.15"
Maximum Print Width: 2.83"
InterfaceParallel
Windows CompatibleWindows 8.1, Windows XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS, JavaPOS, USB Vendor Class, Linux, Android and Blackberry
Macintosh CompatibleMac OS X, StarIO SDK with support for iOS
Dimensions5.83" x 5.79" x 8.39"
Weight3.86 lbs.
FeaturesConnectivity: Apple MFi Certified Bluetooth, WebPRNT, Serial, Parallel, USB, Powered USB, Ethernet, Virtual Serial Port to USB, Virtual Serial Port to Ethernet
Emulation Modes: Star Mode, ESC/POS
Peripheral Drive Circuit: 2 circuits, (24V max. 1A), 1 Compulsion input
Power Consumption
Average 1.8 Amp. Printing, 0.15 Amp. Standby
Requires PS60A External Power Supply
Operating Conditions
Temperature: 5ºC to 45ºC
Humidity: 10% - 90% RH (without condensation)
Safety Standards: UL, C-UL, TüV, FCC, VCCI, EN55022, CE, Gost
Included with Printer: Installation CD with Drivers, Configuration U
Package ContentsInstallation CD with Drivers
Configuration Utility
and Value Add Utility modeled after futurePRNT Software
Wall Mount Bracket
Interface Cover
58mm Paper Guide
Power Switch Cover
Required: PS60A-24B US POWER SUPPLY (30781753)
Required: Parallel Cable- 6' Putty (DIBM25C06)
Shipping weight2.38 kg
Package size259 × 244 × 216 mm

Questions about this item

What power supply must I already have to run the TSP700II?

The printer requires the PS60A-24B US power supply, which is sold separately.

Will the parallel port on the TSP700II work with my older POS terminal running Windows XP?

Yes, the parallel interface supports Windows XP 32-bit along with Vista, 7, 8.1, Server 2008 and POSReady 2009.

How can I confirm the auto-cutter is functioning correctly after installation?

Print a test receipt; the auto-cutter should trim each receipt cleanly at 45 receipts per minute (250 mm/sec).
