Blue nylon insulated ring terminal for 14 AWG wire with #8 stud hole

Sta-Kon

Sta-Kon RB14-8 Ring Terminal #8 Stud 14 AWG 600 V Nylon Insulated

SKU CH-ZZ07-MX5ND

Nylon-insulated ring terminal accepts 14–18 AWG copper wire, crimps to a #8 stud, and carries 600 V with UL and CSA approval

  • TypeElectrical Connectors
  • Secure crimp connection with serrated barrel design
  • Handles 14 AWG copper conductors at 600 V rating
  • Nylon insulation withstands 221 °F operating temperature
  • UL Listed E9809 and CSA Certified for safety compliance
  • Fits #8 stud with 0.31 in tongue width

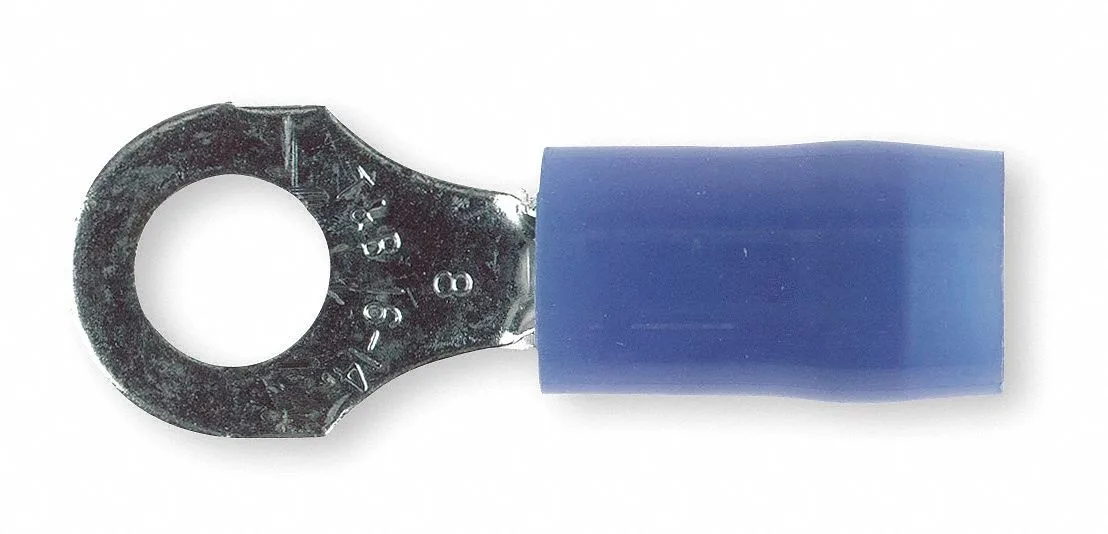

Blue 14 AWG Ring Terminal

This blue nylon insulated ring terminal accepts 18 to 14 AWG copper conductors. It is rated for 600 volts and carries CSA and UL Listed E9809 certifications. The #8 stud size suits control panel and automotive wiring tasks. It is built for installers who need a secure crimp connection.

Partial Coverage and Serrated Barrel

Partial insulation coverage leaves the barrel exposed for visual crimp inspection. The serrated barrel design increases mechanical grip on the wire strands during crimping. Tin plated copper contacts resist corrosion in harsh environments. These features reduce the risk of loose connections over time.

Nylon Insulation and 221 Degree Rating

Nylon insulation withstands temperatures up to 221 degrees Fahrenheit. The 0.31 inch tongue width and 0.25 inch hole spacing fit standard #8 mounting hardware. A 0.46 inch barrel length provides ample crimp area for solid joints. This terminal is not suited for aluminium conductors or voltages above 600 V.

Highlights

  • Secure crimp connection with serrated barrel design
  • Handles 14 AWG copper conductors at 600 V rating
  • Nylon insulation withstands 221 °F operating temperature
  • UL Listed E9809 and CSA Certified for safety compliance
  • Fits #8 stud with 0.31 in tongue width

Specifications

TypeElectrical Connectors
BrandSTA-KON

Questions about this item

Will the crimp barrel need re-crimping or replacement after extended service?

The serrated barrel design creates a permanent mechanical bond with copper conductors when crimped correctly, eliminating the need for re-crimping under normal operating conditions.

What is the first limitation reached during continuous 600 V loading?

The 221 °F maximum operating temperature of the nylon insulation becomes the limiting factor before the copper contact or tin finish degrades under sustained electrical load.

How hot does the nylon insulation get during all-day operation at rated current?

The insulation is rated to withstand up to 221 °F; actual temperature rise depends on ambient conditions and current level, but the material will not melt or degrade below that threshold.
