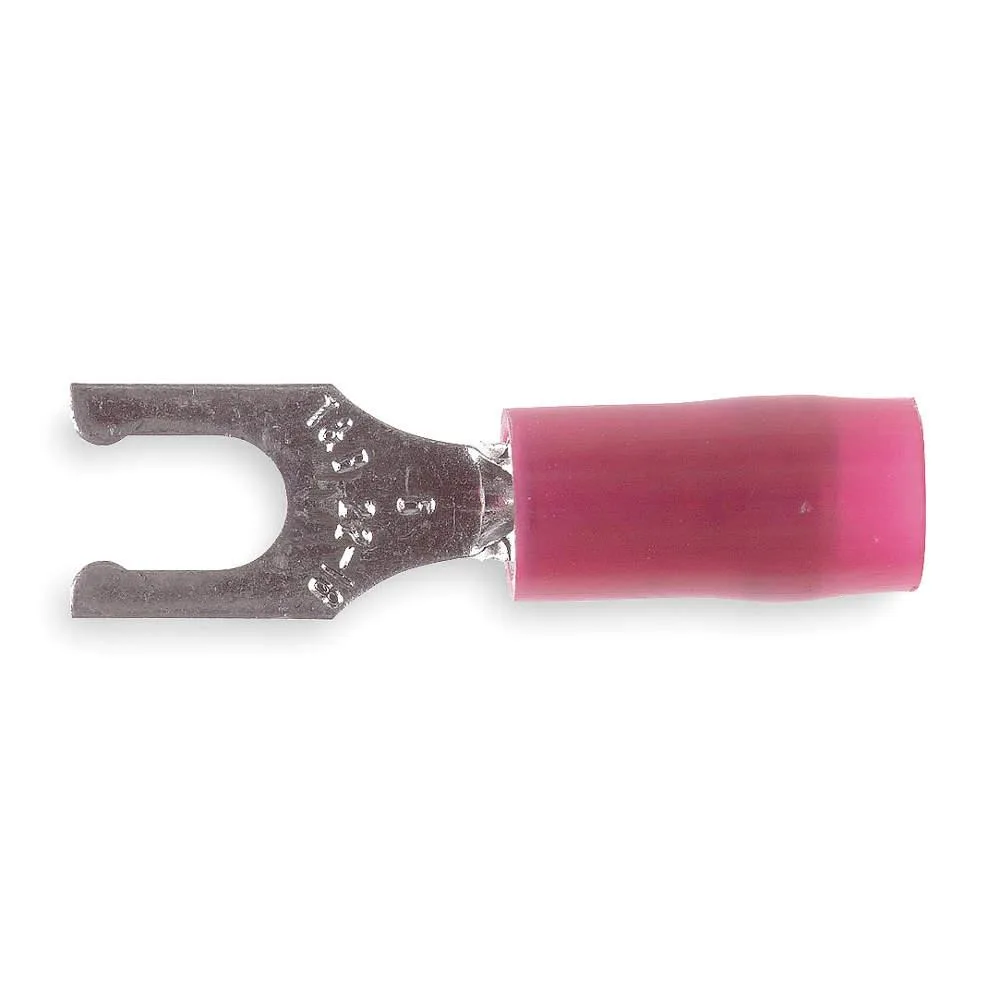

Red nylon insulated fork terminal with tin plated copper barrel and open fork end

Sta-Kon

Sta-Kon RA18-10FL Fork Terminal #10 Stud 16 AWG 600 V Nylon Insulated

SKU CH-P1HJ-PGD7T

Fork terminal crimps to 16 AWG wire with a #10 stud, nylon insulation rated to 600 V and 221 °F

  • TypeElectrical Connectors
  • Crimp-ready fork terminal fits #10 stud size
  • 16 AWG nylon-insulated barrel handles 600 V circuits
  • Brazed seam resists pull-out under vibration
  • UL listed and CSA certified for code compliance
  • Tin-plated copper contact rated to 221 °F

Sta-Kon #10 Fork Terminal for 16 AWG

The Sta-Kon RA18-10FL is a nylon-insulated fork terminal designed for 16 AWG wire connections up to 600 V. It features a tin-plated copper contact with a brazed seam barrel and partial insulation coverage. The terminal accepts a #10 stud and uses a crimp termination style for secure attachment. It carries UL Listed and CSA Certified ratings for electrical compliance.

600 V Rating and #10 Stud Constraint

The terminal operates at a maximum of 600 V and a temperature limit of 221 degrees F. Its barrel length measures 0.46 in while the tongue length is 0.42 in, defining the physical space required for the connection. The insulation grip barrel style supports the wire at the crimp point but does not fully enclose the conductor. RoHS compliance is not declared for this part.

Crimp Installation with Insulation Grip

Installation requires a crimp tool matched to 16 AWG and the insulation grip barrel profile to achieve a reliable joint. The partial nylon insulation coverage leaves the conductor exposed near the barrel mouth, so correct strip length is critical to avoid shorts. The brazed seam resists splitting under pressure but offers no visual inspection window. Buyers needing fully insulated barrels or RoHS documented parts should verify suitability before purchase.

Highlights

  • Crimp-ready fork terminal fits #10 stud size
  • 16 AWG nylon-insulated barrel handles 600 V circuits
  • Brazed seam resists pull-out under vibration
  • UL listed and CSA certified for code compliance
  • Tin-plated copper contact rated to 221 °F

Specifications

TypeElectrical Connectors
BrandSTA-KON

Questions about this item

Should I choose the #10 stud or a different stud size for 16 AWG wire?

Select the #10 stud when your mounting bolt is #10; the barrel accepts 16 AWG maximum, so it matches that wire gauge directly.

What does the 600 V rating mean when the terminal is crimped in a harness?

The 600 V maximum voltage is the insulation limit; once properly crimped on 16 AWG copper, the connection will withstand up to 600 V in the circuit.

How does the crimp termination style cap the wire size I can use?

The crimp barrel is built for 16 AWG maximum; inserting a larger gauge would prevent a secure crimp and exceed the 600 V insulation rating.
