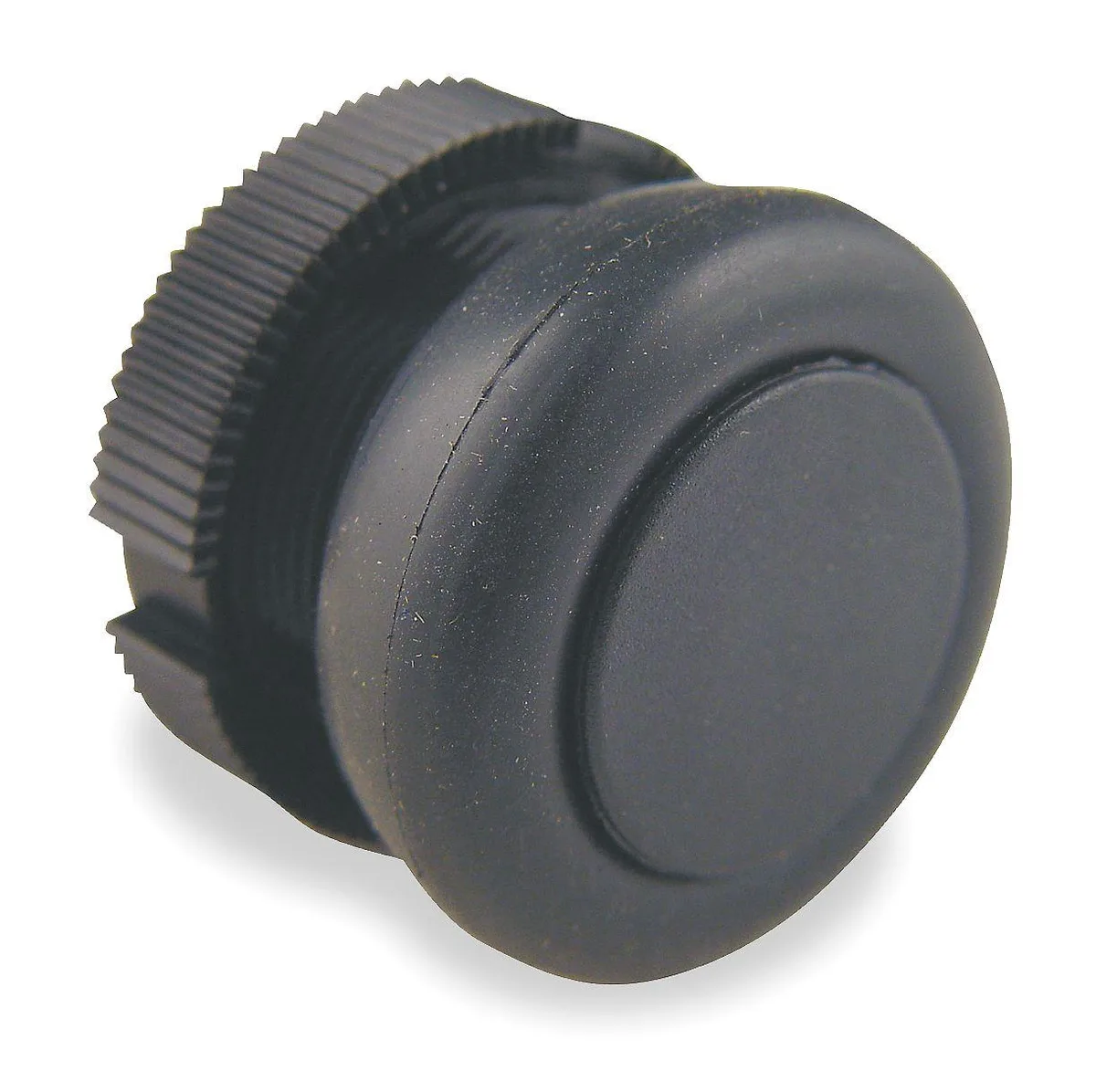

Square D XACA9412 black 22 mm pendant pushbutton with booted head

SQUARE D

SQUARE D XACA9412 22 mm Pendant Pushbutton Black

SKU CH-HP6D-K93NV

A 22 mm black pendant push button with NEMA 4, 4X, 5 and IP65 ratings for XAC series control stations

  • Engine BrandSQUARE D
  • Engine Size22 mm
  • 22 mm mounting fits standard XAC stations
  • NEMA 4, 4X, 5 and IP65 sealing resists dust and water
  • Booted single black button prevents accidental actuation
  • Meets CSA 22.2 No. 14, EN/IEC 60204-32, EN/IEC 60947-5-1, UL 508, REACH and RoHS
  • Plastic head material provides lightweight durability

XACA9412 Pendant Pushbutton

This SQUARE D XACA9412 is a 22 mm pendant pushbutton designed for industrial control circuits. It mounts on XAC series pendant control stations and provides a single booted black button for operator input. The plastic head carries NEMA 4, 4X, 5 and IP65 ratings for protection against dust and water jets. It meets CSA C 22.2 No. 14, EN/IEC 60204-32, EN/IEC 60947-5-1, UL 508, REACH and RoHS standards.

Suits XAC station builds needing one sealed actuator

This pushbutton fits builders completing or repairing an XAC series pendant station that requires a single black operator with a protective boot. It is not suitable for applications needing multiple buttons, selector switches, pilot lights or legend plates on the same head. Buyers who need a different colour, a mushroom head or an unbooted operator should look at other XAC compatible devices.

22 mm mounting size decides fit

The 22 mm cut-out dimension is the critical specification that determines whether this pushbutton matches the panel or enclosure drilling. Verify the mounting hole before ordering, as no other size is offered for this model. The NEMA and IP ratings confirm the sealing level once installed.

Highlights

  • 22 mm mounting fits standard XAC stations
  • NEMA 4, 4X, 5 and IP65 sealing resists dust and water
  • Booted single black button prevents accidental actuation
  • Meets CSA 22.2 No. 14, EN/IEC 60204-32, EN/IEC 60947-5-1, UL 508, REACH and RoHS
  • Plastic head material provides lightweight durability

Specifications

Engine BrandSQUARE D
Engine Size22 mm

Questions about this item

What size cut-out does the 22 mm pendant pushbutton require?

The pushbutton mounts in a standard 22 mm panel cut-out used by the XAC series pendant control stations.

How is the booted single black button secured during installation?

The operator threads into the 22 mm hole and locks with the supplied mounting nut; the boot snaps over the head to maintain the IP65 seal.

When should the boot or complete operator be replaced?

Replace the boot if it shows cracks, hardening or loss of seal integrity; swap the entire operator if the contact block fails to meet EN/IEC 60947-5-1 performance.
