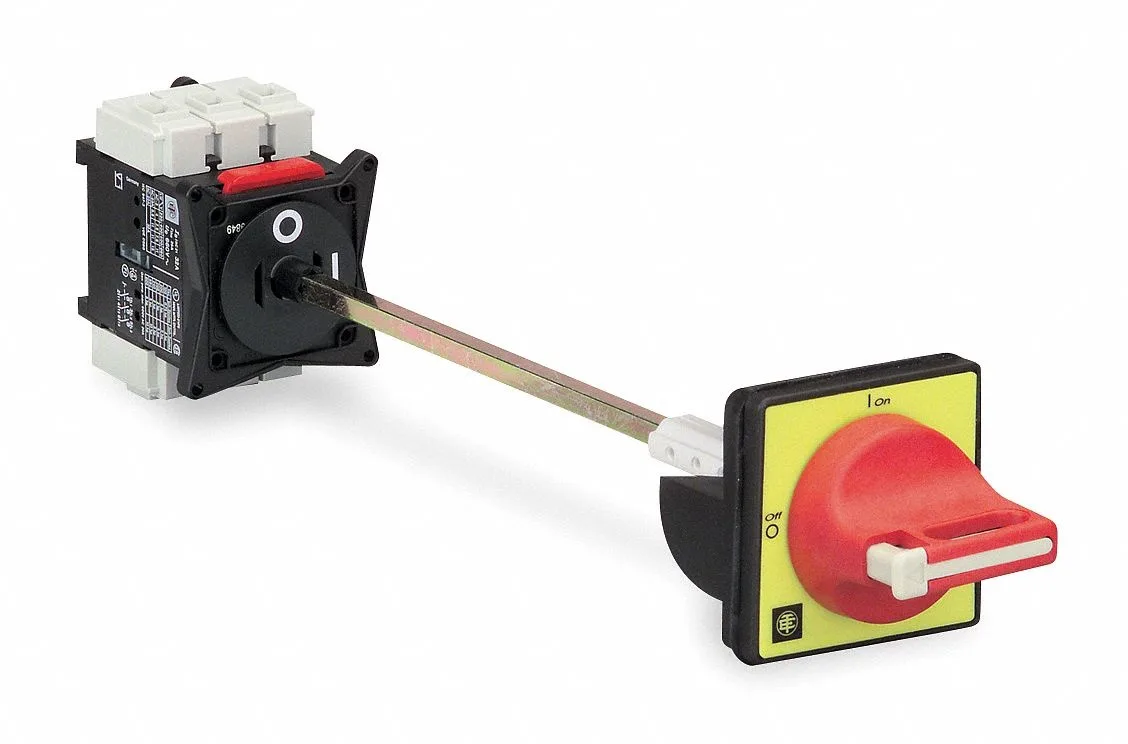

Square D VCCF2 three-pole load-break switch with red handle and extension shaft

SQUARE D

SQUARE D VCCF2 3-pole 25 A load-break switch

SKU CH-SMYT-BZKN5

A three-pole non-fusible load-break switch rated 25 A with door-mount IP65 handle, 320 mm extension shaft and terminal shroud included

  • 3-pole non-fusible switch isolates three phases safely
  • 25 A rating suits motor circuits up to 15 hp at 600 V
  • IP65 handle protection withstands dust and water jets
  • 320 mm extension shaft simplifies deep-panel mounting
  • Door interlock plate prevents accidental opening under load

Door-mount load-break switch for three-phase

The SQUARE D VCCF2 is a three-pole door-mounted load-break switch rated at 25 A and 40 A current capacity. It provides manual isolation for three-phase motors and power circuits in industrial panels. The non-fusible design suits applications where separate overcurrent protection is already installed.

Sustained load performance across three voltage

The switch carries continuous current while delivering rated horsepower of 5 hp at 240 V AC, 10 hp at 480 V AC and 15 hp at 600 V AC. Its 3PST-NO contact form opens all three poles simultaneously under load without degradation. Fire-resistant materials maintain integrity during prolonged operation at rated capacity.

Rear-panel mounting with IP20 and IP65 protection

The assembly includes a 320 mm extension shaft, door interlock plate, red handle and line terminal shroud for rear-panel installation. Four-screw fixing secures the handle operator to the enclosure door. Dual IP20 and IP65 ratings protect internal contacts from dust and water ingress when the door is closed.

Highlights

  • 3-pole non-fusible switch isolates three phases safely
  • 25 A rating suits motor circuits up to 15 hp at 600 V
  • IP65 handle protection withstands dust and water jets
  • 320 mm extension shaft simplifies deep-panel mounting
  • Door interlock plate prevents accidental opening under load

Specifications

BrandSQUARE D

Questions about this item

How much heat does the 25 A VCCF2 generate when running all day?

The switch is rated for 40 A continuous current and carries a fire-resistant construction, but no specific heat-dissipation figure is published.

What shaft length and panel cut-out must I already have to mount the VCCF2?

A 320 mm extension shaft, door interlock plate and rear-panel mounting hardware are included; the panel cut-out must suit the supplied handle operator.

Will the VCCF2 coordinate with my existing 240 V motor starter?

Yes — it is rated 5 hp at 240 V AC, 10 hp at 480 V AC and 15 hp at 600 V AC, matching common three-phase motor starters.
