SQUARE D V5 Nonfusible Load Break Switch 600 V 3PST 125 A
Non-fusible three-pole load-break switch rated 125 A at 600 V with 25 hp at 240 V and 50 hp at 480 V and 600 V
- Non-fusible design simplifies maintenance with no fuse replacements needed
- 125 A rating handles heavy industrial motor loads reliably
- 600 V AC rating suits standard three-phase power systems
- DIN rail mounting enables quick panel installation
- IP20 enclosure protects contacts from dust and accidental contact
General-duty load break switch

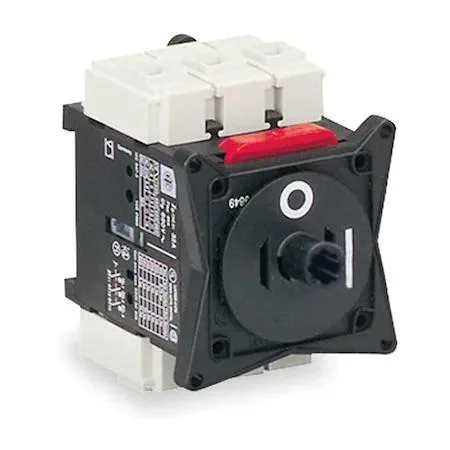

The Square D V5 is a non-fusible load break switch rated for 600 V and 125 A. It provides three-pole, single-throw switching for three-phase circuits in industrial and commercial installations. The enclosed, non-metallic housing carries an IP20 rating and mounts on DIN rail for panel integration.
Suitable for motor disconnects and isolation
This switch suits applications that require a visible break and manual isolation up to 125 A, such as motor branch circuits at 240 V, 480 V or 600 V. It is not intended for overcurrent protection, so buyers who need integrated fusing or a higher interrupting rating should select a fusible alternative.
125 A continuous current rating
The 125 A rating determines whether the switch can carry the load without overheating. Horsepower ratings are 25 hp at 240 V AC and 50 hp at both 480 V and 600 V AC, giving a direct reference for motor-circuit sizing.
Highlights
- Non-fusible design simplifies maintenance with no fuse replacements needed
- 125 A rating handles heavy industrial motor loads reliably
- 600 V AC rating suits standard three-phase power systems
- DIN rail mounting enables quick panel installation
- IP20 enclosure protects contacts from dust and accidental contact
Specifications
| Brand | SQUARE D |
|---|
