SQUARE D RUMF32F7 Plug-In Relay 10 A 11 Pin 120V AC

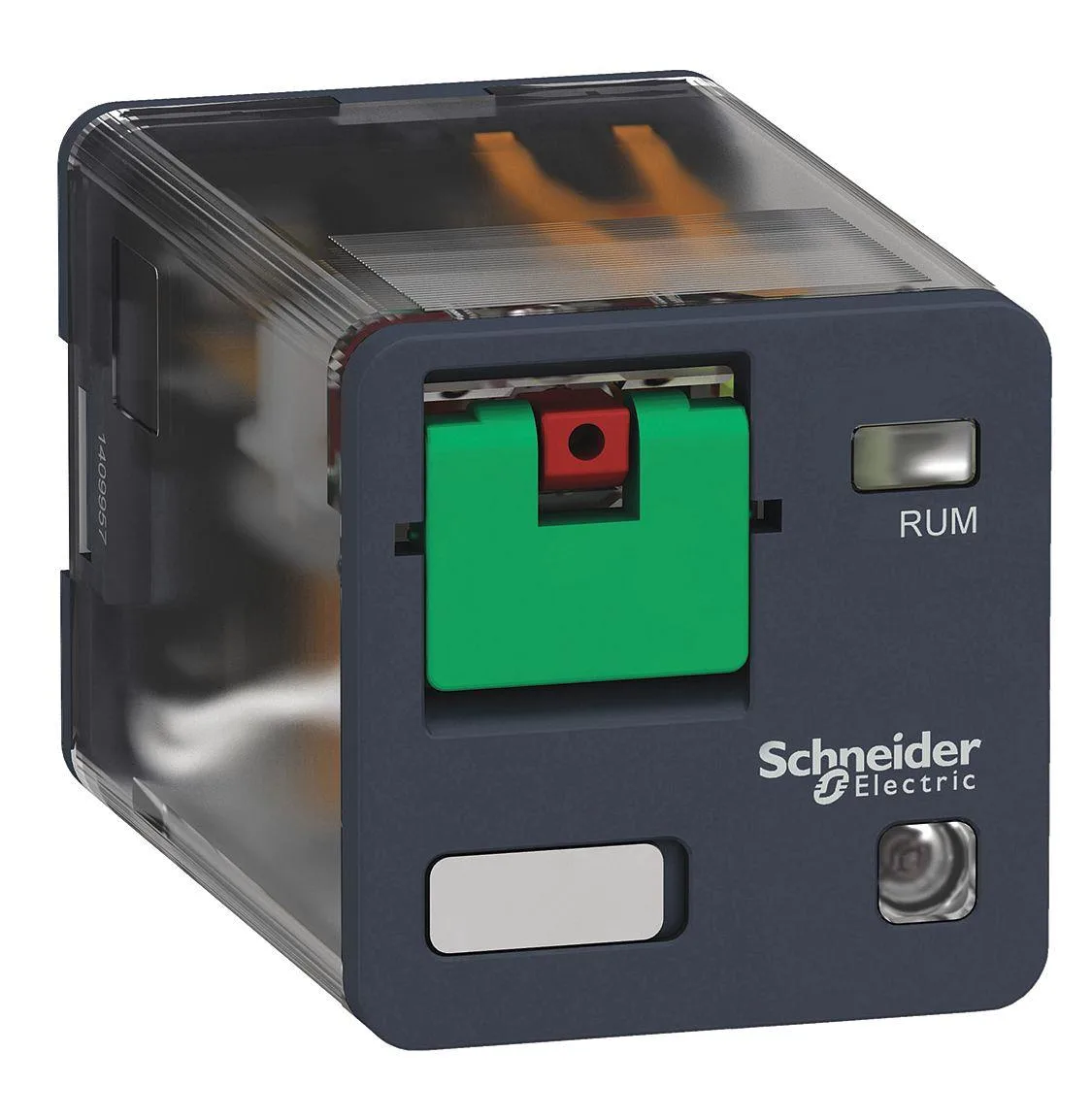

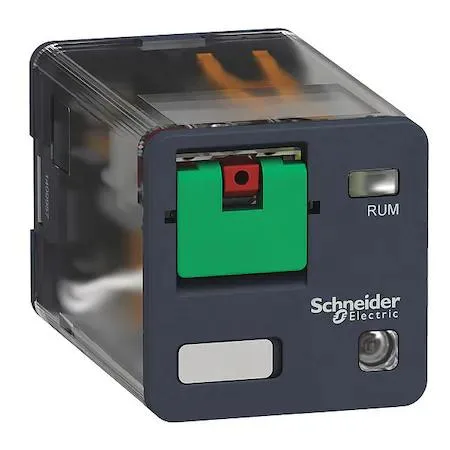

A 10 A general-purpose relay with 11 flat pins, 120 V AC coil, 3PDT contacts, LED indicator and lockable push-to-test button
- LED indicator shows status at a glance
- Lockable push-to-test enables safe circuit checks
- 10 A at 250 V AC handles motor loads
- 11 flat pins fit standard plug-in bases
- Enclosed body resists dust and moisture
Purpose-built switching
The SQUARE D RUMF32F7 is a plug-in general-purpose relay rated for 10 A at 250 V AC and 10 A at 28 V DC. It suits control panels, motor starters and automation circuits that need reliable 3PDT contact action with a 120 V AC coil.
Mounting and connections
The square base carries 11 flat pins spaced 0.189 in apart for quick-connect socket mounting. A lockable push-to-test button and mechanical flag let technicians verify operation without removing the unit. Enclosed sealing protects the contacts from dust and debris in workshop environments.
Thermal and electrical behaviour
The coil draws 120 V AC while the contacts handle up to 1/3 hp at 120 V AC or 1/2 hp at 240 V AC. An integrated LED indicator shows coil status at a glance. With a body depth of 2.08 in and height of 1.39 in the relay fits standard DIN-rail sockets without crowding adjacent devices.
Highlights
- LED indicator shows status at a glance
- Lockable push-to-test enables safe circuit checks
- 10 A at 250 V AC handles motor loads
- 11 flat pins fit standard plug-in bases
- Enclosed body resists dust and moisture
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
What does the 11-pin plug-in interface on this relay support?
The 11 flat pins carry a 3PDT contact form rated at 10 A @ 250V AC and 10 A @ 28V DC, with a 120V AC coil and lockable push-to-test.
What panel cut-out or socket dimensions suit the 2.08 in by 1.39 in body?

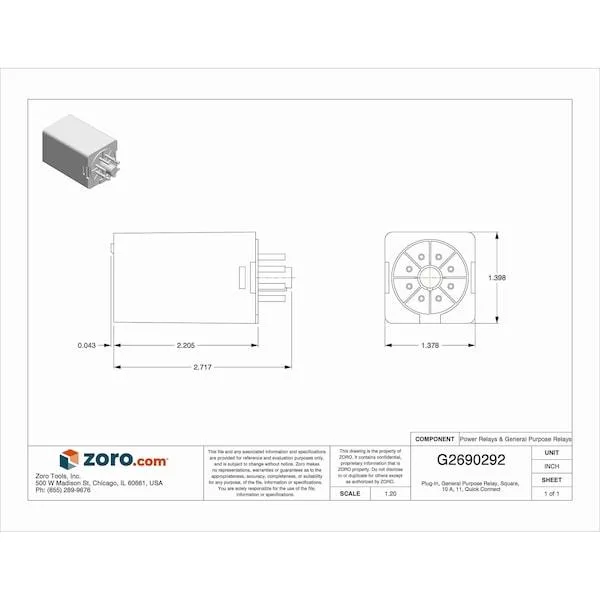

The square base measures 2.08 in deep and 1.39 in high with 0.189 in wide flat pins, so choose a matching 11-pin socket or DIN-rail adaptor.
How is the lockable push-to-test button used during installation?
Press and rotate the button to mechanically latch the contacts for circuit testing; remember to rotate back to the run position before energising the coil.
