SQUARE D RUMF32BD Plug-In Relay 10 A 11 Pin 24V DC
A 24 V DC plug-in relay switches up to 10 A through three change-over contacts with an 11-pin quick-connect base
- 10 A switching capacity handles motors up to ½ hp at 240 V AC
- 24 V DC coil voltage suits standard control circuits
- 11 flat pins with quick-connect terminals speed panel wiring
- Enclosed body with LED indicator simplifies status checks
- Lockable push-to-test button allows safe manual operation
Plug-In Relay 10 A 11 Pin 24V DC
This Square D general-purpose relay provides 10 A switching in an 11-pin plug-in package with a 24 V DC coil. It suits control panels and machinery that need reliable on-off or changeover functions in a compact square base.
Capacity and headroom: 10 A at 250 V AC or 28 V DC
The contacts carry 10 A at 250 V AC or 28 V DC, and handle 1/3 hp at 120 V AC or 1/2 hp at 240 V AC. Loads above these ratings will exceed the contact limits and require a larger relay or contactor.
Enclosed body with LED indicator and lockable

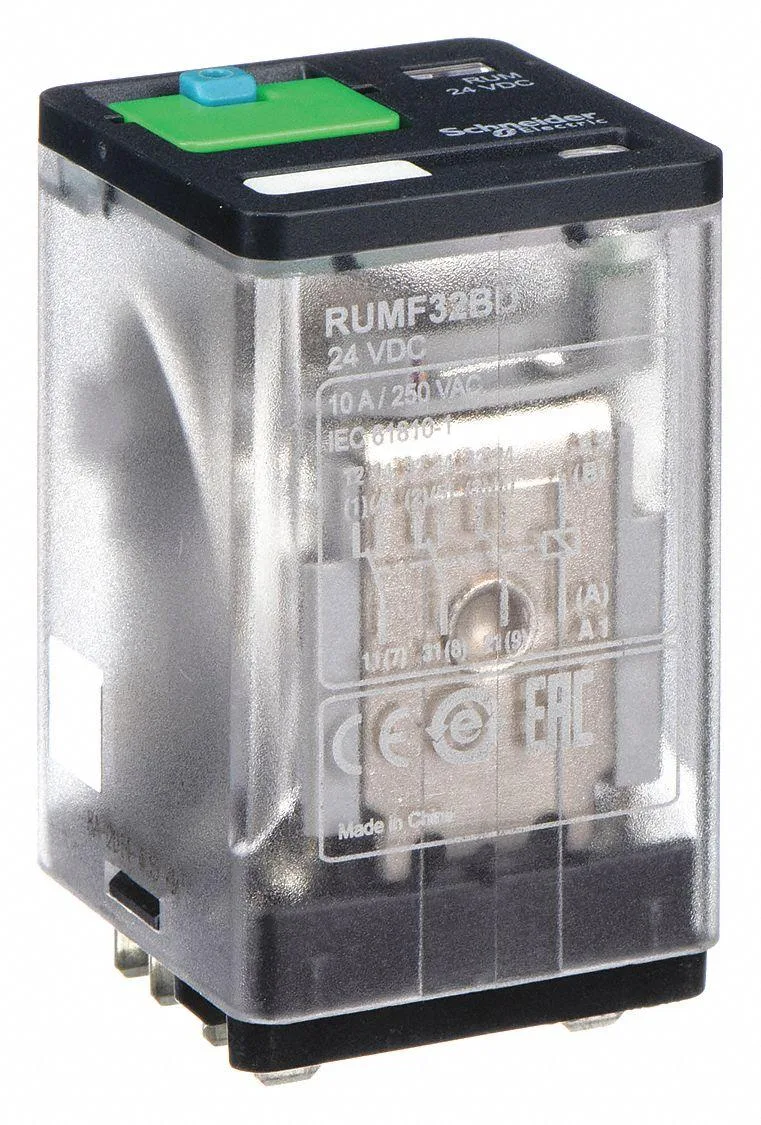

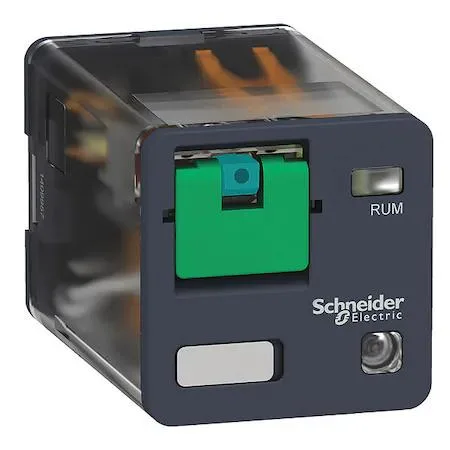

The sealed enclosure protects the mechanism, while the built-in LED shows coil status at a glance. Flat quick-connect pins 0.189 in wide fit standard 11-pin sockets, and the lockable push-to-test button allows manual actuation during commissioning without tools.
Highlights
- 10 A switching capacity handles motors up to ½ hp at 240 V AC
- 24 V DC coil voltage suits standard control circuits
- 11 flat pins with quick-connect terminals speed panel wiring
- Enclosed body with LED indicator simplifies status checks
- Lockable push-to-test button allows safe manual operation
Specifications
| Brand | SCHNEIDER ELECTRIC |
|---|
Questions about this item
Will the 10 A 24V DC relay work with my existing 250V AC control panel?
The contact rating supports 10 A at 250V AC and 10 A at 28V DC, so the relay contacts can switch your 250V AC panel loads while the coil runs on 24V DC.
How do I verify the RUMF32BD is operating correctly after wiring it in?
The built-in LED indicator lights when the coil is energised, and the lockable push-to-test button lets you mechanically confirm contact changeover without removing the relay.
Does the relay come with a socket or do I need to buy an 11-pin base separately?
The relay uses 11 flat quick-connect pins spaced for a standard square plug-in socket; the base is not included and must be purchased separately.
