SQUARE D

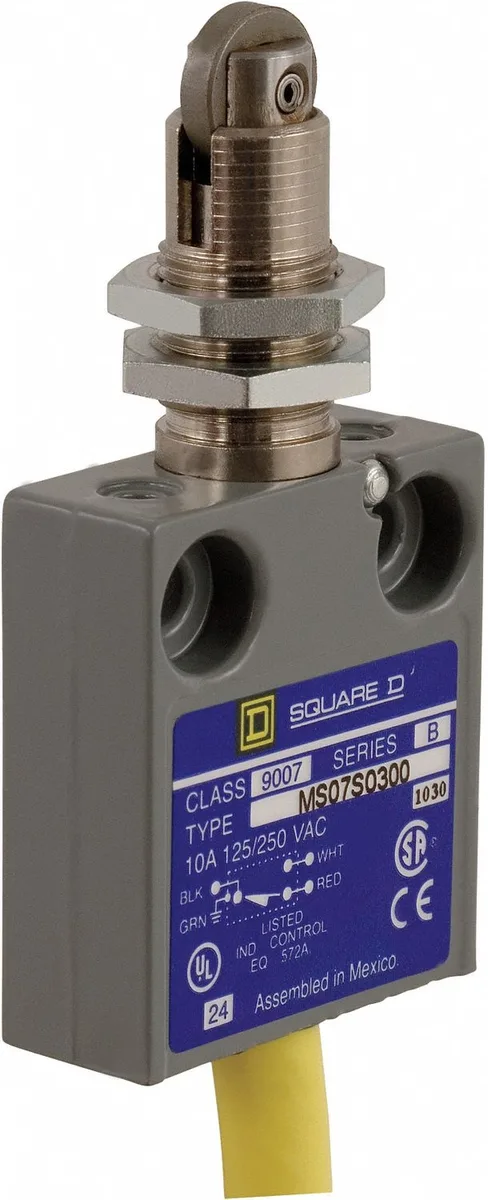

SQUARE D Mini Limit Switch P Roll Plunger Bush Mt
A miniature SPDT limit switch with a top-mounted roller plunger rated 10 A at 300 V AC and 5 A at 28 V DC
- TypeLight Switch
- Compact miniature body fits tight panels
- SPDT contact form handles both circuit states
- Roller plunger reduces actuator wear
- NEMA 1, 2, 4, 6, 6P, 12, 13 ratings suit harsh environments
- 10 A at 300 V AC / 5 A at 28 V DC switching capacity
Miniature limit switch for position sensing
This Square D miniature limit switch uses a roller plunger actuator mounted at the top of the body. It provides SPDT contact operation for control circuits in industrial and automation equipment. The switch carries NEMA ratings 1, 2, 4, 6, 6P, 12 and 13 for protected environments. It is supplied new and ready for installation.
10 A AC at 300 V switching capacity
The contacts are rated for 10 amperes at 300 volts AC and 5 amperes at 28 volts DC. This single specification determines whether the switch can handle the load in your control circuit. Verify the application voltage and current against these ratings before fitting the device.
Bush mounting with 1.41 in actuator travel
The switch body measures 1.75 in high, 1.58 in wide and 0.62 in deep for bush mounting in tight enclosures. The roller plunger requires 1.41 in of actuator length to operate, so allow clearance for the full stroke. No boot seal is fitted, so the actuator remains exposed to the surroundings.
Highlights
- Compact miniature body fits tight panels
- SPDT contact form handles both circuit states
- Roller plunger reduces actuator wear
- NEMA 1, 2, 4, 6, 6P, 12, 13 ratings suit harsh environments
- 10 A at 300 V AC / 5 A at 28 V DC switching capacity
Specifications
| Brand | Square D |
|---|---|
| Type | Light Switch |
Questions about this item
What does the 10 A AC rating mean when the switch is installed in a machine?
It means the contacts can carry up to 10 amps at 300 V AC without overheating, so the circuit you control must stay within that current and voltage.
Which NEMA ratings apply and what environments do they cover?
The switch meets NEMA 1, 2, 4, 6, 6P, 12 and 13, giving protection against dust, water jets, temporary submersion, oil and coolant splash.
What are the mounting dimensions I need to allow for the bush-mounted body?
The miniature body measures 1.75 in high, 1.58 in wide and 0.62 in deep, so the mounting hole and clearance must accommodate those dimensions.
