SQUARE D

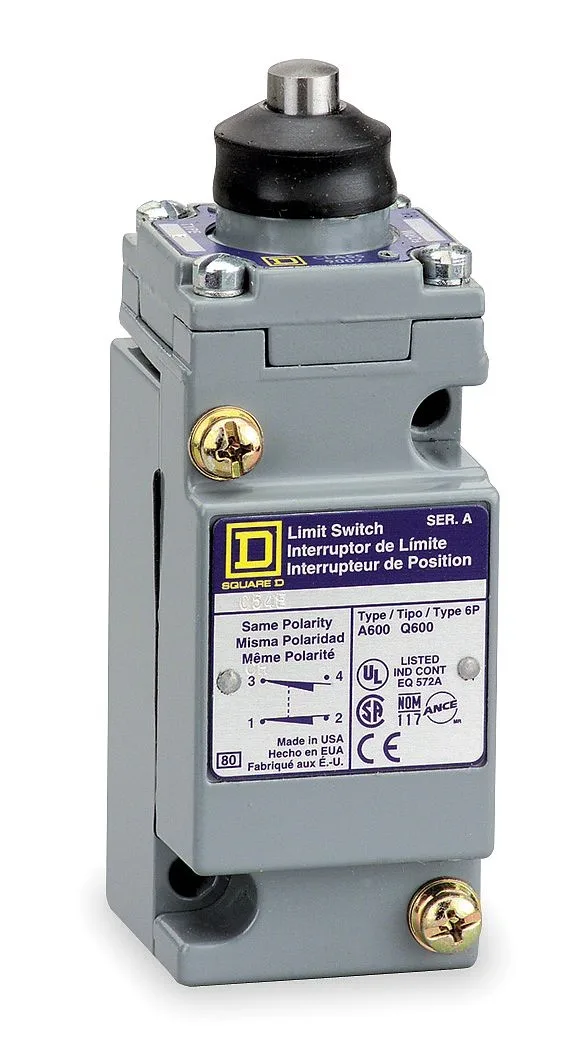

SQUARE D Limit Switch Top Push Rod Plunger 1 N.O. 1 N.C
A miniature plug-in limit switch with a top-mounted adjustable push rod plunger offering one normally-open and one normally-closed contact rated at 10 A, 600 V AC/DC
- TypeLight Switch
- Reliable AC control with 10 A at 600 V rating
- Handles DC loads up to 10 A at 600 V
- Flexible wiring using 1 N.O. and 1 N.C. contacts
- Compact miniature body fits tight spaces at 2.5 in high
- NEMA 1, 2, 4, 6, 6P, 12, 13 enclosure protection
Compact Industrial Limit Switch
The Square D top push rod plunger switch is a miniature limit switch rated for AC and DC circuits up to 600 V at 10 A. It provides one normally open and one normally closed contact in a body measuring 2.5 in high by 0.83 in wide by 1.14 in deep. The adjustable actuator extends 1.01 in from the top of the unit.
Rugged Enclosure For Harsh Environments
The switch carries NEMA ratings 1, 2, 4, 6, 6P, 12 and 13, indicating protection against dust, water ingress and oil. Its miniature body style allows installation in tight control panels or machine frames where space is limited. The boot sealed actuator is absent, so the plunger remains exposed for direct mechanical actuation.
Replaces Worn Miniature Limit Switches
This unit serves as a direct replacement for failed miniature limit switches in conveyor, packaging or safety interlock applications. The jump is worth it when an existing switch shows contact wear, actuator binding or enclosure damage that compromises the NEMA seal. Buyers needing a sealed boot actuator or a different actuator style will need a different model.
Highlights
- Reliable AC control with 10 A at 600 V rating
- Handles DC loads up to 10 A at 600 V
- Flexible wiring using 1 N.O. and 1 N.C. contacts
- Compact miniature body fits tight spaces at 2.5 in high
- NEMA 1, 2, 4, 6, 6P, 12, 13 enclosure protection
Specifications
| Brand | Square D |
|---|---|
| Type | Light Switch |
Questions about this item
What voltage does the 10 A contact rating apply to on this limit switch?
The 10 A rating is specified for both AC and DC circuits at 600 V.
What are the body dimensions for mounting this miniature switch?
The body measures 2.5 in high, 0.83 in wide and 1.14 in deep.
How is the top push rod plunger actuator adjusted during installation?
The actuator length is 1.01 in and the rod is adjustable; set the trip point before tightening the locknut.
