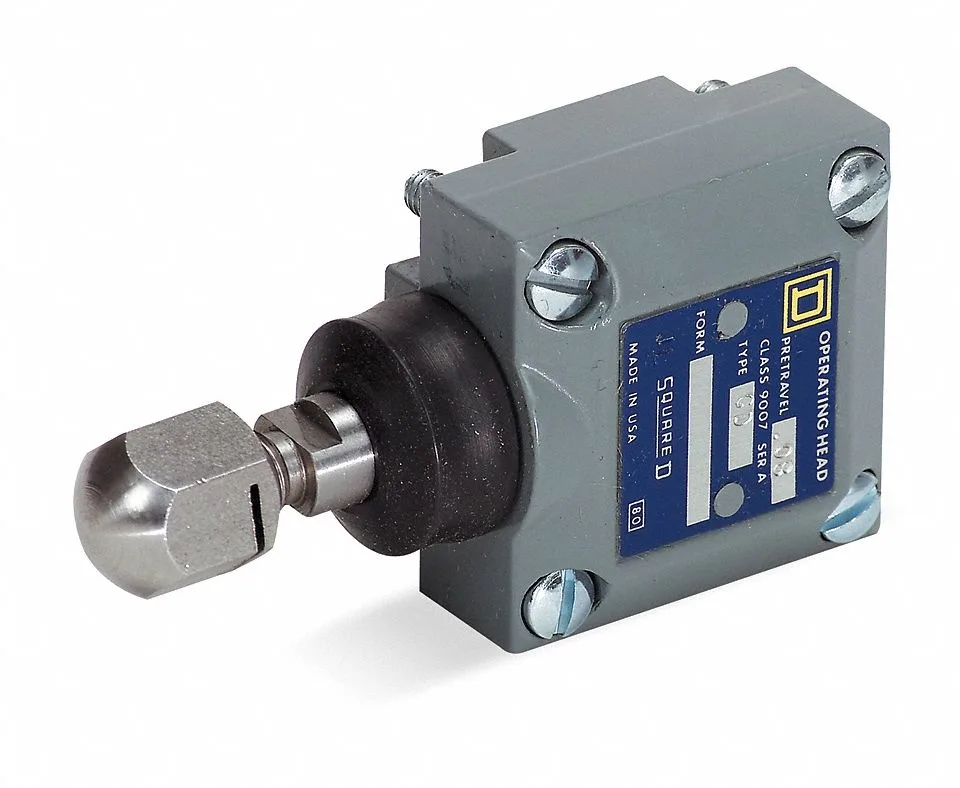

White Square D limit switch head with 1.24 in side plunger

SQUARE D

SQUARE D Limit Switch Head 1.24 in plunger 10 A NEMA 13 4 6P

SKU CH-ZTGN-T9TCD

Side-actuated plunger switch head rated 10 A, NEMA 13/4/6P, with 1.24 in actuator and 0.25 in travel for 9007 Type C bodies

  • TypeLight Switch
  • Color/FinishWhite
  • Side-plunger actuator enables flexible mounting
  • 10 A rating handles standard control circuits
  • NEMA 13, 4, 6P enclosure resists oil, water and dust
  • Operates from 0 to 185 °F for harsh environments
  • 25 in travel with 4.0 in-lb force gives precise actuation

Limit Switch Head 1.24 in Plunger

This Square D limit switch head uses a 1.24 in side plunger to detect mechanical position. It carries a 10 A contact rating and operates in temperatures from 0 to 185 degrees F. The NEMA 13, 4, 6P enclosure suits indoor and wet locations. It mounts on 9007 Type C bodies for direct replacement.

Suited for position sensing on conveyors or guards

The head provides CW and CCW actuation with 0.25 in travel and 4.0 in-lb operating force. Buyers who need a different actuator style such as roller or lever should choose another head. Applications requiring an IP-rated seal or a voltage-specific contact block are not addressed by this part.

1.24 in plunger travel and 10 A rating

The 1.24 in actuator length and 0.25 in travel define the mechanical trigger point. The 10 A rating sets the maximum switching current. Verify both values against the control circuit before ordering.

Highlights

  • Side-plunger actuator enables flexible mounting
  • 10 A rating handles standard control circuits
  • NEMA 13, 4, 6P enclosure resists oil, water and dust
  • Operates from 0 to 185 °F for harsh environments
  • 25 in travel with 4.0 in-lb force gives precise actuation

Specifications

BrandSquare D
TypeLight Switch
Color/FinishWhite

Questions about this item

What 9007 Type C body must I already have to mount this 1.24 in plunger head?

This head is designed for use with any 9007 Type C switch body, which supplies the electrical contacts and terminal wiring.

Will the 10 A, NEMA 13 4 6P rating protect the head when I keep my existing conduit and enclosures?

The NEMA 13, 4 and 6P ratings mean the head resists oil, water wash-down and temporary submersion, matching similarly rated enclosures.

How can I confirm the 0.25 in travel and 4.0 in-lb operating force are correct after installation?

Actuate the plunger fully; it should move 0.25 in with a noticeable resistance around 4.0 in-lb before the internal contacts change state.
