SQUARE D
SQUARE D Limit Switch DPDT 10A 600V NEMA 1 12 13 2 4 6 6P
A plug-in limit switch with DPDT contacts rated 10 A at 600 V AC or DC, NEMA 1, 2, 4, 6, 6P, 12 and 13 enclosure ratings, and a miniature side-actuated body measuring 2.5 in high by 0.83 in wide
- TypeLight Switch
- Reliable AC control with 10 A at 600 V rating
- Dependable DC switching at 10 A and 600 V
- Versatile wiring via 2NC/2NO contact configuration
- Compact miniature body fits tight spaces at 2.5 in high
- Broad NEMA 1, 12, 13, 2, 4, 6, 6P environmental protection
Square D DPDT Limit Switch 10A 600V

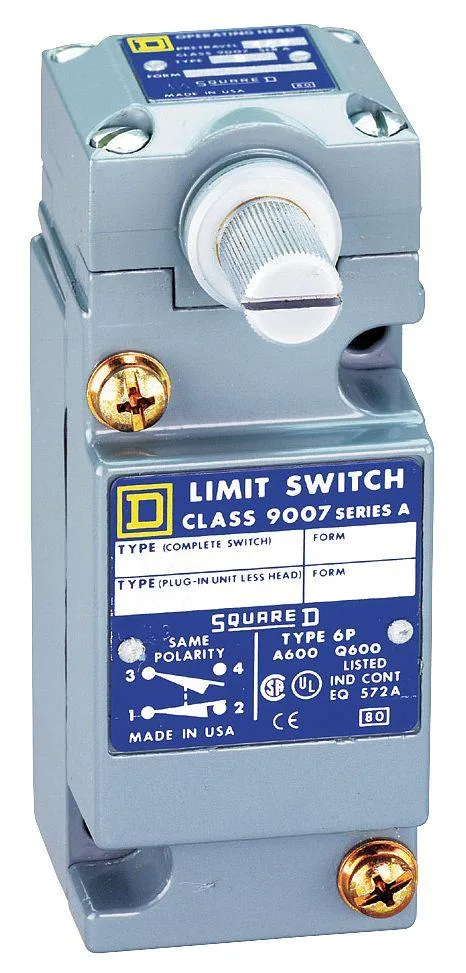

This Square D plug-in limit switch uses a rotary side actuator with no lever. It carries 10 A at 600 V on both AC and DC circuits with a 2NC/2NO contact form. The miniature body measures 2.5 in high, 0.83 in wide and 1.14 in deep. NEMA 1, 2, 4, 6, 6P, 12 and 13 ratings suit indoor and outdoor industrial enclosures.
Who should use this switch
Maintenance teams replacing worn limit switches on conveyors, machine tools or packaging lines will match the existing mounting and contact arrangement. Buyers who need a lever actuator, a different contact rating or a hazardous-location rating must select another model.
Deciding specification — NEMA enclosure rating
The NEMA 1, 2, 4, 6, 6P, 12 and 13 ratings define the environmental protection this switch provides. Verify that your enclosure and wash-down requirements match these ratings before ordering.
Highlights
- Reliable AC control with 10 A at 600 V rating
- Dependable DC switching at 10 A and 600 V
- Versatile wiring via 2NC/2NO contact configuration
- Compact miniature body fits tight spaces at 2.5 in high
- Broad NEMA 1, 12, 13, 2, 4, 6, 6P environmental protection
Specifications
| Brand | Square D |
|---|---|
| Type | Light Switch |
Questions about this item
What voltage circuit do I need for this 10A 600V limit switch?
It is rated for 10 A at 600 V AC or DC, so the supply must not exceed 600 V and the load must stay within 10 A.
Will this NEMA 1 12 13 2 4 6 6P switch fit in the same cut-out as my older miniature limit switch?
The body measures 2.5 in high, .83 in wide and 1.14 in deep; compare those dimensions with your existing cut-out before mounting.
How can I verify the DPDT contacts are switching correctly after wiring?
With power off, use a multimeter on the two normally-open and two normally-closed terminals; each pair should change state cleanly when the side rotary actuator is turned.
