Grey metal load centre, rectangular, screw-on cover, 9.3 by 4.8 inches

SQUARE D

SQUARE D HOM24L70S Load Center 2 Spaces 70A 120/240V AC

SKU CH-G37J-ZGFB3

A compact 2-space load center rated 70 A at 120/240 V AC with a 10 kA short-circuit rating and tin-plated aluminium bus

  • 2-circuit capacity fits compact installs
  • 70 A main lug handles standard residential loads
  • 120/240 V single-phase suits home service
  • 10 kA short-circuit rating meets code requirements
  • NEMA 1 enclosure protects indoor installations

Two-Space Load Center

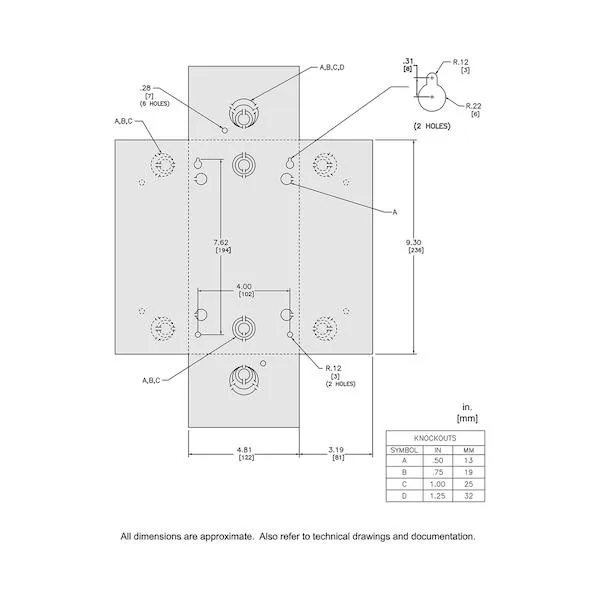

The SQUARE D HOM24L70S is a single-phase load center with two circuit-breaker spaces and a 70 A main-lug rating. It operates at 120/240 V AC and uses the HOM breaker series with tin-plated aluminium bus bars. The NEMA 1 enclosure measures 9.3 in high, 4.8 in wide and 3 1/4 in deep with a screw-on surface cover.

HOM Breaker Compatibility

The panel accepts up to two tandem HOM breakers, effectively doubling the circuit count within the two physical spaces. A short-circuit current rating of 10 kA provides standard fault protection for residential and light-commercial services. No main breaker is included, so overcurrent protection must be supplied upstream.

70 A Service Limitation

The 70 A main-lug capacity suits small sub-panel applications such as a detached garage, workshop or accessory dwelling unit. It cannot support whole-house loads or large motor starts that exceed the two-space, 70 A design envelope. Builders needing more circuits or higher ampacity must select a larger panel.

Highlights

  • 2-circuit capacity fits compact installs
  • 70 A main lug handles standard residential loads
  • 120/240 V single-phase suits home service
  • 10 kA short-circuit rating meets code requirements
  • NEMA 1 enclosure protects indoor installations

Specifications

BrandSQUARE D

Questions about this item

Will the tin-plated aluminium bus bars in this 70 A load centre need periodic re-torquing or replacement?

The bus bars are factory-finished tin-plated aluminium; no scheduled re-torquing or replacement is required under normal indoor use.

What is the first limit reached when this panel runs continuously at 70 A?

The 10 kA short-circuit current rating is the limiting factor; sustained 70 A operation stays within the bus and breaker ratings.

How much heat or noise does the enclosed NEMA 1 cover produce during all-day operation?

The screw-on surface cover on the 9.3 in × 4.8 in enclosure is passive metal; it generates no fan noise and only warm-to-touch heat at full load.
