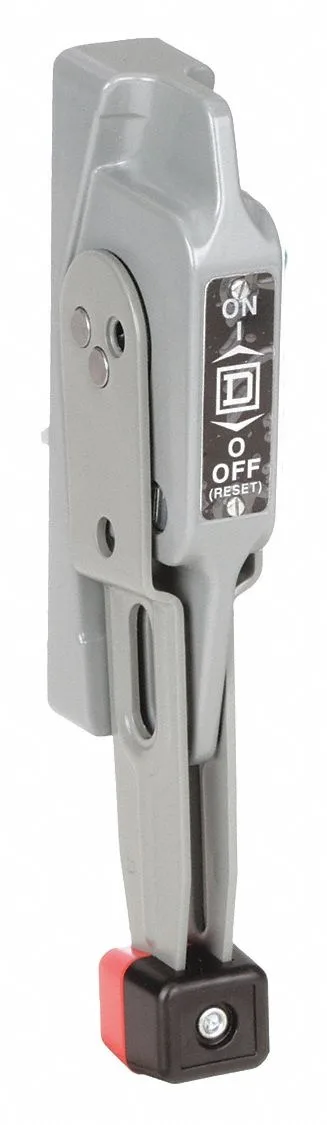

Gray Square D handle assembly with 6 in lever, flange mount, 1.72 in deep, 3.07 in high

SQUARE D

SQUARE D 9422A1 Handle Assembly, 6 in Lever Handle

SKU CH-7VB1-DW14Z

Gray handle assembly for Class 9422 disconnect switches up to 600 V AC, UL listed, fits 30 A and 200 A sizes

  • Color MappingGray
  • TypeIndustrial Electrical Controls & Automation
  • UL Listed for safety compliance
  • 6 in lever handle provides secure grip
  • Fits 30 A and 200 A disconnect switches
  • Rated for 600V AC maximum voltage
  • Compatible with VLS3P series models

Industrial Handle Assembly

This SQUARE D 9422A1 handle assembly provides a 6 in lever handle for Class 9422 disconnect switches rated at 30 A and 200 A. It is designed for industrial electrical control panels requiring a flange-mounted operating mechanism.

UL Listed 600V AC Rating

The assembly carries a UL Listing for use at up to 600V AC and fits NEMA 1, 3, 3R, 4 and 12 enclosures. Its gray finish and compact dimensions suit standard industrial environments without special thermal or noise considerations.

Direct Switch Compatibility

Bundled with the 6 in lever handle, the unit mounts directly to compatible VLS3P disconnect switch models including VLS3P016D1, VLS3P025D1, VLS3P032D1 and VLS3P040D1. No additional hardware or software is required for installation.

Highlights

  • UL Listed for safety compliance
  • 6 in lever handle provides secure grip
  • Fits 30 A and 200 A disconnect switches
  • Rated for 600V AC maximum voltage
  • Compatible with VLS3P series models

Specifications

BrandSQUARE D
Color MappingGray
TypeIndustrial Electrical Controls & Automation

Questions about this item

How do I mount the 9422A1 handle assembly on a flange and what step is often missed?

Align the flange mounting holes with the Class 9422 disconnect switch, secure the gray handle mechanism, then verify the 6 in lever handle rotates freely through the full 1.72 in depth and 3.07 in height clearance — installers often forget to check full travel before tightening.

What maintenance or replacement will the 9422A1 handle assembly need over time?

The UL Listed handle mechanism and 6 in lever handle are rated for 600V AC and 0.15 A operation; inspect the gray housing for cracks and the flange mounting for loosening after repeated switching cycles, replacing the assembly if wear appears.

What limit appears first when the 9422A1 handle assembly is operated continuously under load?

The 0.15 A current rating at 600V AC is the first constraint — sustained operation near this limit will cause thermal stress on the handle mechanism before the 200 A or 30 A disconnect switch ratings are reached.
