SQUARE D

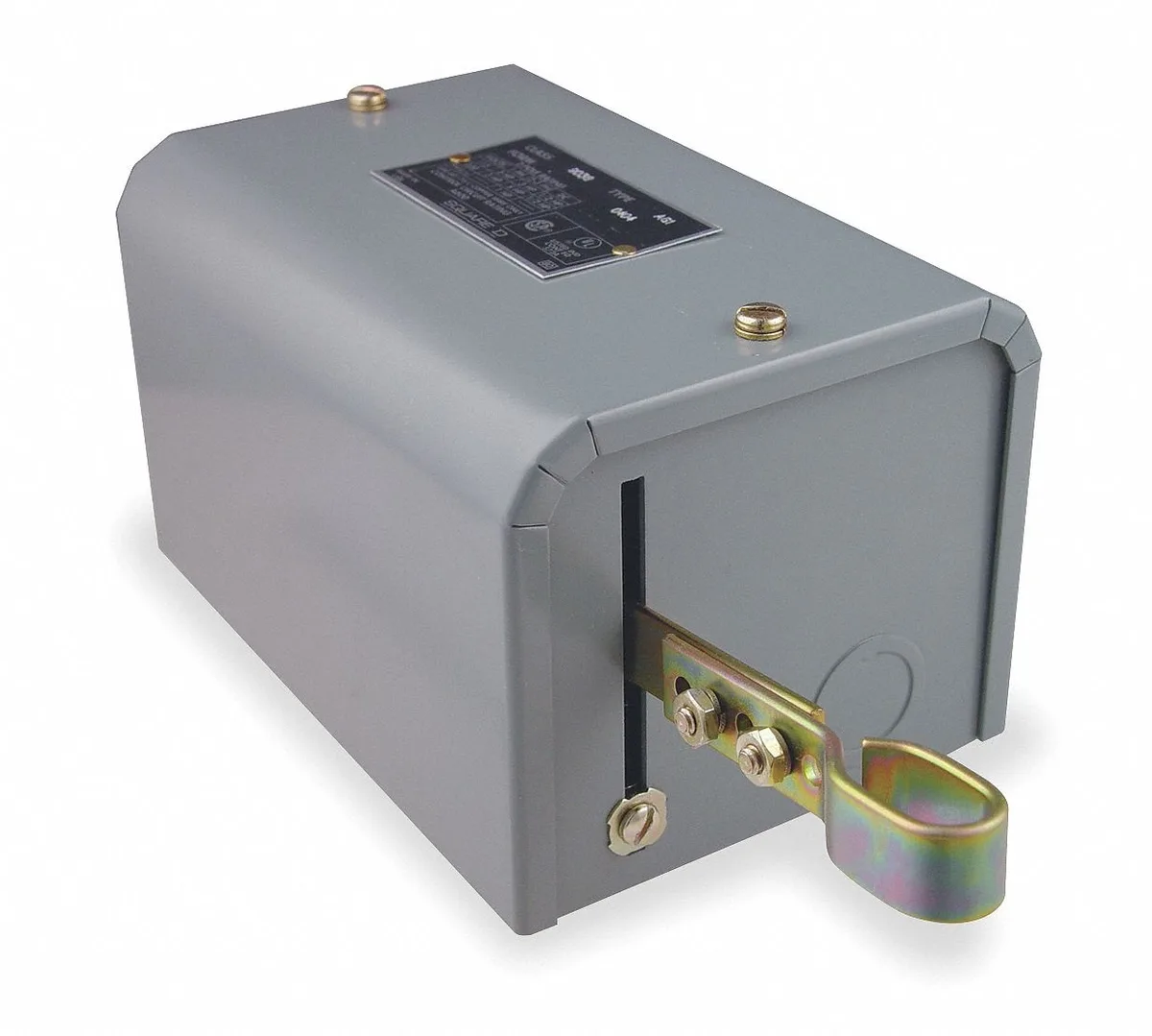

SQUARE D 9038AG1N4 liquid level switch close on rise
Liquid level switch closes on rise with stainless steel float for open tank mounting
- TypeLight Switch
- Close-on-rise action automates tank filling
- DPST contacts switch two circuits simultaneously
- Stainless-steel float resists corrosion in harsh liquids
- Wide -22 °F to 220 °F range suits extreme environments
- 10 A at 460 V AC handles heavy motor loads
Industrial Liquid Level Switch
The Square D 9038AG1N4 is a float-operated liquid level switch designed for open tank mounting in industrial environments. It uses a stainless steel float to detect rising liquid levels and closes its contacts automatically when the level increases. The unit operates reliably across a wide temperature range from -22 to 220 degrees Fahrenheit.
Replaces Basic Float Switches
This model upgrades from simpler switches by offering a DPST-4NC contact form with a 460V AC VA rating and a 10 A current capacity. The jump is worth it for applications requiring higher horsepower control, supporting up to 2 hp at 120V single-phase, 3 hp at 240V single-phase, and 5 hp at 240V three-phase. It handles motor loads directly without an external contactor in many setups.
Limited to Open Tank Mounting
The switch is constrained by its NEMA 1 rating and open tank mounting style, making it unsuitable for sealed, pressurised or hazardous location tanks. Float travel is fixed at 1 1/4 inches, so it cannot accommodate applications needing adjustable differential or longer actuation ranges. The steel body and 10.32 inch overall length require sufficient vertical clearance above the tank.
Highlights
- Close-on-rise action automates tank filling
- DPST contacts switch two circuits simultaneously
- Stainless-steel float resists corrosion in harsh liquids
- Wide -22 °F to 220 °F range suits extreme environments
- 10 A at 460 V AC handles heavy motor loads
Specifications
| Type | Light Switch |
|---|---|
| Brand | Square D |
Questions about this item
What tank opening and clearance does the 10.32 in overall length and 7 in float diameter require?
The switch needs an open tank mounting with enough vertical space for the 10.32 in body and horizontal clearance for the 7 in diameter float to travel its 1 1/4 in range without obstruction.
How is the DPST-4NC contact block wired for the close-on-rise function, and which step is often missed?
Wire the four normally closed contacts so the circuit completes when the float rises; the step often missed is confirming the 460V AC VA rating matches the control voltage before energising.
Which components should be inspected periodically given the -22 to 220 °F operating range and stainless steel float?
Inspect the stainless steel float for corrosion or build-up, verify the steel body seals remain intact, and test the DPST-4NC contacts for reliable closure at the 10 A rating after temperature cycling.
