SQUARE D

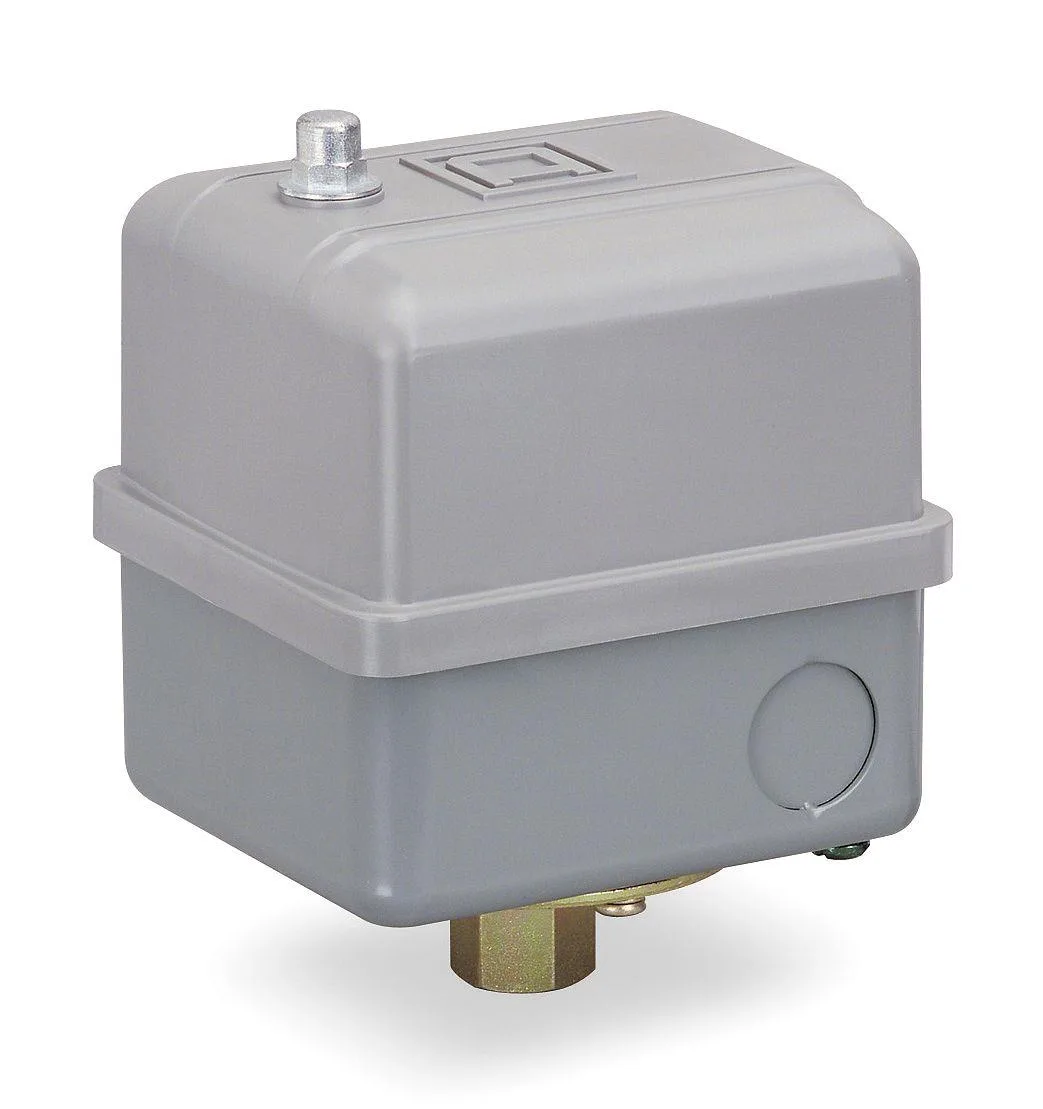

SQUARE D 9013GS Pressure Switch 50/30 psi DPST 10A
Controls air compressors and water pumps with a 50/30 psi DPST switch rated 10 A at 120/240 V
- TypeLight Switch
- Controls water or air pressure automatically
- Factory set to start at 30 psi and stop at 50 psi
- Handles up to 10 A with double-pole contacts
- Rated for 2 hp at 120 V single-phase
- Adjustable differential from 15 to 30 psi
Pressure Switch for Water and Air Systems
The Square D 9013GS pressure switch controls water pumps and air compressors with a factory on/off setting of 50/30 psi. It uses a DPST contact form rated at 10A and operates on a single 1/4 in FNPS port. The differential range spans 15 to 30 psi within an overall range of 5 to 80 psi.
Simple Port Connection and Wiring
Installation centres on connecting the single 1/4 in FNPS port to the system and wiring the DPST contacts to the motor circuit. The switch carries NEMA 1 rating for indoor use only. A common issue is applying it outdoors or in wet locations where the enclosure is not rated. Reverse action means contacts open on rising pressure, which can be confused with direct-acting models.
Check Voltage, Phase and Horsepower Limits
Before ordering, verify the supply voltage and phase match the horsepower ratings: 2 hp at 120V single-phase, 3 hp at 240V single-phase, and 5 hp at 240V or 480V three-phase. The switch has no unloader valve, so systems requiring one need a separate component. Confirm the 50/30 psi factory settings suit the application or that the adjustable range covers the required cut-in and cut-out pressures.
Highlights
- Controls water or air pressure automatically
- Factory set to start at 30 psi and stop at 50 psi
- Handles up to 10 A with double-pole contacts
- Rated for 2 hp at 120 V single-phase
- Adjustable differential from 15 to 30 psi
Specifications
| Brand | Square D |
|---|---|
| Type | Light Switch |
Questions about this item
How do I verify the 9013GS switch is operating correctly after installation?
With the system running, watch the pressure gauge; the pump should start near 30 psi and stop near 50 psi, confirming the factory on/off settings are working.
What comes in the box and what must I supply?
The package contains the pressure switch with a 1/4 in FNPS port; you will need to provide the piping, fittings and wiring rated for the circuit.
Which version suits a 240 V single-phase motor?
The 9013GS is rated for 3 hp at 240 V single-phase, making it the correct choice for that voltage and phase.
