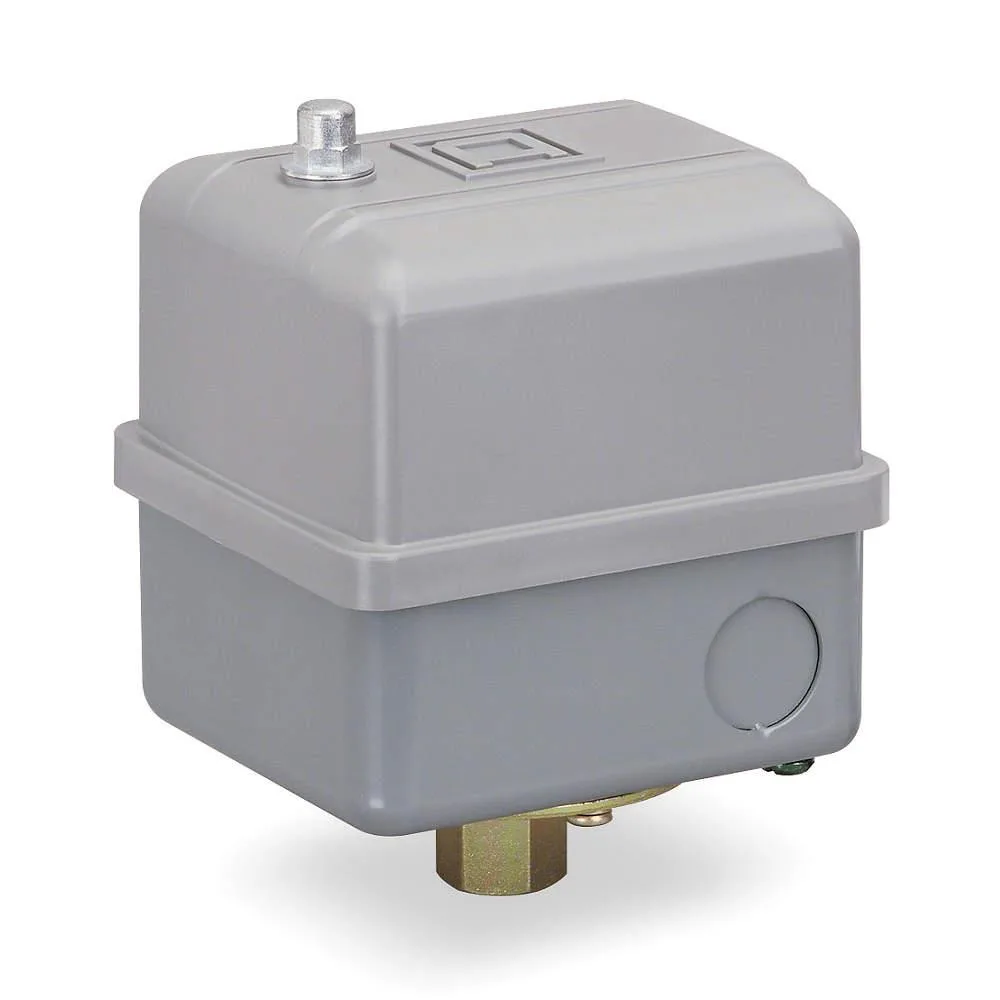

Square D 9013GS pressure switch, compact rectangular housing, grey finish, single port, DPST contacts

SQUARE D

SQUARE D 9013GS Pressure Switch 40/20 psi DPST 10A

SKU CH-52QH-T39W7

Controls water or air pumps at 40/20 psi with DPST contacts rated 10 A

  • TypeLight Switch
  • Automatically controls pumps at 40/20 psi factory settings
  • DPST contacts switch up to 10 A at 120 V
  • Handles 2 hp single-phase or 5 hp three-phase motors
  • Adjustable differential from 15 to 30 psi for precise cycling
  • NEMA 1 enclosure suits indoor air and water systems

Pressure Switch 40/20 psi DPST 10A

The Square D 9013GS is a water and air pressure switch designed for air compressor and water pump control. It uses a DPST contact form rated at 10A with a factory on/off setting of 40/20 psi. The switch operates on a reverse action principle with a pressure differential range of 15 to 30 psi. It carries a NEMA 1 rating for indoor use.

Single 1/4 in FNPS Port Compatibility

Before ordering verify that your system uses a single 1/4 in FNPS connection for the pressure port. Confirm the operating pressure falls within the 5 to 80 psi range and that the 15 to 30 psi differential suits your pump cycle requirements. Ensure the electrical supply matches the motor horsepower ratings listed for single or three-phase voltages. The switch has no unloader valve so external unloading must be handled separately.

Manual Switch Action and NEMA 1 Rating

The switch features manual switch action with no automatic unloader function included. Its NEMA 1 enclosure rating limits installation to dry indoor locations protected from dust and moisture. The DPST contact form allows simultaneous disconnection of both lines for motor loads up to 2 hp at 120V single phase, 3 hp at 240V single phase, and 5 hp at 240V or 480V three phase. No additional accessories or software are bundled with this unit.

Highlights

  • Automatically controls pumps at 40/20 psi factory settings
  • DPST contacts switch up to 10 A at 120 V
  • Handles 2 hp single-phase or 5 hp three-phase motors
  • Adjustable differential from 15 to 30 psi for precise cycling
  • NEMA 1 enclosure suits indoor air and water systems

Specifications

BrandSquare D
TypeLight Switch

Questions about this item

Does the 9013GS pressure switch include any fittings or unloader valve in the box?

The switch ships with the 1/4 in FNPS port only; no unloader valve or extra fittings are supplied.

Should I choose the 40/20 psi factory setting or a different range for my compressor?

The unit is factory set to cut in at 20 psi and cut out at 40 psi, adjustable within a 5 to 80 psi range and 15 to 30 psi differential.

Will the DPST contacts rated at 10 A handle my 240 V single-phase motor?

At 240 V single-phase the contacts are rated for 3 hp, which covers most small compressors and pumps.
