SQUARE D

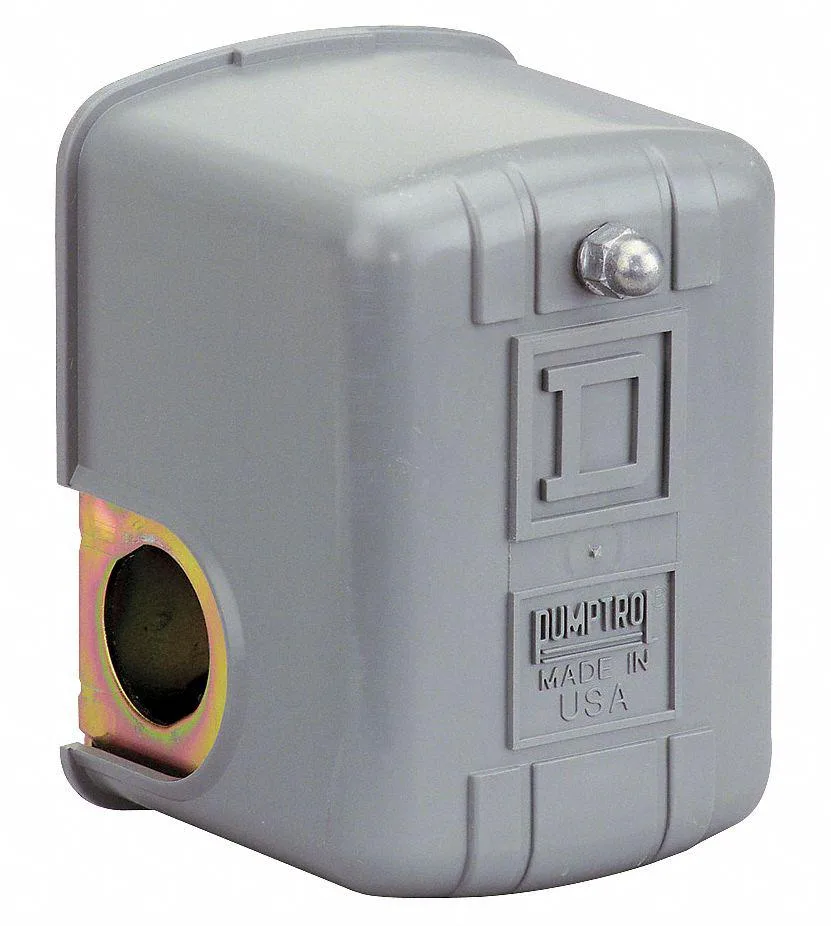

SQUARE D 9013FS Pressure Switch 40-60PSI 1Port 10A
Water pump pressure switch activates at 40 psi and cuts out at 60 psi with a 10 A DPST contact rated for 1.5 hp at 120 V
- TypeLight Switch
- Controls water pumps automatically with 40/60 psi factory settings
- Handles up to 10 A for reliable motor switching
- Operates from -22 °F to 257 °F for harsh environments
- DPST contacts switch both lines for safer disconnection
- Adjustable 15–30 psi differential fine-tunes cut-in and cut-out
Pump control switch
The Square D 9013FS pressure switch manages water-pump operation by opening and closing contacts at factory-set 40 and 60 psi points. It suits residential and light-commercial well systems that need automatic start-stop control without an unloader valve. A single 1/4 inch FNPS port connects directly to the pressure tank or piping. The DPST contact form handles motor loads up to the listed horsepower ratings.
Replaces worn electromechanical switches
Installers choose this model when an existing switch no longer holds its cut-in or cut-out pressures or when contacts have pitted from repeated motor starting. The 15 to 30 psi adjustable differential lets technicians match the original tank draw-down if required. The jump is worth it when the old unit causes short-cycling, pressure creep or complete pump failure. Manual auto-off lever provides a local shut-off for service.
Limited to NEMA 1 indoor use
The enclosure carries a NEMA 1 rating, so it must stay in a dry, non-hazardous location away from wash-down or corrosive atmospheres. Operating temperature spans -22 to 257 degrees F, covering unheated pump houses in cold climates. Electrical ratings top out at 10 amps with motor loads of 1-1/2 hp at 120 volts single-phase, 2 hp at 240 volts single-phase, 3 hp at 240 volts three-phase and 1 hp at 480 volts three-phase. No unloader port means the switch cannot vent head pressure on compressor applications.
Highlights
- Controls water pumps automatically with 40/60 psi factory settings
- Handles up to 10 A for reliable motor switching
- Operates from -22 °F to 257 °F for harsh environments
- DPST contacts switch both lines for safer disconnection
- Adjustable 15–30 psi differential fine-tunes cut-in and cut-out
Specifications
| Brand | Square D |
|---|---|
| Type | Light Switch |
Questions about this item
What port size does the 9013FS pressure switch use for pipe connection?
The switch has one 1/4 in FNPS port for plumbing attachment.
Which wiring step is most often missed when installing this DPST switch?
Connecting both poles of the DPST contacts so each leg of the motor circuit is switched.
How often should the 40-60 psi pressure settings be checked after installation?
Verify the cut-in and cut-out pressures at least once a year or after any system pressure change.
