SQUARE D

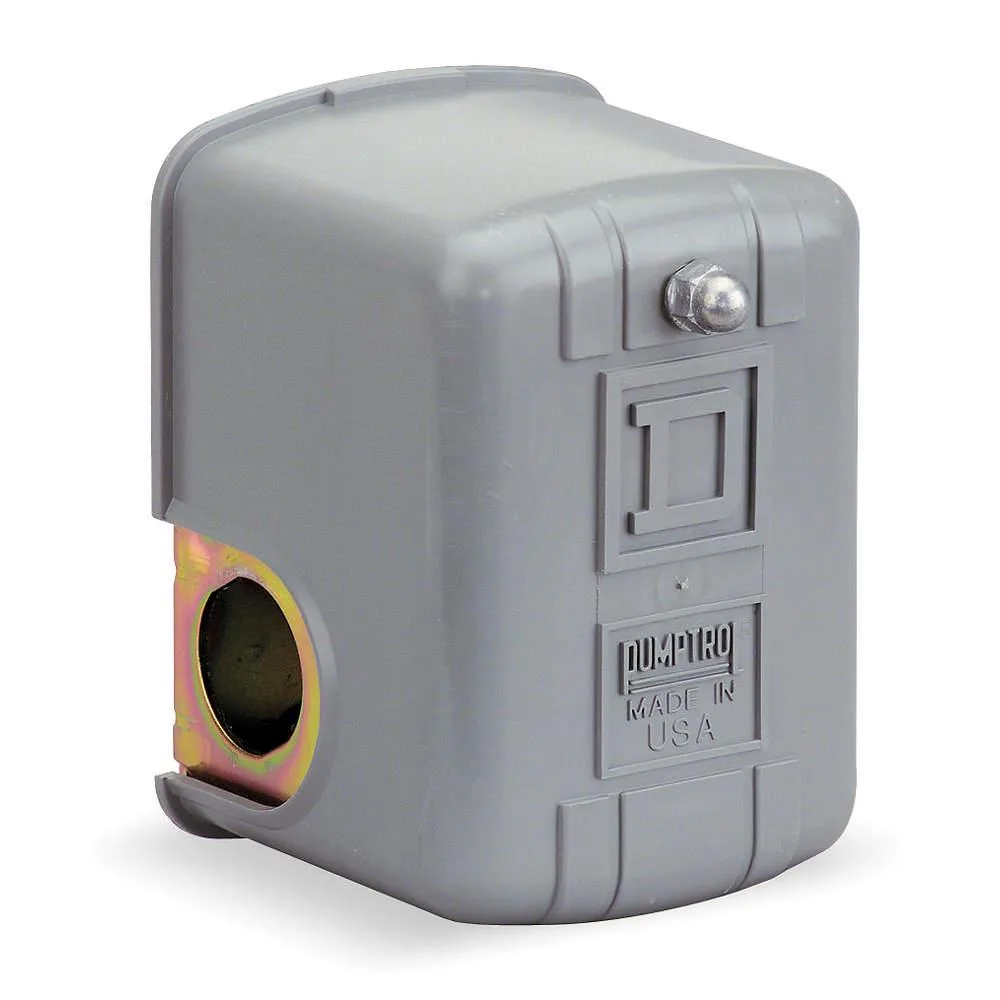

SQUARE D 9013FR Pressure Switch 10-5 PSI SPST 10A
Pressure switch for water pumps with 10/5 psi factory settings and SPST contacts
- TypeLight Switch
- Reliable water-pump control with 10/5 psi factory settings
- SPST reverse-action contact handles 10 A at 120 V or 240 V
- Single 1/4 in FNPS port simplifies plumbing installation
- Operates from -22 to 257 °F for wide temperature tolerance
- NEMA 1 enclosure suits indoor non-hazardous locations
Pressure Switch for Water Pumps
The Square D 9013FR is a pressure switch designed to control water pump systems. It operates with a factory on/off setting of 10 to 5 PSI and features a single 1/4 inch FNPS port for connection. The switch uses an SPST electrical contact form with reverse action to manage pump operation automatically.
Suits Standard Residential Pumps
This switch suits installations requiring a pressure differential adjustable between 6 and 20 PSI within a 4 to 45 PSI range. It supports motor loads up to 1 hp at 120V, 240V single-phase, or 240V three-phase. Buyers needing an unloader valve function or a different port configuration should look at other models.
Straightforward Wiring and Mounting
Installation involves wiring the SPST contacts to the pump motor circuit and threading the single port onto the pressure line. The NEMA 1 rating means the enclosure is for indoor use only, so outdoor mounting requires additional protection. The operating temperature range spans -22 to 257 degrees Fahrenheit.
Highlights
- Reliable water-pump control with 10/5 psi factory settings
- SPST reverse-action contact handles 10 A at 120 V or 240 V
- Single 1/4 in FNPS port simplifies plumbing installation
- Operates from -22 to 257 °F for wide temperature tolerance
- NEMA 1 enclosure suits indoor non-hazardous locations
Specifications
| Brand | Square D |
|---|---|
| Type | Light Switch |
Questions about this item
What power supply does the 9013FR switch need to control a 1 hp motor?
It handles 1 hp at 120 V single-phase, 240 V single-phase or 240 V three-phase.
Will the 10-5 psi factory setting work with my existing 1/4 in FNPS pump port?
Yes, the switch has one 1/4 in FNPS port that matches the pump connection.
How can I verify the switch is operating correctly after installation?
The pump should start at 5 psi and stop at 10 psi, confirming the reverse-action set-points.
