SQUARE D

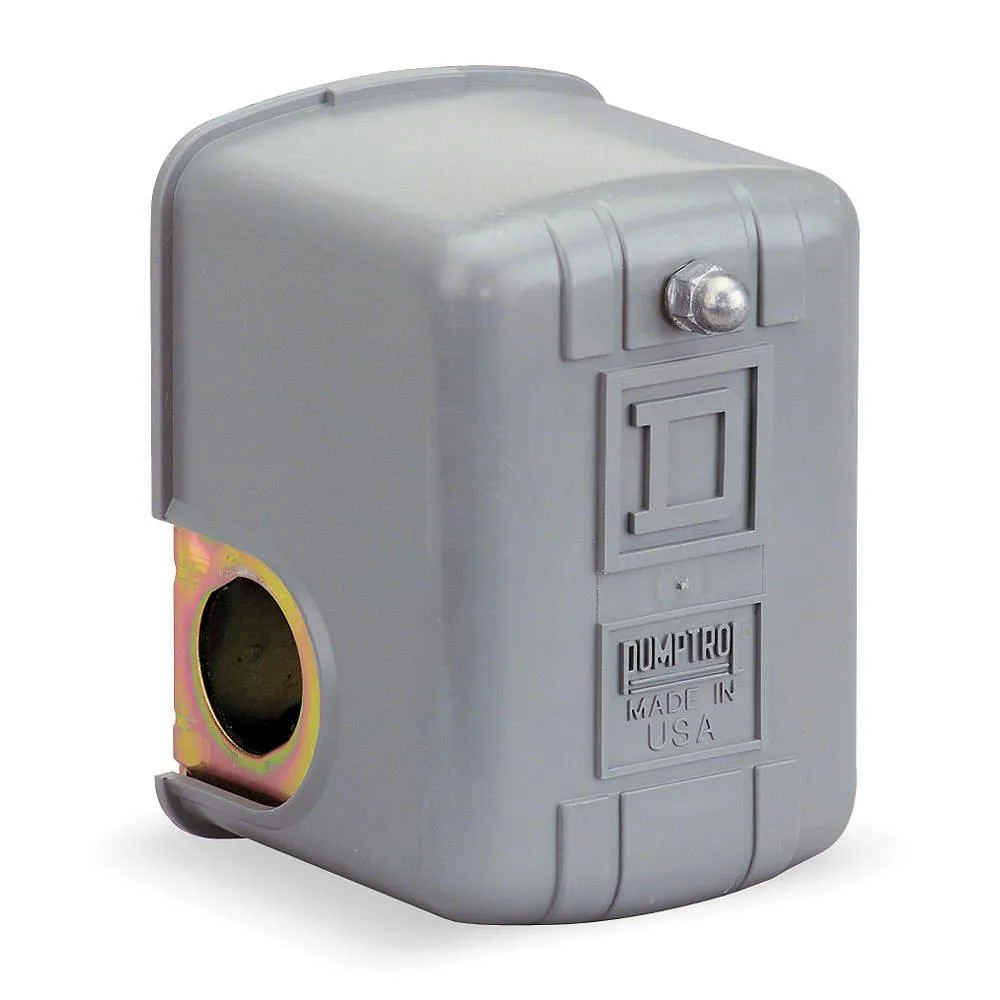

SQUARE D 9013FH Pressure Switch 105-135 PSI
Controls air-compressor pressure between 105 and 135 psi with a 30 psi differential, DPST contacts rated at 10 A and NEMA 1 enclosure
- TypeLight Switch
- Controls compressor at 105-135 PSI cut-in/cut-out
- 30 PSI differential prevents rapid cycling
- DPST contacts handle 10 A at 120/240 V
- Supports 1.5 hp single-phase and 2 hp three-phase motors
- NEMA 1 enclosure suits indoor installations
Air compressor pressure switch
The Square D 9013FH pressure switch controls air compressors with a factory on/off setting of 105/135 psi. It uses a standard action mechanism and DPST electrical contact form. The switch covers a pressure range of 40 to 150 psi with a 30 psi differential. It is rated for NEMA 1 environments.
Single port 1/4 in FNPS connection
The unit mounts via one 1/4 in FNPS port and requires no unloader valve. Manual Auto/Off switch action lets the operator select automatic cycling or manual shut-off. It supports up to 10 A and handles motor loads of 1-1/2 hp at 120 V single-phase, 2 hp at 240 V single-phase, 3 hp at 240 V three-phase and 1 hp at 480 V three-phase.
Standard action with NEMA 1 rating
The switch operates without a dedicated unloader, relying on its standard action to manage cut-in and cut-out cycles. NEMA 1 rating indicates protection against falling debris in indoor locations. Power draw varies with the connected motor load up to the listed horsepower ratings. No fan or active cooling is included.
Highlights
- Controls compressor at 105-135 PSI cut-in/cut-out
- 30 PSI differential prevents rapid cycling
- DPST contacts handle 10 A at 120/240 V
- Supports 1.5 hp single-phase and 2 hp three-phase motors
- NEMA 1 enclosure suits indoor installations
Specifications
| Brand | Square D |
|---|---|
| Type | Light Switch |
Questions about this item
What is the maximum pressure the 9013FH switch can handle before it trips?
The factory setting cuts out at 135 psi and the overall range tops out at 150 psi.
How much heat or noise does the switch generate during continuous compressor cycling?
The DPST contacts are rated for 10 A and the NEMA 1 enclosure is designed for indoor use with no active cooling required.
What electrical supply must already be in place for this pressure switch to operate?
It needs a 120 V or 240 V single-phase circuit, or a 240 V or 480 V three-phase supply, wired to the 1/4 in FNPS port.
