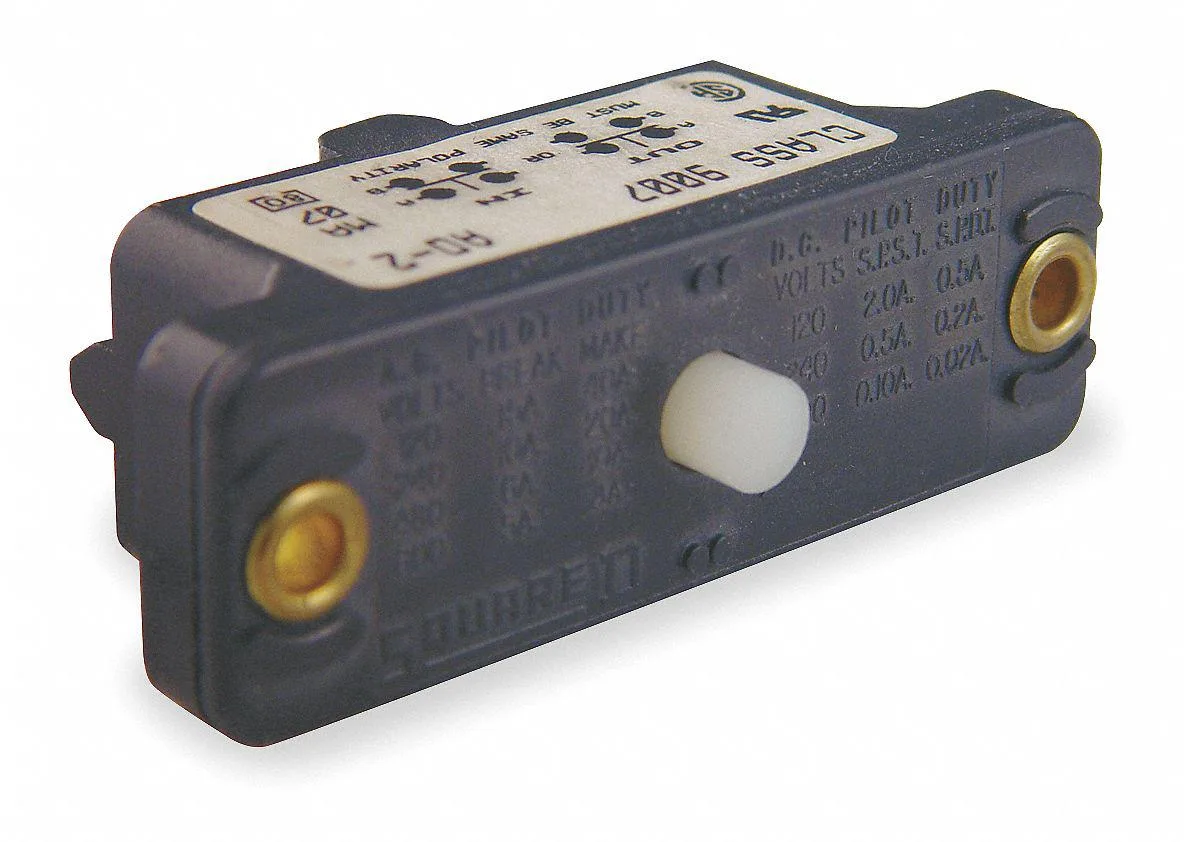

SQUARE D 9007AO1 Snap Action Switch Plunger 1NC/1NO 15 A
Snap-action plunger switch rated 15 A at 600 V AC with 1NC/1NO contacts and screw terminals
- Snap-action mechanism gives instant contact changeover with 15 A AC rating
- Plunger actuator provides direct mechanical operation for precise limit sensing
- 1NC/1NO contact form delivers both normally closed and normally open circuits
- Compact 2.5 in × 1.1 in × 0.83 in body fits tight machine envelopes
- Screw terminals on 2.10 in centres allow secure wiring without special tools
Snap Action Switch Plunger 1NC/1NO 15 A
The Square D 9007AO1 is a snap action limit switch with a plunger actuator designed for industrial control circuits. It suits maintenance engineers and panel builders who need reliable position sensing on conveyors, machine guards or automated equipment.
Screw terminals and 2.10 in mounting centres
Wiring uses screw connections that accept standard ring or fork lugs for a secure termination. The switch body measures 2.5 in wide by 1.1 in deep by .83 in high, so verify enclosure depth before drilling the mounting holes.
15 A at 600 V AC and .5 A at 125 V DC
The contacts carry 15 A on AC loads up to 600 V, making them suitable for motor starter coils and control relays. On DC the rating drops to .5 A at 125 V, so the switch is not intended for higher voltage DC switching applications.
Highlights
- Snap-action mechanism gives instant contact changeover with 15 A AC rating
- Plunger actuator provides direct mechanical operation for precise limit sensing
- 1NC/1NO contact form delivers both normally closed and normally open circuits
- Compact 2.5 in × 1.1 in × 0.83 in body fits tight machine envelopes
- Screw terminals on 2.10 in centres allow secure wiring without special tools
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
How do I confirm the 9007AO1 is switching correctly after wiring?
Apply control voltage and verify the 1NC/1NO contacts change state at the plunger's actuation point; measure continuity on both circuits to confirm 15 A AC and 0.5 A DC ratings are met
What comes with the 9007AO1 and what must I source separately?
The switch body with plunger actuator and screw terminals is included; mounting hardware, wiring, and any required enclosure or DIN-rail clips are not supplied
Which contact form suits a circuit needing both a normally closed and a normally open path?
The 1NC/1NO configuration provides one normally closed and one normally open contact in a single 9007AO1 unit, covering both functions without additional switches
