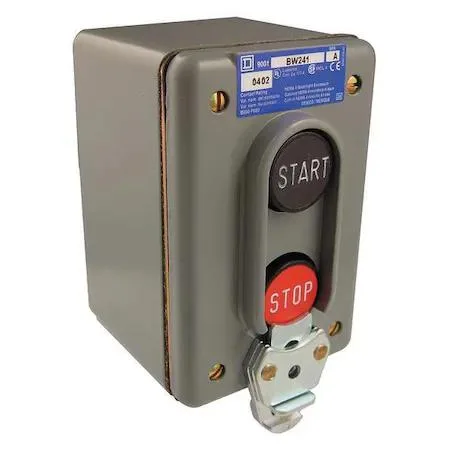

Grey zinc wall-mounted enclosure with black and red push buttons, 30 mm

SQUARE D

SQUARE D 9001BW241 30 mm 2-Button Control Station

SKU CH-2SCK-ZW477

30 mm two-button control station with momentary start/stop push buttons, 1NO/1NC contacts rated 5 A at 600 V AC, NEMA 4 and IP66 zinc enclosure

  • TypeIndustrial Electrical Controls & Automation
  • Size30 mm
  • Two momentary push buttons for start/stop control
  • 30 mm operators fit standard industrial cut-outs
  • NEMA 4 and IP66 enclosure resists dust and water jets
  • Zinc die-cast housing with grey finish for durability
  • 1NO/1NC contacts rated 5 A at 600 V AC / 24 V DC

30 mm Two-Button Control Station

This SQUARE D 9001BW241 unit provides two momentary push buttons in a 30 mm zinc enclosure rated NEMA 4 and IP66. The black and red operators carry Start/Stop legends and 1NO/1NC contacts rated 5 A at 600 V AC or 24 V DC. It is built for wall-mounted industrial control panels that need a compact, weather-resistant operator interface.

Replaces Single-Function Stations

A single Start/Stop station replaces separate push-button enclosures and reduces panel cut-outs. The jump is worth it when an application needs both motor start and stop functions in one UL-listed, CE-marked housing with CSA certification. It is not suited for applications that require maintained-action operators, pilot lights, mechanical interlocks or more than two operators.

Sustained Industrial Duty

The zinc enclosure and IP66 seal maintain contact integrity during wash-down cycles and continuous vibration. Contacts rated for 5 A at 600 V AC handle repeated motor-start inrush without overheating. The momentary action returns automatically, so the station remains ready for the next cycle without manual reset. It is not designed for high-cycle automated pressing where a foot switch or PLC input would be more appropriate.

Highlights

  • Two momentary push buttons for start/stop control
  • 30 mm operators fit standard industrial cut-outs
  • NEMA 4 and IP66 enclosure resists dust and water jets
  • Zinc die-cast housing with grey finish for durability
  • 1NO/1NC contacts rated 5 A at 600 V AC / 24 V DC

Specifications

BrandSQUARE D
TypeIndustrial Electrical Controls & Automation
Size30 mm

Questions about this item

Does the 30 mm zinc enclosure mount directly to a wall?

Yes, the enclosure is designed for direct wall mounting without a separate bracket.

What wiring step is often missed when connecting the 1NO and 1NC contacts rated at 5 A 600 V AC?

The momentary push buttons require the operator to hold each button for the contact to stay closed; releasing it opens the circuit automatically.

Will the gray zinc enclosure rated IP66 and NEMA 4 need gasket replacement over time?

The oil-resistant gasket should be inspected periodically and replaced if it shows cracking or compression set to maintain the IP66 seal.
