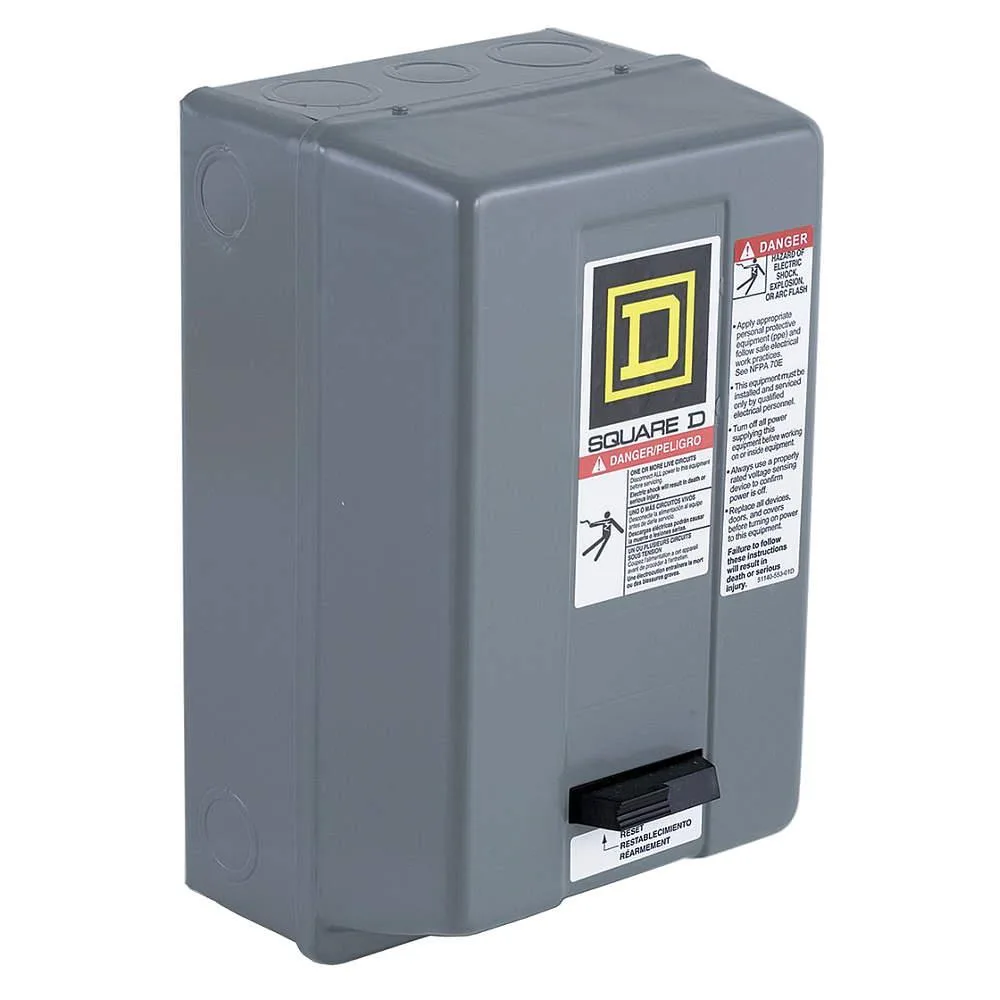

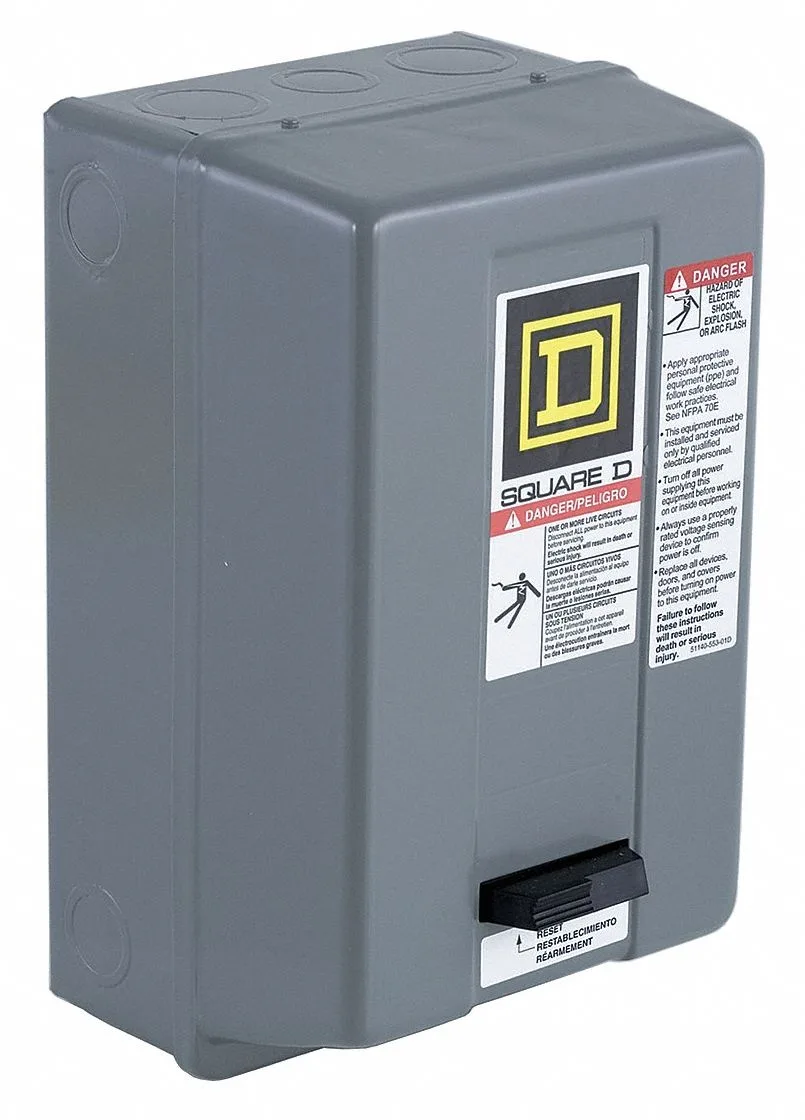

Square D 8536 NEMA magnetic motor starter in grey enclosure

SQUARE D

SQUARE D 8536SAG12V02H30S electrical starter

SKU CH-T2SG-BWH9K

Three-pole NEMA magnetic motor starter with electronic overload protection adjustable from 3 to 9 amps and a 110/120 V AC coil

  • NEMA magnetic starter rated for 600 V AC maximum voltage
  • Electronic overload protection adjustable from 3 A to 9 A with Trip Class 10/20
  • Three-pole non-reversing design for standard motor control applications
  • Coil operates on 110/120 V AC supply voltage
  • Built by Square D for reliable industrial motor starting

SQUARE D 8536SAG12V02H30S Starter

This SQUARE D 8536SAG12V02H30S is a NEMA magnetic motor starter built for three-phase industrial applications. It provides electronic overload protection with a current setting range of 3 A to 9 A. The non-reversing design suits equipment that runs in a single direction. Coil voltage is 110/120V AC.

Sustained Load Behaviour

Electronic overload protection operates at Trip Class 10/20 to guard the motor during extended duty cycles. The three-pole construction handles continuous three-phase current up to the 9 A maximum setting. With no auxiliary contacts fitted, the starter focuses purely on main power switching. Maximum voltage rating is 600V AC.

Installation Checks

Verify that the control circuit can supply 110/120V AC to the coil before ordering. Confirm the motor full-load current falls within the 3 A to 9 A adjustment range. Ensure the supply voltage does not exceed 600V AC and that a non-reversing, three-pole starter matches the machine wiring. No auxiliary contacts are included for remote signalling.

Highlights

  • NEMA magnetic starter rated for 600 V AC maximum voltage
  • Electronic overload protection adjustable from 3 A to 9 A with Trip Class 10/20
  • Three-pole non-reversing design for standard motor control applications
  • Coil operates on 110/120 V AC supply voltage
  • Built by Square D for reliable industrial motor starting

Specifications

BrandSQUARE D

Questions about this item

How much heat or noise does the 8536SAG12V02H30S generate when running continuously?

The starter uses an electronic overload relay with trip class 10/20 and a 110/120 V AC coil, so steady-state heat comes only from the coil and relay electronics; no fan or moving parts are present, making audible noise negligible in normal operation.

What supply voltage and control wiring must already be in place for the 8536SAG12V02H30S to operate?

A 110/120 V AC control circuit to energise the coil and a three-phase power feed up to 600 V AC for the main contacts are required; the overload relay adjusts from 3 A to 9 A so the motor’s full-load current must fall within that range.

Will the 8536SAG12V02H30S work with an existing three-phase motor wired for 600 V AC and a 9 A overload setting?

Yes — the starter is rated for three-phase loads up to 600 V AC, provides three power poles, and the electronic overload can be set to 9 A maximum, matching motors within that current band.
