SPEEDAIRE

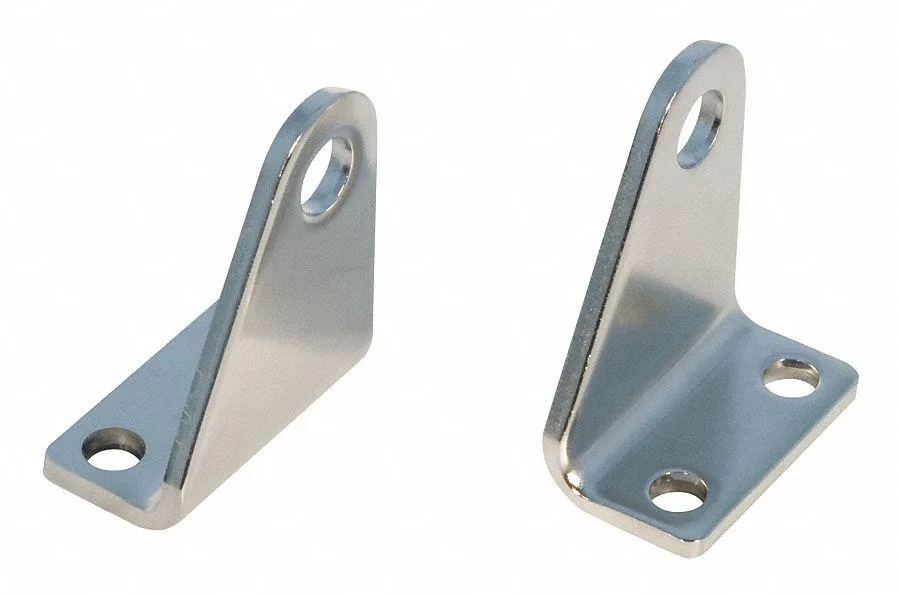

SPEEDAIRE NCG-PC050 End Mount Pivot Bracket
Steel end-mount pivot bracket for SMC NCM cylinders, rear mounting with pivot pin and retaining rings included
- End mount design enables rear pivot mounting for flexible cylinder installation
- Steel body provides durable support for pneumatic cylinder applications
- Compatible with multiple bore diameters from 3/4 in to 1 1/2 in for versatile use
- Includes pivot pin and retaining rings for complete mounting hardware kit
- Works with SMC NCM series cylinders and Grainger 5THH/J part numbers
End Mount Pivot Bracket for NCM Series
This SPEEDAIRE NCG-PC050 end mount pivot bracket fits SMC NCM series cylinders. It mounts at the rear with a pivot design and includes a pivot pin and retaining rings. The steel body suits bore diameters of 3/4 in, 7/8 in, 1 1/16 in, 1 1/4 in, and 1 1/2 in. It matches Grainger part numbers 5THH1 through 5THJ2.
Installation and Common Issues
The bracket bolts to the cylinder rear cap using the supplied pivot pin and retaining rings. No special tools are required beyond standard wrenches for the mounting bolts. Ensure the pin seats fully and the rings lock in their grooves to prevent the cylinder from detaching under load. Misalignment between the bracket and the mounting surface can bind the pivot action.
Pre-Order Checks
Verify your cylinder belongs to the SMC NCM series and has a bore diameter listed in the specifications. Confirm the rear mounting face matches the bracket’s overall width of 3/4 in and height of 1 3/4 in. Check that the existing mounting hardware threads match the bracket holes. This bracket does not suit cylinders outside the listed bore range or different series.
Highlights
- End mount design enables rear pivot mounting for flexible cylinder installation
- Steel body provides durable support for pneumatic cylinder applications
- Compatible with multiple bore diameters from 3/4 in to 1 1/2 in for versatile use
- Includes pivot pin and retaining rings for complete mounting hardware kit
- Works with SMC NCM series cylinders and Grainger 5THH/J part numbers
Specifications
| Brand | SPEEDAIRE |
|---|
Questions about this item
How can I confirm the pivot bracket is installed correctly on my NCM cylinder?
The bracket aligns with the rear mount location and accepts the supplied pivot pin and retaining rings; once the pin seats fully and the rings lock in place, the cylinder pivots freely through its stroke.
What components come with the end mount pivot bracket and what must I source separately?
The box includes the steel pivot bracket, pivot pin and retaining rings; you still need the matching NCM cylinder and any mounting bolts for your frame.
Which bore diameter version of the NCG-PC050 should I select for a 1 1/16 in cylinder?
Choose the variant listed for 1 1/16 in bore — the same bracket covers 3/4 in, 7/8 in, 1 1/16 in, 1 1/4 in and 1 1/2 in diameters.
