SPEEDAIRE
SPEEDAIRE 5VKV7 Rod Clevis Kit
Connects piston rods to cylinders in 1 3/4 in, 2 in and 2 1/2 in bore sizes using a steel clevis with retaining rings, jam nut and pivot pin
- Fits 1 3/4 in, 2 in and 2 1/2 in bores for versatile mounting
- Steel body with retaining rings, jam nut and pivot pin for secure connection
- 1/2 in thread size matches common piston rod dimensions
- 1 11/16 in overall length fits standard cylinder assemblies
- Prop 65 notice included for California chemical compliance
SPEEDAIRE 5VKV7 Rod Clevis Kit

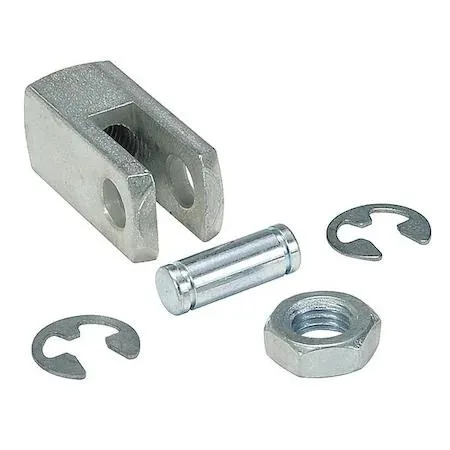

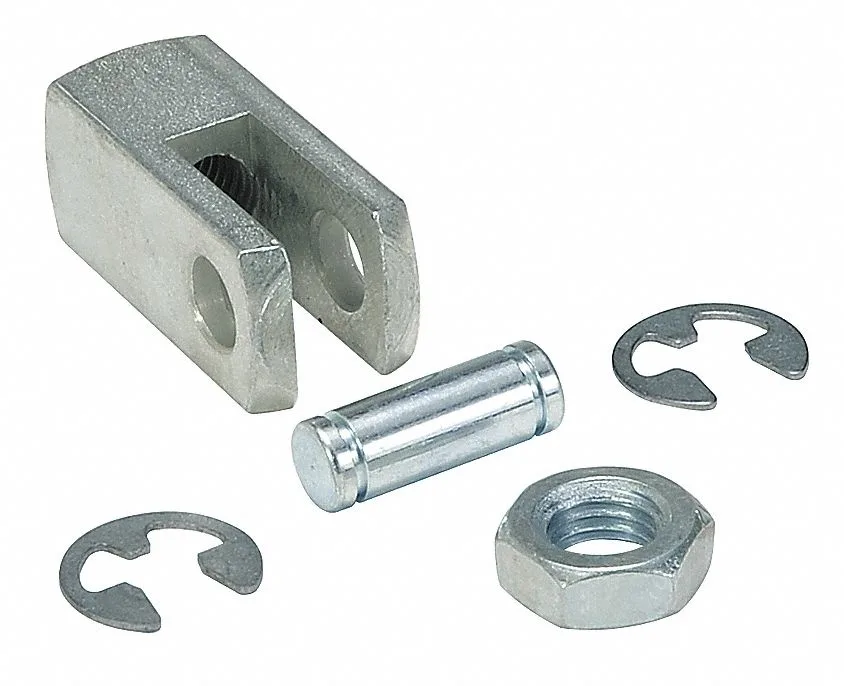

This piston rod clevis kit fits Speedaire air compressors with bore diameters of 1 3/4 in, 2 in and 2 1/2 in. It includes two retaining rings, a jam nut and a pivot pin for secure attachment. The steel body has an overall length of 1 11/16 in, overall width of 1 in and overall height of 3/4 in. Thread size is 1/2 in.
Compatibility and mounting checks
Verify that your compressor’s piston rod uses a 1/2 in thread and that the bore diameter matches one of the three listed sizes. Confirm the mount hole centre-to-centre width of .38 in aligns with your existing bracket. Ensure the clevis pin diameter suits the pivot pin supplied in the kit. California Proposition 65 warnings apply for cancer and reproductive harm.
Sustained operation behaviour
The steel construction resists deformation under continuous cycling loads typical of shop compressors. Retaining rings and jam nut maintain joint integrity during extended duty cycles. Pivot pin and clevis body distribute side loads evenly across the 1 in width. No lubrication schedule or thermal limit is specified by the manufacturer.
Highlights
- Fits 1 3/4 in, 2 in and 2 1/2 in bores for versatile mounting
- Steel body with retaining rings, jam nut and pivot pin for secure connection
- 1/2 in thread size matches common piston rod dimensions
- 1 11/16 in overall length fits standard cylinder assemblies
- Prop 65 notice included for California chemical compliance
Specifications
| Brand | SPEEDAIRE |
|---|
Questions about this item
What components are included with the SPEEDAIRE 5VKV7 Rod Clevis Kit?
The kit includes the clevis body, a jam nut, a pivot pin and two retaining rings for assembly.
Which bore diameters does the SPEEDAIRE 5VKV7 fit?
This clevis kit fits cylinders with 1 3/4 in, 2 in and 2 1/2 in bore diameters.
What does the 1/2 in thread size mean for installation?
The 1/2 in thread matches piston rods of that size, allowing direct mounting without an adapter.
