Aluminium pivot bracket with pin for two-inch cylinders

SPEEDAIRE

SPEEDAIRE 5VKV6 Pivot Bracket with Pin

SKU CH-GV6D-FE4J2

Pivot bracket with pin secures 2 in and 2½ in bore cylinders using included hardware

  • Pivot bracket enables flexible cylinder mounting
  • Aluminium body resists corrosion in harsh environments
  • Fits 2 in and 2 1/2 in bore cylinders

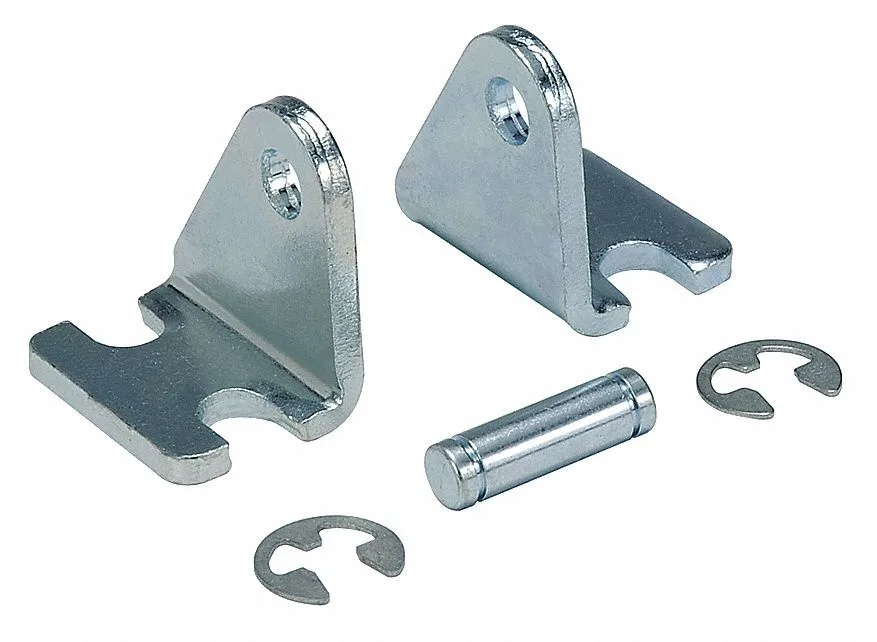

  • Includes two brackets, two retaining rings and pivot pin
  • Inch-dimensioned hardware simplifies imperial-system installations

SPEEDAIRE 5VKV6 Pivot Bracket

The SPEEDAIRE 5VKV6 is a cylinder mounting pivot bracket with pin designed for pneumatic systems. It fits bore diameters of 2 in and 2 1/2 in and suits maintenance teams or OEM assemblers working on compatible Speedaire actuators. The aluminum body provides corrosion resistance for industrial environments. This hardware kit includes two pivot brackets, two retaining rings, and a pivot pin.

Installation and common issues

The bracket mounts using holes spaced 0.75 in centre-to-centre, allowing direct attachment to standard cylinder caps. Technicians should verify bore compatibility before fitting to avoid misalignment. The supplied retaining rings secure the pivot pin; omitting them can lead to pin migration under vibration. No specialised tools are required beyond basic hand tools for the mounting bolts.

Practical limits of the inch hardware

All critical dimensions follow the inch measurement system, so metric fasteners will not match the 0.75 in hole spacing. The 3 in overall length and 1 1/2 in width constrain installation in tight machine frames. California Proposition 65 warnings apply because the product contains chemicals linked to cancer and reproductive harm. Buyers needing metric mounting patterns or different bore sizes must source alternative brackets.

Highlights

  • Pivot bracket enables flexible cylinder mounting
  • Aluminium body resists corrosion in harsh environments
  • Fits 2 in and 2 1/2 in bore cylinders
  • Includes two brackets, two retaining rings and pivot pin
  • Inch-dimensioned hardware simplifies imperial-system installations

Specifications

BrandSPEEDAIRE

Questions about this item

How do I verify the pivot bracket is working correctly after installation?

Confirm the cylinder pivots smoothly around the included pin without binding, and check that the .75 in mount hole centres align with your cylinder's bore diameter of 2 in or 2 1/2 in.

What components are included with the SPEEDAIRE 5VKV6 and what must be purchased separately?

The package supplies two pivot brackets, two retaining rings and one pivot pin; mounting fasteners for the .75 in centre-to-centre holes and the cylinder itself are not included.

Which version of the SPEEDAIRE 5VKV6 should I select for my cylinder bore size?

This single model fits both 2 in and 2 1/2 in bore diameters, so choose it when your cylinder matches either of those sizes.
