Cylindrical carbide end mill, two flutes, gold coating, quarter inch shank, five sixteenths diameter

SPEED TIGER

SPEED TIGER ISE5-16-2T Micrograin Carbide Square End Mill 2 Flute 5/16" Machine Shop Hardware

SKU CH-YEF3-QZW1H

Micrograin carbide square end mill with two flutes and AlTiBN coating for milling steels up to HRC45 and cast iron

  • TypeEnd Mills
  • Size/Dimensions5/16 In
  • MaterialCarbide
  • Compatibility/FitmentISE-2T
  • Selling Unit1

Option 5/16 In

Class 1 Pack

  • Micrograin carbide resists wear for long tool life
  • AlTiBN coating handles high heat at fast cutting speeds
  • 2-flute square end clears chips efficiently in slotting
  • Cuts carbon, alloy and pre-hardened steels up to HRC45
  • Ground in an ISO-9001 factory for consistent quality

SPEED TIGER ISE5-16-2T Square End Mill

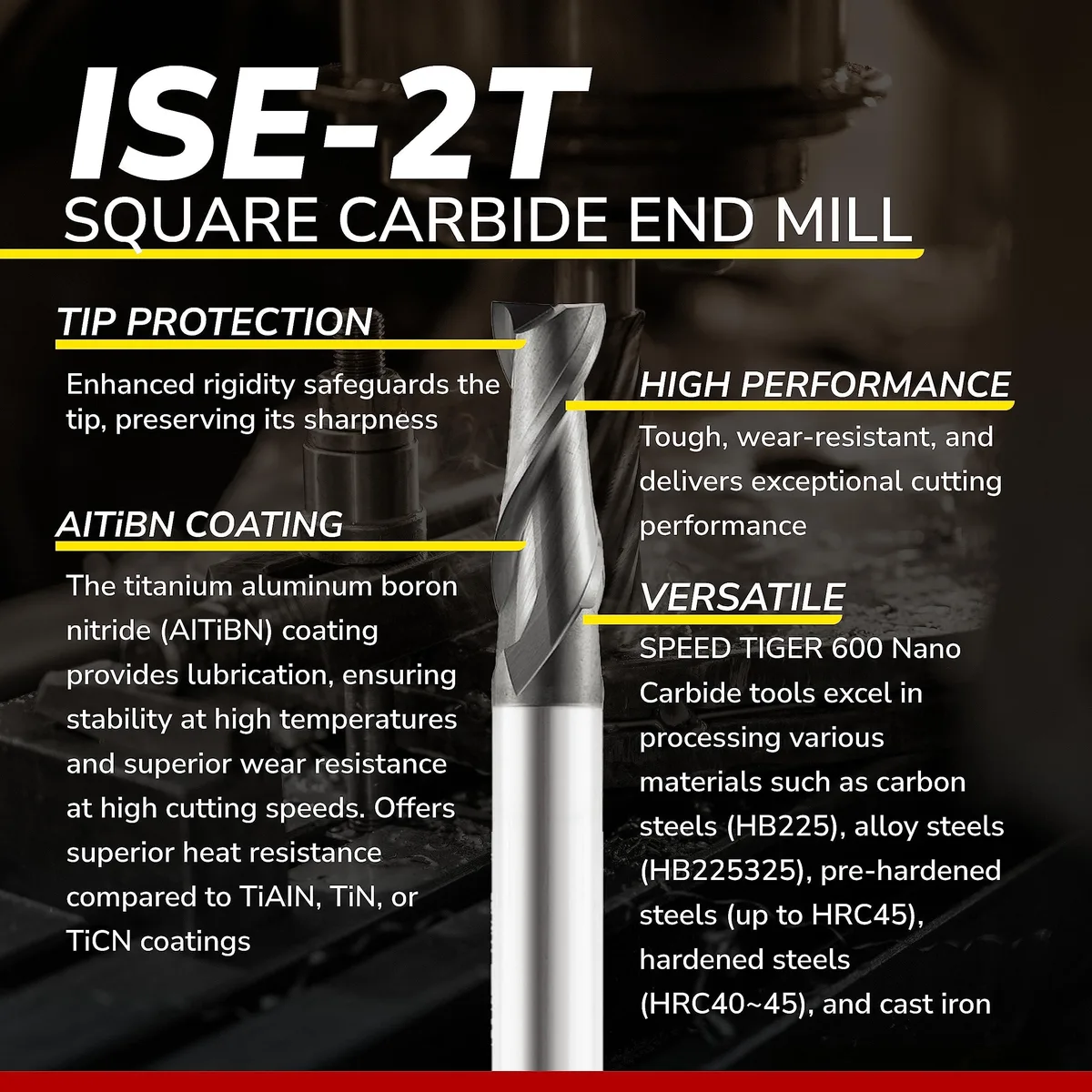

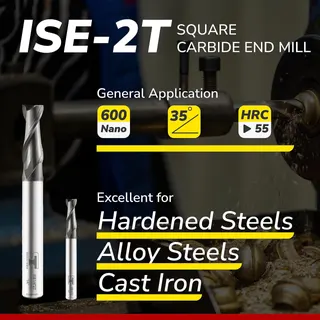

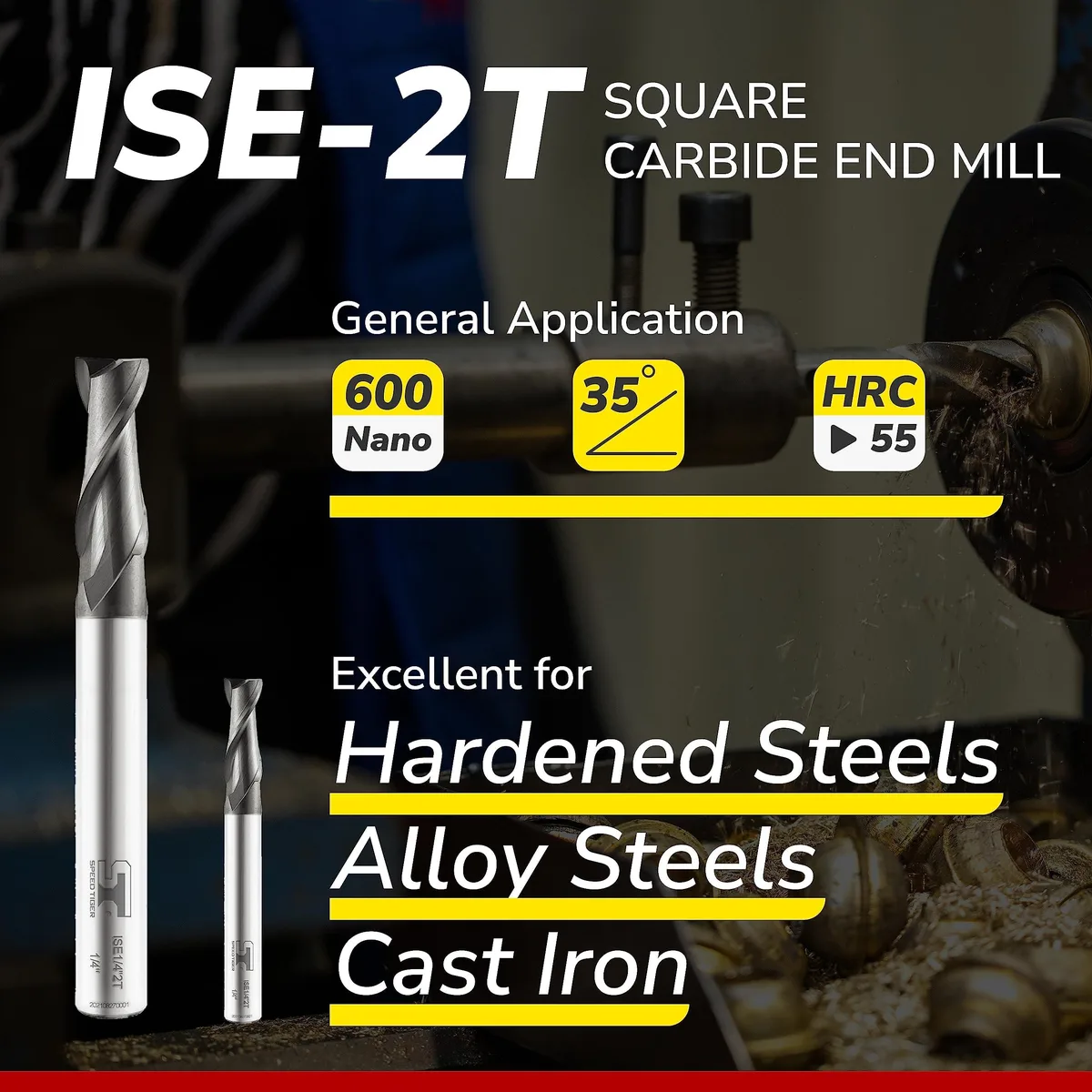

This SPEED TIGER ISE5-16-2T is a 2-flute square end mill made from micrograin carbide with an AlTiBN coating. It measures 5/16 inch in cutting diameter and features a 0.25 inch shank. The tool is designed for general metalworking applications on milling machines. It is sold as a single new unit.

Suited for alloy steels

Machinists working carbon steels around HB225, alloy steels between HB225 and 325, pre-hardened steels up to HRC45, hardened steels from HRC40 to 45, or cast iron will find this cutter effective. The AlTiBN coating provides lubricity and wear resistance at high cutting speeds and temperatures. Shops needing higher flute counts for finishing passes or tools for non-ferrous materials like aluminum should consider other geometries.

5/16 inch cutting diameter with 2 flutes

The 5/16 inch diameter and two-flute configuration determine the material removal rate and chip clearance for your milling operation. This specific size fits tool holders accepting a 0.25 inch shank. Verify that your machine setup and workpiece requirements match these dimensions before ordering.

Highlights

  • Micrograin carbide resists wear for long tool life
  • AlTiBN coating handles high heat at fast cutting speeds
  • 2-flute square end clears chips efficiently in slotting
  • Cuts carbon, alloy and pre-hardened steels up to HRC45
  • Ground in an ISO-9001 factory for consistent quality

Specifications

BrandSpeed Tiger
ModelISE5-16-2T
TypeEnd Mills
Size/Dimensions5/16 In
MaterialCarbide
Compatibility/FitmentISE-2T
Selling Unit1

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What collet or tool holder diameter is needed for the 0.25 inch shank?

A 0.25 inch collet or tool holder is required to secure the shank of this end mill.

Will the AlTiBN coating maintain performance when cutting pre-hardened steel up to HRC45?

Yes, the AlTiBN coating provides superior heat resistance and wear resistance at high cutting speeds for pre-hardened steels up to HRC45.

How can I confirm the cutter is performing correctly during a finishing pass on alloy steel?

Expect a smooth surface finish with minimal chatter and consistent chip evacuation when running at recommended speeds for alloy steel.
